Dual-Wavelength UVC Light Bulbs for OEM Systems

best uvc light bulbs t5 led tube 275nm

Product Description

The TZUVC-T5212 dual-wavelength lamp is designed for manufacturers, equipment builders, and engineering teams looking for compact uvc light bulbs for professional device integration. With a 270-280nm UVC wavelength combined with 395-405nm auxiliary near-UV/violet output, this model provides a practical light-source solution for custom systems that require low-voltage operation, stable structure, and OEM flexibility.

Built with a Φ15.8 x 212mm tube body and G5 lamp base, these uvc light bulbs are suitable for compact assemblies where space, mounting style, and electrical compatibility are important. The lamp supports 12V/24V input, with 310mA/160mA current, 4W power, and 48mW radiant power. A 120-degree view angle helps provide broader optical distribution within compatible equipment designs.

For manufacturers developing UV modules, disinfection devices, inspection systems, or customized light-source assemblies, these uvc light bulbs offer a balanced combination of compact size, dual wavelength output, and practical electrical specifications. The XHF-2YB 2.54mm yellow connector can be customized according to project needs, making the lamp easier to match with different internal wiring and control systems.

The TZUVC-T5212 is also built for long-term product planning. With a rated lifespan of 10,000 hours and a net weight of 170g, it is suitable for OEM projects that require repeatable specifications and stable batch supply. Factory OEM and ODM service is available for customers who need custom connectors, project matching, sample testing, or integration support.

These uvc light bulbs are intended for professional equipment use and should be installed with proper shielding, safety control, and user protection design. They are not designed for direct exposure to eyes, skin, people, pets, or unprotected occupied spaces. For brands, device makers, and industrial buyers, the TZUVC-T5212 provides a compact dual-wavelength option for custom UV product development.

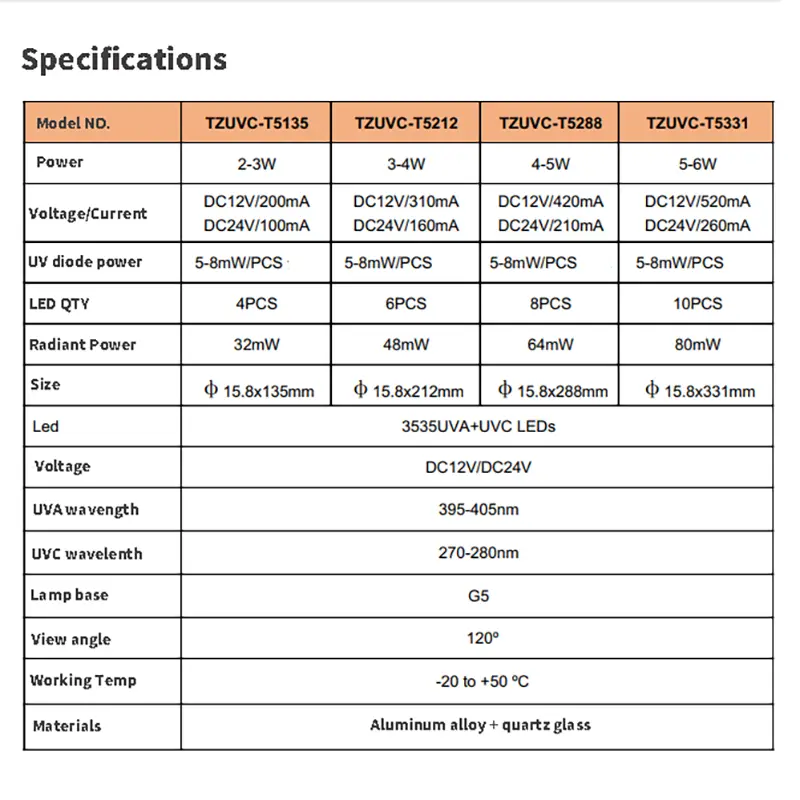

Specification:

Model NO.: TZUVC-T5212

1. Wavelength:270-280nm+395-405nm
2. Size: Φ15.8 x 212mm
3. Voltage:12V/24V
4. Current:310mA/160mA
5. Power:4W
6. Radiant Power:48mW
7. View angle:120degree
8. Lamp Base: G5
9. Connector: XHF-2YB 2.54mm yellow(customized)
10. Lifespan:10000hours
11. Net weight: 170g

FAQ

Q1: What wavelength do these uvc light bulbs use?
A1: These uvc light bulbs use a dual-wavelength design: 270-280nm UVC plus 395-405nm auxiliary near-UV/violet output.

Q2: What is the model number of this lamp?
A2: The model number is TZUVC-T5212.

Q3: What voltage does the lamp support?
A3: The lamp supports 12V/24V input. The current is 310mA at 12V and 160mA at 24V.

Q4: What is the power and radiant power?
A4: The power is 4W, and the radiant power is 48mW.

Q5: What lamp base does it use?
A5: These uvc light bulbs use a G5 lamp base.

Q6: Can the connector be customized?
A6: Yes. The standard connector is XHF-2YB 2.54mm yellow, and customized connector service is available.

Q7: What is the size of the lamp?
A7: The size is Φ15.8 x 212mm.

Q8: What is the view angle?
A8: The view angle is 120 degrees.

Q9: How long is the lifespan?
A9: The rated lifespan is 10,000 hours.

Q10: Do you provide OEM and ODM service?
A10: Yes. Factory OEM and ODM service is available, and samples can be provided for testing.
