Best 275nm Ceramic UVC LED Module for OEM Systems

CMD-FSC-CO1A UVC LED module is a 275nm deep ultraviolet LED module designed for equipment manufacturers which need a compact deep ultraviolet light source. Being emitted with a 270nm-278nm peak emission wavelength range, this module is intended for various applications which need UV-C light sources.

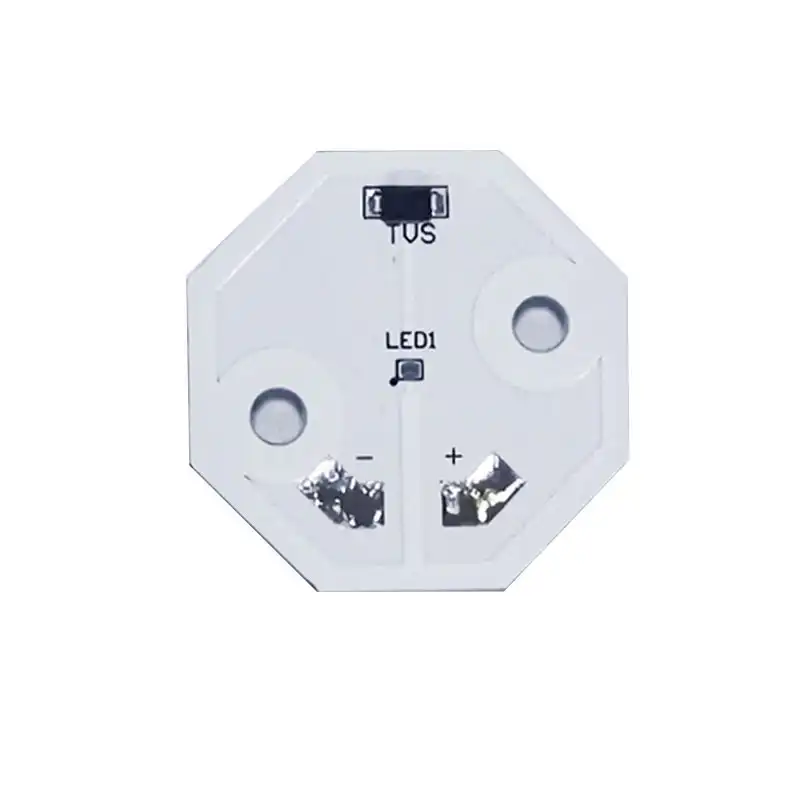

This UVC LED module is based on the ceramic package with an optical transparent window. The SMD structure and low thermal resistance design make this module suitable for product development where size, heat dissipation and reliability have to be taken into consideration. The module is SMT solderable, lead free and RoHS compliant, and can be used for engineering samples, production batches and OEM projects.

The CMD-FSC-CO1A operates at 5-7.5V with 200mA current and produces 14-25mW radiant power. A 120° view angle of this module helps to distribute the UV-C emission over a wide area in enclosed equipment. The 25x25mm module can be installed in air treatment modules, water sterilizers, analytical tools, compact disinfection equipment and automotive interior systems.

For analytical equipment, this UVC LED module can be used for fluorescent spectroscopy, chemical analysis and biological analysis in the 270nm-278nm spectral range. For disinfection equipment, it can be used as a UV-C light source in proper air and water sterilization systems. The final performance of the device will depend on the full design of the system including distance, exposure time, UV dose, chamber material, thermal path, target medium and other operating conditions.

The CMD-FSC-CO1A is a component, not a ready to use sterilizer. It is intended for installation only in enclosed and protected equipment. The direct UV-C exposure can damage eyes and skin. Don’t look directly at the working UVC LED module. Don’t expose people, animals and unprotected materials to the direct UV-C light. The equipment designers are recommended to include appropriate shielding, warning labels, current control, thermal management and safety interlock protection.

Samples are available for optical testing, soldering evaluation, prototype assembling and OEM system verification. If you need a compact 275nm UVC LED module for disinfection, spectroscopy or chemical and biological analysis, this module can be helpful for product development.

Specifications

Model No.: CMD-FSC-CO1A
Wavelength: 275nm
Peak Emission Range: 270nm to 278nm

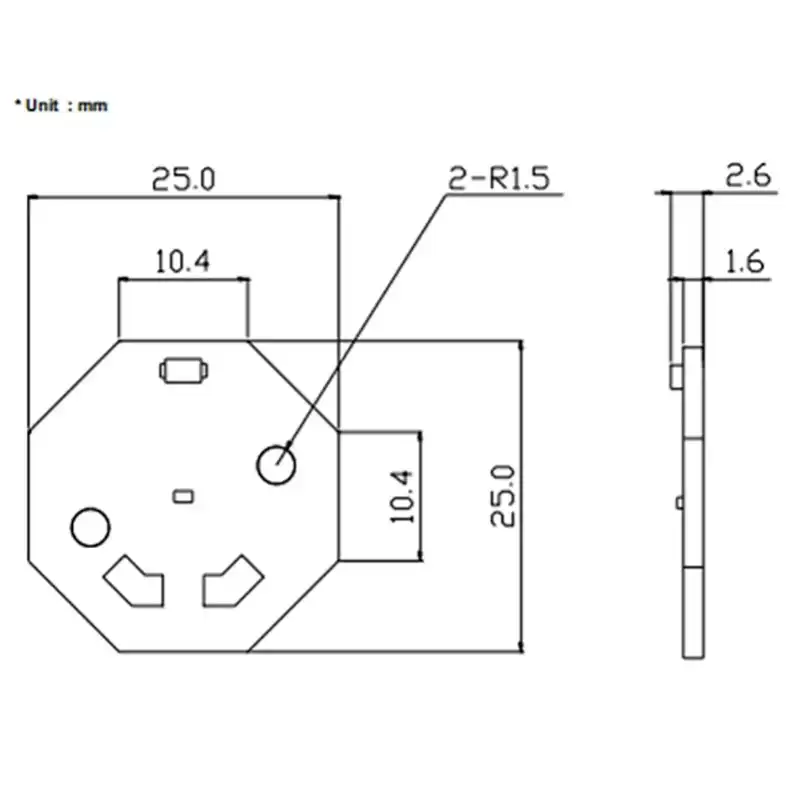

Size: 25 x 25mm
Voltage: 5-7.5V
Current: 200mA
Radiant Power: 14-25mW
View Angle: 120°
Package: Ceramic package with optical transparent window
Design: SMD design with low thermal resistance
Soldering: SMT solderable
Compliance: Lead free, RoHS compliant
Samples: Available

Features and Benefits

Deep ultraviolet LED
Low thermal resistance
SMT solderable
Lead free product
RoHS compliant

Key Applications

Disinfection
Air sterilization
Water sterilization
Fluorescent spectroscopy
Chemical analysis
Biological analysis
Automotive interior

FAQ

What is the CMD-FSC-CO1A UVC LED module used for?

The CMD-FSC-CO1A UVC LED module is used as a compact deep ultraviolet light source for disinfection, air sterilization, water sterilization, fluorescent spectroscopy, chemical analysis, biological analysis and automotive interior applications.

What wavelength does this module emit?

This module emits a light with a 275nm wavelength, with peak emission wavelengths from 270nm to 278nm.

Is this product a finished sterilizer?

No. This is a UVC LED module, not a finished sterilizer. It is intended for engineers and OEM manufacturers which need a UV-C component for enclosed equipment.

What is the radiant power?

The radiant power is 14-25mW. The module operates at 5-7.5V with 200mA current.

What package does the module use?

The LED is sealed in a ceramic package with an optical transparent window. This structure is intended for deep ultraviolet LED applications.

Is this UVC LED module SMT solderable?

Yes. The module uses an SMD design and is SMT solderable, it is suitable for PCB assembly and OEM production.

Is the product RoHS compliant?

Yes. This model is lead free and RoHS compliant.

Can this module be used for water sterilization?

Yes. It is intended for water sterilization equipment, but the final sterilization performance will depend on the system design, UV dose, water quality, flow rate, chamber structure and exposure time.

Can it be used for chemical and biological analysis?

Yes. The 270nm to 278nm spectral range makes this UVC LED module suitable for tools used in chemical and biological analysis.

Is it safe to view the module directly?

No. Don’t look directly at the working UVC LED module. The direct UV-C radiation may damage eyes and skin. It is intended for use only in protected equipment.

Are samples available?

Yes. Samples are available for prototype testing, optical evaluation, soldering tests and OEM project development.
