best uvc led bulb T5 2pin 275nm led tube lamp replacement philips
Product Description

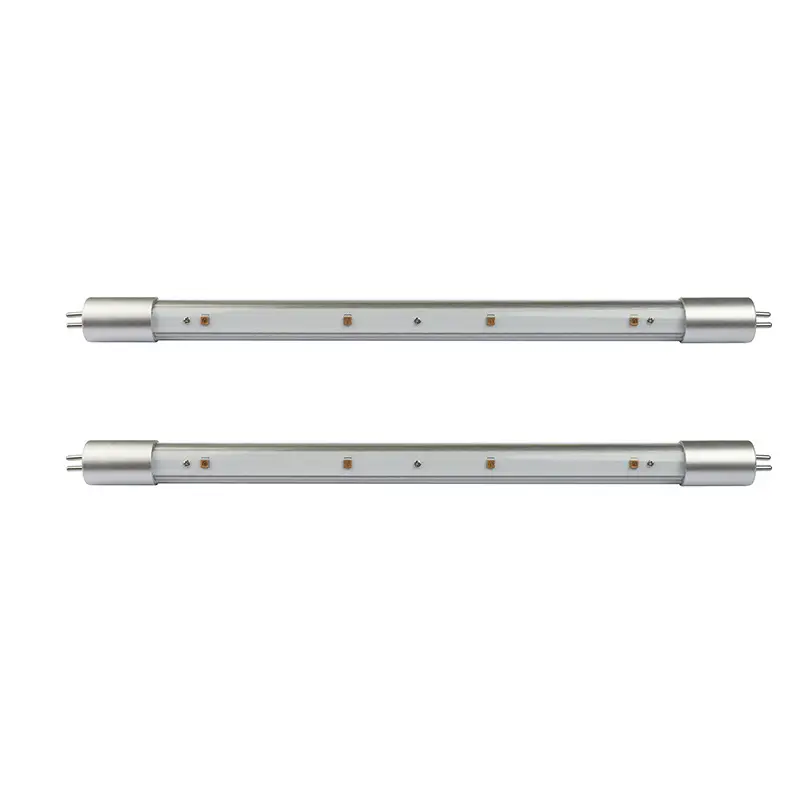

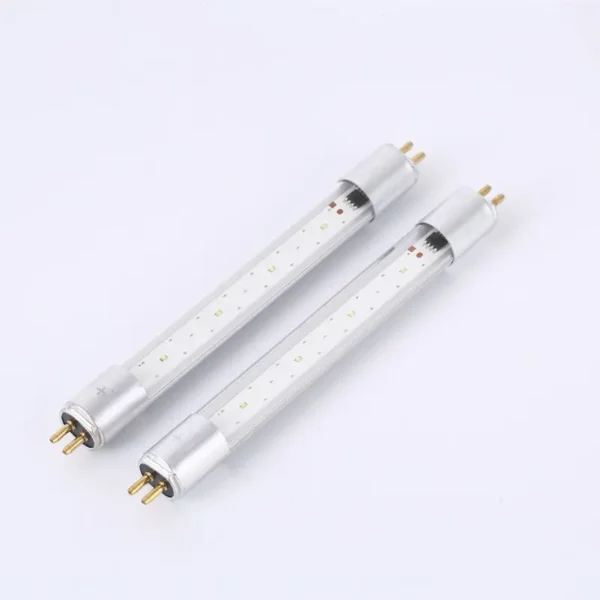

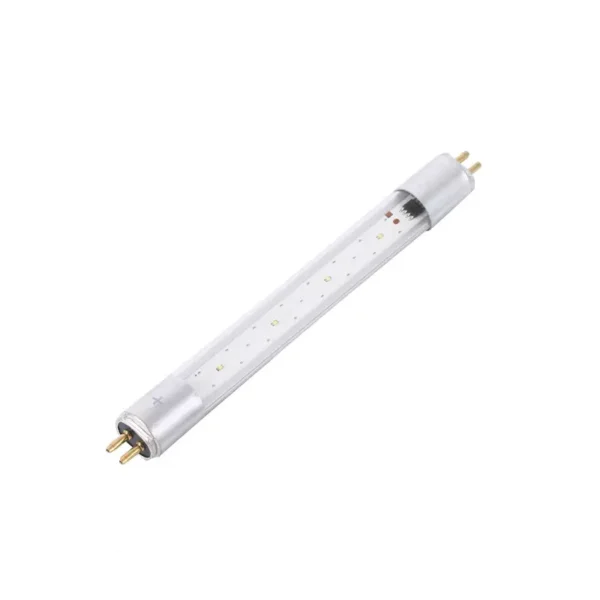

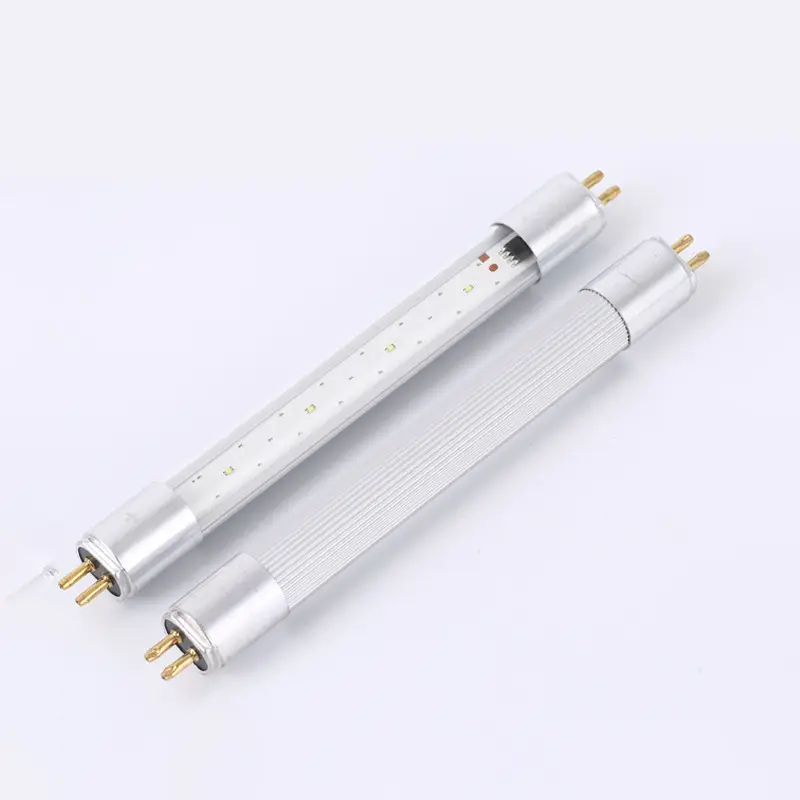

The TZUVC-T5135 is an innovative mini-dual wavelength uvc led bulb intended for manufacturers who require a small-sized, low-voltage UV light source for professional equipment development and assembly. The lamp provides UVC output (270-280nm) and UV emission (395-405nm) within one tube-shaped housing, allowing engineering teams to create customized UV units using defined electrical and physical parameters.
Such a uvc led bulb becomes especially handy for OEM orders when a client needs to create a product with limited space for UV light integration. With a Φ15.8 x 135mm housing and G5 lamp base, the bulb can be placed inside a compact lamp slot, enclosed UV unit, or any other device housing to assemble custom light source.
In terms of electrical features, the lamp works at 200mA/100mA, 3W power and 32mW radiant power. That makes it ideal for low-voltage UV equipment, prototype systems and product development that requires defined technical parameters for repeat production.
The dual-wavelength design provides a wider range of possibilities for product development. The 270-280nm wavelength creates a UVC output, while 395-405nm allows creating an additional UV/violet output for projects that require multiple optical functions. Due to 120-degree view angle, the uvc led bulb can work with extended internal light dispersion when mounted in a suitable protected chamber or device structure.
From the point of view of production for B2B clients, the TZUVC-T5135 provides useful assistance. The standard connector is XHF-2YB 2.54mm yellow, but customization options are also possible upon discussion of wiring, control board and installation. Factory OEM and ODM services are offered for private label orders, product development and UV device manufacturing.
The bulb’s lifespan is 20,000 hours and the net weight – 150g, which allows working with stable batch supplies and long-term planning of product development. Samples are available for tests prior to full scale manufacturing. The lamp is created for professional UV equipment, not for common room lighting. Shielding, safety labels and control protection should be applied because direct UV light exposure might cause harm to eyes and skin.

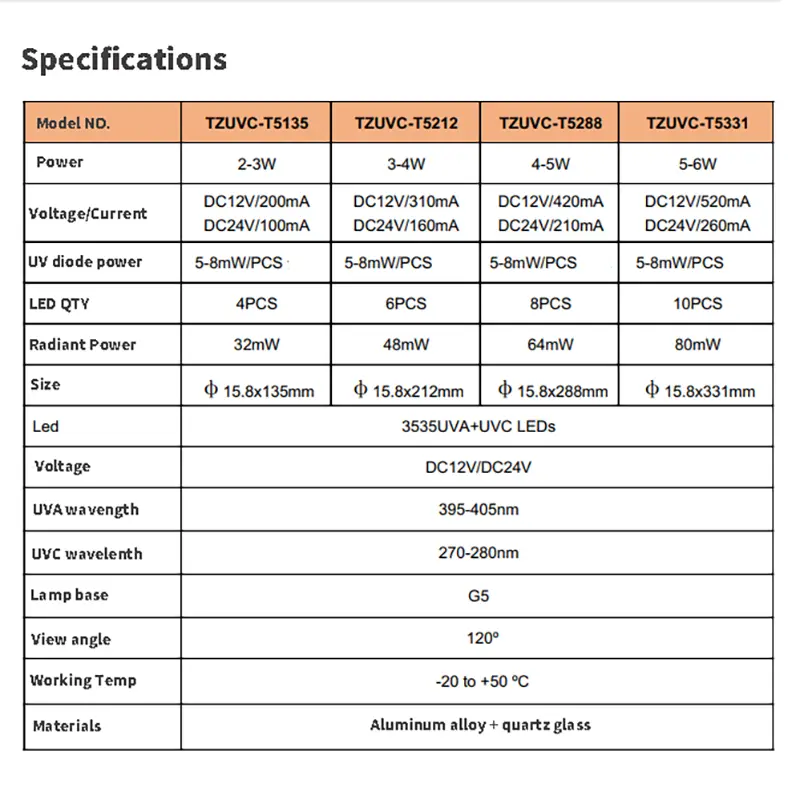

Specification
Model NO.: TZUVC-T5135

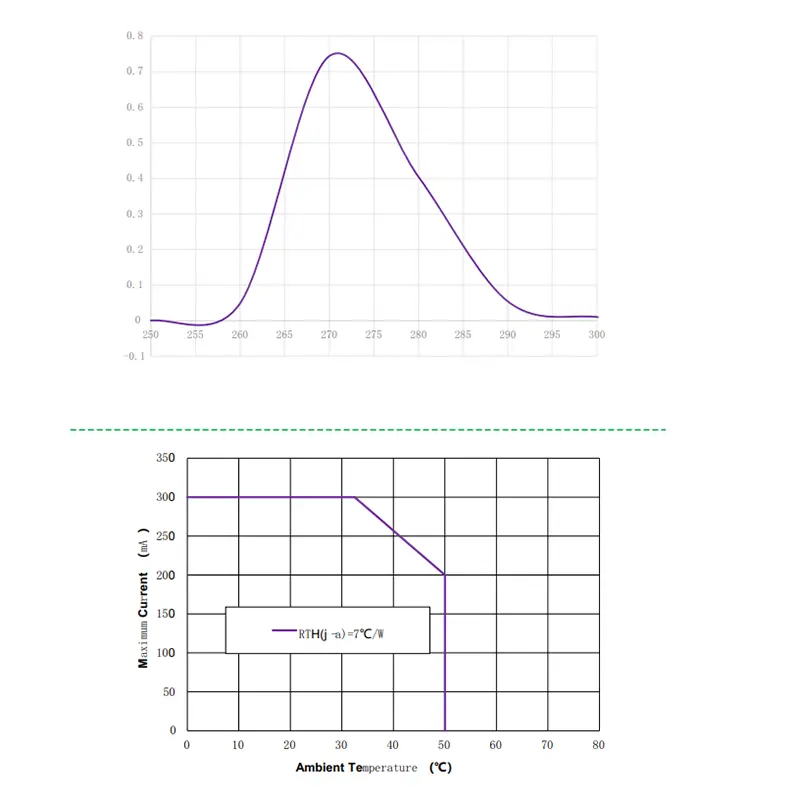

Wavelength: 270-280nm + 395-405nm

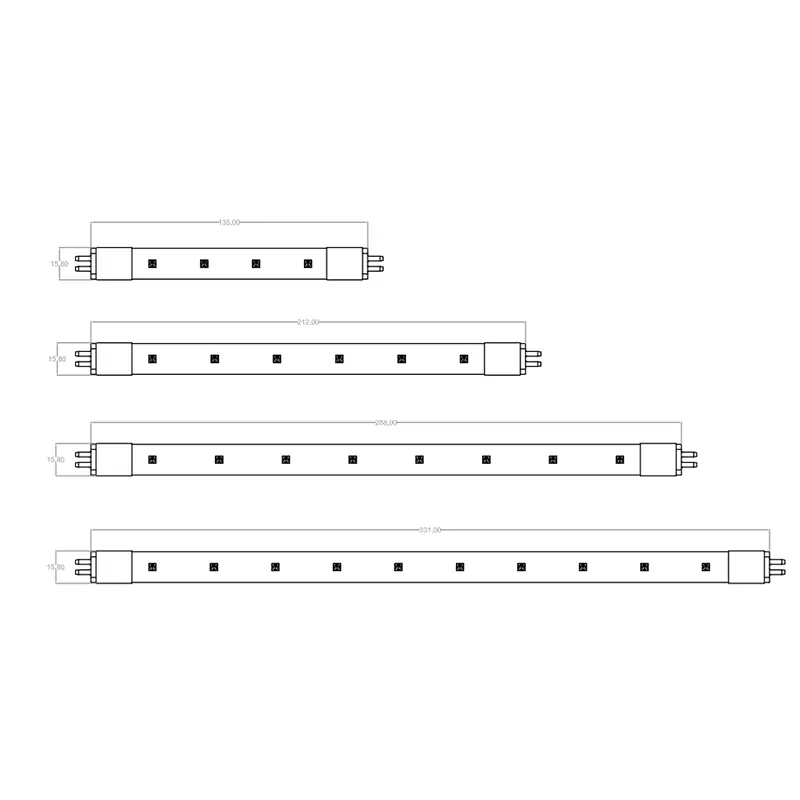

Size: Φ15.8 x 135mm
Voltage: 12V/24V
Current: 200mA/100mA
Power: 3W
Radiant Power: 32mW
View Angle: 120 degree
Lamp Base: G5
Connector: XHF-2YB 2.54mm yellow, customized
Lifespan: 20,000 hours
Net Weight: 150g
Service: Factory OEM ODM service
Samples: Available
FAQ
What is the model number of this uvc led bulb?
The model number is TZUVC-T5135.
What wavelengths does the lamp use?
It uses dual wavelengths: 270-280nm UVC and 395-405nm UV.
What is the size of this uvc led bulb?
The size is Φ15.8 x 135mm.
What voltage does it support?
The lamp supports 12V/24V input.
What is the current rating?
The current is 200mA at 12V and 100mA at 24V.
What is the power of the lamp?
The power is 3W, and the radiant power is 32mW.
What lamp base does it use?
This uvc led bulb uses a G5 lamp base.
Can the connector be customized?
Yes. The standard connector is XHF-2YB 2.54mm yellow, and customized connector options are available.
What is the view angle?
The view angle is 120 degrees.
How long is the lifespan?
The rated lifespan is 20,000 hours.
Do you provide OEM and ODM service?
Yes. Factory OEM and ODM service is available for custom UV equipment projects.
Are samples available?
Yes. Samples are available for testing, evaluation, and prototype development.
Is this uvc led bulb suitable for general lighting?
No. It is designed for professional UV equipment integration, not for general room lighting.
