Best uv light for AC Seoul Viosys 275nm 4W
Product Details Description
The TH-UVC-H01 is a 270-280nm UV light for AC air treatment equipment. It is designed as a compact UVC LED module for manufacturers developing ventilation systems, air purification units, air handlers, coil treatment modules, and enclosed duct disinfection products.

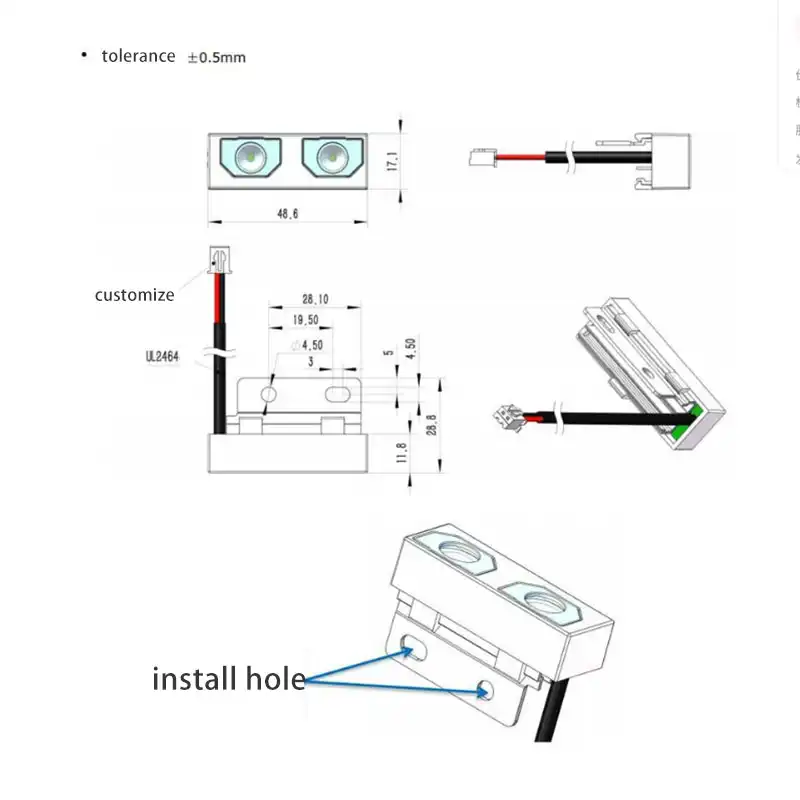

This model operates at 12V with 300mA current and 3.6W power. With radiant power greater than 30mW, it provides a compact UV-C light source for controlled AC applications. The 48.6 x 28.8 x 17.1mm structure allows the module to be installed in equipment where space is limited but directed UV-C irradiation is needed.
The 30° view angle is useful for focused exposure inside AC systems. Instead of spreading UV-C light broadly, this module can be positioned toward a defined surface or air path, such as a cooling coil area, duct wall, filter-side chamber, or internal ventilation zone. Final performance depends on system design, airflow speed, installation distance, exposure time, surface material, chamber reflection, dust accumulation, and maintenance conditions.
This UV light for AC includes 24AWG UL2464 wire and can be supplied with a customized connector. The wiring design supports OEM integration into different control systems, PCB layouts, and mechanical structures. With a 10,000-hour lifespan, the module is suitable for long-term product planning when used with proper current control, heat dissipation, and safety protection.
UVC light is widely used in HVAC systems to help improve indoor air quality by treating air, coils, filters, and internal surfaces inside protected equipment. When installed near cooling coils, ducts, or filter areas, UVC systems can help reduce microbial buildup such as mold and biofilm inside the HVAC structure. This may support cleaner airflow and easier equipment maintenance when combined with proper filtration and regular HVAC service.
The TH-UVC-H01 is a component, not a complete AC UV light system(UV Light for ac). It should only operate inside enclosed and protected ventilation equipment. Direct UV-C exposure can harm eyes and skin. Do not look directly at the working module, and do not allow UV-C radiation to leak into occupied areas. Equipment designers should include shielding, warning labels, electrical protection, thermal management, and interlock control when required.
Specifications
Model NO.: TH-UVC-H01 UV Light for ac
Wavelength: 270-280nm UV Light for ac
Size: 48.6 x 28.8 x 17.1mm
Voltage: 12V
Current: 300mA
Power: 3.6W
Radiant Power: >30mW
View Angle: 30°
Wire: 24AWG UL2464
Connector: Customized
Lifespan: 10,000 hours
Net Weight: 100g
FAQ
What is the TH-UVC-H01 used for?
The TH-UVC-H01 is used as a UV light for HV equipment, including air handlers, duct modules, coil treatment areas, filter-side air treatment structures, and enclosed ventilation systems.
Is this a complete HVAC UV light system?
No. This product is a UVC LED module, not a complete HVAC UV light system. It is designed for OEM manufacturers and should be integrated into properly protected equipment.
What wavelength does this module use?
The TH-UVC-H01 uses a 270-280nm wavelength range, which belongs to the UV-C range commonly used in air and surface treatment equipment.
What is the power of this module?
The module operates at 12V, 300mA, and 3.6W, with radiant power greater than 30mW.
Why does it use a 30° view angle?
The 30° beam angle provides focused irradiation for targeted HVAC areas, such as coil sections, duct surfaces, filter zones, and controlled airflow paths.

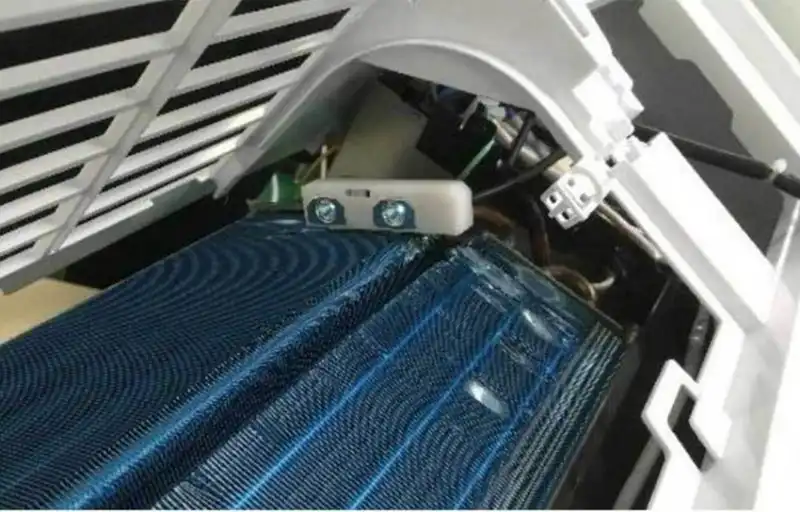

Can this module be installed near cooling coils?
Yes. It can be used near cooling coils when the HVAC product is designed with proper mounting, shielding, UV-resistant materials, and safety protection.
Can the connector be customized?
Yes. The connector can be customized according to your equipment design, control board, wiring layout, and installation requirements.
What wire does the module use?
This UV light for AC uses 24AWG UL2464 wire.
What is the lifespan?
The rated lifespan is 10,000 hours under suitable electrical, thermal, and installation conditions.
Is UVC light safe inside HVAC systems?
UVC light can be used inside enclosed HVAC equipment, but direct exposure is not safe for people. The module must be shielded to prevent UV-C leakage into occupied spaces.
