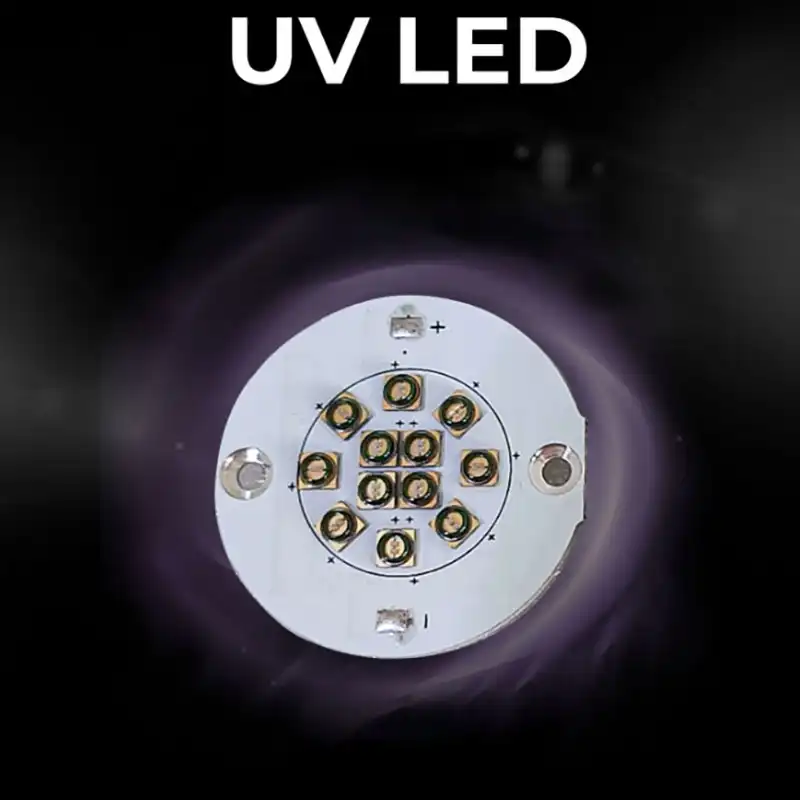

20W 255/265/275nm UVC LED Light Module

$99.00

High Power UVC LED Light Source
This uvc led light is developed for professional sterilization, disinfection, water treatment, air purification, and surface treatment equipments. With the power up to 20W and radiant power up to 400mW, this UVC LED module provides the compact deep UV light source for OEM system integration.
255nm, 265nm, 275nm or Customized Wavelength
This UVxxxDB15W2H6P-35F UVC LED module is compatible with 255nm, 265nm, 275nm, or any customized wavelength. This allows you to use the module in various disinfection system designs, including air, water, surface, laboratory, medical and appliance ones.

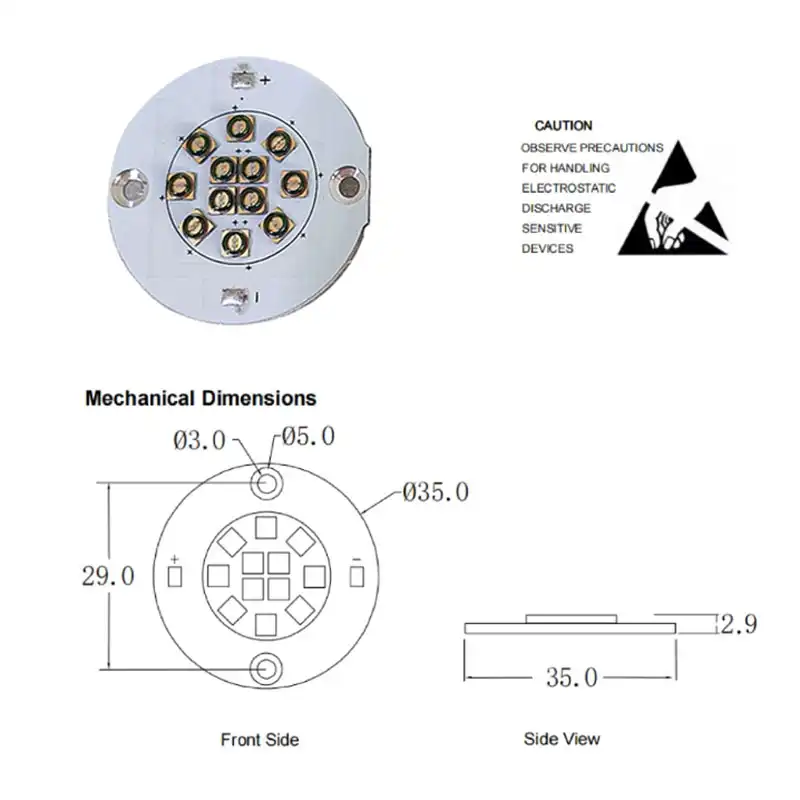

Compact 35mm Module Design
This uvc led light has 35mm dimensions and 50g net weight. This feature will allow you to use it in compact sterilization chambers, purification modules, water treatment systems, and any other customized UV modules. Compact design will help you to save the place in your product design.
120° Wide View Angle
The 120° view angle will allow you to achieve wider UV-C irradiation in the enclosed systems. This uvc led light module is perfect for the design of the equipment that requires wide irradiation distribution, including surface sterilizers, air ducts, water chambers and disinfection boxes.
OEM Project Long Lifespan
This UVC LED module features 30,000 hours of lifespan, 14V operating voltage and maximum 1500mA current. The samples are available for your prototype testing, product development and OEM evaluations.

SKU: UVxxxDB15W2H6P-35F Category: UVC LED Modules

Guaranteed Safe Checkout

20W 255/265/275nm UVC LED Light Module

Product Details Description

The UVxxxDB15W2H6P-35F is a powerful UVC LED module for sterilization and purification equipment. It provides wavelength of 255nm, 265nm, 275nm, or custom wavelength options.

The UVC LED light module features compact 35mm size, 14V voltage, max current of 1500mA, max power of 20W, and radiant power of 400mW. In comparison with lamp-based UV-C system, the LED module can be used in compact equipment design with fast switching.

The 120 degree viewing angle can contribute to the wide irradiation inside equipment. It is suitable for use in the following equipment: air purification, water treatment, surface sterilization, medical device, laboratory equipment, cleanroom, food processing equipment, household appliance, and public disinfection equipment. The OEM buyers will enjoy a good combination of the above specifications of this uvc led light.

The 255nm, 265nm, and 275nm wavelength allows the engineer to choose suitable UV-C light source according to the application needs, structure of the system, exposure distance, airflow/water flow design, and UV dose. The final sterilization performance will depend on the total design of the system, including irradiation time, irradiation distance, optical design, target surface, chamber reflection, water quality, and application environment.

It should be noted that the uvc led light is intended for use inside enclosed and protected equipment. Exposure to UV-C radiation can damage eyes and skin. You must never stare at the working UVC LED module. Do not let people, animals, or materials be exposed to UV-C light.

Samples are available for testing and prototype development. If you need the customized wavelength or system design for the project, the UVxxxDB15W2H6P-35F can be used in various applications of sterilization and purification equipment.

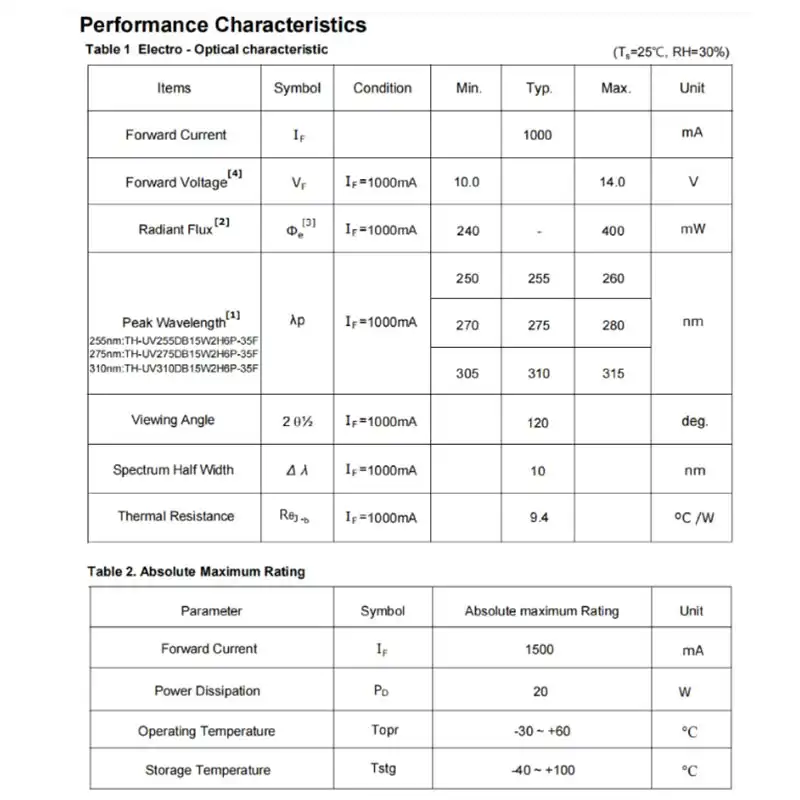

Specifications

Model NO.: UVxxxDB15W2H6P-35F
Wavelength: 255nm / 265nm / 275nm or customize
Size: 35mm
Voltage: 14V
Current: Max 1500mA
Power: Max 20W
Radiant Power: 400mW
View Angle: 120°
Lifespan: 30,000 hours
Net Weight: 50g
Samples: Available

FAQ

What is this uvc led light used for?

This uvc led light is used in sterilization, disinfection, water treatment, air purification, surface sterilization, laboratory, medical, food processing, and OEM equipment applications.

What wavelengths are available?

The UVxxxDB15W2H6P-35F is available in 255nm, 265nm, 275nm, or customized wavelength options.

What is the radiant power of this UVC LED module?

The radiant power is 400mW. The module operates at 14V, max current is 1500mA, and max power is 20W.

Is this UVC LED light suitable for water treatment?

Yes. This UVC LED light module can be integrated into the properly designed water treatment system. The final performance will depend on UV dose, water quality, flow rate, chamber design, exposure time, and installation structure.

Can it be used in air purification systems?

Yes. The 120 degree view angle and compact 35mm size make it suitable for the enclosed air purification system, air ducts, and purification modules with proper shielding and airflow design.

What is the lifespan of this UVC LED module?

The lifespan is 30,000 hours, which makes it suitable for long-term OEM equipment projects and replacement planning.

Is the wavelength customizable?

Yes. Besides 255nm, 265nm, and 275nm, the wavelength can be customized according to project requirements.

Is it safe to look at the UVC LED light when working?

No. Do not look directly at the working UVC LED light or expose skin and eyes to UV-C radiation. It should only be used inside enclosed and protected equipment.
