Best uvc leds module Seoul Viosys 7W 275nm
Product Details Description

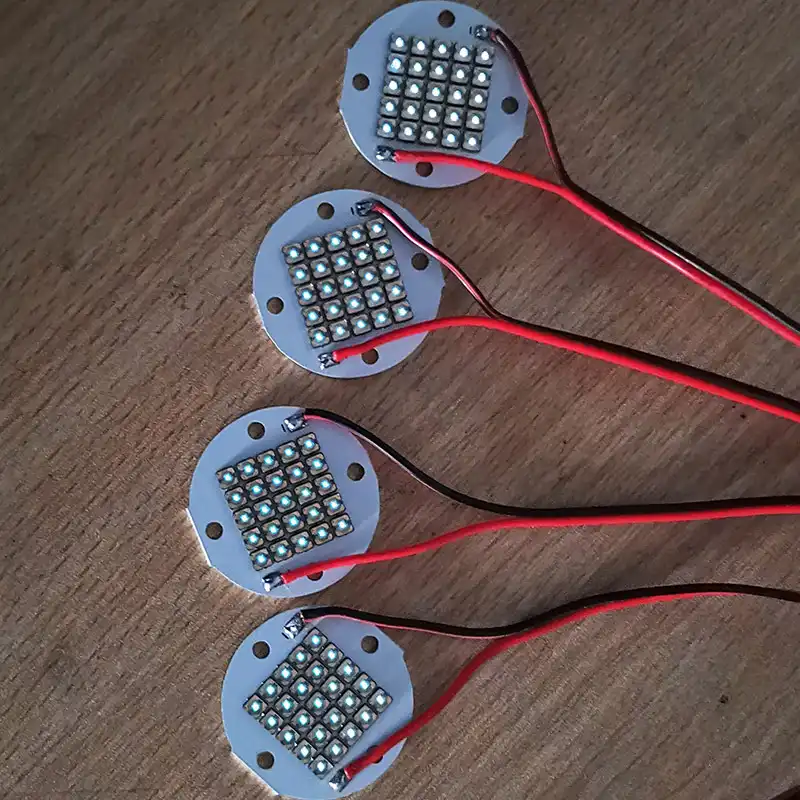

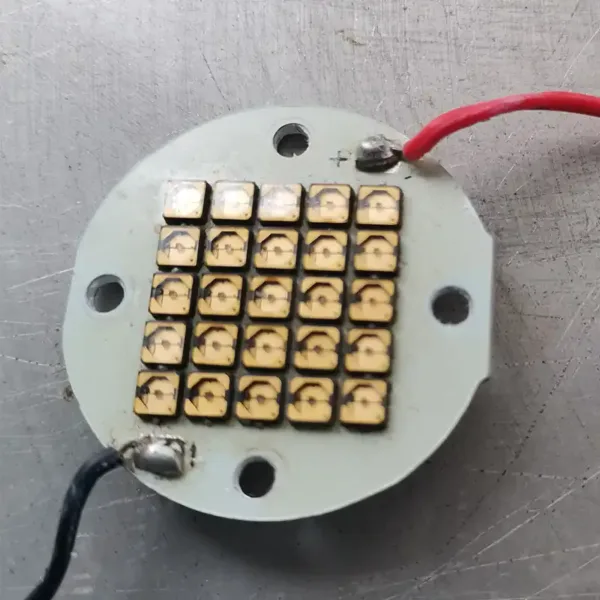

The COB-UVC-CUD7GF1A is a 270-280nm COB uvc leds module developed for professional UV-C system manufacturers. It combines a 35x35mm compact board, 5-7.5V operating voltage, maximum 1000mA current, maximum 7.7W power, and more than 150mW radiant power in a lightweight 50g structure.
This product is designed as a UV-C light source component, not a complete finished sterilizer. It can be integrated into enclosed disinfection devices, air purification equipment, water purification systems, appliance sterilization modules, laboratory tools, medical device sterilization equipment, food processing equipment, and surface treatment chambers. For OEM projects, this uvc leds module offers a compact format with practical wiring and connector flexibility.
The 270-280nm wavelength range is commonly selected for UV-C equipment that requires deep ultraviolet output. Engineers can use this module in systems where irradiation layout, target distance, exposure time, airflow, water-flow path, material reflection, and chamber structure are carefully designed. Final disinfection performance depends on the complete equipment design and should be verified by system-level testing.
The 120° beam angle helps spread UV-C energy across a wider area compared with narrow-angle emitters. This makes the module useful for treatment spaces where broader coverage is required, such as compact sterilization boxes, ducts, small water chambers, and surface irradiation zones. The 35x35mm board size supports easier mechanical integration in new product development or replacement light-source projects.
This COB UVC LED module includes 24AWG wire and can be supplied with a customized connector to match different control systems. The 10,000-hour lifespan supports long-term equipment planning when the module is used with suitable current control, heat dissipation, electrical protection, and safe enclosure design.
UVC light should be handled carefully. This uvc leds module must only operate inside enclosed and protected equipment. Do not look directly at the working module. Do not expose skin, eyes, people, animals, or unprotected materials to direct UV-C radiation. Equipment designers should include shielding, warning labels, interlock protection, thermal management, and proper electrical control.
Samples are available for optical testing, thermal evaluation, prototype assembly, and OEM project confirmation. If your project needs a compact 270-280nm COB UVC LED light source with custom wiring, this module can be adapted for different sterilization and purification equipment designs.

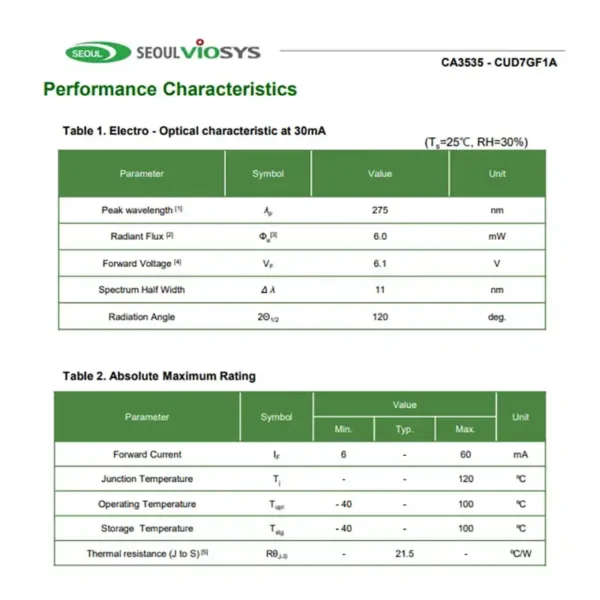

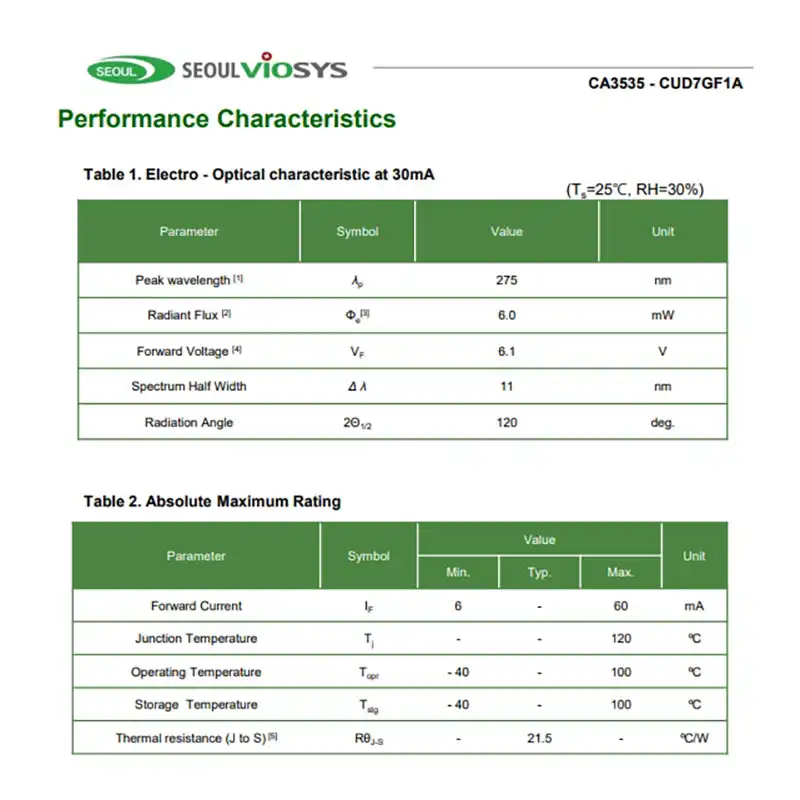

Specifications
Model NO.: COB-UVC-CUD7GF1A
Wavelength: 270-280nm

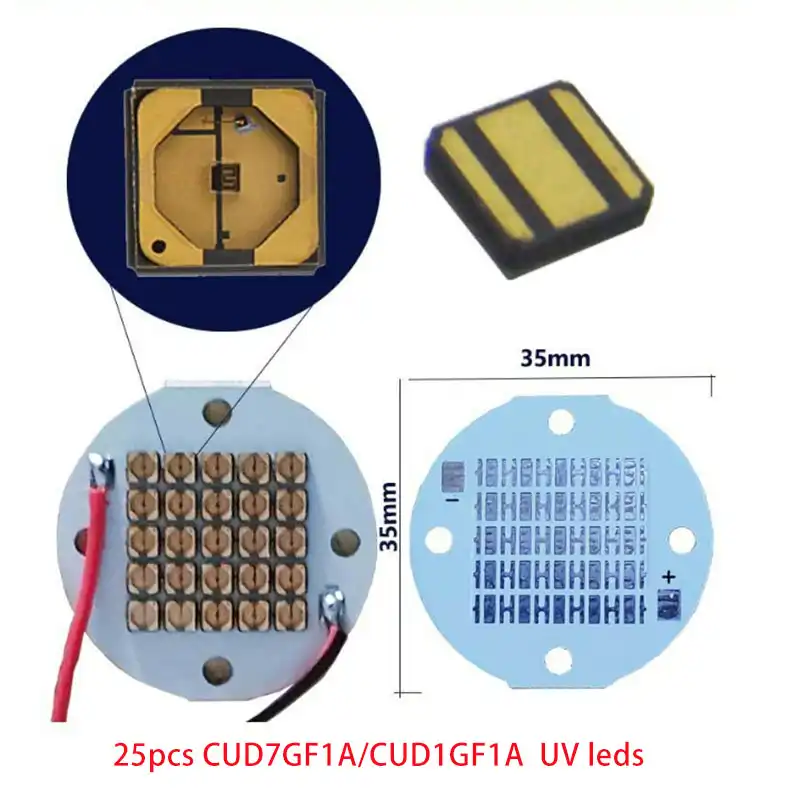

Size: 35 x 35mm
Voltage: 5-7.5V
Current: Max 1000mA
Power: Max 7.7W
Radiant Power: >150mW
View Angle: 120°
Wire: 24AWG
Connector: Customized
Lifespan: 10,000 hours
Net Weight: 50g
Samples: Available
FAQ
What is this uvc leds module used for?
This uvc leds module is used as a UV-C light source for OEM disinfection equipment, water purification systems, air treatment devices, surface sterilization chambers, appliance modules, laboratory tools, and medical device sterilization equipment.
Is this product a complete sterilizer?
No. This product is a COB UVC LED module, not a complete sterilizer. It is designed for manufacturers and engineers who need a UV-C light source for enclosed equipment.
What wavelength does this module use?
The COB-UVC-CUD7GF1A uses a 270-280nm wavelength range.
What is the radiant power?
The radiant power is more than 150mW. The module operates at 5-7.5V, with maximum 1000mA current and maximum 7.7W power.
What is the size of the module?
The module size is 35 x 35mm, which makes it suitable for compact OEM device integration.
Does it support customized connectors?
Yes. The module uses 24AWG wire, and the connector can be customized according to your project requirements.
Can this module be used for water purification?
Yes. It can be used as a UV-C source in properly designed water purification equipment. Final performance depends on water quality, chamber structure, flow rate, UV dose, exposure time, and system testing.
Can it be used for air or surface disinfection?
Yes. The 120° view angle makes it suitable for enclosed air channels and surface treatment chambers when the system includes proper shielding and safety control.
What is the lifespan?
The rated lifespan is 10,000 hours under suitable operating, thermal, and electrical conditions.
Is it safe to view the module directly?
No. Never view the working uvc leds module directly. UV-C radiation can harm eyes and skin, so the module should only be used inside protected equipment.
Are samples available?
Yes. Samples are available for prototype testing, optical evaluation, thermal testing, and OEM project development.
