uvc bulb 254 nm uv light repalce philips 9W bulb
Product Description

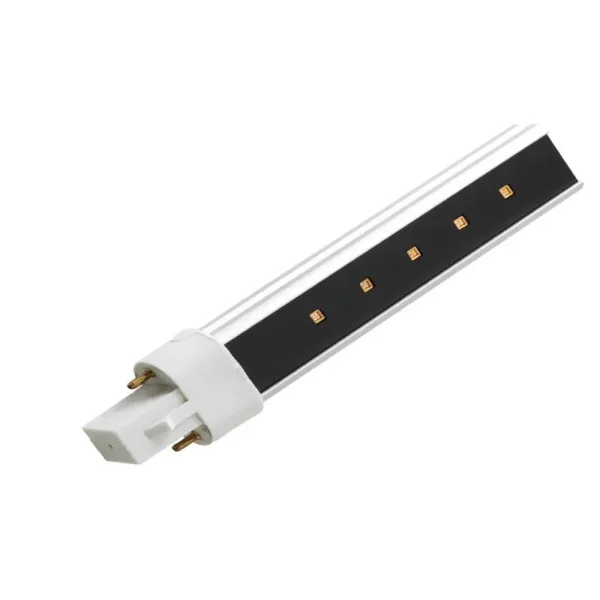

The DS-UVC254-3535-9W is a small 9W UVC bulb designed for OEM disinfection, sterilization, air purification and water treatment systems. The 254nm wavelength makes it applicable in disinfection equipment which requires germicidal ultraviolet output.
The G23 lamp base and the availability of G23 or custom connector make this UVC bulb easy to install and adaptable for diverse device structures. With the input voltage range 110-240V and 40mA current, it works effectively and stably in many different countries’ equipment designs.
Being only 5 x 1.2 x 0.67 inch, this bulb can easily fit many sterilization devices, sanitizer for home use, air treatment devices, water purification devices, medical devices, clean room devices, lab devices and other disinfection devices for public areas. The view angle 60° allows directing the UVC output at the targeted area in the device.
With 30-60mW radiant power and 20,000 hours lifespan, this UVC bulb is a good choice for OEM or ODM manufacturers in developing disinfection systems as a practical 254nm light source. This is a small, effective and long life bulb for sample testing and mass production.
Note: this UVC bulb must be applied inside the equipment which can shield off the UVC output safely. Direct contact with active UVC light is dangerous.

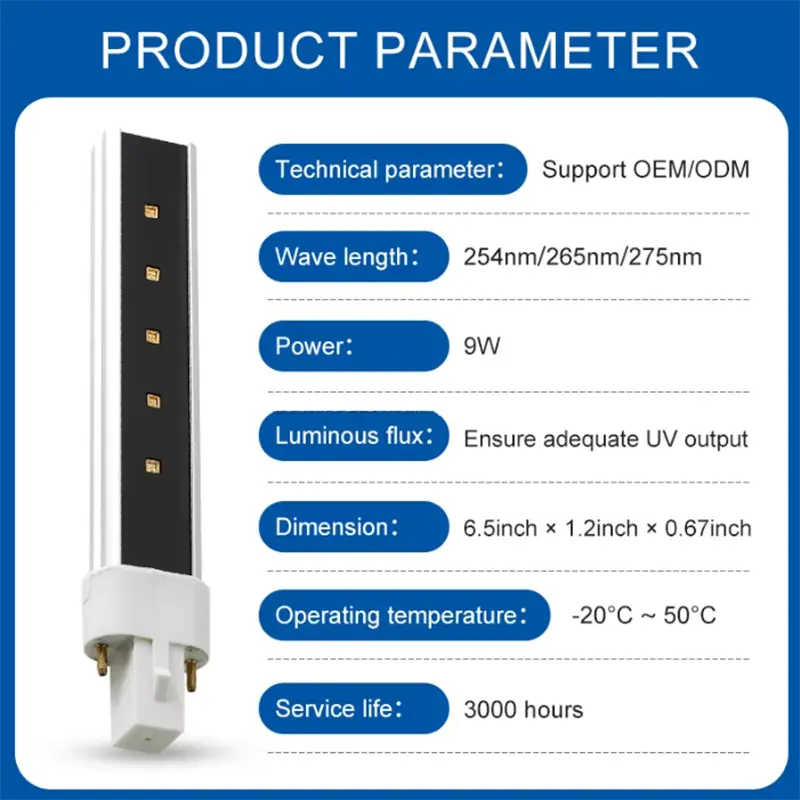

Technical Specifications
| Item | Specification |
|---|---|
| Model No. | DS-UVC254-3535-9W |
| Wavelength | 254nm |
| Size | 5 x 1.2 x 0.67 inch |
| Voltage | 110-240V |
| Current | 40mA |
| Power | 9W |
| Radiant Power | 30-60mW |
| View Angle | 60° |
| Lamp Base | G23 |
| Connector | G23 or customized |
| Lifespan | 20,000 hours |
| Net Weight | 150g |
| Samples | Available |

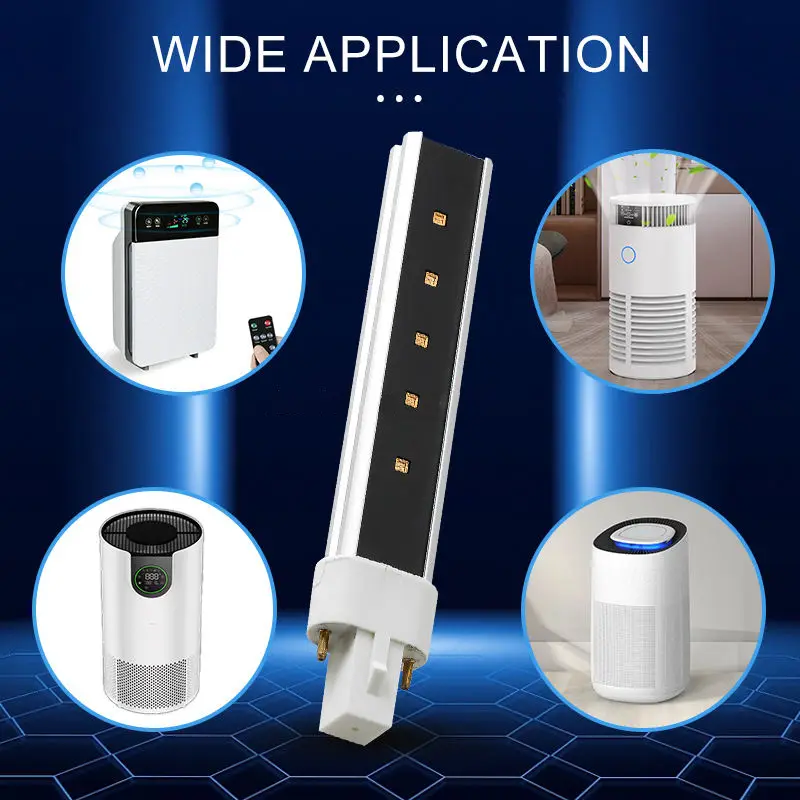

Applications
This UVC bulb can be used in enclosed disinfection and sterilization systems for:
- Air purifiers
- Water treatment systems
- Medical sterilization tools
- Home sanitizer devices
- Laboratory equipment
- Cleanroom devices
- Food processing sanitation equipment
- Public-area disinfection systems
- OEM and ODM UVC equipment projects
FAQ
What wavelength does this UVC bulb use?
This UVC bulb uses a 254nm wavelength, which is widely used in germicidal ultraviolet equipment for disinfection and sterilization applications.
What is the power of this UVC bulb?
The power is 9W. The bulb operates at 40mA with a voltage range of 110-240V.
What lamp base does this model use?
This model uses a G23 lamp base. The connector can be supplied as G23 or customized based on the equipment design.
What is the lifespan of the bulb?
The rated lifespan is 20,000 hours, making it suitable for long-term use in OEM disinfection equipment.
Can I get samples for testing?
Yes. Samples are available for prototype testing, performance evaluation, and OEM project development.
Is this UVC bulb safe for direct exposure?
No. Active UVC light should not be viewed directly or exposed to skin. The bulb should be used only inside properly shielded disinfection equipment.
