Product Description

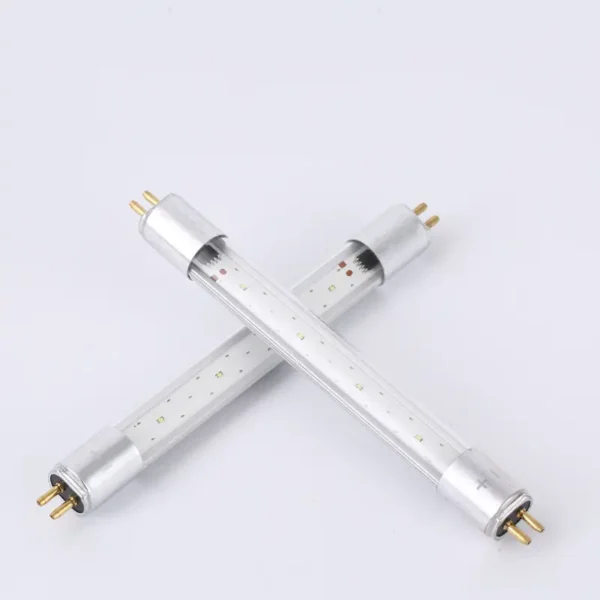

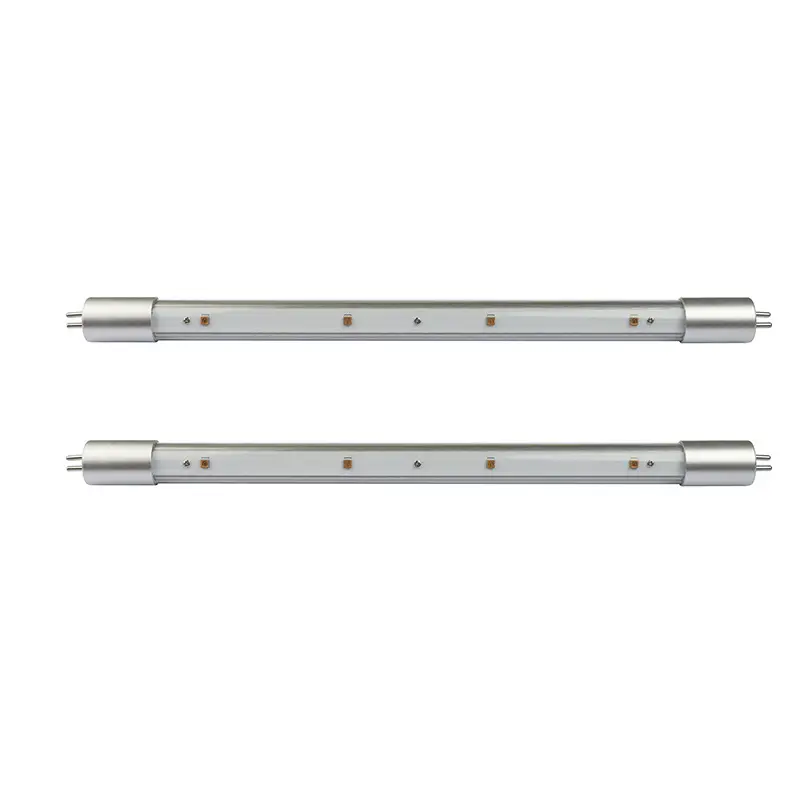

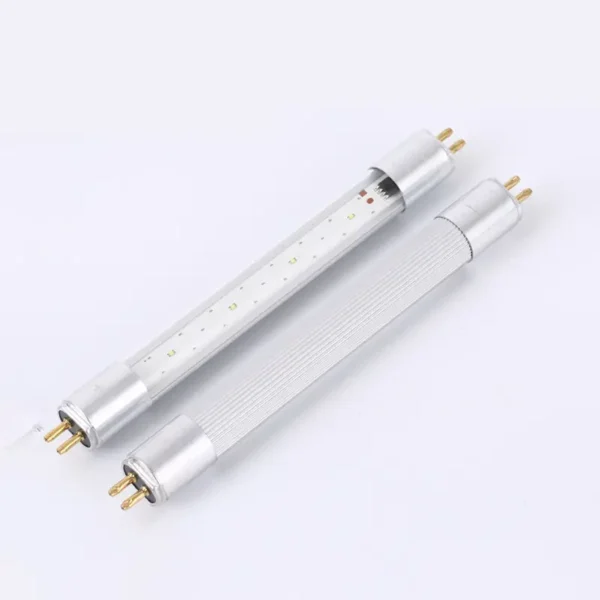

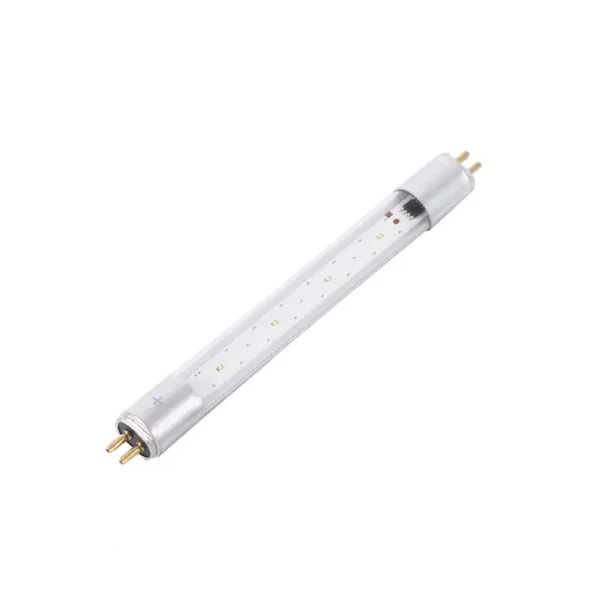

The TZUVC-T5331 is a dual-wavelength UVC light bulb designed for OEM and customized UV equipment. It uses 270-280nm deep UV LEDs together with 395-405nm UV LEDs, giving system designers a compact light source for applications that require controlled ultraviolet output in a tube-style format.
This UVC light bulb features a Φ15.8 x 331mm body, G5 lamp base, and XHF-2YB 2.54mm yellow connector. The connector can be customized according to project requirements, making it easier to integrate into new product designs or specialized UV assemblies.
With 6W power, 80mW radiant power, and a 120° view angle, the TZUVC-T5331 offers a practical balance of compact size, wide-angle emission, and low-voltage operation. It supports both 12V and 24V input, with current rated at 520mA / 260mA. This makes the UVC light bulb suitable for DC-powered systems where stable electrical matching and mechanical compatibility are important.
The product is built with a 10,000-hour lifespan and a net weight of 210g. It is suitable for B2B buyers, UV equipment manufacturers, engineering teams, and OEM/ODM projects that need a customized UVC LED bulb solution.
For safety, this UVC light bulb should only be used inside properly designed equipment with shielding, interlocks, and operating instructions. Direct exposure to UVC radiation may harm eyes and skin. Always test the final system according to the application environment and local safety requirements.

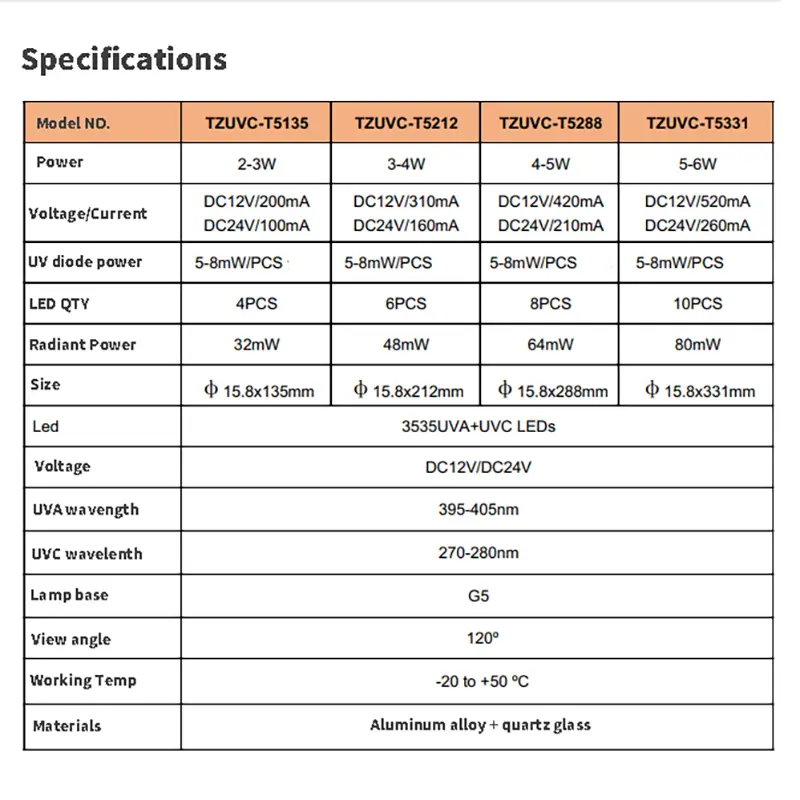

Specifications
- Model NO.: TZUVC-T5331
- Wavelength: 270-280nm + 395-405nm

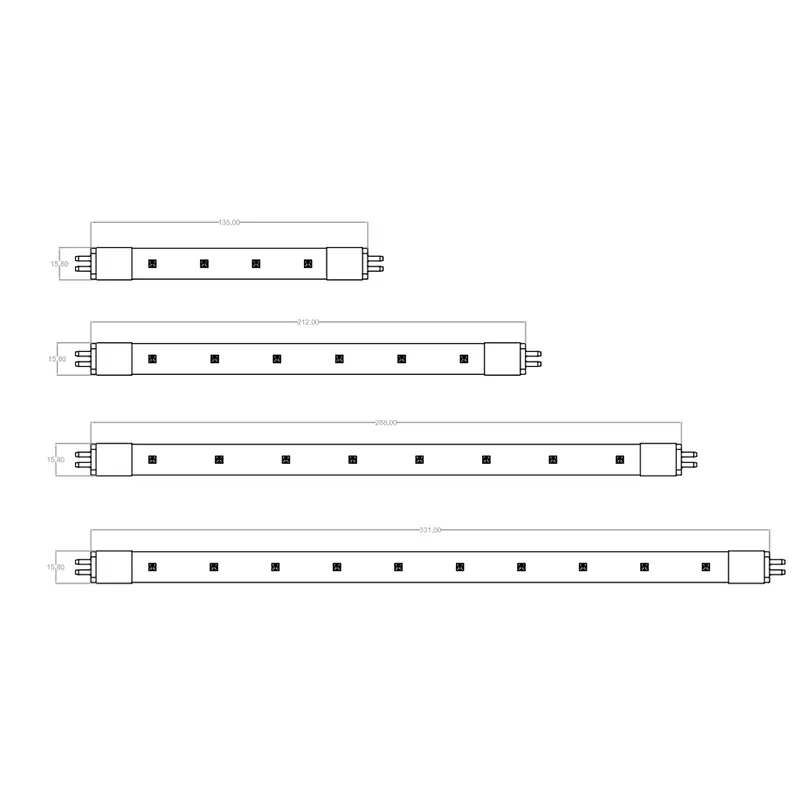

- Size: Φ15.8 x 331mm
- Voltage: 12V / 24V
- Current: 520mA / 260mA
- Power: 6W
- Radiant Power: 80mW
- View Angle: 120°
- Lamp Base: G5
- Connector: XHF-2YB 2.54mm yellow, customized
- Lifespan: 10,000 hours
- Net Weight: 210g
- Samples: Available
FAQ
Q1: What wavelength does this UVC light bulb use?
A1: The TZUVC-T5331 uses dual wavelengths: 270-280nm deep UV and 395-405nm UV light.
Q2: Is this a 12V or 24V UVC light bulb?
A2: It supports both 12V and 24V input. The current is 520mA at 12V and 260mA at 24V.
Q3: What is the size of the TZUVC-T5331?
A3: The tube size is Φ15.8 x 331mm, with a G5 lamp base.
Q4: Can the connector be customized?
A4: Yes. The standard connector is XHF-2YB 2.54mm yellow, and customization is available for OEM projects.
Q5: What is the lifespan of this UVC light bulb?
A5: The rated lifespan is 10,000 hours under proper operating conditions.
Q6: Is this UVC light bulb safe for direct exposure?
A6: No. UVC radiation should not be directly exposed to eyes or skin. The bulb should be used inside properly designed and protected UV equipment.
Q7: Can I request samples before bulk orders?
A7: Yes. Samples are available for evaluation, testing, and project development.
