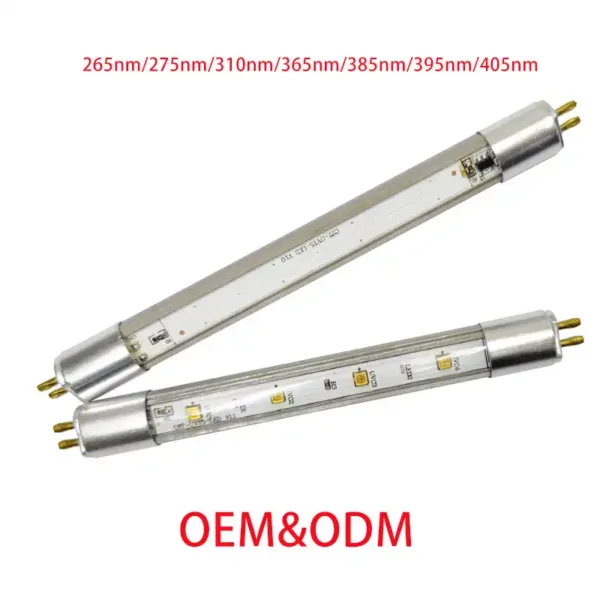

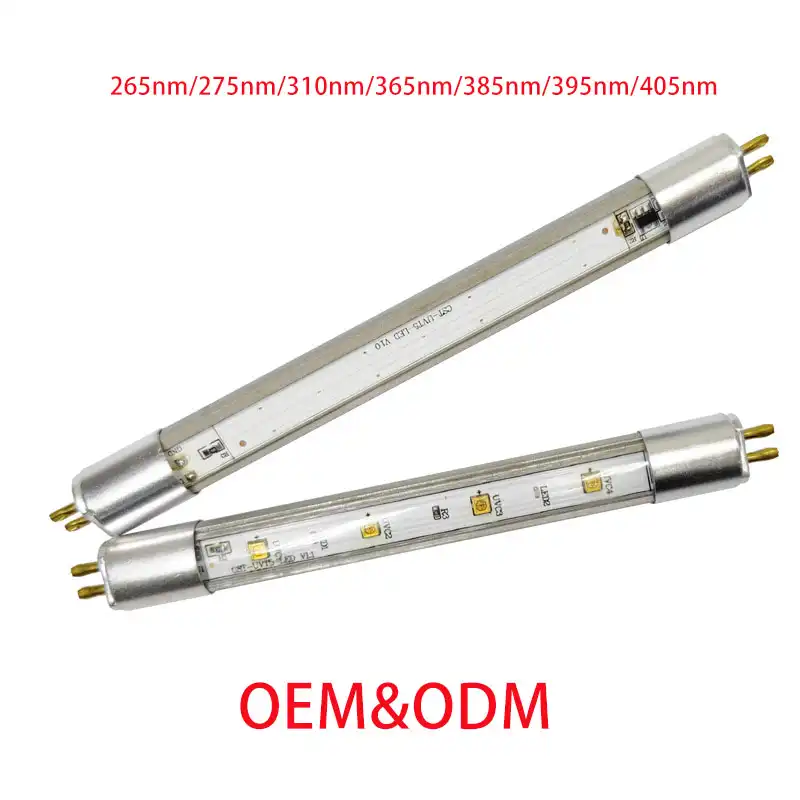

best uvc lamp bulbs T5 254nm 265nm 275nm 5W
Product Description
TH-UVC-T5 is a small size of 275nm UVC LED lamp bulb intended for enclosed ultraviolet equipment and OEM lamp application. The lamp bulb is applicable for manufacturers who need UVC lamp bulbs with slim T5 form, low voltage and defined UVC radiant power.
These UVC lamp bulbs have 275nm wavelength. The 275nm emission belongs to UVC range and can be utilized in equipment designs where there is a need of ultraviolet exposure control. The actual performance will depend on distance, exposure time, irradiance, surface conditions, chamber design and safety structure.

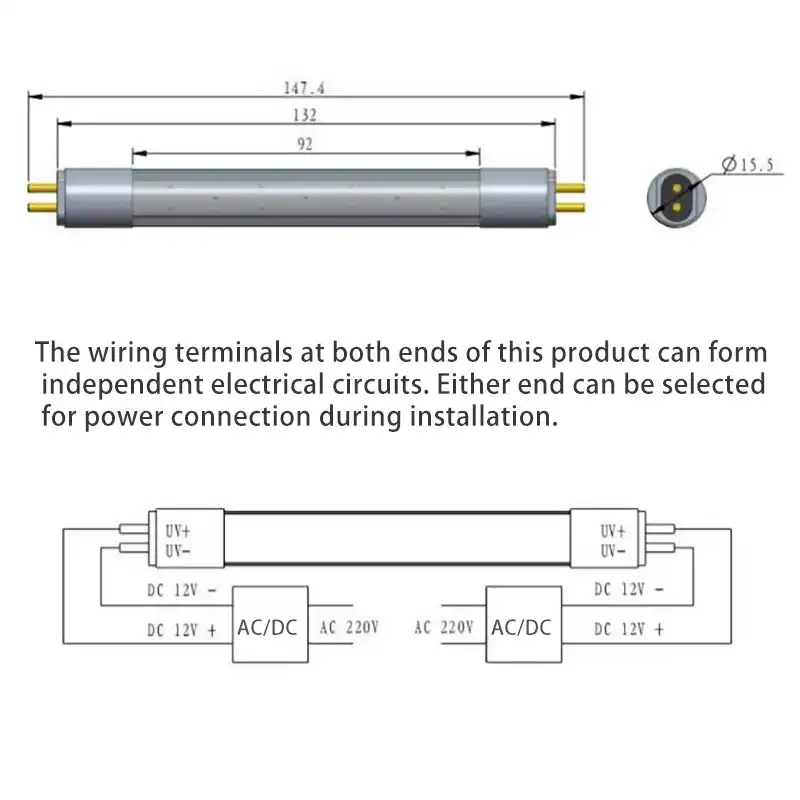

The product size is Φ15.5 x 147.4mm. Small tube design allows equipment manufacturers to integrate the UVC lamp bulbs in small UV chambers, enclosed cabinets, equipment housing, prototype disinfection device and customized lamp assemblies.
The voltage is 12V, the current is 400mA. The power is 5W, the radiant power is 80-100mW. These technical specifications ensure the TH-UVC-T5 applicability to low voltage UVC LED lamp projects with compact size, defined output and stable electrical design.
The view angle is 60 degree. This beam angle gives more directed UVC emission in comparison with wide-angle UV LED modules. In equipment design, reflectors, optical cover, shielding and distance control can be applied according to irradiation area requirements.
The lamp base is T5. The connector is XHF-2YB 2.54mm yellow and there is possibility of customization of the connector type. It allows the UVC lamp bulbs utilization in OEM equipment designs with flexible wiring, consistency of assembly and customized electrical connection.
The lamp bulb lifespan is 20000 hours, the net weight is 150g. The product can be used in compact UV device design, enclosed lamp replacement structure and customized UVC LED equipment design. For optimal performance, customers should test the lamp in the final equipment before mass production.
These UVC lamp bulbs are light sources, but not consumer products with open exposure. UVC radiation may cause harm to eyes and skin. The final equipment should include shielding, warning labels, interlock protection, timer control and operating instructions to exclude direct exposure of UVC radiation to people, animals and operators.
For customers who are looking for UVC lamp bulbs with 275nm wavelength, Φ15.5 x 147.4mm size, 12V input, 400mA current, 5W power, 80-100mW radiant power, 60 degree view angle, T5 lamp base, XHF-2YB 2.54mm yellow connector and 10000 hours lifespan, the TH-UVC-T5 provides compact UVC LED lamp solution for enclosed equipment and OEM projects.
Specifications
Model No.: TH-UVC-T5
Wavelength: 275nm
Size: Φ15.5 x 147.4mm
Voltage: 12V
Current: 400mA
Power: 5W
Radiant Power: 80-100mW
View Angle: 60 degree
Lamp Base: T5
Connector: XHF-2YB 2.54mm yellow, customized
Lifespan: 20000 hours
Net Weight: 150g
FAQ
What is the TH-UVC-T5?
The TH-UVC-T5 is a compact 275nm UVC LED lamp bulb designed for enclosed UV equipment and OEM lamp application.
What wavelength does it use?
The wavelength is 275nm.
Is 275nm in the UVC range?
Yes. 275nm is in the UVC range.
What is the product size?
The size is Φ15.5 x 147.4mm.
What voltage does it use?
The voltage is 12V.
What is the current?
The current is 400mA.
What is the power rating?
The power is 5W.
What is the radiant power?
The radiant power is 80-100mW.
What is the view angle?
The view angle is 60 degree.
What lamp base does it use?
The lamp base is T5.
What connector is used?
The connector is XHF-2YB 2.54mm yellow, and customized connector options are available.
What is the lifespan?
The lifespan is 20000 hours.
What is the net weight?
The net weight is 150g.
Can these UVC lamp bulbs be used directly around people?
No. UVC radiation can harm eyes and skin. These UVC lamp bulbs should be used only inside properly shielded equipment with suitable safety protection.
Can the connector be customized?
Yes. The connector can be customized according to OEM equipment requirements.
