Name: 270-280nm UV Light for HVAC Air Systems - yoyo-uv.com
SKU: TH-UVC-T01
Price: 99.00 USD
Availability: InStock

UVC LED Module for HVAC Application
TH-UVC-T01 is a miniature UV lamp for HVAC appliances, applicable for air ducts, air handlers, cooling coil sections and closed ventilating units. Featuring a wavelength of 270-280nm, this is a small UVC LED module for HVAC air treatment system designing.
Low-Power 12V UV Light Module
This module works at 12V voltage and 200mA current with 2.4W power. It can be used by manufacturers designing compact air cleaning devices, HVAC components, coil irradiation modules or internal UVC systems requiring low power and mini size.
Narrow 30 Degree View Angle
In contrast to modules emitting light through wide angles, the UV light for HVAC uses a 30-degree view angle to provide concentrated irradiation to the target location. It can be installed in the proximity to the target surface, coil segment, air flow, or small-size duct system.
Wired Module for OEM Installation

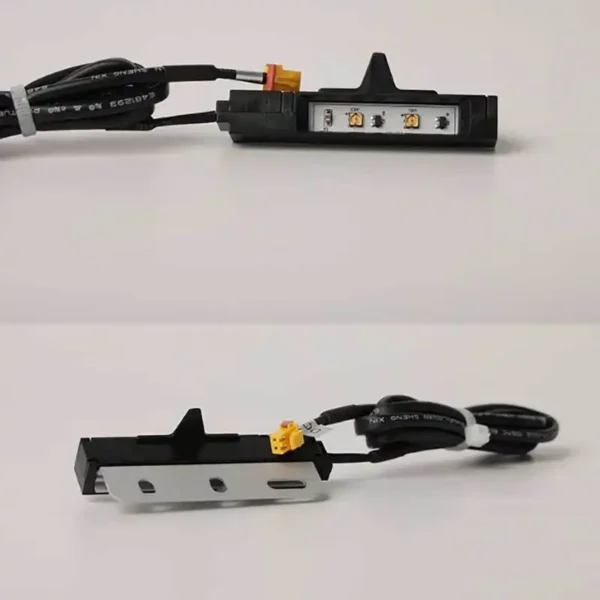

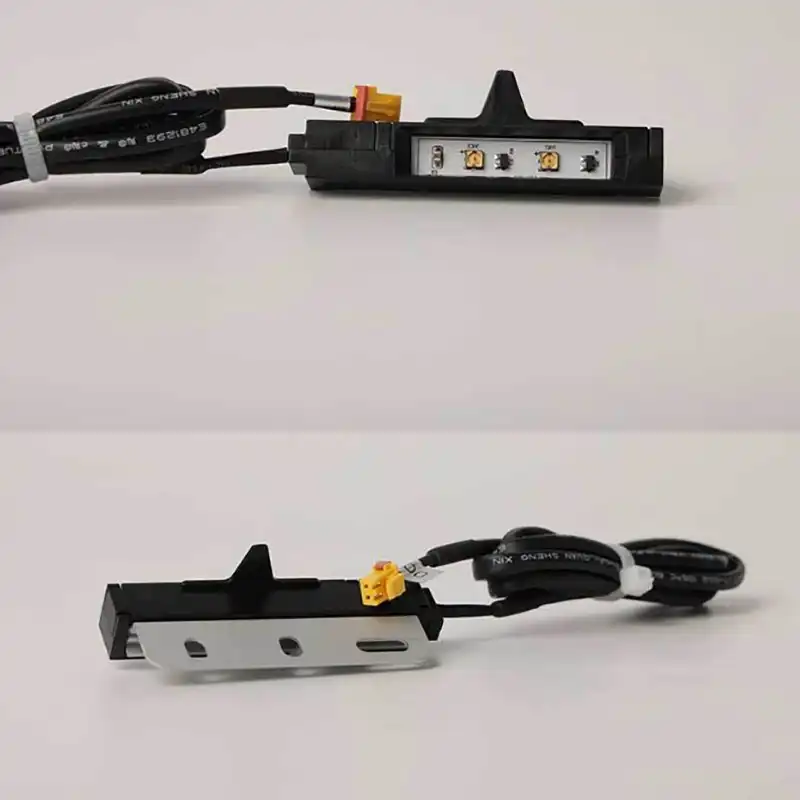

The module is supplied with 24AWG 800mm wire and XHF-2YB 2.54mm yellow connector; other connector types are offered as well. It enables equipment manufactures to coordinate this module with the specific control board, installation layout, wiring structure.
Long Lifetime Mercury-Free UVC Module
Having 20,000 hours lifetime and weighing 50g net, this UV light for HVAC is a good option for OEM projects needing a compact, mercury-free UVC LED module for enclosed air cleaning equipment.

Best UV light for hvac Seoul Viosys 275nm 3W

Product Details Description

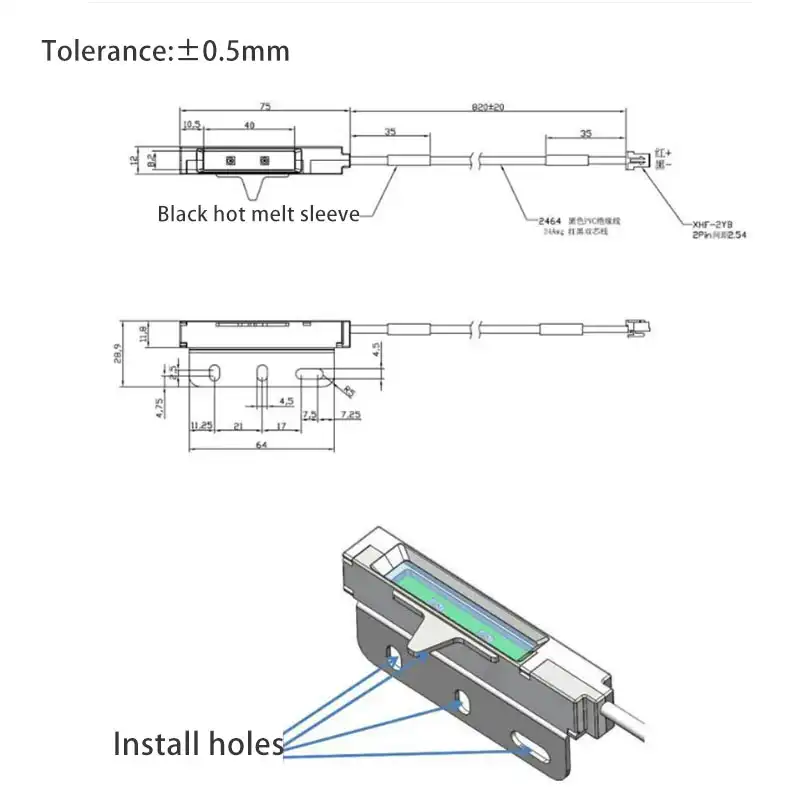

The TH-UVC-T01 is a small 270-280nm UV light for HVAC equipment, developed for manufacturers which require a small UVC LED source for air treatment, coil irradiation, and enclosed ventilation system designs. It has 12 x 28.9mm structure, 12V input voltage, 200mA current consumption, 2.4W power and more than 40mW radiant power.

This is a UVC LED module, and it is not a complete HVAC purifier. This is a module designed for HVAC-related equipment such as air handlers, duct modules, cooling coil area, filter side treatment zone, compact air purification devices and OEM ventilation accessories. For engineers seeking a UV light for HVAC applications, the TH-UVC-T01 provides concentrated beam, simple wiring and compact mechanical dimensions.

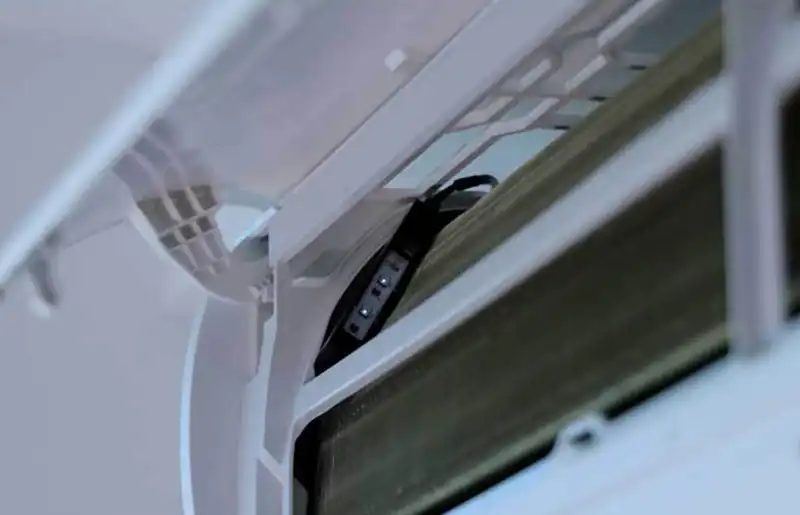

270-280nm wavelength range allows using the module in designs of UV-C air treatment, where the module will be placed inside an enclosed and protected equipment. The 30° view angle allows concentrating UV-C irradiation towards a particular target area rather than spreading the light evenly. Such functionality may be useful for irradiating small coils, drain pan area, compact duct or controlled airflow path.

The module comes with 24AWG 800mm wires and an XHF-2YB 2.54mm yellow connector. Customized connectors are possible for OEM projects, which allows manufacturers to adapt the module according to their own PCB layouts, control systems and mounting constructions. The 20,000-hour lifespan allows planning the lifetime of the product if the module is used with appropriate thermal, electrical and enclosure designs.

Final performance depends on the entire HVAC system design. Important parameters include distance of installation, air flow velocity, exposure time, target surface, reflectivity of the chamber, dust accumulation, temperature, humidity and maintenance program. This UV light for HVAC should be used along with proper filtration, air flow design and HVAC maintenance.

Safety should be taken into account during equipment development. Direct UV-C exposure can be harmful for eyes and skin. The module should work only inside enclosed HVAC structure or protected air treatment device. Do not look directly at the working LED, and do not let the UV-C light leak into occupied areas. Equipment designers should include shields, warning labels, electrical protection and interlocks if needed.

Specifications

Model No..: TH-UVC-T01
Wavelength: 270-280nm
Size: 12 x 28.9mm
Voltage: 12V
Current: 200mA
Power: 2.4W
Radiant Power: >40mW
View Angle: 30°
Wire: 24AWG 800mm
Connector: XHF-2YB 2.54mm yellow, customized available
Lifespan: 20,000 hours
Net Weight: 50g

FAQ

What is this UV light for HVAC used for?

This UV light for HVAC is used as a compact UVC LED module for OEM air treatment equipment, air ducts, air handlers, cooling coil areas and enclosed ventilation modules.

Is this a complete HVAC UV light system?

No. The TH-UVC-T01 is a UVC LED component, not a complete HVAC UV light system. It should be integrated into a properly designed and protected device.

What wavelength does it use?

This module uses a 270-280nm wavelength range, which is the UV-C range usually used in air and surface treatment equipment.

What is the power rating?

The module works at 12V, 200mA and 2.4W, with radiant power of more than 40mW.

Why does it use a 30° view angle?

The 30° view angle allows providing focused irradiation of targeted areas such as compact duct sections, coil surfaces, drain pan zones or controlled airflow paths.

Can it be installed near an HVAC coil?

Yes. It can be used near coil areas if the HVAC equipment is designed with proper mounting, shielding, heat management and UV-resistant materials.

Can it be used inside air ducts?

Yes. This UV light for HVAC can be integrated into enclosed duct modules or air treatment devices if the design excludes UV-C leakage into occupied spaces.

Does the connector support customization?

Yes. The standard connector is XHF-2YB 2.54mm yellow, but customized connector options are possible for OEM projects.

What is the lifespan?

Rated lifespan is 20,000 hours under appropriate electrical, thermal and installation conditions.

Is UV-C light safe for people?

Direct UV-C exposure is not safe for eyes or skin. This module should work only inside enclosed and protected HVAC equipment with appropriate safety design.
