best uvc led lights t5 5W replacement fluorescent tube
Product Description

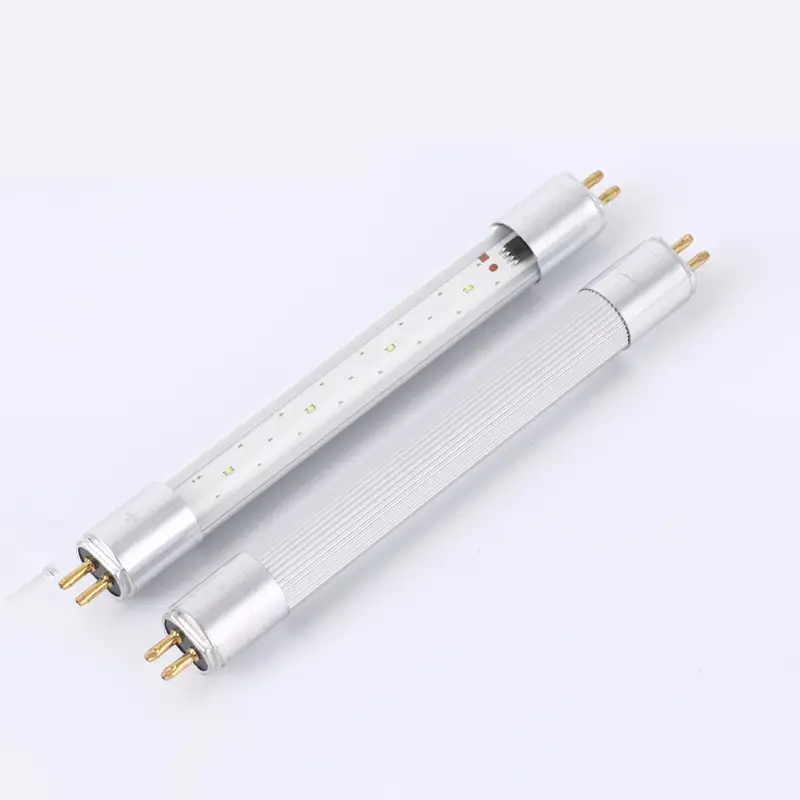

The TZUVC-T5288 is a dual wavelength UVC LED lights module designed for OEM ODM customized ultraviolet equipment integration with 270-280nm UVC output and 395-405nm UVA output.
These UVC LED lights have a Φ15.8 x 288mm size and a G5 lamp base. The tube style is appropriate for disinfection cabinet, enclosed ultraviolet chamber, equipment replacement, and any custom ultraviolet fixture and low-voltage ultraviolet system where a thin lamp type is needed.
The wavelength specification is 270-280nm + 395-405nm. The 270-280nm wavelength range is generally used in UVC disinfection light source design. While the 395-405nm range can support auxiliary UVA or near-UV functions based on the final design of the equipment. The final application should be tested based on the target material, distance, exposure time and safety design.
The voltage specification is 12V/24V, and the current is 420mA/210mA. The power is 5W and the radiant power is 64mW. This makes the UVC LED lights suitable for small systems with defined electrical input and output.
The view angle is 120 degree. The larger view angle makes the light more effective to cover the broad irradiation area inside the enclosed equipment. If the final product needs to set up a fixed exposure area, the system designer can use reflector, optical cover, shielding, interlock switch or distance control.
The connector is XHF-2YB 2.54mm yellow, and customization connector services are available. This makes the UVC LED lights module practical for OEM ODM equipment manufacturers with defined wiring, assembly and customized UV light source requirement.
The lifespan is 20000 hours, and the net weight is 190g. Samples are available for evaluation, prototype testing and OEM ODM development. The customer can test the wavelength output, radiant power, electrical performance, installation, cooling efficiency and safety performance before mass production.
These UVC LED lights are designed as light source component. Because the UVC radiation is harmful to the skin and eyes, the final equipment should include shielding, warning label, interlock protection, timer control and safe operation instructions to protect people and operators from the UV exposure.
For customers who want to purchase UVC LED lights with 270-280nm + 395-405nm dual wavelength, Φ15.8 x 288mm tube style, 12V/24V input, 5W power, 64mW radiant power, 120 degree view angle, G5 lamp base, XHF-2YB 2.54mm yellow connector, 10000 hours lifespan and samples are available, the TZUVC-T5288 will be an appropriate UV light source for enclosed equipment and factory OEM ODM projects.

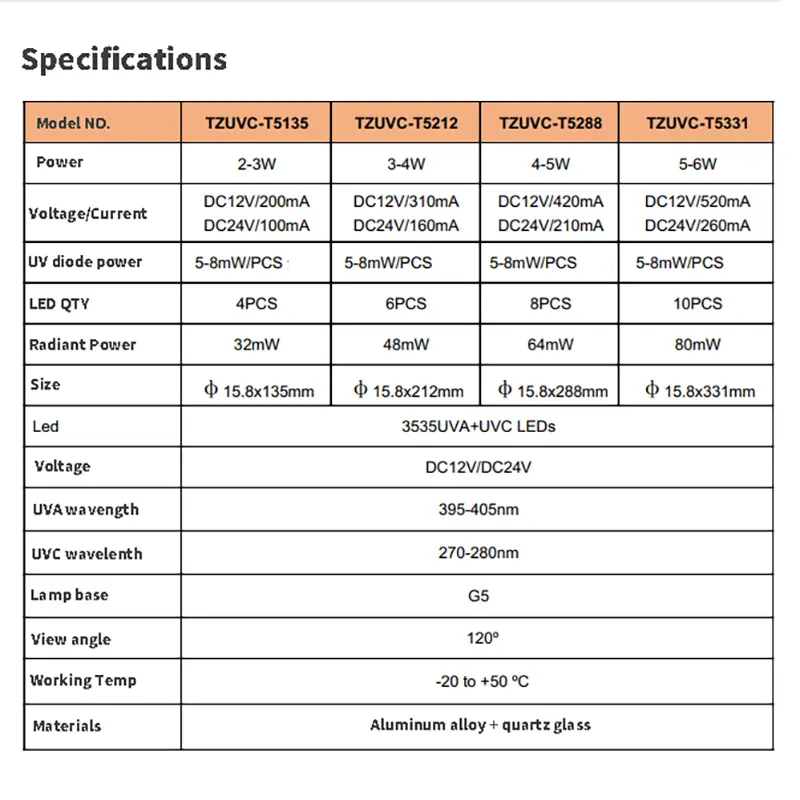

Specifications
Model No.: TZUVC-T5288
Wavelength: 270-280nm + 395-405nm
Size: Φ15.8 x 288mm
Voltage: 12V/24V
Current: 420mA/210mA
Power: 5W
Radiant Power: 64mW
View Angle: 120 degree
Lamp Base: G5
Connector: XHF-2YB 2.54mm yellow, customized
Lifespan: 20000 hours
Net Weight: 190g
Samples: Available
FAQ
What is the TZUVC-T5288?
The TZUVC-T5288 is a dual wavelength UVC LED lights module with 270-280nm UVC output and 395-405nm UVA output for OEM ultraviolet equipment integration.
What wavelengths does it use?
The wavelength specification is 270-280nm + 395-405nm.
What is the product size?
The size is Φ15.8 x 288mm.
What voltage does it support?
The module supports 12V/24V input.
What is the current specification?
The current is 420mA/210mA.
What is the power rating?
The power is 5W.
What is the radiant power?
The radiant power is 64mW.
What is the view angle?
The view angle is 120 degree.
What lamp base does it use?
The lamp base is G5.
What connector is used?
The connector is XHF-2YB 2.54mm yellow, and customization connector options are available.
What is the lifespan?
The lifespan is 20000 hours.
What is the net weight?
The net weight is 190g.
Are samples available?
Yes. Samples are available for testing and OEM ODM project evaluation.
Can these UVC LED lights be used directly around people?
No. UVC radiation can harm skin and eyes. The final equipment should include shielding, interlock protection, warning labels and safe operating instructions.
Is factory OEM ODM service available?
Yes. Factory OEM ODM service is available for customized UVC LED lights and ultraviolet equipment projects.
