Name: 15.5W 255/275nm UV Light Sterilizer Module - yoyo-uv.com
SKU: DBxxxT3WPS80-3535Fx4 2H8P-20MM
Price: 99.00 USD
Availability: InStock

For UV Sterilizer Equipment
This UV light sterilizer module is a compact UVC LED light source, which can be utilized to develop professional sterilization equipment. There are 255nm and 275nm wavelength choices for this UVC light source. Thus, it could be applied in OEM systems that provide enclosed disinfection, purification and UV-C treatment applications.
Powerful Light Source in 20mm Form Factor
The DBxxxT3WPS80-3535Fx4 2H8P-20MM delivers 380mW radiant power in its 20mm form factor. It is applicable for those engineers who want to have powerful UV-C light in their installation without modifying original equipment structure.
15.5W Maximum Power Configuration
The UVC light sterilizer module works with 14V and up to 1200mA of maximum current and 15.5W of maximum power. Electrical configuration allows this product to be utilized for customized sterilizer boxes, air treatment units, water treatment devices and compact UV disinfection systems.
Broad 120° Illumination Angle
120° view angle is helpful for broad illumination of surfaces, small objects, air paths and water channels in enclosed chambers due to wide UV-C distribution. It could be used by product designers to cover more irradiation surface.
Long-Life UVC LED Module
This UV light sterilizer module is characterized by 30,000-hour lifetime and 50g net weight. Therefore, it could be utilized for long-term OEM projects, prototyping and customized sterilization equipment development. Samples are available for testing.

15.5W 255/275nm UV Light Sterilizer Module

Product Details Description

The DBxxxT3WPS80-3535Fx4 2H8P-20MM is a high-power UV light sterilizer module made especially for professional UV-C sterilizer equipment manufacturing. It comes in 255nm and 275nm wavelengths, compact structure of 20mm, voltage of 14V, max current of 1200mA, max power of 15.5W, and radiant power of 380mW.

This module is not an individual UV sterilizer ready for consumers. It is a UVC LED light source for OEM sterilizer boxes, UV sanitizer devices, air purifiers, water treatment machines, lab tools, medical equipment, cleanroom instruments, food processing machinery, and any enclosed sterilization devices. For those manufacturers looking for a good UV light sterilizer component, this product will serve as a handy option with its compact structure and powerful UV-C output.

The 255nm and 275nm wavelengths fit different UV-C system designs. An engineer can choose a wavelength according to his needs, chamber design, distance between the source and target object, exposure time, treated material, airflow or waterflow structure, and necessary UV dose. The final performance of sterilization process will depend on the overall system design, including the optical layout, heat dissipation, shielding, reflections, distance, exposure time, and operation environment.

With the view angle of 120°, this UV light sterilizer module helps to distribute UV-C lights over a wider sterilization area. The 20mm module size gives more freedom in installation to those manufacturers with space limitations in their devices. Its 30,000-hour lifespan makes it a good choice for OEM sterilizer manufacturers with long-term plans and reduces frequent light source replacements.

It should be noted that the use of this UV light sterilizer module is possible only in enclosed and protected equipment. UV-C exposure may harm your eyes and skin. Never look at a working light source and never expose people, animals, or any surfaces to its light. The proper safety design, electrical protection, thermal management, shielding, warning labels, and interlock structures should be considered while designing your product.

Samples of this product are available for prototypes, optical, thermal, and OEM projects. If your UV sterilizer equipment requires a compact 255nm or 275nm UVC LED source with 380mW radiant power, you can use this module as a practical light source.

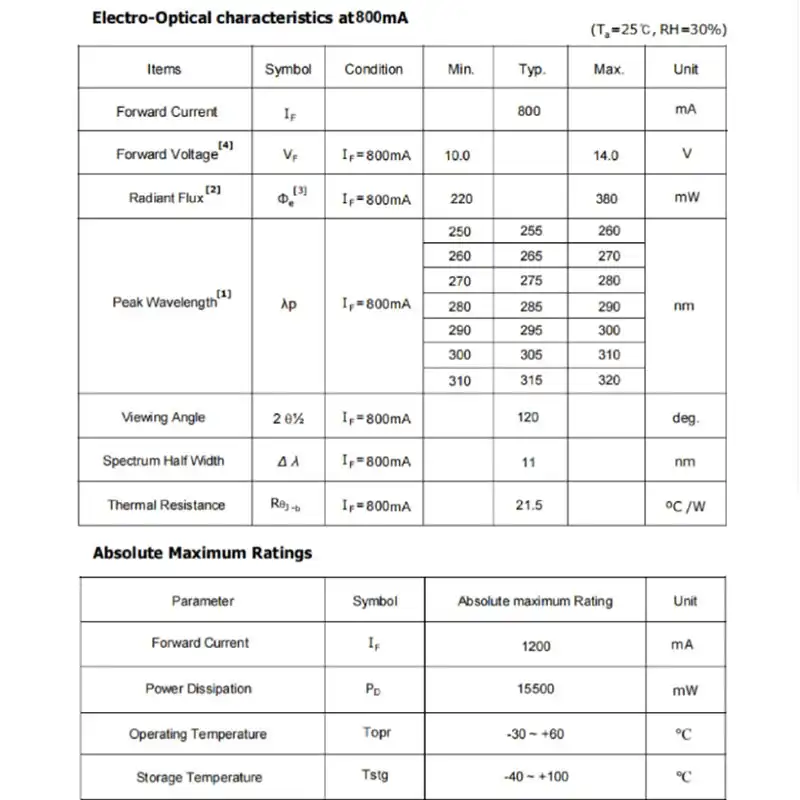

Specifications

Model NO: DBxxxT3WPS80-3535Fx4 2H8P-20MM

Wavelength: 255nm / 275nm
Size: 20mm
Voltage: 14V
Current: Max 1200mA
Power: Max 15.5W
Radiant Power: 380mW
View Angle: 120°
Lifespan: 30,000 hours
Net Weight: 50g
Samples: Available

FAQ

What is this UV light sterilizer module used for?

This UV light sterilizer module is used as a UVC LED light source for OEM sterilizer boxes, UV sanitizer devices, air purification systems, water treatment machines, laboratory tools, medical devices, and enclosed sterilization devices.

Is this a complete UV sterilizer?

No. This product is a UVC LED module, not a complete UV sterilizer. It is designed for manufacturers and engineers who need a light source for sterilization devices.

What wavelengths are available?

This model is available in 255nm and 275nm wavelength options.

What is the radiant power?

The radiant power is 380mW. This module works at 14V, with the maximum current of 1200mA and max power of 15.5W.

Can this module be used for water treatment?

Yes. It can be used as a UV-C light source in properly designed water treatment devices. The final performance depends on flow rate, UV dose, chamber design, water quality, exposure time, and installation structure.

Can it be used for air or surface sterilization?

Yes. The 120° view angle makes it suitable for enclosed air treatment paths and surface irradiation chambers if there is proper shielding and safety protection in the equipment.

What is the lifespan of this module?

The rated lifespan is 30,000 hours under proper operating, thermal, and electrical conditions.

Is it safe to view the light directly?

No. Never look directly at the working UVC LED module. Direct UV-C exposure can damage eyes and skin. It should only operate inside enclosed and protected equipment.
