best uv strip light 365nm
Product Details Description
LS-UVA365-60D-8MM is a 365nm uv strip light designed for lighting projects, display manufacturing, inspection tool building, signage production, cabinet lighting, and OEM customers who want a good UVA strip light in an 8mm profile.

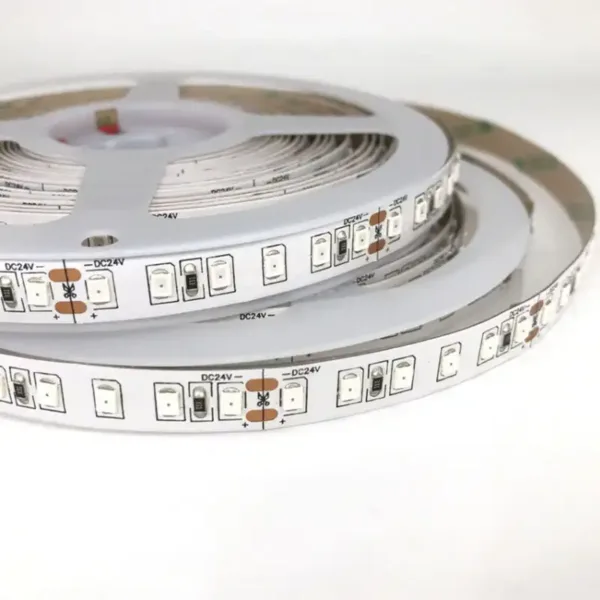

It features SMD2835 LED chips, 60 LEDs/meter, and 5 meters flexible roll.
The 365nm wavelength is preferred in applications where fluorescence response is more important than strong visible purple light. This uv strip light can be applied to mineral and gemstone display, uranium glass cabinets, UV reactive products shelf, counterfeit checking, leak detecting, resin curing, UV glue curing, artworks showing, lab-style visual inspection, and unique display lighting.
Comparing to high density 120LED/m, 60LED/m is a cost-effective and low power consumption solution for projects without dense light spots requirement. With 7W/m working power, it can save power consumption and heat while keeping 365nm UVA output enough for various inspecting, curing and displaying.
The 8mm PCB width is compatible with standard LED strip size and installation method. The strip size is 5000x8x1.7mm, which is handy for straight installation, display edge light source, shelf lighting, signage edge light source, cabinet lighting channel and equipment assembling. And 120° emission angle spreads the UV light in the target area, while 10nm spectrum FWHM controls wavelength more consistently.
In OEM customization service, this uv strip light offers 12V, 24V, 5V or customized voltage solution. The connection can be customized according to your controller, connector, wire length, soldering way, power system or product housing. Thus this LS-UVA365-60D-8MM is suitable for private labeling UV lighting, display system, cabinet lighting, inspection tools and project installation.
The 4oz copper PCB improves electric conductivity and heat spreading, which helps the strip work more steadily. To get long term stable working result, you should select a good constant-voltage power supply, avoid too much voltage drop of long run, and install the strip on aluminum profile or other heat dissipation material.
The standard waterproof level is IP20 which is suitable for dry indoor environment. Waterproof protection is available according to your project requirements of extra dust and moisture protection. The final performance depends on strip length, wiring way, voltage stability, power supply quality, ambient temperature, mounting surface and thermal design.
This uv strip light is a UVA product but not a UVC sterilization light. Do not apply this product to disinfection. Avoid staring at LEDs directly, use UV aware safety practice in commercial, industrial, curing, inspecting or display environment.
Samples are available for wavelength check, brightness comparison, curing evaluation, fluorescence effect test, installation verification and OEM project confirming. If your project requires 365nm uv strip light, SMD2835 LED, 60LED/m, 8mm PCB, customized voltage, customized connection and optional waterproof protection, the LS-UVA365-60D-8MM can be adapted for various UV lighting applications.
Specifications
Model NO.: LS-UVA365-60D-8MM
Wavelength: 365nm
LED Chip: SMD2835
LED Quantity: 60led/m

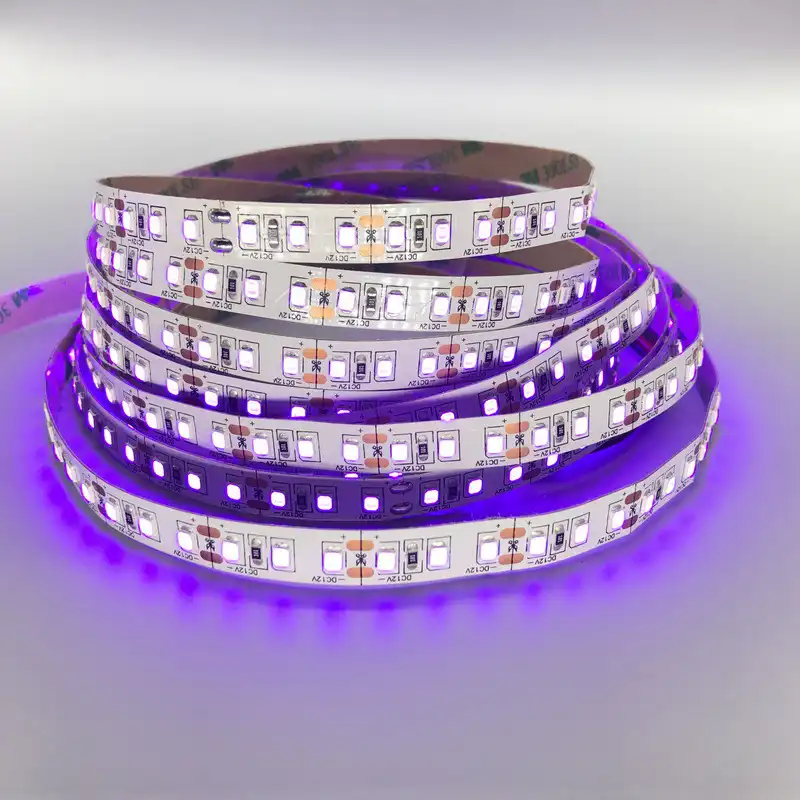

Input Voltage: 12V / 24V / 5V or customize
Working Power: 7W/m
Size: 5000 x 8 x 1.7mm
Emission Angle: 120°
Waterproof: IP20 or customizable
Spectrum FWHM: 10nm
PCB Copper Thickness: 4oz
Connection: Customizable
Samples: Available
FAQ
What is this uv strip light used for?
This uv strip light is used for fluorescence inspecting, UV reactive displays, mineral inspecting, uranium glass cabinets, resin curing, UV glue curing, counterfeit checking, leak detecting, artwork effect, signage and OEM UV lighting projects.
What wavelength does the LS-UVA365-60D-8MM use?
This model uses 365nm UVA wavelength which is often used in professional fluorescence inspecting and visual inspecting applications.
Is this UV strip light suitable for sterilization?
No. This is a 365nm UVA strip light but not a UVC sterilization light. Do not apply it to disinfection or germicidal purpose.
What LED chip is used?
This model uses SMD2835 LED chips with 60 LEDs/meter.
What is the strip width?
The strip is 8mm wide which is fit for standard LED channel, aluminum profile, cabinet structure, display frame and linear lighting application.
What voltage options are available?
The strip offers 12V, 24V, 5V or customized input voltage solutions.
What is the working power?
The working power is 7W/m which is fit for projects requiring a good balance of UV output, power usage and heat controlling.
Is the strip waterproof?
The standard version is IP20 for dry indoor environment. Waterproof protection is available according to your project requirements.
Why use 4oz copper PCB?
The 4oz copper PCB helps improving current carrying capacity and heat spreading, which improves the stability of UV LED strip application.
Can the connection be customized?
Yes. The connection can be customized for OEM assembly, controller matching, wiring layout, connector type or private label product development.
Are samples available?
Yes. Samples are available for wavelength testing, brightness evaluation, curing test, fluorescence comparing, installation testing and OEM project confirming.
