uv led strip OEM ODM
Product Details Description

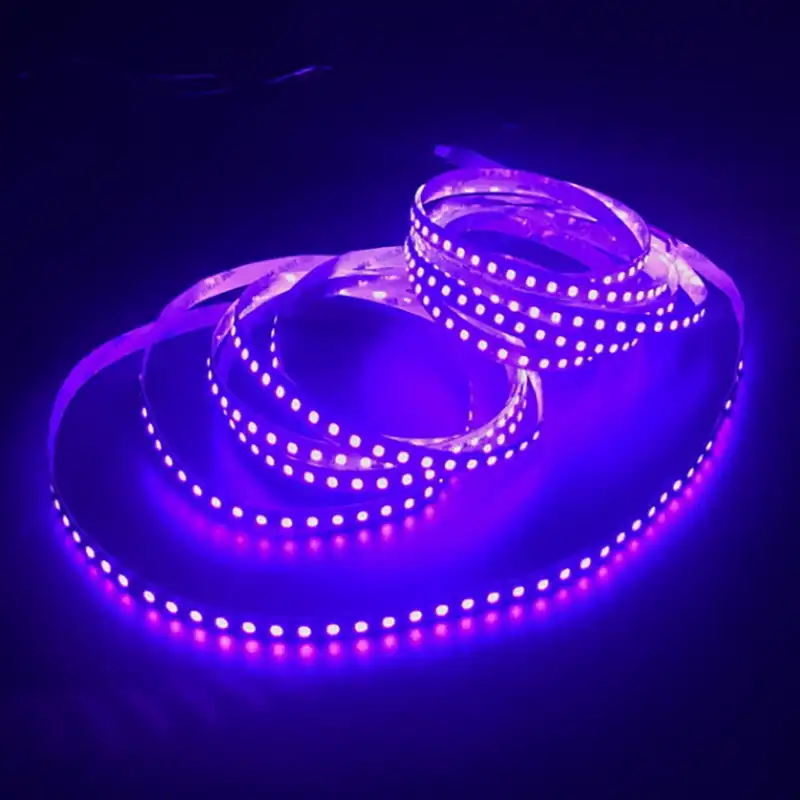

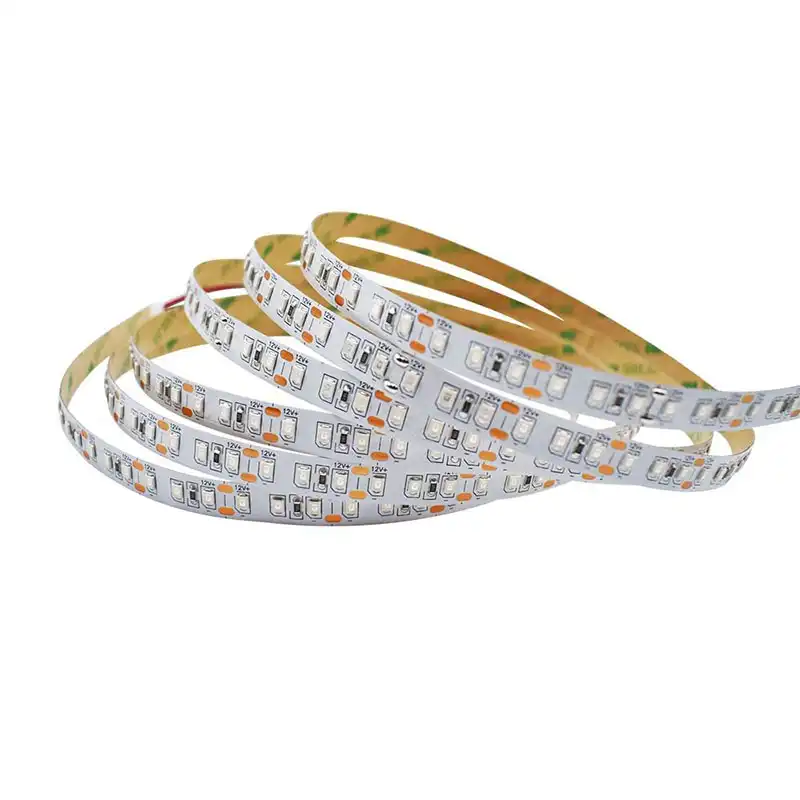

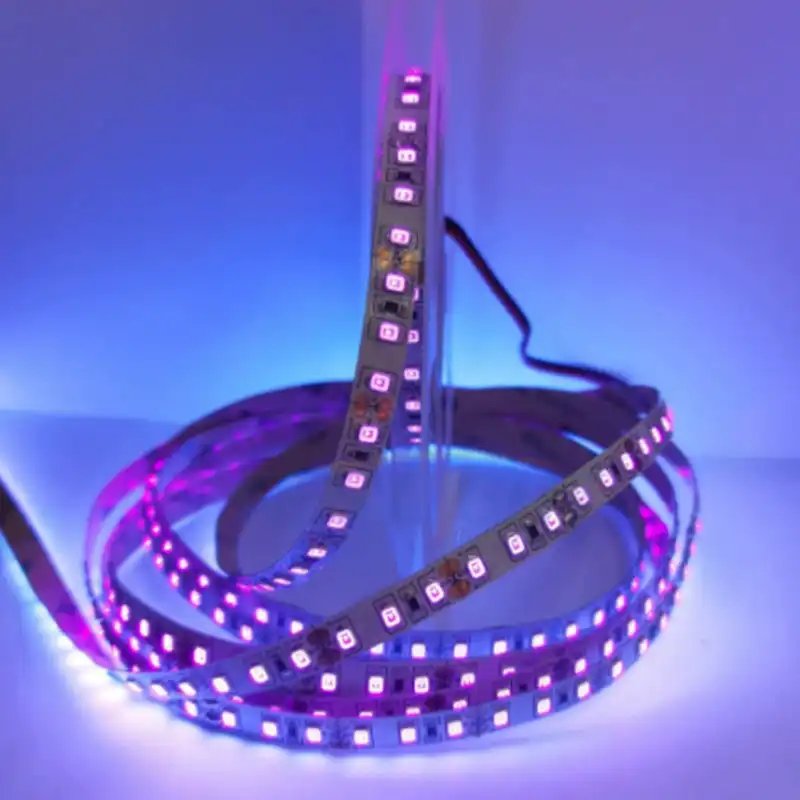

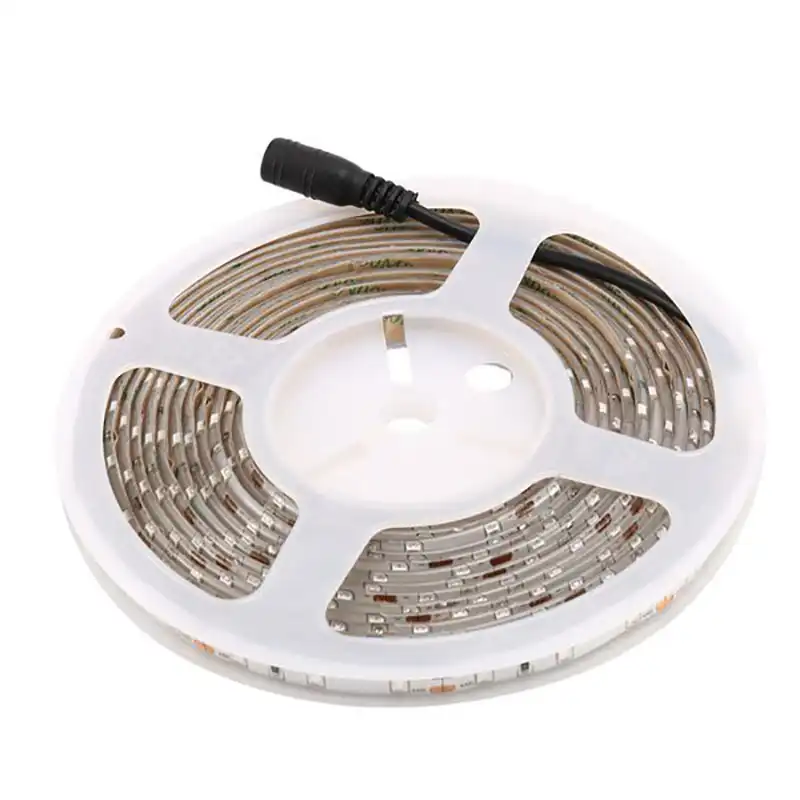

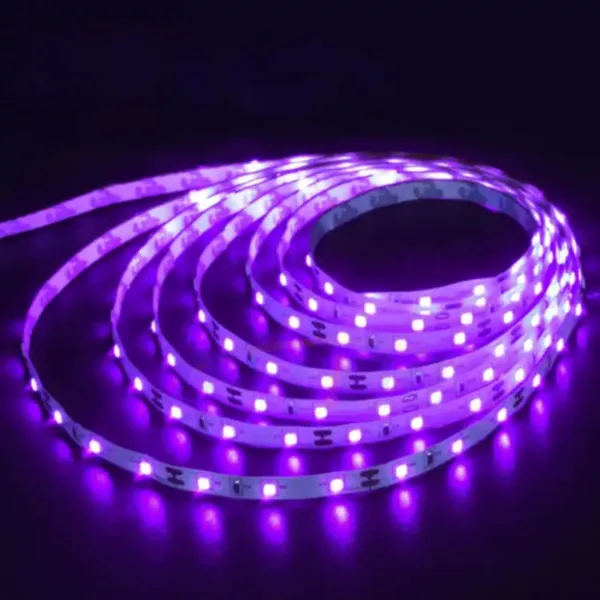

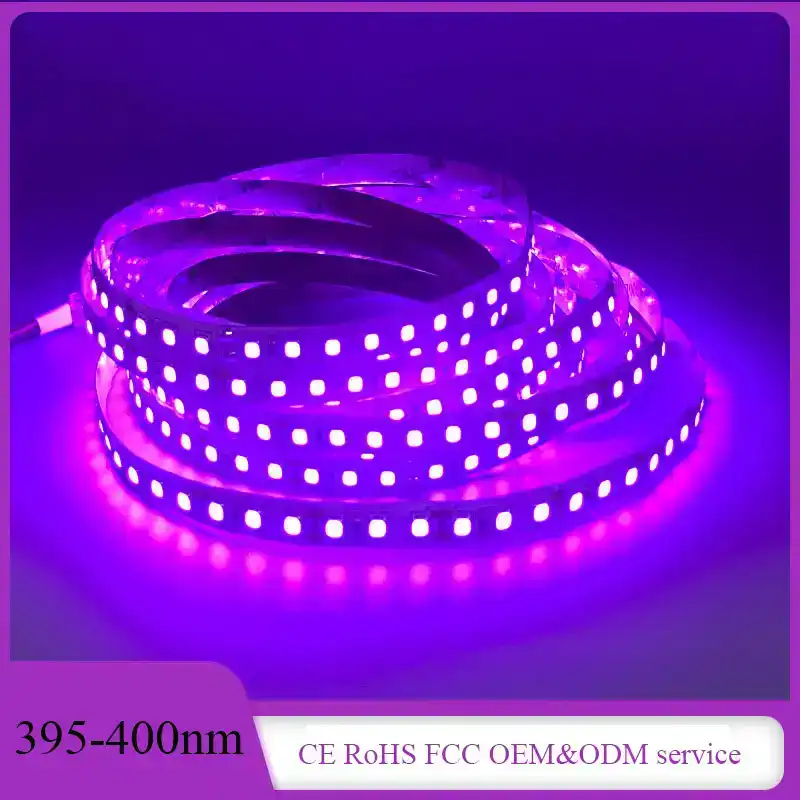

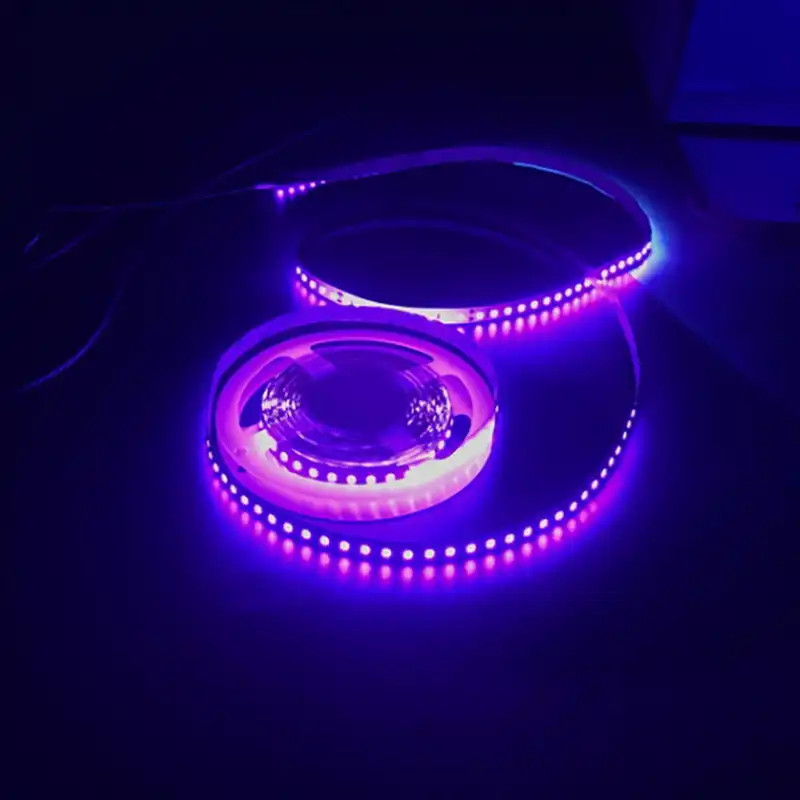

LS-UVA395-120D-8MM is a high-density UV LED strip of 395nm developed for OEM B2B lighting projects. It features the use of SMD2835, 120LED/m layout, 8mm PCB, and 5m roll.
The 395nm wavelength produces the visible effect of violet black light and stimulates fluorescent paints, pigments, labels, plastics, fabrics, inks, and UV-reactive materials. This UV LED strip can be applied in retail display cabinets, bar and club decoration, stage props, Halloween and party themes, fluorescent shelving, signages, artwork effects, leak detection, counterfeit checkup, and visual testing areas.
The 8mm PCB provides a convenient standard width for various lighting profiles and installation structures. Comparing with wider strips, this one is easy to install in narrow spaces while maintaining high LED density. The 120LED/m layout helps to avoid dark spots, and 120° emission angle ensures black light coverage of the target surface.
For OEM projects, this uv led strip supports 12V, 24V, 5V, or customized voltage options. The connection can be adjusted according to your controller design, wire length, connector type, soldering method, power supply, and product housing. It will be perfect for private-label lighting, display system manufacturing, cabinet lighting projects, project installation, and UV equipment manufacturing.
The strip size is 5000 x 8 x 1.7mm and it uses 4oz copper PCB. Such copper thickness improves the conductivity and heat spreading which is required for high-power 17W/m UV strip. In order to provide stable long-time operation, use a proper constant-voltage power supply, avoid voltage drop on long wires, and install this strip on the surface where heat dissipation is possible like aluminum profile.
The standard waterproofing level is IP20 for the dry environment inside. Additional waterproofing protection can be provided for your project according to the waterproofing requirement. The final performance of the strip will depend on the quality of power supply, strip length, wiring way, voltage stability, ambient temperature, mounting surface, and thermal design.
This uv led strip is the black light UV product, not the sterilization UV product. It should not be used and advertised for the disinfection purposes. Please avoid direct observation of LEDs during operation.
Samples are available for wavelength checking, brightness comparison, fluorescent effect testing, installation testing, and OEM projects confirmation. If your project requires 395nm UV LED strip with high LED density, 8mm PCB, customized voltage, customized connection, or additional waterproofing protection, you can customize the LS-UVA395-120D-8MM for your UV lighting application.
Specifications
Model No.: LS-UVA395-120D-8MM
Wavelength: 395nm
LED Chip: SMD2835
LED Quantity: 120led/m
Input Voltage: 12V / 24V / 5V or customize
Working Power: 17W/m
Size: 5000 x 8 x 1.7mm
Emission Angle: 120°
Waterproof: IP20 or customize
Spectrum FWHM: 10nm
PCB Copper Thickness: 4oz
Connection: Customize
Samples: Available
FAQ
What is this UV LED strip used for?
This UV LED strip is used for the black light effects, fluorescent display, UV-reactive decoration, signages, stage lighting, cabinet lighting, retail shelving, artwork effects, visual inspection, and OEM UV lighting projects.
What wavelength does this model use?
The LS-UVA395-120D-8MM uses 395nm UVA wavelength which is commonly used for the visible black light effects and fluorescent material stimulation.
Is this UV LED strip suitable for sterilization?
No. This is a 395nm UVA strip, not UVC sterilization light. It should not be used for the disinfection and germicidal purposes.
What LED chip is used?
This model uses SMD2835 LED chips with high-density 120led/m layout.
How wide is the strip?
The strip is 8mm wide and it is suitable for many standard LED channels, display frames, cabinet grooves, acrylic signages, and linear lighting profiles.
What voltage options are available?
The strip supports 12V, 24V, 5V, or customized input voltage options.
What is the working power?
The working power is 17W/m. Suitable power supply and proper heat dissipation are required for the stable operation.
Is the strip waterproof?
The standard version is IP20 for dry indoor environment. Additional waterproof protection can be provided for your project according to your requirement.
Why is 4oz copper PCB useful?
The 4oz copper PCB helps to increase the current carrying capacity and heat spreading which is useful for high-density and high-power UV LED strip design.
Can the connection be customized?
Yes. The connection can be customized for OEM assembling, controller matching, wiring layout, connector type, or private label product development.
Are samples available?
Yes. Samples are available for wavelength testing, brightness evaluation, fluorescent effect comparison, installation testing, and OEM project confirmation.
