Name: 395nm Black Light LED Light Strips 5mm - yoyo-uv.com
SKU: LS-UVA395-60D-5MM
Availability: InStock

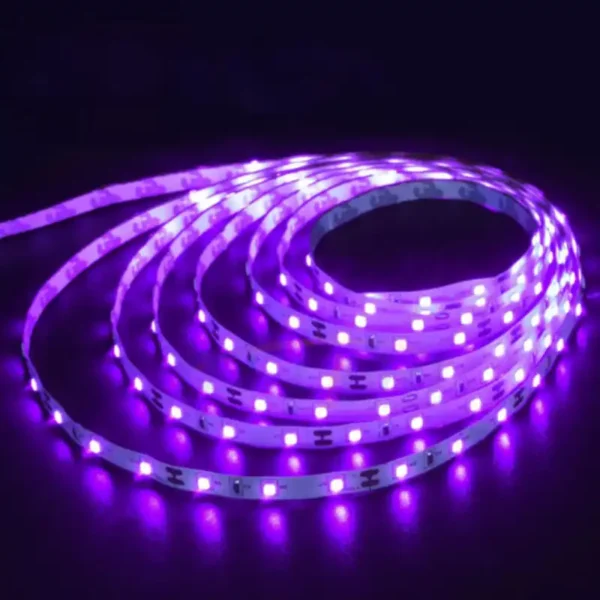

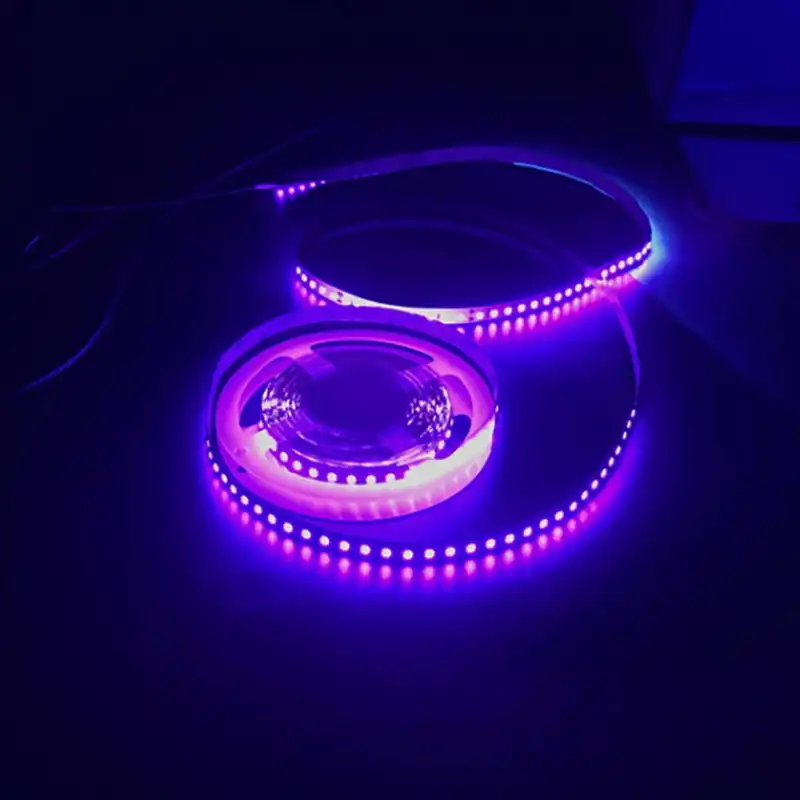

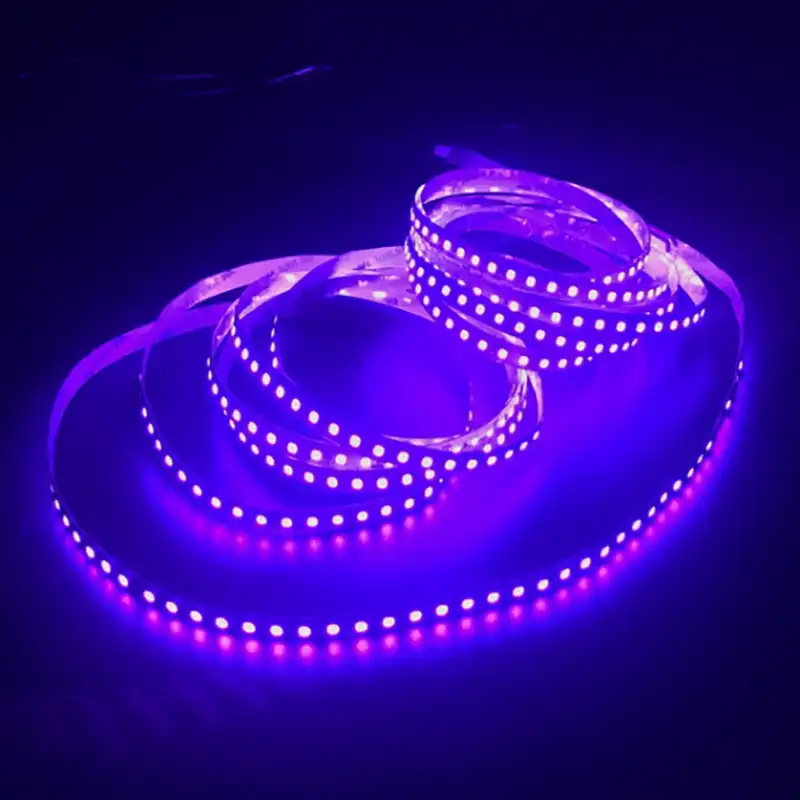

395nm Black Light Effect

This type of black light led light strips is designed with 395nm wavelength to create the powerful violet UV effect. It is widely used for fluorescent material, UV reactive display, stage decoration, signage, lighting inspection and creative installation. 10nm FWHM will provide the concentration UV spectrum for the stable black light effect.

Narrow 5mm Flexible Strip

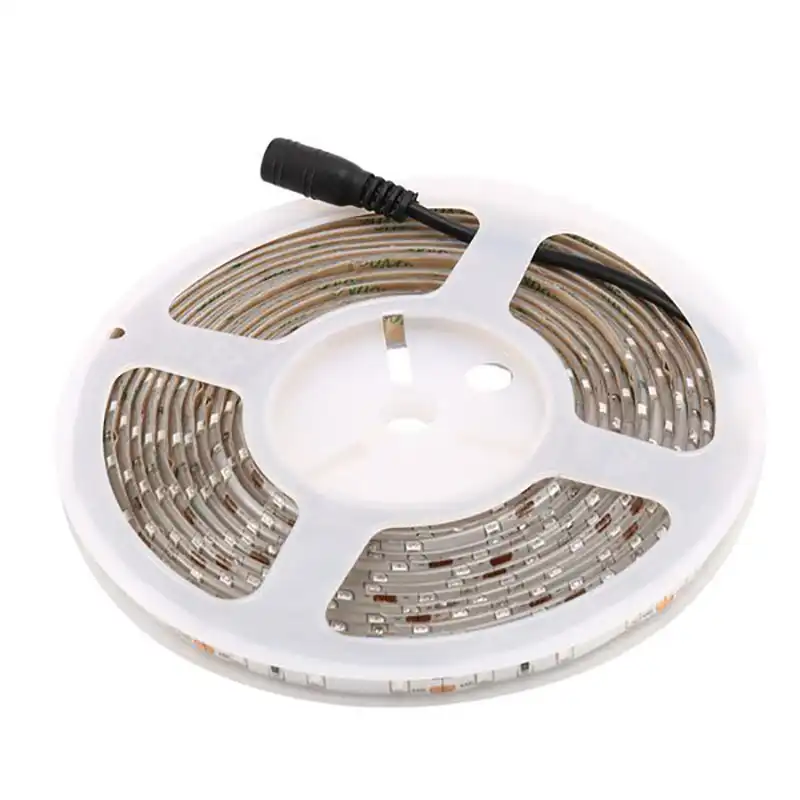

The LS-UVA395-60D-5MM is constructed on the 5mm narrow PCB, it is available for slim channel, cabinet edge, display shelf, model lighting, acrylic sign, and compact equipment space. Each roll size is 5000 x 5 x 1.7mm, providing the flexibility for the designer to install in the narrow width.

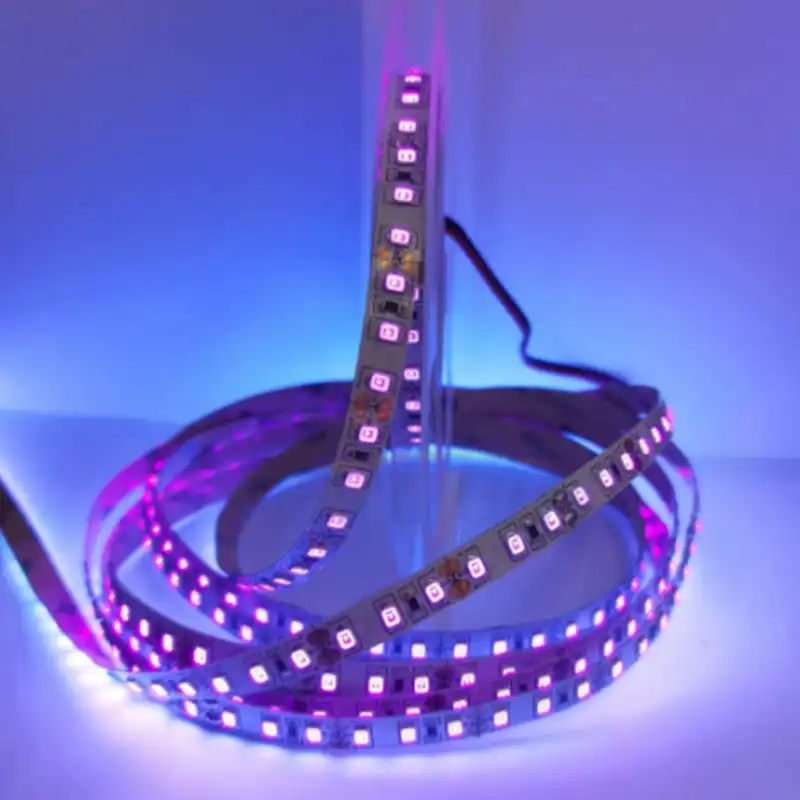

SMD2835 with 60 LEDs per Meter

With SMD2835 LEDs and 60 LEDs per meter, this black light led light strips will offer the balance brightness and spacing. 120° light angle will help the black light effect distribute over a wide range area.

Custom Voltage and Connection

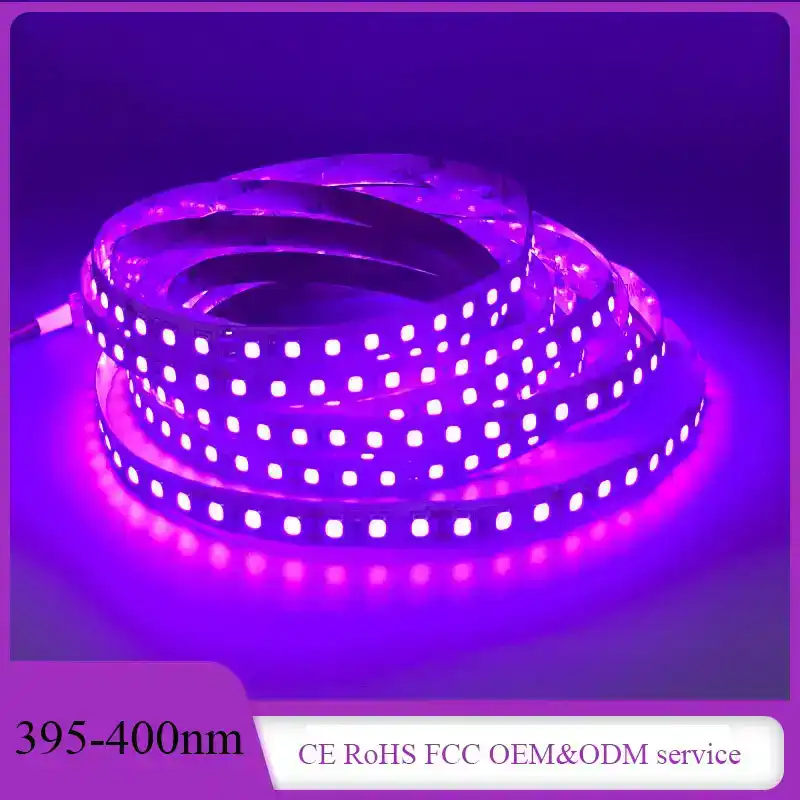

Voltage types include 12V, 24V, 5V or customized. The connection method can also be customized, this 395nm UV LED strip is suitable for OEM lighting project, display manufacturer, cabinet maker, and custom UV lighting supplier.

4oz Copper PCB for Reliable Performance

The 4oz copper PCB will enhance current carrying ability and heat dissipation when operating. With 7W/m working power, IP20 standard waterproof level or customizable waterproof ability, these black light led light strips can be applied for the standard indoor and customized application requirements.

black light led light strips 395nm

Product Details Description

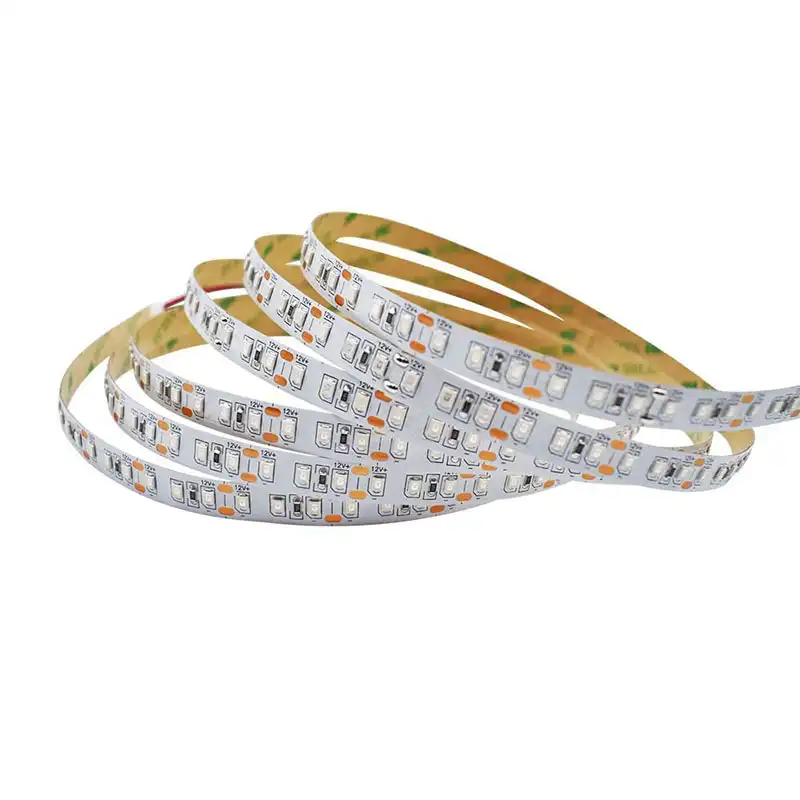

LS-UVA395-60D-5MM is a 395nm flexible UV LED strip for customers looking for narrow and configurable black light led light strips. It features SMD2835 LED chips, 60 LEDs per meter, and a compact 5mm PCB width that can fit into narrow installation locations where standard 8mm or 10mm wide LED strips cannot fit.

It is available in a 5000 x 5 x 1.7mm roll, suitable for cabinet lighting, shelf lighting, acrylic signage, stage props, art exhibition, party decoration, fluorescent material test, fluorescent product display, and customized equipment lighting. The 395nm wavelength creates a visible violet black light and can excite many fluorescent materials while it is easier to see and install compared to the lower wavelength UV strips.

For OEM projects, these black light led light strips can have 12V, 24V, 5V, or customized input voltage. The connection can also be customized according to your assembly way, controller design, wiring way, or installation environment. These flexibilities help OEM companies to produce private-label UV lighting products, customized display lighting, and application-specific black light systems.

The LED strip has a 120° light angle for wide coverage and a 10nm spectrum FWHM for more controllable UV output. The 7W/m working power offers a good trade-off between brightness and energy consumption. 4oz copper PCB is better than the thin copper one for providing a better electrical conduction channel and heat dissipation ability.

The waterproof rating is IP20 by default and is suitable for dry indoor environment. Waterproof protection can be customized for projects requiring additional environmental protection. The final performance is affected by the installation surface, power supply quality, strip length, wiring way, ambient temperature, and heat dissipation ability.

These black light led light strips are for UVA black light applications, not for UVC sterilization. Do not use this product as a sterilization light source. Avoid staring directly at the LEDs during the usage and follow the installation ways, power supply choice, and UV safety measures for commercial and industrial projects.

Samples are available for testing, color checking, prototype development, and OEM project evaluation. If your project needs a narrow 395nm UV LED strip with customized voltage, customized connection, or special waterproof design, the LS-UVA395-60D-5MM can be configured to serve different black light lighting applications.

Specifications

Model NO.: LS-UVA395-60D-5MM black light led light strips
Wavelength: 395nm
LED Chip: SMD2835
LED Quantity: 60led/m
Input Voltage: 12V / 24V / 5V or customize
Working Power: 7W/m
Size: 5000 x 5 x 1.7mm each roll
Light Angle: 120°
Waterproof: IP20 or customizable
Spectrum FWHM: 10nm
PCB Copper Thickness: 4oz
Connection: Customizable
Samples: Available

FAQ

What are these black light led light strips used for?

These black light led light strips are used for fluorescent display, UV-reactive decoration, stage lighting, signage, cabinet lighting, artwork effect, inspection lighting, and OEM UV lighting projects.

What wavelength does this LED strip use?

The LS-UVA395-60D-5MM uses 395nm wavelength which is commonly used for black light effect and fluorescent material excitation.

Is this strip suitable for sterilization?

No. This is a 395nm UVA black light strip, not a UVC sterilization light. It should not be promoted or used as a sterilization product.

What LED chip does the strip use?

This strip uses SMD2835 LED chips with 60 LEDs per meter.

What is the width of the strip?

The strip is 5mm wide and suitable for narrow channel, slim display structure, and compact lighting installation.

What voltage options are available?

The standard input options are 12V, 24V, and 5V. Customized voltage options are also available according to your project requirement.

Is the strip waterproof?

The standard version is IP20. Waterproof protection is customizable for projects needing additional moisture and dust resistance.

What does 4oz copper PCB mean?

The 4oz copper PCB provides a better conductive layer than the standard thin copper PCB design and helps with current flow and heat dissipation in LED strip applications.
