black light led tape 395nm
Product Details Description

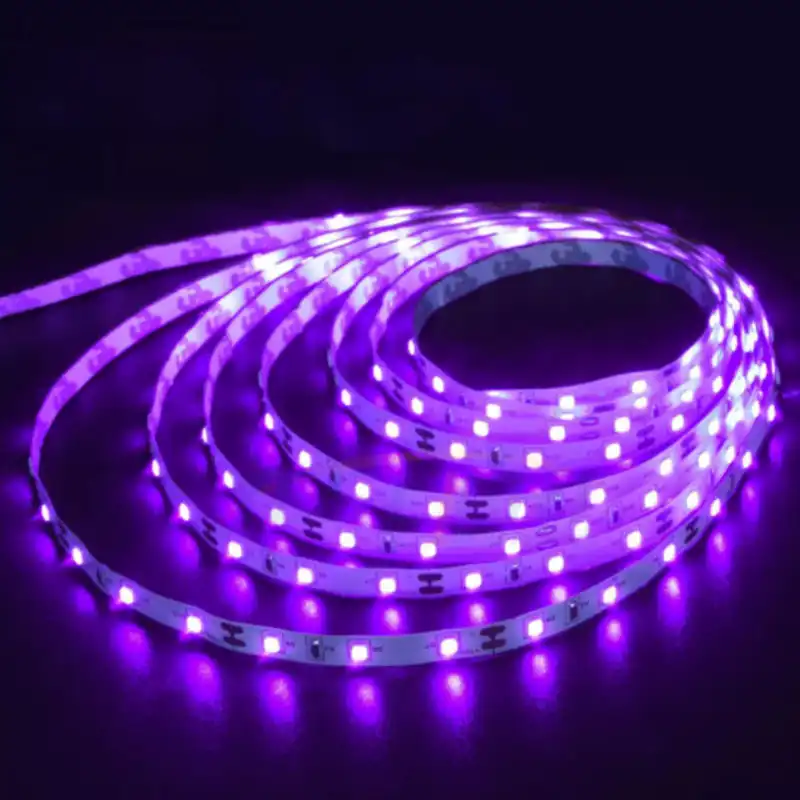

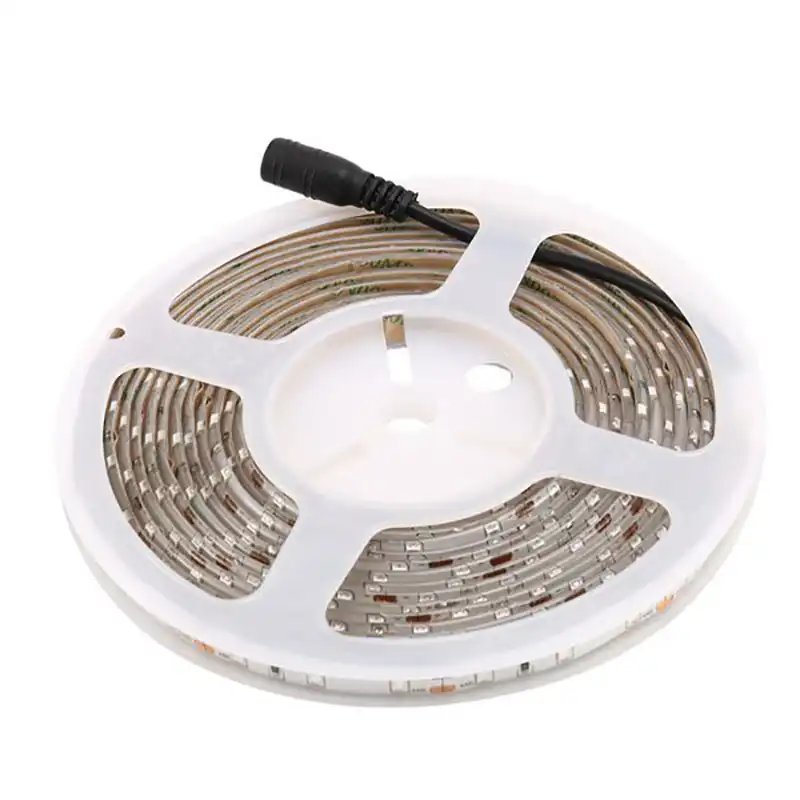

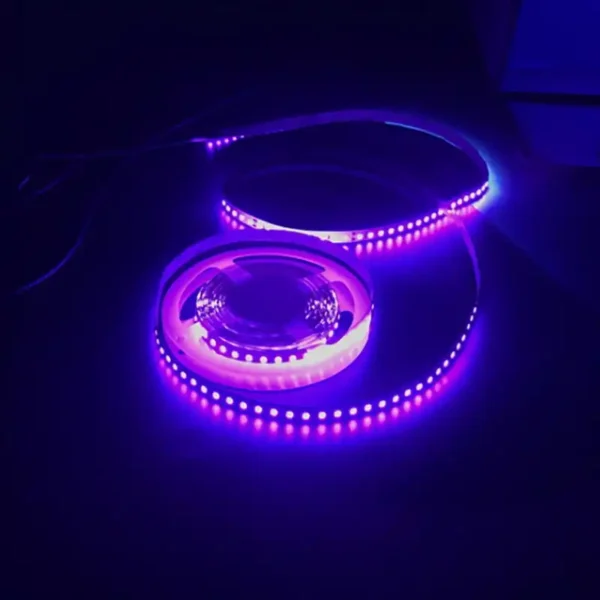

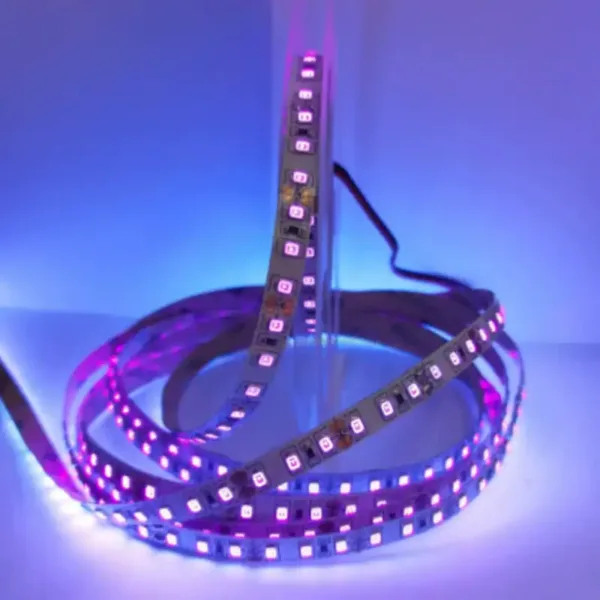

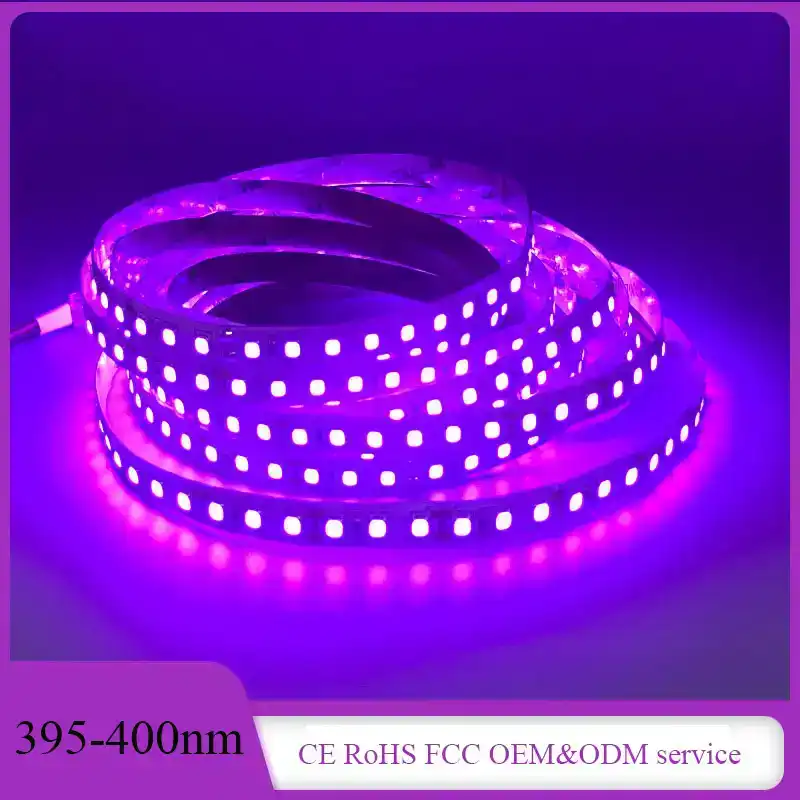

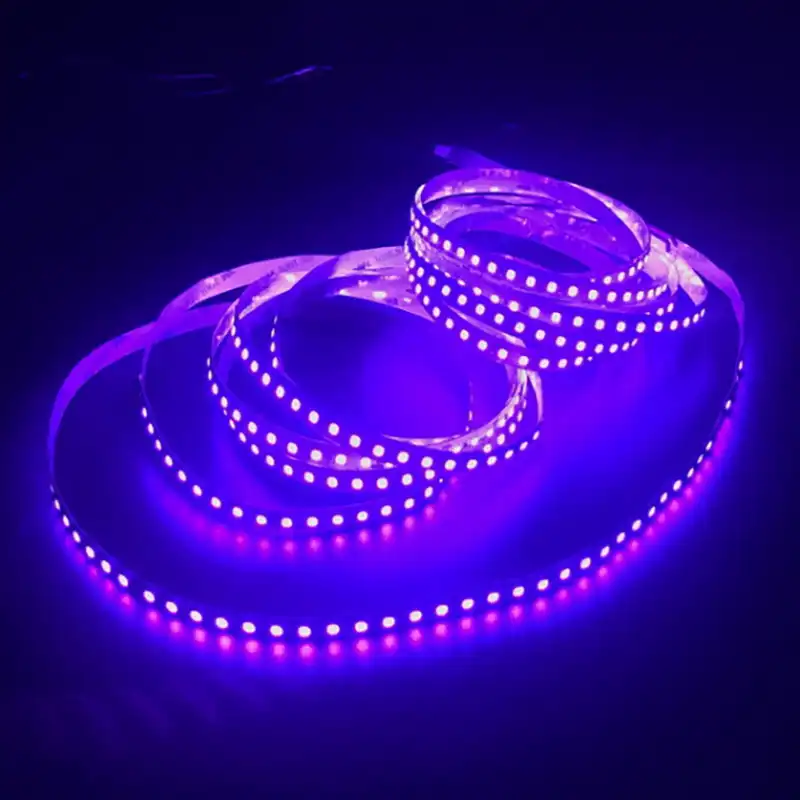

The LS-UVA395-60D-8MM is a 395nm black light led tape designed for B2B lighting projects, display manufacturing, signage, entertainment spaces, UV-reactive decoration, and customized OEM applications. It uses SMD2835 LED chips, 60 LEDs per meter, and an 8mm flexible PCB in a 5-meter roll.
The 395nm wavelength produces a classic violet blacklight appearance while exciting many fluorescent paints, pigments, fabrics, plastics, labels, and UV-reactive materials. This makes the strip suitable for bars, clubs, stage backgrounds, Halloween displays, party rooms, art installations, retail displays, amusement projects, cabinet lighting, and product showcase lighting.
For manufacturers and project builders, this black light led tape offers flexible electrical and mechanical customization. It supports 12V, 24V, 5V, or customized voltage options, and the connection can be adjusted according to your controller, installation method, soldering requirement, or assembly structure. This makes it useful for private-label UV lighting products and special project orders.
The 8mm PCB width is a standard format that works well with many LED channels and mounting surfaces. Each roll measures 5000 x 8 x 1.7mm, making it easy to use in long linear installations or cut-to-length designs. The 120° emission angle helps spread the blacklight effect across a wider area, while the 10nm spectrum FWHM supports consistent 395nm UVA output.
A 4oz copper PCB improves electrical conductivity and heat distribution compared with thinner PCB designs. This is especially useful for longer strip runs and OEM projects where stable performance matters. The working power is 8W/m, so a suitable power supply, correct wiring, and proper heat dissipation should be used for reliable operation.
The standard waterproof rating is IP20 for dry indoor environments. Waterproof protection can be customized for projects that require added protection against dust, moisture, or special installation conditions. Final performance depends on strip length, power supply quality, installation surface, ambient temperature, wiring method, and heat management.
This product is a UVA blacklight tape, not a UVC sterilization strip. It should not be used as a disinfection light source. Avoid staring directly at the LEDs during operation, and use suitable UV-aware safety practices for commercial displays, inspection stations, entertainment venues, and industrial lighting projects.
Samples are available for wavelength checking, brightness comparison, fluorescent effect testing, prototype assembly, and OEM project evaluation. If your project requires a 395nm black light led tape with custom voltage, custom connection, or optional waterproof protection, the LS-UVA395-60D-8MM can be adapted to your application.
Specifications
Model NO.: LS-UVA395-60D-8MM
Wavelength: 395nm black light led tape
LED Chip: SMD2835
LED Quantity: 60led/m

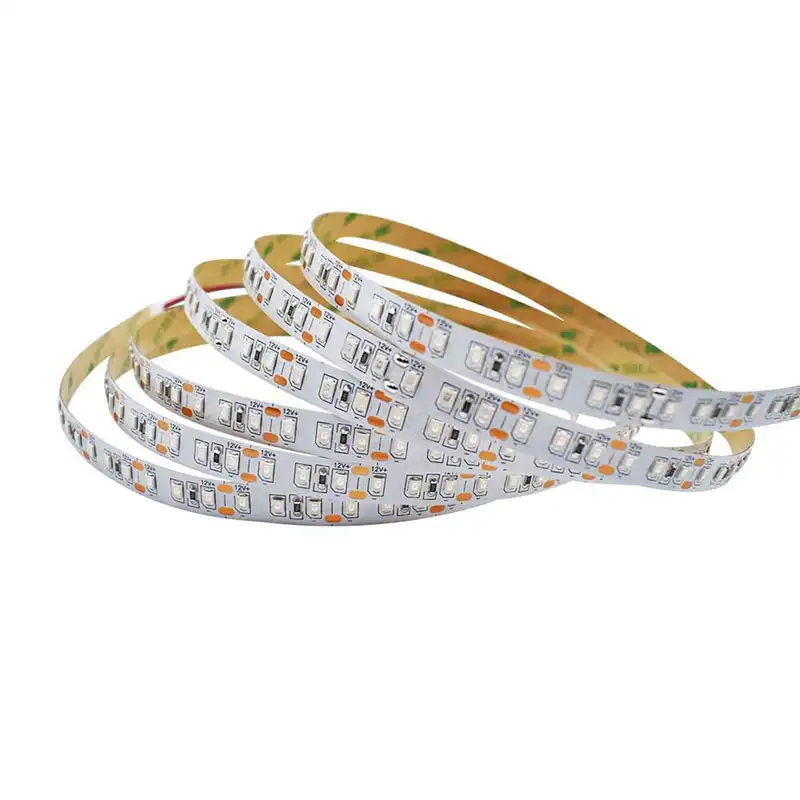

Input Voltage: 12V / 24V / 5V or customize
Working Power: 8W/m
Size: 5000 x 8 x 1.7mm/reel
Emission Angle: 120°
Waterproof: IP20 or customizable
Spectrum FWHM: 10nm
PCB Copper Thickness: 4oz
Connection: Customizable
Samples: Available black light led tape
FAQ
What is this black light led tape used for?
This black light led tape is used for fluorescent displays, UV-reactive decoration, bars, clubs, stage lighting, signage, artwork effects, cabinet lighting, party rooms, and OEM UV lighting projects.
What wavelength does this LED tape use?
The LS-UVA395-60D-8MM uses a 395nm UVA wavelength, which creates a visible violet blacklight effect and activates many fluorescent materials.
Is this product suitable for sterilization?
No. This is a 395nm UVA blacklight product, not a UVC sterilization light. It should not be used for disinfection.
What LED chip is used?
This model uses SMD2835 LED chips with 60 LEDs per meter.
What is the width of the tape?
The PCB width is 8mm, which fits many common LED channels, display frames, cabinet slots, and linear lighting structures.
What voltage options are available?
The input voltage can be 12V, 24V, 5V, or customized according to your project requirements.
Is the LED tape waterproof?
The standard version is IP20 for indoor dry locations. Waterproof protection can be customized for special projects.
Why use 4oz copper PCB?
The 4oz copper PCB supports better current flow and heat spreading, which helps improve stability in LED tape applications.
Can the connection be customized?
Yes. The connection can be customized for OEM assembly, controller matching, wiring layout, or private-label production.
Are samples available?
Yes. Samples are available for wavelength testing, brightness evaluation, fluorescent effect comparison, and OEM project development.
