black light strips 365nm led tape
Product Details Description

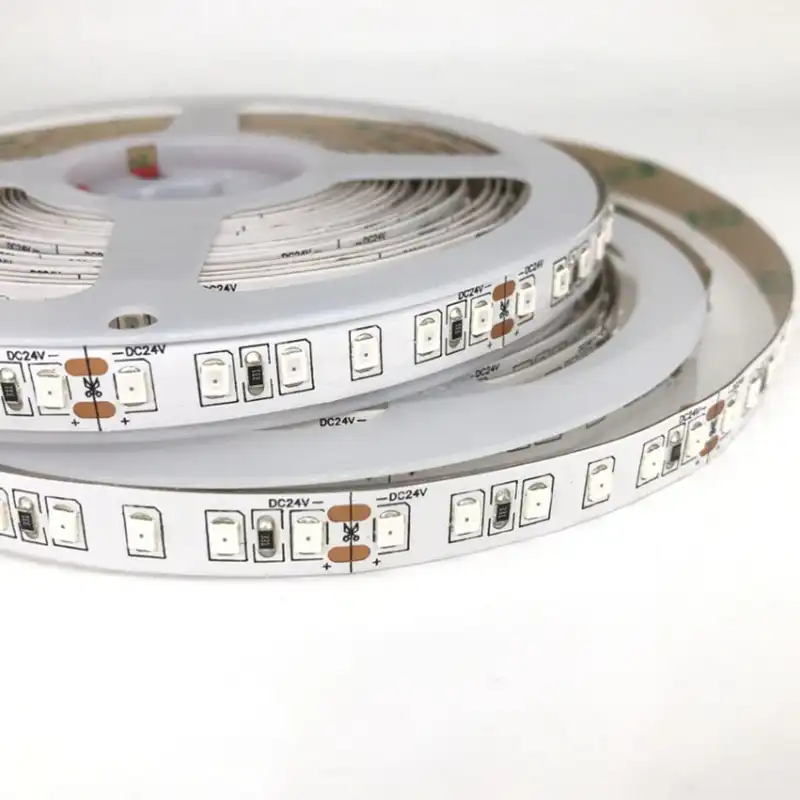

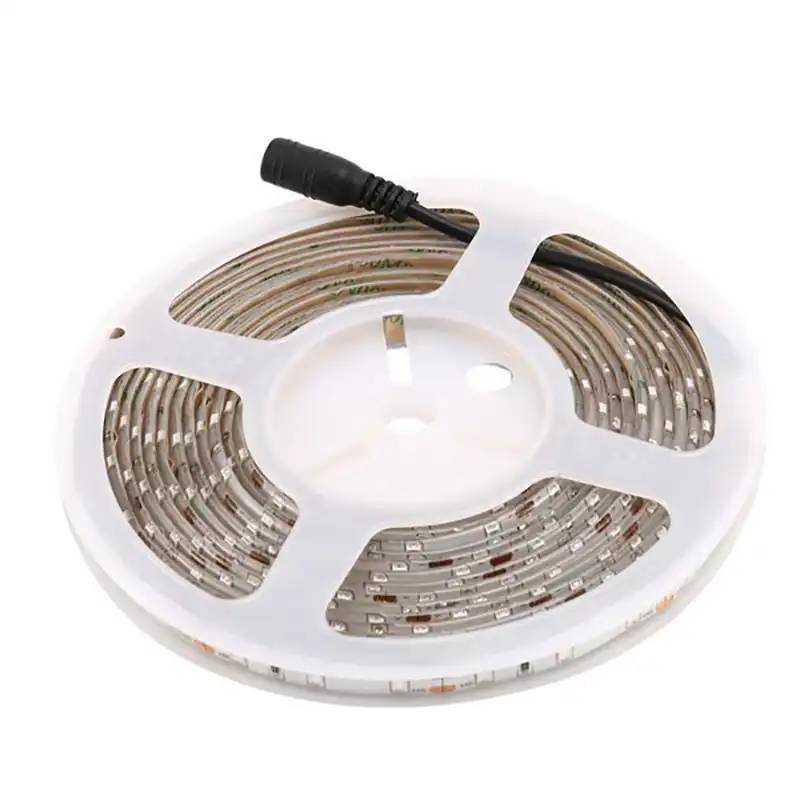

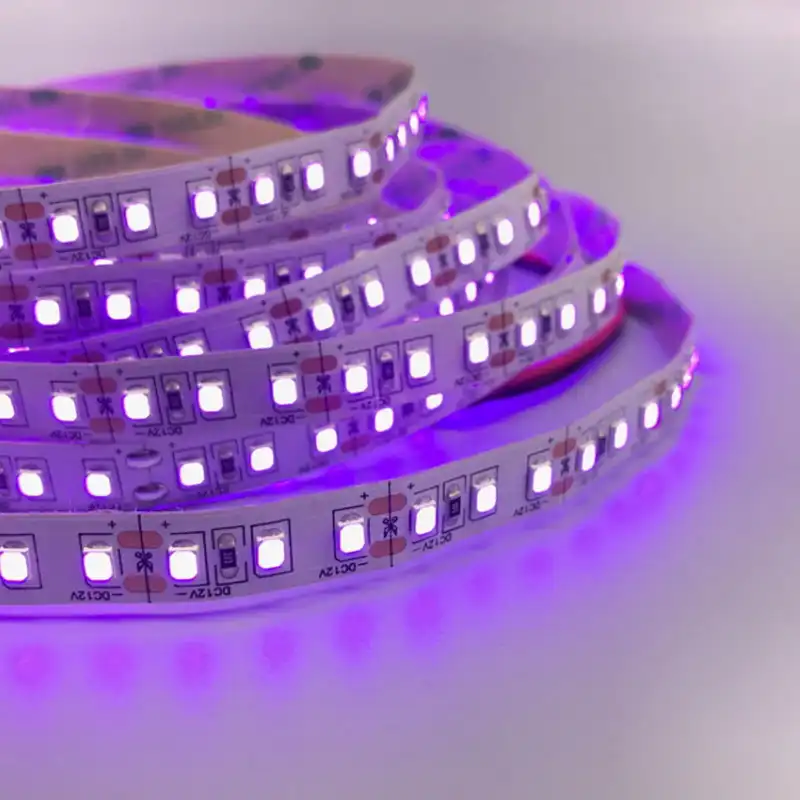

LS-UVA365-120D-8MM is a high-density 365nm UV LED strip which is developed for professional buyers who have the requirement to buy professional black light strips for fluorescence, curing, inspection, display and other purposes. The strip uses SMD2835 LED chips, 120LED/m, 8mm PCB, and 5-meter roll structure.
The 365nm wavelength is widely selected when the requirement is to get a stronger fluorescent reaction with less visible purple light. Black light strips can be used for uranium glass display cabinet, minerals viewing, UV reactive product display, resin curing, UV glue curing, leakage detection, bank note checking, anti-counterfeit checking, artwork showing, signage, stage effects, and laboratory style inspection.
High-density 120LED/m layout will help you to avoid dark spots and offer more uniform UV light distribution along the strip. 120° emission angle will make it suitable for shelves, glass cabinets, cabinets, linear work stations, production inspection lines, and compact display structures. 10nm spectrum FWHM will help you to get more focused 365nm UVA output.
For OEM and project-based buyers, these black light strips offer some useful customization options. The input voltage can be 12V, 24V, and 5V. Connection can be customized based on your controller, power supply, wiring method, soldering process and product housing. These features make LS-UVA365-120D-8MM suitable for lighting brands, cabinet manufacturers, display suppliers, equipment manufacturers and other UV lighting projects.
The size of the strip is 5000 x 8 x 1.7mm and the strip uses 4oz copper PCB. 4oz copper PCB thickness will offer better conductivity and heat distribution that will be useful for a 17W/m UV LED strip. To use it in stable way, use a suitable constant voltage power supply, do not connect long strip on one feed, and mount the strip on the surface with heat dissipation capability such as aluminum profile.
The waterproof level is IP20 which is enough for indoor dry environment usage. Waterproof protection can be customized based on the application requirements. The final performance of the strip will depend on voltage stability, wiring, strip length, ambient temperature, installation surface, heat dissipation and power supply selection.
These black light strips are UVA lighting products, not UVC sterilization products. They must not be used for disinfection or germicidal purposes. Do not stare at the LEDs while they are operating, and use UV aware safety in commercial, industrial, inspection and display environments.
Samples are available for wavelength checking, brightness comparing, fluorescence effect testing, curing test and OEM project development. If you need 365nm black light strips with high LED density, 8mm PCB width, customized voltage or customized connection then LS-UVA365-120D-8MM can be customized for different lighting and inspection applications.
Specifications
Model NO: LS-UVA365-120D-8MM
Wavelength: 365nm
LED Chip: SMD2835
LED Quantity: 120led/m
Input Voltage: 12V / 24V / 5V
Working Power: 17W/m
Size: 5000 x 8 x 1.7mm
Emission Angle: 120°
Waterproof: IP20 or customizable
Spectrum FWHM: 10nm
PCB Copper Thickness: 4oz
Connection: Customizable
Samples: Available
FAQ
What are these black light strips used for?
These black light strips are used for fluorescence detection, mineral display, uranium glass cabinets, UV reactive displays, UV glue curing, resin curing, anti-counterfeit checking, artwork effects, signage, cabinet lighting and OEM UV lighting projects.
What wavelength does the LS-UVA365-120D-8MM use?
This model uses 365nm UVA wavelength which is widely selected for stronger fluorescence response and less visible purple light than many 395nm black light products.
Are these black light strips suitable for sterilization?
No. These are 365nm UVA black light strips, not UVC sterilization strips. They should not be used or promoted for disinfection.
What LED chip is used?
The strip uses SMD2835 LED chips with 120 LEDs per meter.
What is the strip width?
The PCB width is 8mm which will fit many common LED channels, display frames, cabinet structures and linear lighting profiles.
What voltage options are available?
The strip offers 12V, 24V and 5V input voltage options.
Is the strip waterproof?
The standard version is IP20 for indoor dry locations. Waterproof protection can be customized based on project requirements.
What is the working power?
The working power is 17W/m. Suitable power supply and good heat dissipation are recommended for stable operation.
Why use 4oz copper PCB?
4oz copper PCB offers better current carrying capacity and heat spreading which will help to improve performance stability in high-power UV LED strip applications.
Can the connection be customized?
Yes. The connection can be customized for OEM assembly, controller matching, wiring layout and private label product development.
Are samples available?
Yes. Samples are available for wavelength testing, brightness evaluation, fluorescence comparison, curing tests and OEM project confirmation.
