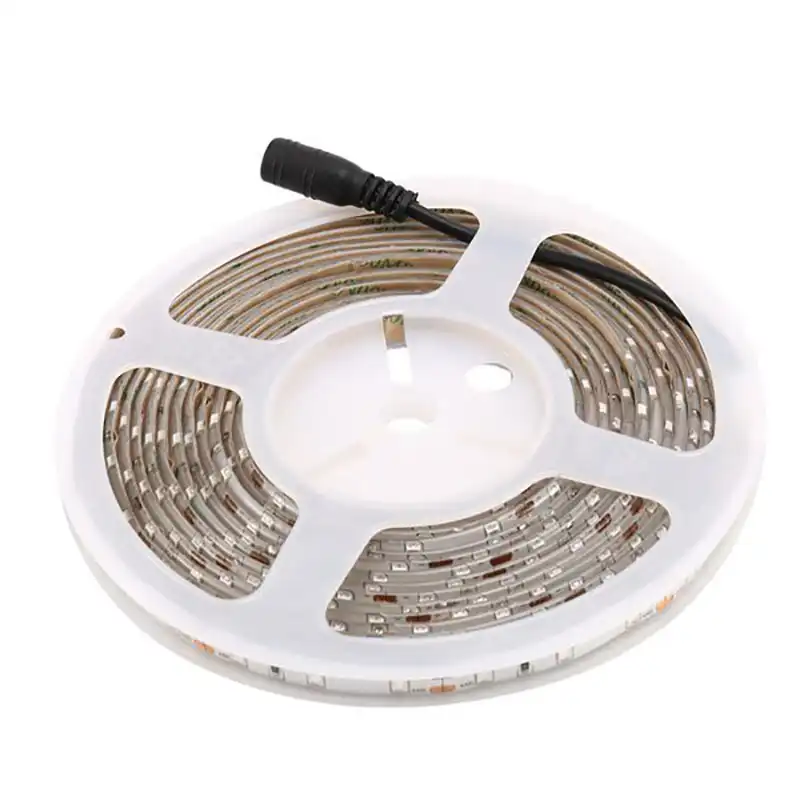

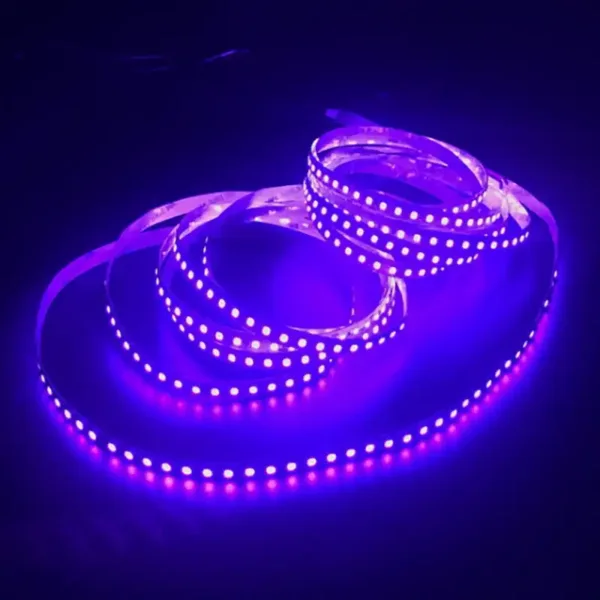

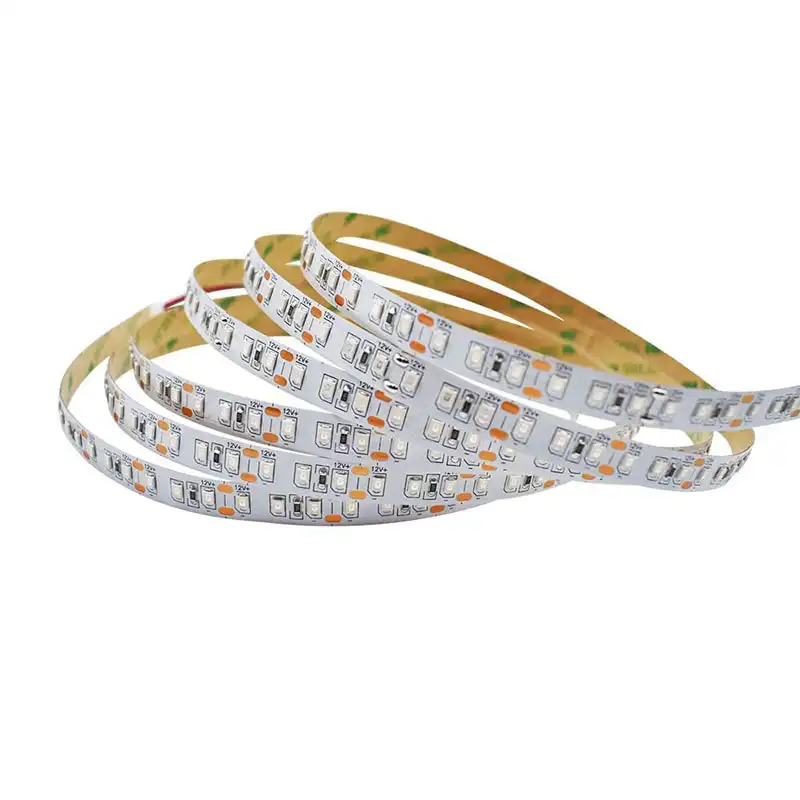

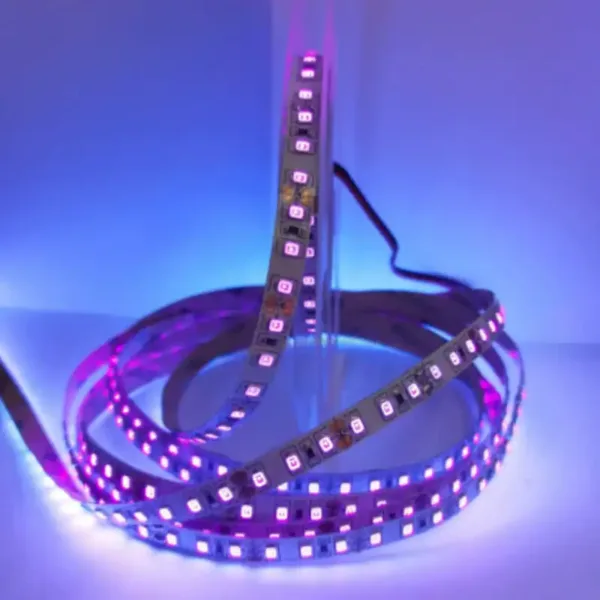

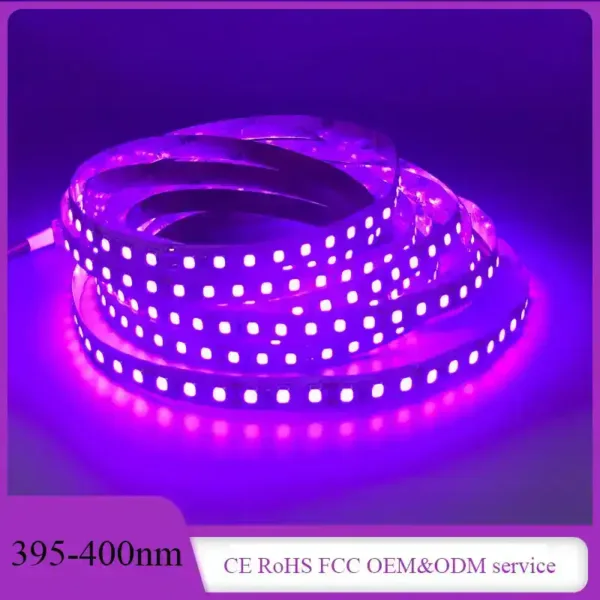

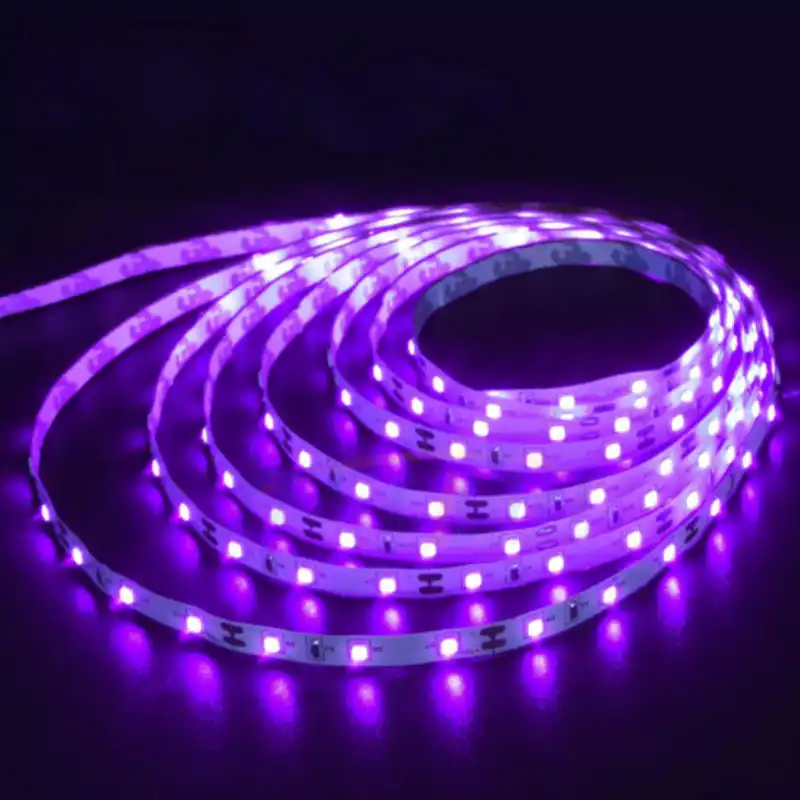

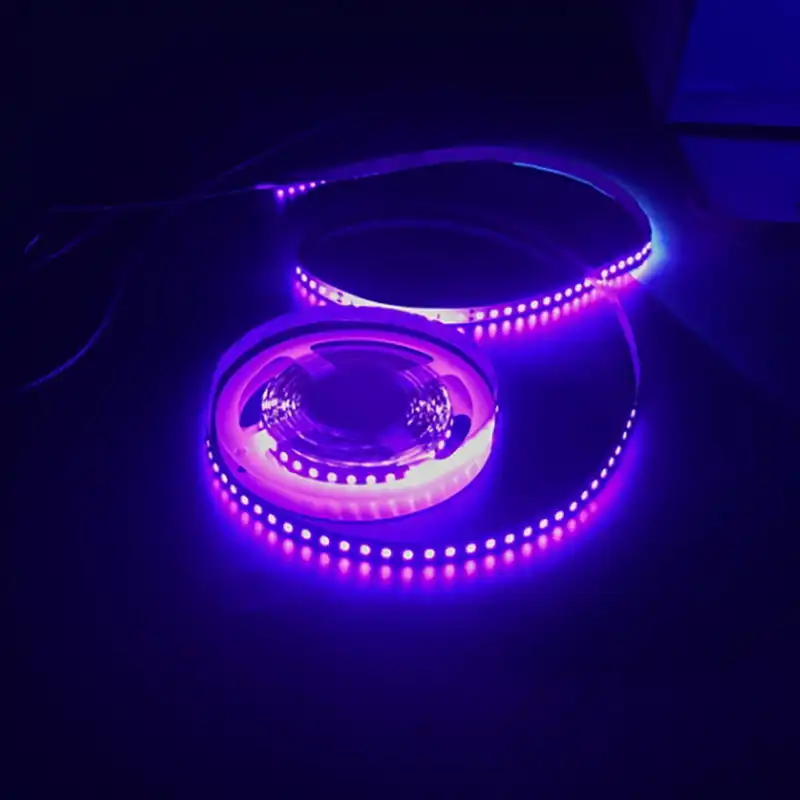

395nm UV LED Strip Lights 5mm 120LED/m

The LS-UVA395-120D-5MM is a 395nm high-density UV LED strip designed for B2B lighting projects, display manufacture, signage production, cabinet manufacturing, event lighting supplier, and OEM projects which require slim and customize UV LED strips. It consists of SMD2835 LED chip, 120 LED per meter, 5mm narrow PCB and 5meters roll format.

The 395nm wavelength makes the output create a visible violet black light effect and activate many fluorescent paints, pigments, labels, plastics, fabrics, and other UV reactive material. These uv led strip lights can be applied for retail display, bar & club lighting, stage props, Halloween decoration, party room, acrylic sign, fluorescent product shelf, artwork effect, leak detection, visual inspection and black light installation project.

Compared to 8mm and 10mm wide PCB, the 5mm narrow PCB allows greater mechanical freedom in narrow area. The strip is available in slim profile, small channel, cabinet slot, display edge, decorative line, and compact equipment housing. The 120LED/m design reduces visible gap between LEDs and generates smooth UV lighting line.

The 120° emission angle helps generate wide coverage of the illuminated surface and the 10nm spectrum FWHM keeps the output concentration in 395nm. For project which requires strong black light effect but restricted installation space, these uv led strip lights are suitable choice of brightness, density and mechanical flexibility.

For OEM customization, the LS-UVA395-120D-5MM has 12V, 24V and 5V input voltage. The connection can be customized according to your controller design, soldering method, wire length, connector type, power supply, and your product assembling process. So the strip is suitable for private-label lighting, custom display system, cabinet lighting, project-based installation and UV equipment integration.

The size of strip is 5000 x 5 x 1.7mm and uses 4oz PCB copper thickness. The thicker copper design improves conductivity and heat dissipation, which is important for a 17W/m high power UV strip. For stable and long-time operation, apply suitable constant voltage power supply, avoid voltage drop, and mount the strip on heat dissipation surface such as aluminum profile.

The standard waterproof rating is IP20, suitable for dry indoor environment. Waterproof protection can be customized if the project requires additional moisture, dust or special installation environment resistance. The final performance depends on power supply quality, strip length, wiring method, voltage stability, environmental temperature, mounting surface, and heat dissipation design.

These uv led strip lights are UVA black light products, not UVC sterilization products. Do not use and promote them for sterilization purpose. Avoid staring directly at the LEDs when it operates and practice proper UV aware safety in commercial, industrial, entertainment or inspection environment.

Samples are available for wavelength check, brightness comparison, fluorescent effect test, installation evaluation and OEM project confirmation. If your project needs 395nm uv led strip lights with high LED density, 5mm narrow PCB, customize voltage, connection, or waterproof protection, the LS-UVA395-120D-5MM can be customized for various UV lighting applications.

Specifications

Model NO.: LS-UVA395-120D-5MM
Wavelength: 395nm
LED Chip: SMD2835
LED Quantity: 120led/m
Input Voltage: 12V / 24V / 5V
Working Power: 17W/m
Size: 5000 x 5 x 1.7mm
Emission Angle: 120°
Waterproof: IP20 or customizable
Spectrum FWHM: 10nm
PCB Copper Thickness: 4oz
Connection: Customizable
Samples: Available

FAQ

What are these uv led strip lights used for?

These uv led strip lights are used for black light effect, fluorescent display, UV reactive decoration, signage, stage lighting, cabinet lighting, retail shelf, artwork effect, visual inspection, and OEM UV lighting project.

What wavelength does this model use?

The LS-UVA395-120D-5MM uses a 395nm UVA wavelength which is generally selected for visible black light effect and fluorescent material activation.

Are these uv led strip lights suitable for sterilization?

No. This is a 395nm UVA LED strip, not a UVC sterilization light. It should not be used for sterilization or germicidal purpose.

What LED chip is used?

This strip uses SMD2835 LED chip with a high-density 120led/m layout.

How wide is the strip?

The strip is 5mm wide which is suitable for slim channel, narrow sign, cabinet groove, acrylic edge, and narrow installation space.

What voltage options are available?

The strip supports 12V, 24V and 5V input voltage options.

What is the working power?

The working power is 17W/m. Suitable power supply and proper heat dissipation are needed for stable operation.

Is the strip waterproof?

The standard version is IP20 for dry indoor environment. Waterproof protection can be customized for special project requirements.

Why is 4oz copper PCB useful?

The 4oz copper PCB helps improve current carrying capacity and heat spreading, which is helpful for high-density and high-power UV LED strip design.

Can the connection be customized?

Yes. The connection can be customized for OEM assembling, controller match, wiring design, connector type or private-label product development.

Are samples available?

Yes. Samples are available for wavelength testing, brightness evaluation, fluorescent effect comparison, installation testing and OEM project confirmation.
