UV module for industrial use
Product Description

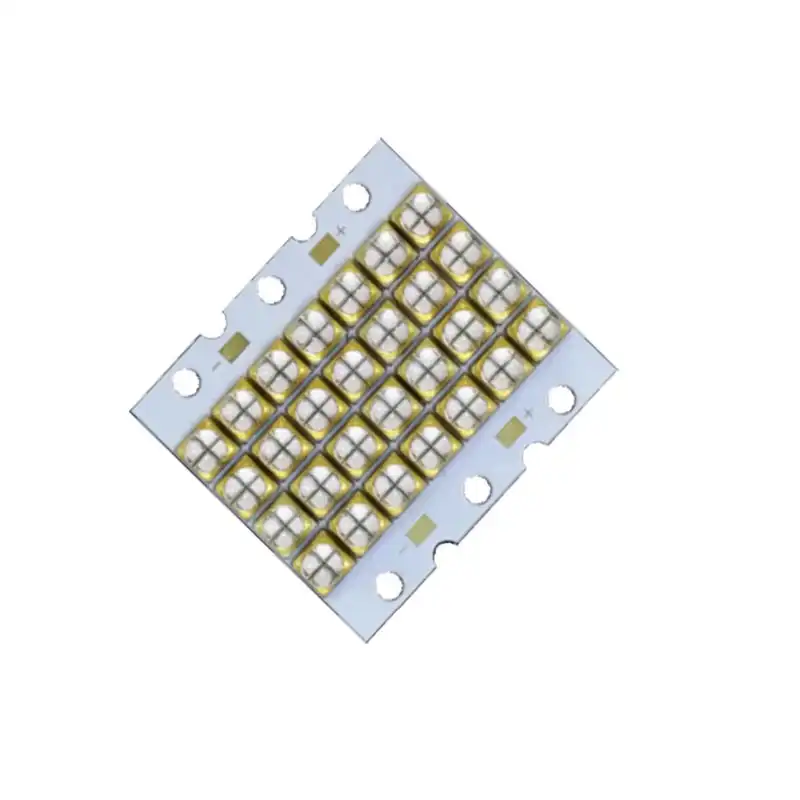

TH-UVxDB300W14H8P-5045 is a high power UV module specially designed for industrial UV curing, printing, coating and adhesive applications. The UV module is aimed at the equipment manufacturers who need a compact high power UV LED light source with various wavelength options and high current operation.
This high power UV module comes with 365nm, 385nm, 395nm and 405nm wavelengths as well as customized wavelength options. Such wavelength options allow customers to apply the product in different curing applications since various wavelengths provide appropriate absorption features for different UV-curable inks, coatings, adhesives and other curing materials. The wavelength should be selected according to the absorption requirement of the curing material.
The product size is 50x45mm. This small form factor makes it possible to integrate the UV module into curing heads, printing machines, coating lines, adhesive curing equipment, inspecting equipment and other UV light source assemblies. The view angle of 60 degrees allows for obtaining focused UV output for the required irradiation area.
The voltage specification is 48-54VV. The current range is 5600-7200mA. The radiant power is 15000-20000mW. These technical specifications allow using this product in high power UV LED applications where a stable power output is required. Proper heat dissipation, current control and optical design should be taken into account during equipment integration.
The high power UV module is based on state-of-the-art SMD design and low thermal resistant material. The structure of this product allows using it in the high current operation and high power output applications. In comparison with low power UV components this product is more suitable for industrial systems requiring strong UV energy density.
Main applications include UV curing, printing, coating and adhesive curing. The module can be used as a UV LED module for UV ink curing, UV coating hardening, UV glue curing, surface treatment processes and detecting applications. For equipment manufacturers who develop UV curing machines or printing equipment this UV module provides a compact light source platform for OEM product development.
The product is of SMT type and RoHS compliant. This product can be used by B2B buyers who need a high power UV light source with various wavelength options, compact size and industrial integration capabilities. The product can be used in custom UV LED module projects where wavelength, optical layout, drive conditions and thermal design should meet the final equipment requirements.
Customers who are looking for the UV module with high radiant power, 365nm/385nm/395nm/405nm wavelength options, 50x45mm size, 60 degree view angle, high current operation, low thermal resistance and RoHS compliance can choose the TH-UVxDB300W14H8P-5045 as a practical high power UV LED module for curing, printing, coating and adhesive applications.

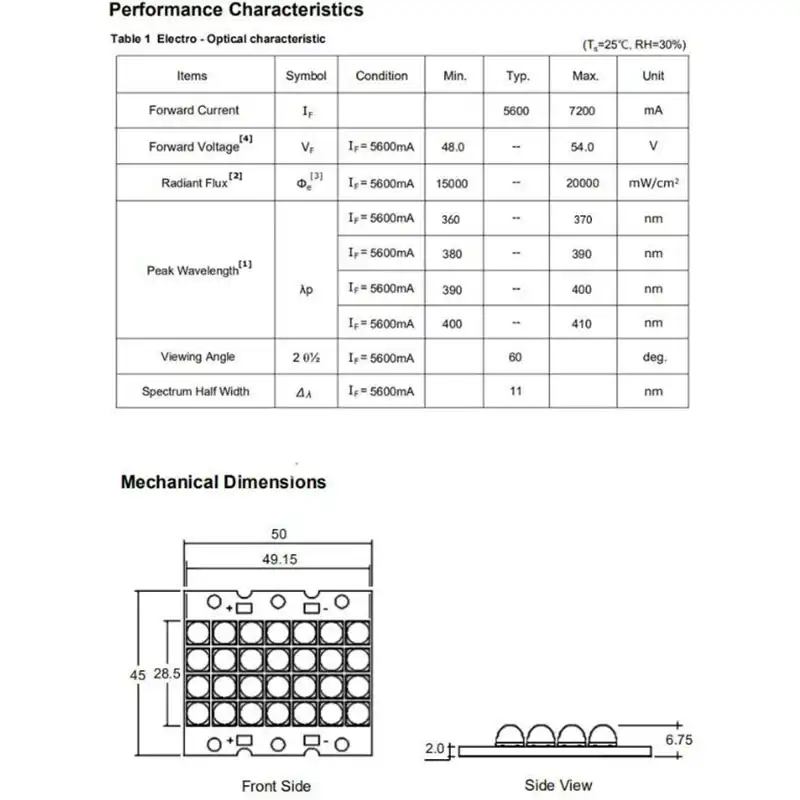

Specifications
Model No.: TH-UVxDB300W14H8P-5045
Wavelength: 365nm / 385nm / 395nm / 405nm or customize
Size: 50x45mm
Voltage: 48-54VV
Current: 5600-7200mA
Radiant Power: 15000-20000mW
View Angle: 60 degree
Features and Benefits
High power output
Designed for high current operation
Low thermal resistance
SMT type
RoHS compliant
Key Applications
UV Curing
Printing
Coating
Adhesive
Detecting applications
FAQ
What is the TH-UVxDB300W14H8P-5045 used for?
The TH-UVxDB300W14H8P-5045 is a high power UV module used for UV curing, printing, coating, adhesive curing and detecting applications.
What wavelength options are available?
The available wavelength options are 365nm, 385nm, 395nm and 405nm. Customized wavelength service is also available.
What is the size of this UV module?
The module size is 50x45mm.
What is the voltage specification?
The voltage specification is 48-54VV.
What current range does the module support?
The current range is 5600-7200mA.
What is the radiant power?
The radiant power is 15000-20000mW.
What is the view angle?
The view angle is 60 degree.
Is this a high power UV LED module?
Yes. This UV LED module is designed for high current operation and high power output applications.
Can it be used for UV curing?
Yes. UV curing is one of the key applications, especially for inks, coatings and adhesives.
Can it be used in printing equipment?
Yes. This UV module can be integrated into UV printing and UV ink curing equipment when the electrical, optical and thermal design requirements are met.
- Is it suitable for coating applications?
Yes. The module can be used as a UV light source for coating curing applications.
Can it cure adhesive?
Yes. Adhesive curing is one of the key applications for this high power UV module.
What type of package design does it use?
It uses an SMT type design.
Does it have low thermal resistance?
Yes. The product incorporates low thermal resistant material to support high power operation.
Is the product RoHS compliant?
Yes. The UV module is RoHS compliant.
