Best 365nm UV LED module Seoul Viosys 250W
Product Description

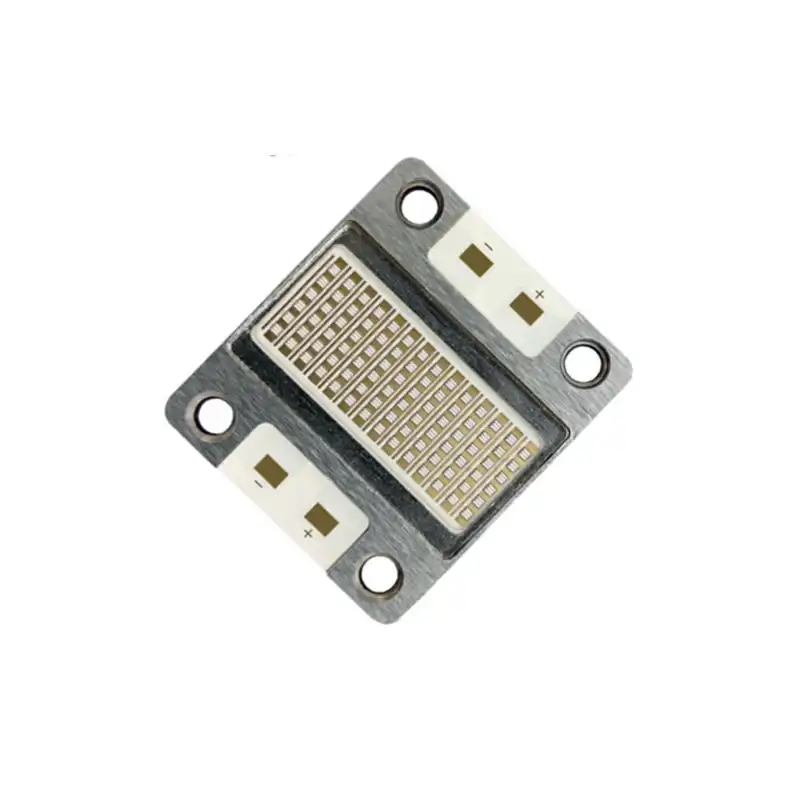

The UV365DB250W14H6P-3236 is a high power 365nm UV LED module designed for curing, printing, coating, adhesive and detecting applications. It is made for manufacturers that require a small UV LED light source with good radiant power, good electrical performance and special wavelength of 365nm.
This 365nm UV LED module has a size of 32x36mm. The small structure makes the system designer integrate the UV LED light source into curing heads, UV printing machines, coating systems, adhesive curing stations, inspection devices and other industrial equipment assembly.
The wavelength is 365nm. This special UVA output is perfect for applications which require 365nm output. For UV curing project, the final UV curing result should be verified by using the real material formula, distance, exposure time and optical structure.
The voltage specification is 48-54V, the current range is 4000-6000mA, and the radiant power is 13000-25000mW. These parameters show that this 365nm UV LED module is made for high current operation and high power output applications. An appropriate constant current driver and good thermal design should be considered during integration.
The view angle is 120 degree. This wider emission angle can meet the requirement of covering a wider irradiation area when this module is applied to UV curing, printing, coating or adhesive processing machine. Optical lens, reflector or distance adjustment can be designed by the equipment designer according to the irradiation pattern.
This high power UV LED series adopts the newest technology of SMD and low thermal resistant material. The structure is capable of high current operation when the final equipment provides a good heat dissipation.
The key applications include UV curing, printing, coating and adhesive curing. The module can also be used as a 365nm UV LED module in detecting applications which require UVA excitation. It is a good solution for OEM ODM projects which require a small UV LED light source with high radiant power.
The product is SMT type and RoHS compliant. Factory OEM ODM service is available for the customers who want customized UV LED products. For system builders, wavelength, current, voltage, heat dissipation, working distance and material compatibility should be checked before mass production.
For the customers who want a 365nm UV LED module with size of 32x36mm, voltage of 48-54V, current range of 4000-6000mA, radiant power of 13000-25000mW, view angle of 120 degree, low thermal resistance, SMT type and RoHS compliance, the UV365DB250W14H6P-3236 is a good solution for your curing, printing, coating, adhesive and detecting applications.

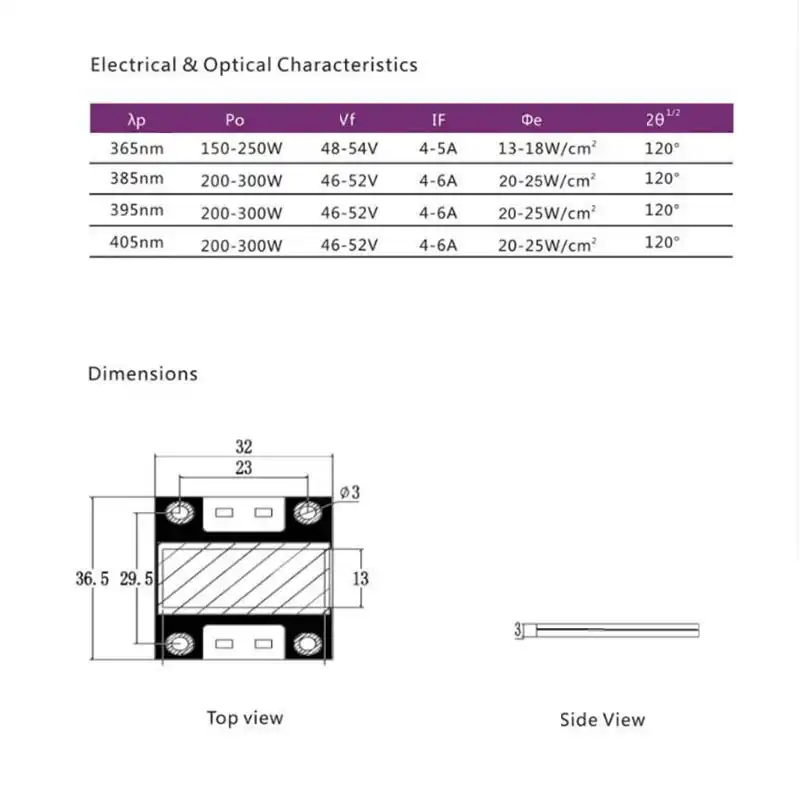

Specifications
Model No.: UV365DB250W14H6P-3236
Wavelength: 365nm
Size: 32x36mm
Voltage: 48-54V
Current: 4000-6000mA
Radiant Power: 13000-25000mW
View Angle: 120 degree
Factory OEM ODM Service: Available
Features and Benefits
High power output
Designed for high current operation
Low thermal resistance
SMT type
RoHS compliant
Key Applications
UV Curing
Printing
Coating
Adhesive
Detecting applications
FAQ
What is the UV365DB250W14H6P-3236 used for?
The UV365DB250W14H6P-3236 is a high power 365nm UV LED module used for UV curing, printing, coating, adhesive curing and detecting applications.
What is the wavelength of this module?
The wavelength is 365nm.
What is the module size?
The module size is 32x36mm.
What is the voltage specification?
The voltage specification is 48-54V.
What current range does it support?
The current range is 4000-6000mA.
What is the radiant power?
The radiant power is 13000-25000mW.
What is the view angle?
The view angle is 120 degree.
Is this a high power UV LED module?
Yes. This 365nm UV LED module is designed for high current operation and high power output applications.
Can this module be used for UV curing?
Yes. UV curing is one of the key applications for this module.
Can it be used in UV printing equipment?
Yes. It can be used as a 365nm UV LED light source in UV printing equipment when the electrical, optical and thermal design match the application.
Is it suitable for coating curing?
Yes. The module can be used for coating applications that require 365nm UV curing.
Can it be used for adhesive curing?
Yes. Adhesive curing is one of the key applications.
Can it be used for detecting applications?
Yes. This model can be used as a 365nm UV light source for detecting applications.
Is this module RoHS compliant?
Yes. The module is RoHS compliant.
Is factory OEM ODM service available?
Yes. Factory OEM ODM service is available for customized UV LED module projects.
