UV curing LED module 250W 365nm 385nm 395nm 405nm
Product Description

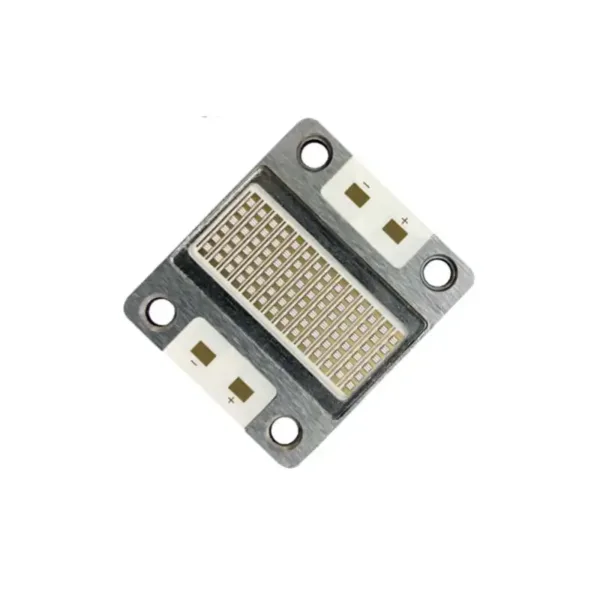

The UVxDB250W14H6P-3236 is a high power UV curing LED module intended for industrial curing, printing, coating, adhesive and detecting applications. The module is made for manufacturers requiring a compact UV LED light source with high radiant power, high current operation and wavelength selectable capability.
This UV curing LED module supports 365nm, 385nm, 395nm and 405nm wavelengths. With the above UVA wavelength options, equipment designers will find it easy to select a light source that matches the different UV-curable inks, coatings, adhesives and process materials. The appropriate wavelength is selected considering the absorption characteristics of the material and curing performance required.
The module size is 32x36mm. Such a compact module is suited for UV curing heads, UV printing equipment, coating machines, adhesive curing stations, inspection equipment and UV light source assemblies. The wide angle of 120 degrees will help achieve wide UV coverage in applications that require a wide irradiation area.
The voltage specification is 48-54VV, current range is 4000-6000mA and radiant power is 13000-25000mW. With such specifications, the product becomes suitable for high power UV LED systems where high output and electrical design are needed. Appropriate constant current driver and thermal design should be considered during the integration process.
This UV curing LED module comes with advanced SMD design and low thermal resistant material. The product is designed for high current operation and high power output applications. With its structure, industrial use will be possible only if the final equipment provides proper heat dissipation, electrical design and optical layout.
Some of the key applications of this module include UV curing, printing, coating and adhesive curing. This module can be used as a UV LED light source for UV ink curing, UV coating hardening, UV glue curing, surface curing and detecting applications. Additionally, it is suitable for OEM ODM projects requiring a compact high power UV curing module.
Compared to other UV light components, the above UV curing LED module is more suitable for equipment level integration. The combination of high radiant power, various wavelength options, compact size and wide viewing angle will make it practical for manufacturing of UV curing machines, printing equipment and adhesive processing equipment.
The UVxDB250W14H6P-3236 is an SMT type and RoHS compliant module. Factory OEM ODM service is available for customers requiring customized UV LED curing solutions. In order to ensure good results, the wavelength, drive current, heat dissipation, working distance, optical design and curing material should be tested before large scale production.
For customers requiring a UV curing LED module with 365nm/385nm/395nm/405nm wavelengths, 32x36mm size, 48-54VV voltage, 4000-6000mA current, 13000-25000mW radiant power, 120 degree view angle, low thermal resistance and RoHS compliant, the UVxDB250W14H6P-3236 becomes a practical high power UV LED light source for curing, printing, coating and adhesive applications.

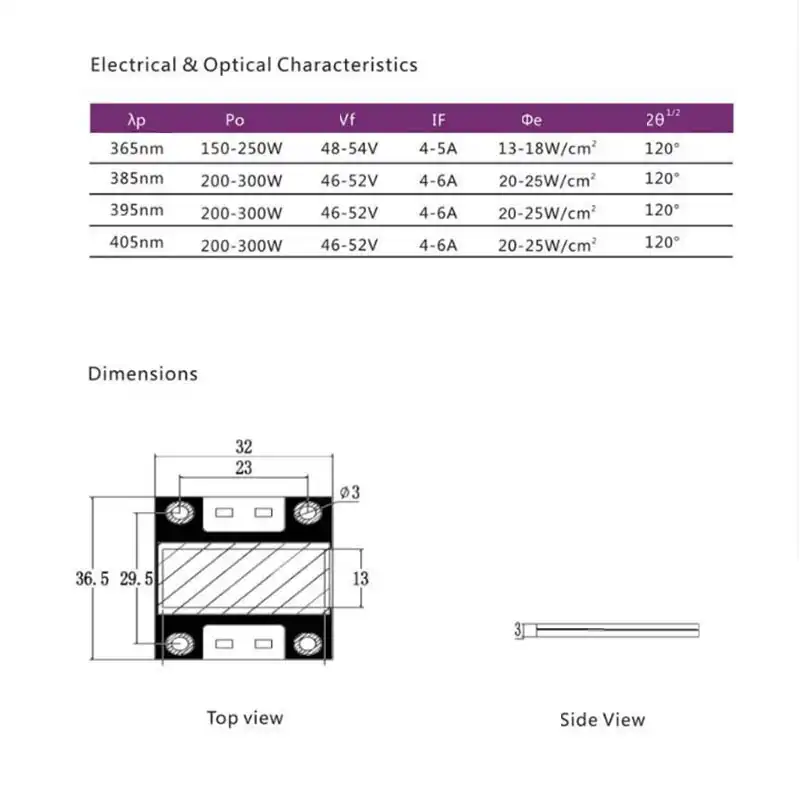

Specifications
Model No.: UVxDB250W14H6P-3236
Wavelength: 365nm / 385nm / 395nm / 405nm
Size: 32x36mm
Voltage: 48-54VV
Current: 4000-6000mA
Radiant Power: 13000-25000mW
View Angle: 120 degree
Factory OEM ODM Service: Available
Features and Benefits
High power output
Designed for high current operation
Low thermal resistance
SMT type
RoHS compliant
Key Applications
UV Curing
Printing
Coating
Adhesive
Detecting applications
FAQ
What is the UVxDB250W14H6P-3236 used for?
The UVxDB250W14H6P-3236 is a high power UV curing LED module used for UV curing, printing, coating, adhesive curing and detecting applications.
What wavelengths are available?
The available wavelengths are 365nm, 385nm, 395nm and 405nm.
What is the module size?
The module size is 32x36mm.
What is the voltage specification?
The voltage specification is 48-54VV.
What current range does it support?
The current range is 4000-6000mA.
What is the radiant power?
The radiant power is 13000-25000mW.
What is the view angle?
The view angle is 120 degree.
Is this a high power UV LED module?
Yes. This product is designed for high current operation and high power output applications.
Can it be used for UV curing?
Yes. UV curing is one of the key applications for this module.
Can it be used in UV printing equipment?
Yes. It can be used as a UV LED light source for printing applications when the electrical, optical and thermal design match the equipment requirements.
Is it suitable for coating curing?
Yes. The module is suitable for coating applications that require UV curing.
Can it cure adhesives?
Yes. Adhesive curing is one of the key applications for this UV curing LED module.
What package type does it use?
It uses an SMT type structure.
Is the product RoHS compliant?
Yes. The module is RoHS compliant.
Is factory OEM ODM service available?
Yes. Factory OEM ODM service is available for customized UV LED curing projects.
