Ultraviolet LED module 320W UV COB 365nm OEM&ODM
Product Description

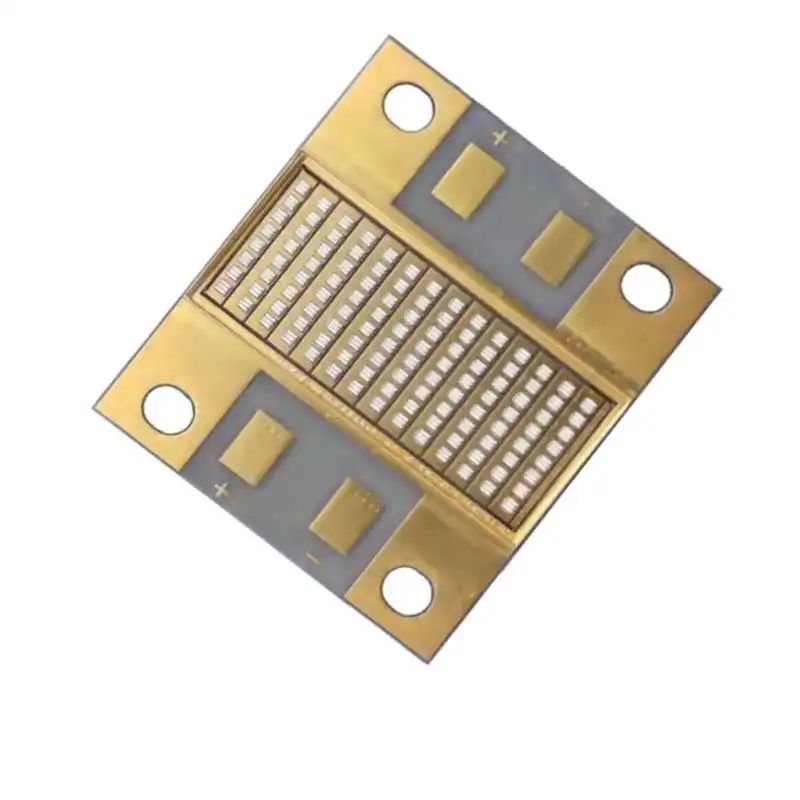

The UV365COB320W14H8P-3236 is a high power 365nm Ultraviolet LED module for curing, printing, coating, adhesive and detecting applications. It is made to meet the needs of OEMs and ODMs of equipment manufacturers for a compact UV light source with high radiant power, high current operation and factory OEM ODM support.

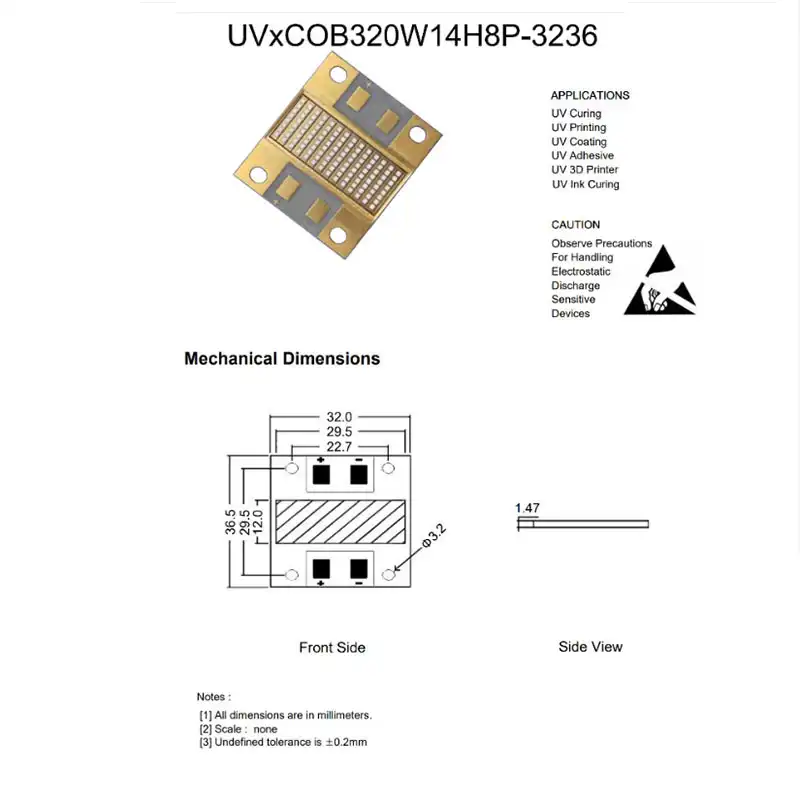

This Ultraviolet LED module is equipped with 32x36mm compact design. The small module size is capable of meeting the integration requirement of UV curing heads, UV printing machine, coating systems, adhesive curing stations, detection device and industrial light source assemblies.
The standard wavelength is 365nm, and customized wavelength service is available. The 365nm UVA output is for materials, ink, coating or adhesive applications that are suitable for 365nm UV exposure. When it comes to the curing project, the final result should be checked by the actual formula, exposure time, working distance and optical structure.

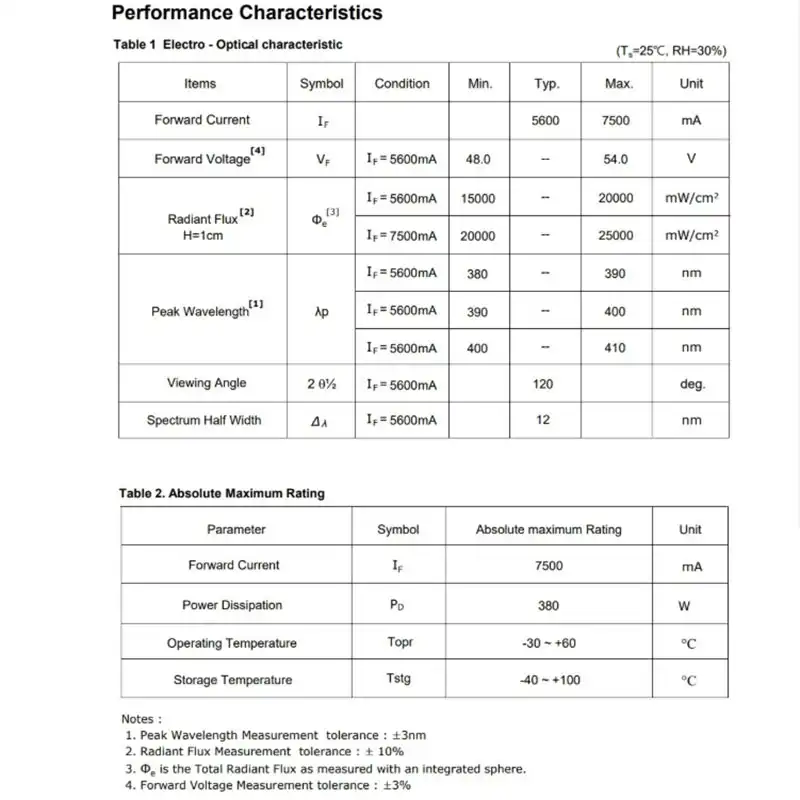

The voltage specification is 48-54V, and the current range is 5600-7500mA. The radiant power is 15000-25000mW. With these specifications, this Ultraviolet LED module can meet the requirement of high power UV system with well-controlled electrical design and high UV energy output.
The view angle is 120 degree. This larger view angle is good at providing broader UV coverage to the printing, coating, adhesive curing and surface processing equipment. When it comes to the focused irradiation area, the final system will use lens, reflector or distance control.
This high power UV LED series adopts advanced SMD design and low thermal resistant material. Heat dissipation is very necessary to ensure the stable output, long-time operation and consistent curing effect. A suitable constant current driver should be used during the integration of equipment.
The key applications include UV curing, printing, coating and adhesive curing. And the module can be also used as a 365nm Ultraviolet LED module for detecting applications where UVA excitation is needed. It is perfect for the factory OEM ODM projects needing a compact and high radiant power UV LED light source.
Comparing with general low-power UV products, this Ultraviolet LED module is designed for equipment-level integration. The combination of 15000-25000mW radiant power, 32x36mm size, 120 degree view angle, high current design, low thermal resistance and RoHS compliance makes it practical for UV curing machines, UV printers and adhesive processing equipment.
For those customers looking for a Ultraviolet LED module with 365nm wavelength, 32x36mm size, 48-54V voltage, 5600-7500mA current, 15000-25000mW radiant power, 120 degree view angle, SMT type, low thermal resistance and factory OEM ODM service, the UV365COB320W14H8P-3236 is the right choice.
Specifications
Model No.: UV365COB320W14H8P-3236
Wavelength: 365nm or customize
Size: 32x36mm
Voltage: 48-54VV
Current: 5600-7500mA
Radiant Power: 15000-25000mW
View Angle: 120 degree
Factory OEM ODM Service: Available
Features and Benefits
High power output
Designed for high current operation
Low thermal resistance
SMT type
RoHS compliant
Key Applications
UV Curing
Printing
Coating
Adhesive
Detecting applications
FAQ
What is the UV365COB320W14H8P-3236 used for?
The UV365COB320W14H8P-3236 is a high power 365nm Ultraviolet LED module for UV curing, printing, coating, adhesive curing and detecting applications.
What is the wavelength of this module?
The standard wavelength is 365nm, and customized wavelength service is available.
What is the module size?
The module size is 32x36mm.
What is the voltage specification?
The voltage specification is 48-54VV.
What current range does it support?
The current range is 5600-7500mA.
What is the radiant power?
The radiant power is 15000-25000mW.
What is the view angle?
The view angle is 120 degree.
Is this a high power UV LED module?
Yes. This Ultraviolet LED module is designed for high current operation and high power output applications.
Can it be used for UV curing?
Yes. UV curing is one of the key applications for this module.
Can it be used in UV printing equipment?
Yes. It can be used as a 365nm UV LED light source in UV printing equipment when the electrical, optical and thermal design matches the application.
Is it suitable for coating applications?
Yes. The module can be used for coating applications requiring UV curing.
Can it cure adhesives?
Yes. Adhesive curing is one of the key applications.
Can it be used for detecting applications?
Yes. This model can be used as a 365nm UV light source for detecting applications.
Is the product RoHS compliant?
Yes. The module is RoHS compliant.
Is factory OEM ODM service available?
Yes. Factory OEM ODM service is available for customized UV LED module projects.
