Best high power UV LED module Seoul Viosys 180W 365nm 385nm 395nm 405nm
Product Description

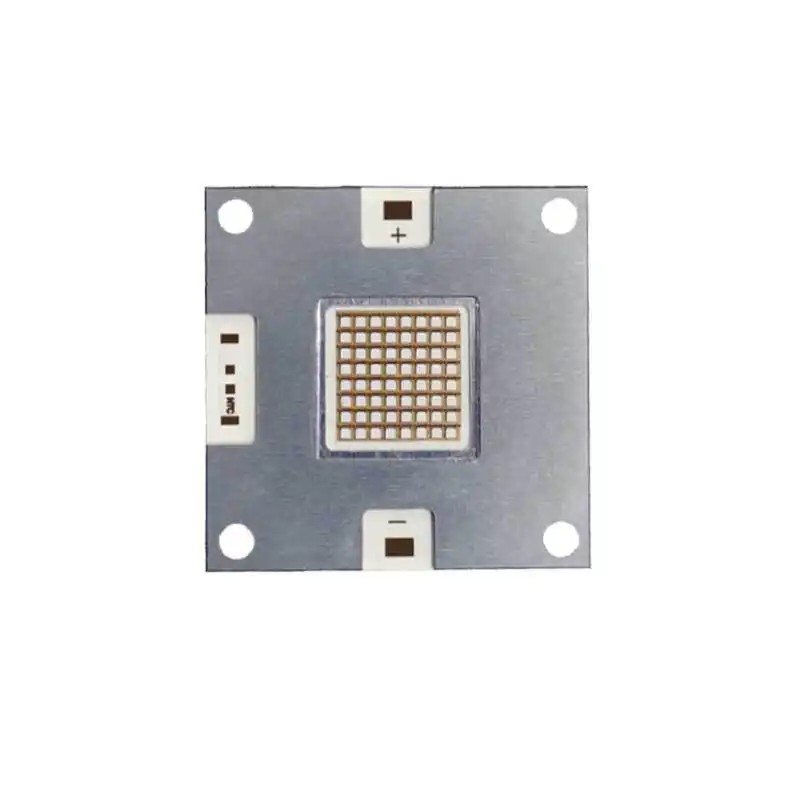

The UVxDB180W8H6P-4040 is a high power UV LED module designed for industrial UV curing, printing, coating, adhesive and detecting applications. It is built for manufacturers that need a compact UV LED light source with strong radiant power, multiple wavelength options and reliable high current operation.
This high power UV LED module supports 365nm, 385nm, 395nm and 405nm wavelengths, and customized wavelength options are also available. These UVA wavelength choices help equipment designers match the UV light source with different UV-curable inks, coatings, adhesives and process materials.
The module size is 40x40mm. This compact square structure is suitable for UV curing heads, UV printing equipment, coating machines, adhesive curing stations, inspection devices and customized UV light source assemblies. The 120 degree view angle helps create a wider irradiation area when broad UV coverage is required.
The voltage specification is 27-30VV, and the current range is 5000-6000mA. The radiant power is 13000-18000mW. These specifications make the high power UV LED module suitable for equipment-level applications where strong UV output and controlled electrical design are required.
This model incorporates state-of-the-art SMD design and low thermal resistant material. It is designed for high current operation and high power output applications. During system integration, a suitable constant current driver and proper heat dissipation should be used to support stable UV output.
The key applications include UV curing, printing, coating and adhesive curing. The module can work as a UV LED light source for UV ink curing, UV coating hardening, UV glue curing, surface treatment processes and detecting applications. It is suitable for OEM ODM projects that require a compact high power UV curing module.
Compared with general low-power UV components, this high power UV LED module is more suitable for industrial systems that need stronger energy delivery. The combination of high radiant power, 365nm/385nm/395nm/405nm wavelength options, 40x40mm compact size and 120 degree view angle makes it practical for UV curing and printing equipment development.
The UVxDB180W8H6P-4040 is SMT type and RoHS compliant. Factory OEM ODM service is available for customers who need customized UV LED module solutions. For best performance, the wavelength, drive current, heat dissipation, working distance and material compatibility should be tested before mass production.
For customers searching for a high power UV LED module with 365nm/385nm/395nm/405nm wavelengths, 40x40mm size, 27-30VV voltage, 5000-6000mA current, 13000-18000mW radiant power, 120 degree view angle, low thermal resistance and RoHS compliance, the UVxDB180W8H6P-4040 provides a practical UV LED light source for curing, printing, coating, adhesive and detecting applications.

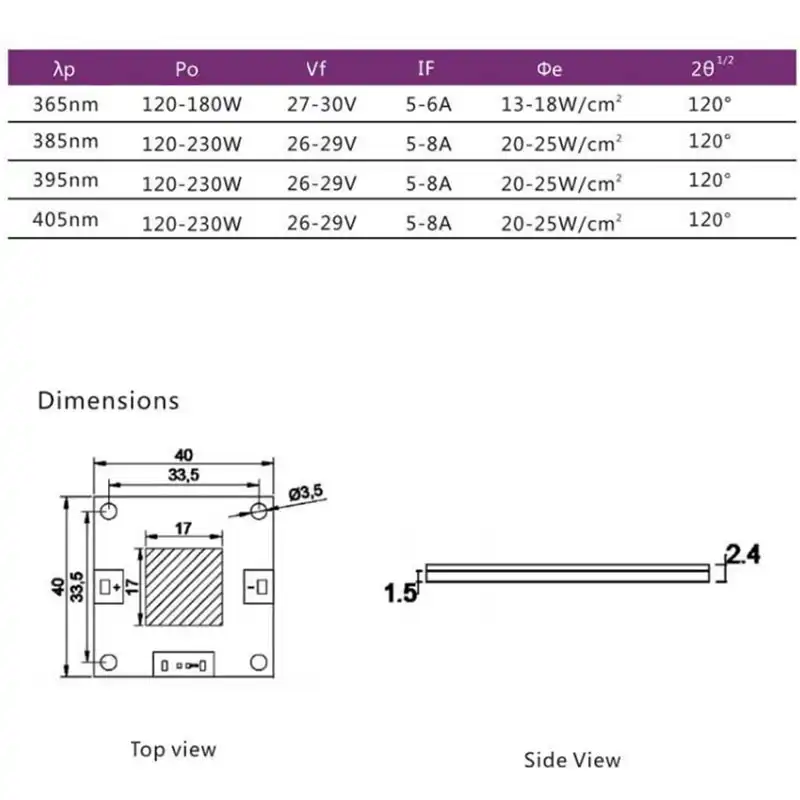

Specifications
Model No.: UVxDB180W8H6P-4040
Wavelength: 365nm / 385nm / 395nm / 405nm or customize
Size: 40x40mm
Voltage: 27-30VV
Current: 5000-6000mA
Radiant Power: 13000-18000mW
View Angle: 120 degree
Factory OEM ODM Service: Available
Features and Benefits
High power output
Designed for high current operation
Low thermal resistance
SMT type
RoHS compliant
Key Applications
UV Curing
Printing
Coating
Adhesive
Detecting applications
FAQ
1. What is the UVxDB180W8H6P-4040 used for?
The UVxDB180W8H6P-4040 is a high power UV LED module used for UV curing, printing, coating, adhesive curing and detecting applications.
2. What wavelengths are available?
The available wavelength options are 365nm, 385nm, 395nm and 405nm. Customized wavelength service is also available.
3. What is the module size?
The module size is 40x40mm.
4. What is the voltage specification?
The voltage specification is 27-30VV.
5. What current range does it support?
The current range is 5000-6000mA.
6. What is the radiant power?
The radiant power is 13000-18000mW.
7. What is the view angle?
The view angle is 120 degree.
8. Is this a high power UV LED module?
Yes. This model is designed for high current operation and high power output applications.
9. Can this module be used for UV curing?
Yes. UV curing is one of the key applications for this high power UV LED module.
10. Can it be used in UV printing equipment?
Yes. It can be used as a UV LED light source in UV printing equipment when the electrical, optical and thermal design match the application.
11. Is it suitable for coating applications?
Yes. The module can be used for coating applications that require UV curing.
12. Can it cure adhesives?
Yes. Adhesive curing is one of the key applications.
13. What package type does it use?
It uses an SMT type structure.
14. Is the product RoHS compliant?
Yes. The module is RoHS compliant.
15. Is factory OEM ODM service available?
Yes. Factory OEM ODM service is available for customized UV LED module projects.
