best UV LED module Seoul Viosys 35W 365nm UVA
Product Description

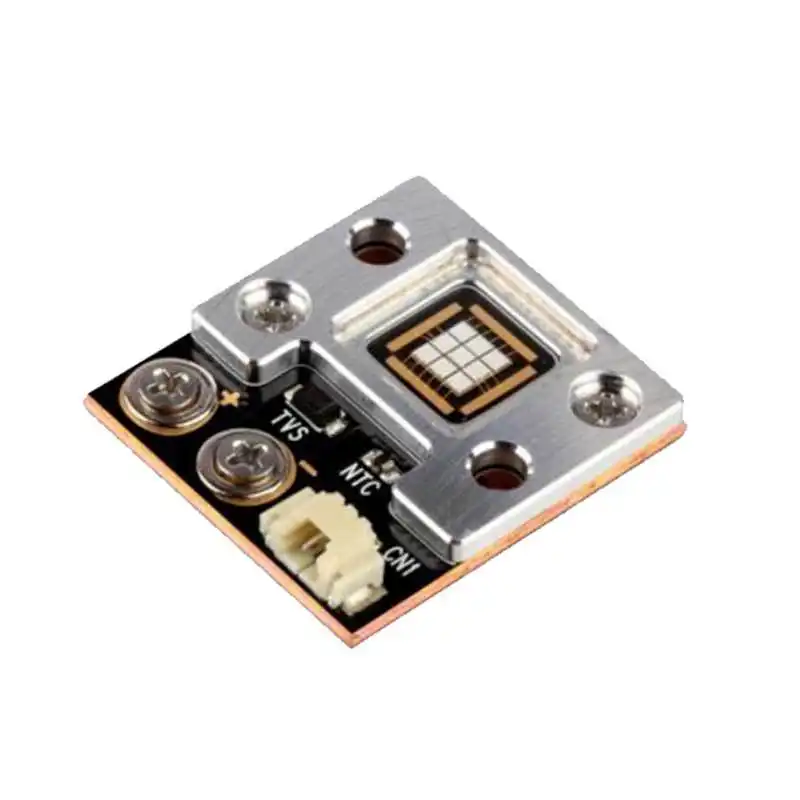

CUN6MF9A is a high power 365nm UV LED module for UV curing, printing, coating, adhesive, counterfeit detection, security inspection and fluorescence photography applications. It is suitable for the equipment manufactures requiring a compact 365nm UV light source with high radiant power and factory OEM ODM service.
The CUN6MF9A is a 365nm UV LED module. The 365nm UVA output is usually selected for applications needing deep UV excitation, accurate curing, fluorescence response or inspection performances. The application areas include UV curing system, UV printer, coating machine, adhesive curing tool and detection instrument.
The module size is 25x27mm. The compact footprint is beneficial for the engineers integrating the UV LED module into the compact optical assembly, handheld inspection light, curing head, security detection tool, fluorescence photography system and customized industrial UV equipment. Its compact body is convenient for flexible product design in the restricted condition.
The voltage is 3.8V, and the current is 9A. The radiant power is 12000mW. These specifications are suitable for the high current operation and high power output applications. The driver, thermal, PCB design and heat sink should be compatible with the electrical and optical requirements during the system design process.
The view angle is 115 degree. This wider beam angle is useful for broader UV coverage in the curing, detection and fluorescence applications. If focused spot and even irradiation area are needed, the final equipment could utilize secondary optics, reflector, lens and distance control.
This high power UV LED series combines the advanced SMD design and low thermal resistant material. The heat dissipation is very important for the stable UV output, long-time operation and reliable performance. The SMT type structure is useful for the compact integration into OEM devices and industrial UV light source assemblies.
The key applications are UV curing, printing, coating and adhesive curing. This UV LED module is suitable for the counterfeit detection, security inspection and fluorescence photography when a 365nm UVA light source is needed. Therefore, it is suitable for the industrial production equipment and inspection-oriented UV equipment.
Compared with the common low power UV components, this UV LED module is designed for higher output and equipment-level integration. The combination of the 365nm wavelength, 12000mW radiant power, 25x27mm size, 115 degree view angle and low thermal resistance provides an effective platform for compact high power UV system.
Factory OEM ODM service is available and samples are also available. The customers could utilize the samples to test curing speed, fluorescence response, detection contrast, working distance, heat dissipation and optical performance before mass production.
For the customers requiring a UV LED module with 365nm wavelength, 25x27mm size, 3.8V voltage, 9A current, 12000mW radiant power, 115 degree view angle, SMT type design, RoHS compliant and factory OEM ODM service, the CUN6MF9A could provide a compact high power UV LED light source for the curing, printing, coating, adhesive, security and fluorescence applications.

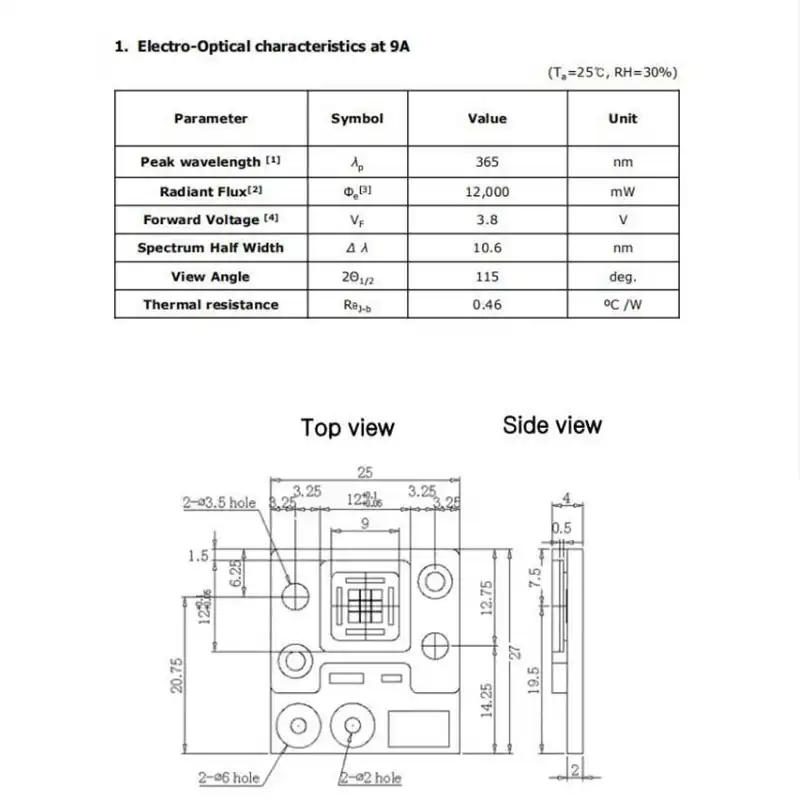

Specifications
Model No.: CUN6MF9A
Wavelength: 365nm
Size: 25x27mm
Voltage: 3.8V
Current: 9A
Radiant Power: 12000mW
View Angle: 115 degree
Factory OEM ODM Service: Available
Samples: Available
Features & Benefits
High power output
Designed for high current operation
Low thermal resistance
SMT type
RoHS compliant
Applications
UV Curing
Printing
Coating
Adhesive
Counterfeit Detection / Security
Fluorescence Photography
Frequently Asked Questions
What is the CUN6MF9A used for?
The CUN6MF9A is a high power 365nm UV LED module for UV curing, printing, coating, adhesive curing, counterfeit detection, security inspection and fluorescence photography.
What is the wavelength of this UV LED module?
The wavelength is 365nm.
What is the module size?
The module size is 25x27mm.
What is the voltage specification?
The voltage is 3.8V.
What current does it require?
The current is 9A.
What is the radiant power?
The radiant power is 12000mW.
What is the view angle?
The view angle is 115 degree.
Is this a high power UV LED module?
Yes. This UV LED module is designed for high current operation and high power output applications.
Can it be used for UV curing?
Yes. It can be used for UV curing applications when the driver, thermal design and curing material match the system requirements.
Can it be used for UV printing?
Yes. The module can be used as a 365nm UV LED light source for UV printing equipment.
Is it suitable for coating applications?
Yes. The module can be used for coating applications that require 365nm UV exposure.
Can it cure adhesives?
Yes. Adhesive curing is one of the key applications for this module.
Can it be used for counterfeit detection?
Yes. The 365nm output can be used for counterfeit detection and security inspection applications.
Can it be used for fluorescence photography?
Yes. This UV LED module can be used as a 365nm light source for fluorescence photography applications.
Are samples and factory OEM ODM service available?
Yes. Samples are available, and factory OEM ODM service is supported for customized UV LED module projects.
