Best 395nm UV LED module 320W UV board OEM&ODM
Product Description

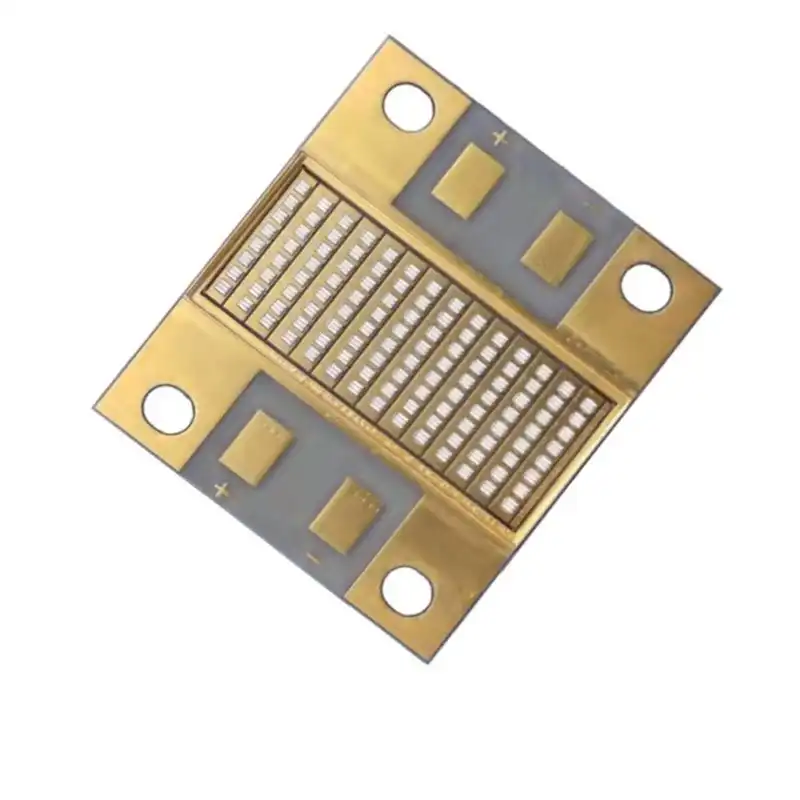

The UV395COB320W14H8P-3236 is a high power 395nm UV LED module designed for UV curing, printing, coating, adhesive and detecting applications. It is built for manufacturers that need a compact UV LED light source with strong radiant power, stable high current operation and 395nm UVA output.

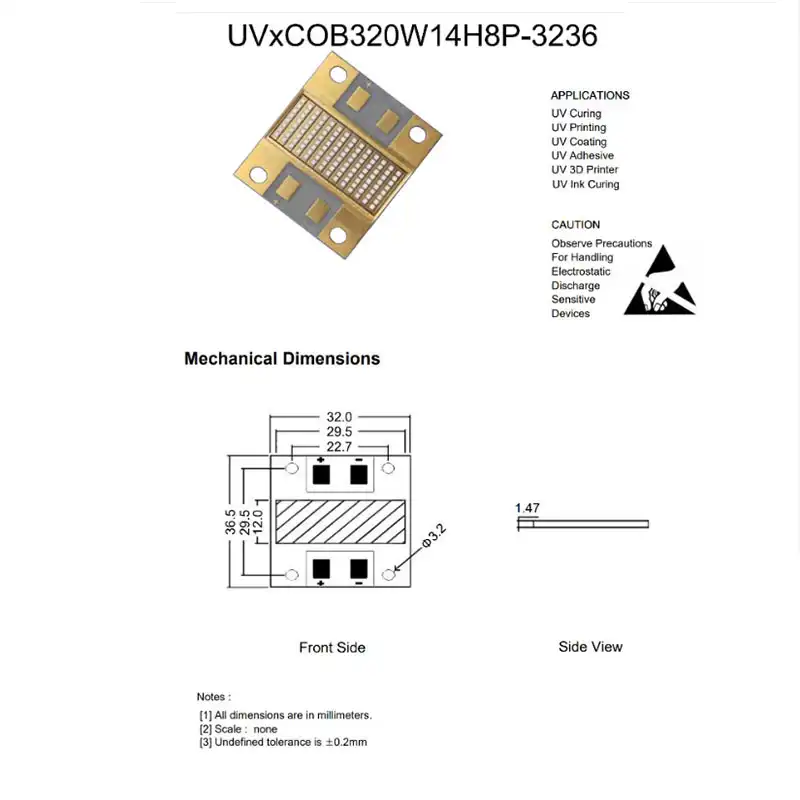

This 395nm UV LED module has a 32x36mm size. The compact structure is suitable for UV curing heads, UV printing equipment, coating machines, adhesive curing stations, detection devices and customized UV light source assemblies. It helps system designers build compact equipment without sacrificing high radiant power.
The wavelength is 395nm, and customized wavelength service is available. The 395nm output is suitable for UV-curable inks, coatings, adhesives and selected detecting applications where the material or process is designed for UVA exposure. Final curing performance should be verified with the actual ink, coating, adhesive or resin formula.
The voltage specification is 48-54VV, and the current range is 5600-7500mA. The radiant power is 15000-25000mW. These specifications make the 395nm UV LED module suitable for high current operation and high power output applications. A suitable constant current driver and proper thermal design should be used during equipment integration.
The view angle is 120 degree. This wider emission angle supports broader UV coverage when the module is used in printing, coating, adhesive curing or surface processing equipment. If a focused irradiation pattern is required, the final equipment can use optical lenses, reflectors or distance control.
This high power UV LED series incorporates state-of-the-art SMD design and low thermal resistant material. The structure is designed to support high power output when proper heat dissipation is applied. Thermal management is important for stable UV output and long-term industrial operation.
The key applications include UV curing, printing, coating and adhesive curing. The module can also be used as a 395nm UV LED module for detecting applications where UVA excitation is needed. It is suitable for factory OEM ODM projects that require a compact, high radiant power UV light source.
Compared with general low-power UV components, this 395nm UV LED module is designed for equipment-level integration. The combination of high radiant power, 32x36mm compact size, 120 degree view angle, high current operation and low thermal resistance makes it practical for UV curing machines, UV printing systems and adhesive processing equipment.
The product is SMT type and RoHS compliant. Factory OEM ODM service is available for customers who need customized 395nm UV LED module solutions. For best results, confirm wavelength, current, voltage, heat dissipation, working distance and material compatibility before mass production.
For customers looking for a 395nm UV LED module with 32x36mm size, 48-54VV voltage, 5600-7500mA current, 15000-25000mW radiant power, 120 degree view angle, low thermal resistance, SMT type and RoHS compliance, the UV395COB320W14H8P-3236 provides a practical high power UV LED light source for curing, printing, coating, adhesive and detecting applications.

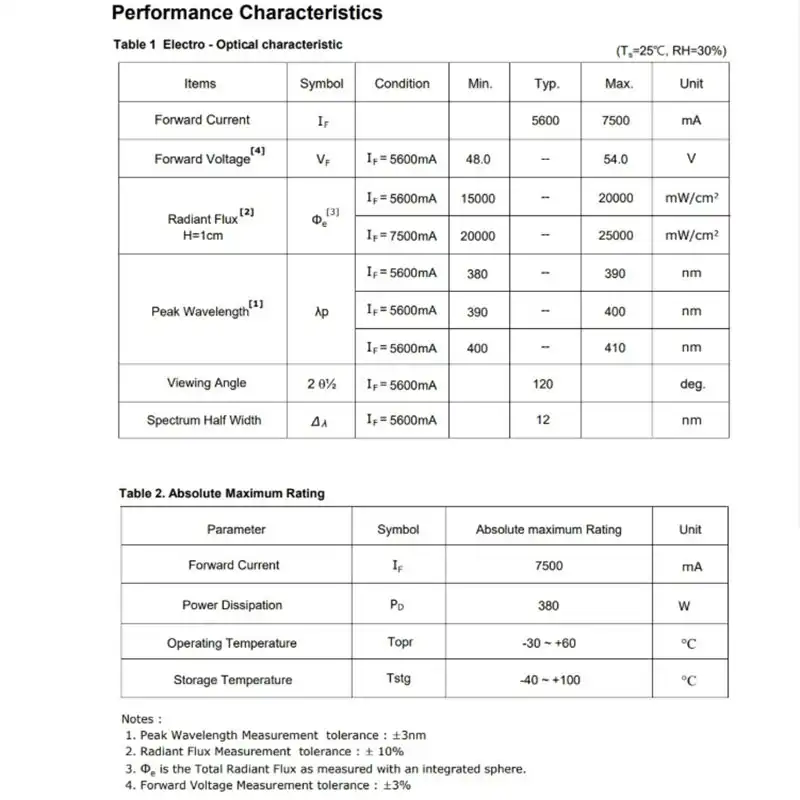

Specifications
Model No.: UV395COB320W14H8P-3236
Wavelength: 395nm or customize
Size: 32x36mm
Voltage: 48-54VV
Current: 5600-7500mA
Radiant Power: 15000-25000mW
View Angle: 120 degree
Factory OEM ODM Service: Available
Features and Benefits
High power output
Designed for high current operation
Low thermal resistance
SMT type
RoHS compliant
Key Applications
UV Curing
Printing
Coating
Adhesive
Detecting applications
FAQ
1. What is the UV395COB320W14H8P-3236 used for?
The UV395COB320W14H8P-3236 is a high power 395nm UV LED module used for UV curing, printing, coating, adhesive curing and detecting applications.
2. What is the wavelength of this module?
The standard wavelength is 395nm, and customized wavelength service is available.
3. What is the module size?
The module size is 32x36mm.
4. What is the voltage specification?
The voltage specification is 48-54VV.
5. What current range does it support?
The current range is 5600-7500mA.
6. What is the radiant power?
The radiant power is 15000-25000mW.
7. What is the view angle?
The view angle is 120 degree.
8. Is this a high power UV LED module?
Yes. This 395nm UV LED module is designed for high current operation and high power output applications.
9. Can it be used for UV curing?
Yes. UV curing is one of the key applications for this module.
10. Can it be used in UV printing equipment?
Yes. It can be used as a 395nm UV LED light source in UV printing equipment when the electrical, optical and thermal design match the application.
11. Is it suitable for coating applications?
Yes. The module can be used for coating applications that require UV curing.
12. Can it cure adhesives?
Yes. Adhesive curing is one of the key applications.
13. Can it be used for detecting applications?
Yes. This model can be used as a 395nm UV light source for detecting applications.
14. Is the product RoHS compliant?
Yes. The module is RoHS compliant.
15. Is factory OEM ODM service available?
Yes. Factory OEM ODM service is available for customized UV LED module projects.
