385nm UV LED module 320W UV board OEM&ODM
Product Description

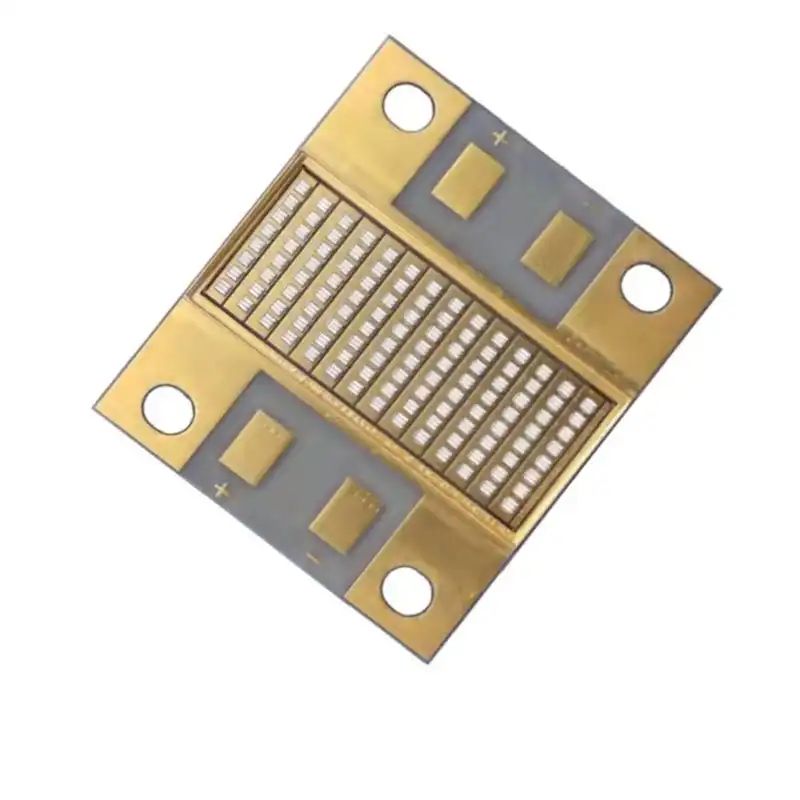

UV385COB320W14H8P-3236 is a high power 385nm UV LED module for UV curing, printing, coating, adhesive and detecting applications. This high power UV LED module is designed for equipment makers who are in need of a compact and powerful UV LED light source.

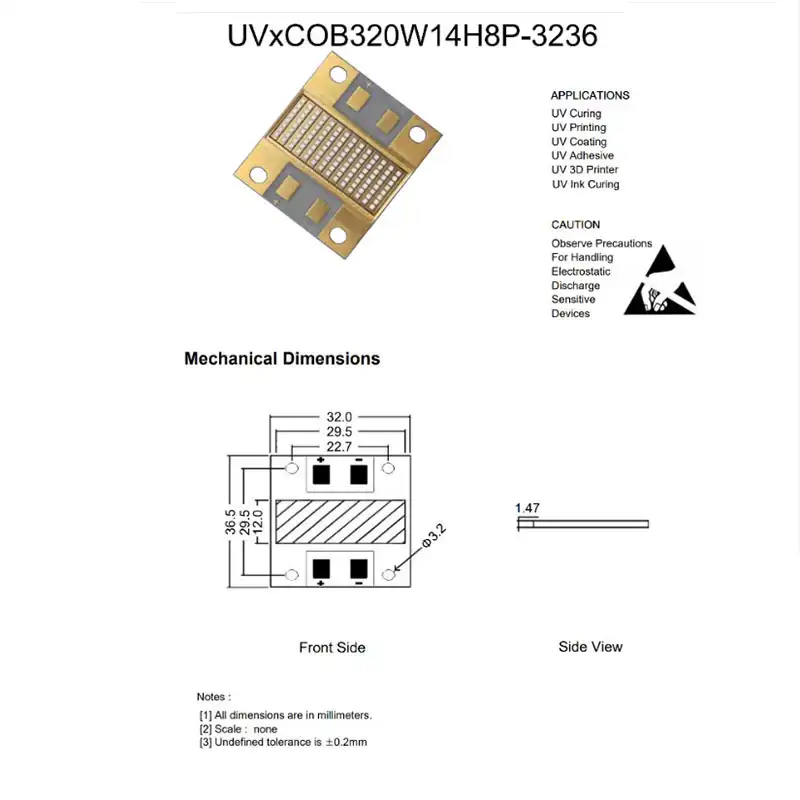

This high power 385nm UV LED module features 32x36mm compact structure. The small module size is good for system integrators to integrate the UV light source into curing head, UV printer, coating machine, adhesive curing station, detecting device and industrial equipment.
Standard wavelength is 385nm, and custom wavelength is available. 385nm wavelength is right for UV curable inks, coatings, adhesives and some kinds of detection processes where the material fits for the UVA light. Please verify the curing result using the real formula of ink/coating/adhesive/resin.

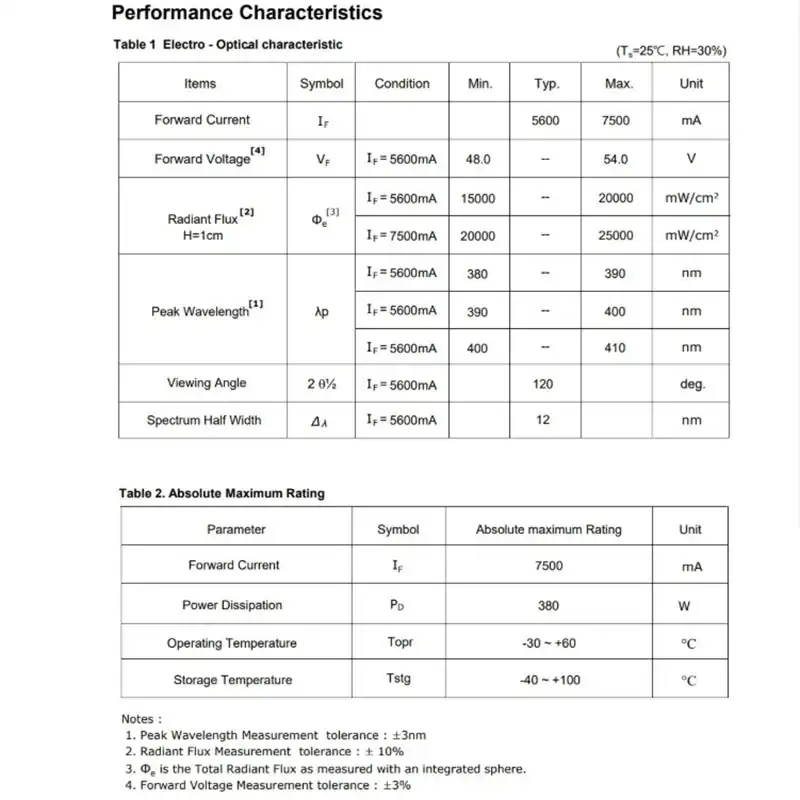

The voltage specification is 48-54V; the current range is 5600-7500mA; and the radiant power is 15000-25000mW. The above parameters make this UV LED module suitable for high current and high power output applications. You may choose a constant current driver for product integration.
View angle of this UV module is 120 degree. The wider emitting angle will help provide a larger UV coverage area for UV curing/printing/coating/adhesive equipment. In case you need narrower irradiation pattern, you may design lenses, reflector or distance in the final system according to your application.
This high power UV LED series adopts advanced SMD technology and low thermal resistance material. Heat dissipation is important for the stability of output and long life. The module is fit for industrial systems where electrical/optical/thermal design is carefully designed.
Main applications of this module are UV curing, printing, coating and adhesive. And it can also work as a 385nm UV LED module for detecting applications requiring UVA excitation. This UV LED module is fit for the factory OEM/ODM projects which need a compact and high power UV LED light source.
When comparing with low power UV component, this 385nm UV LED module is designed for the equipment level integration. The combination of 15000-25000mW radiant power, 32x36mm size, 120 degree view angle, high current design, low thermal resistance and RoHS makes it practical for UV curing machine, UV printer and adhesive processing equipment.
For customers seeking for a 385nm UV LED module with 32x36mm size, 48-54V voltage, 5600-7500mA current, 15000-25000mW radiant power, 120 degree view angle, SMT type, low thermal resistance and factory OEM/ODM service, the UV385COB320W14H8P-3236 offers an excellent solution for the application of UV curing, printing, coating, adhesive and detecting.
Specifications
Model No.: UV385COB320W14H8P-3236
Wavelength: 385nm or customize
Size: 32x36mm
Voltage: 48-54V
Current: 5600-7500mA
Radiant Power: 15000-25000mW
View Angle: 120 degree
Factory OEM ODM Service: Available
Features and Benefits
High power output
High current operation
Low thermal resistance
SMT type
RoHS compliant
Key Applications
UV Curing
Printing
Coating
Adhesive
Detecting applications
FAQ
What is the UV385COB320W14H8P-3236 used for?
The UV385COB320W14H8P-3236 is a high power 385nm UV LED module for UV curing, printing, coating, adhesive curing and detecting applications.
What is the wavelength of this module?
The standard wavelength is 385nm, and customized wavelength service is available.
What is the module size?
The module size is 32x36mm.
What is the voltage specification?
The voltage specification is 48-54VV.
What current range does it support?
The current range is 5600-7500mA.
What is the radiant power?
The radiant power is 15000-25000mW.
What is the view angle?
The view angle is 120 degree.
Is this a high power UV LED module?
Yes. This 385nm UV LED module is designed for high current operation and high power output applications.
Can it be used for UV curing?
Yes. UV curing is one of the key applications for this module.
Can it be used in UV printing equipment?
Yes. It can be used as a 385nm UV LED light source in UV printing equipment when the electrical, optical and thermal design match the application.
Is it suitable for coating applications?
Yes. The module can be used for coating applications that require UV curing.
Can it cure adhesives?
Yes. Adhesive curing is one of the key applications.
Can it be used for detecting applications?
Yes. This model can be used as a 385nm UV light source for detecting applications.
Is the product RoHS compliant?
Yes. The module is RoHS compliant.
Is factory OEM ODM service available?
Yes. Factory OEM ODM service is available for customized UV LED module projects.
