uva leds Seoul Viosys UV 385nm CUN86A1B
Product Details Description
The Seoul Viosys CUN86A1B is a 385nm UV-A LED designed for manufacturers that need compact UVA LEDs with wide beam coverage, strong radiant output, and reliable SMD integration. With 1200mW radiant power, 3.5V voltage, 500mA current, and a 120° view angle, it is suitable for uv curing tools, printing systems, coating equipment, inspection lamps, UV torch products, and custom UV LED modules.
This model is part of the Seoul Viosys Z5 near-UV LED family. It uses a 3.5 x 3.5 x 2.0mm SMD package and low thermal resistant material, helping engineers create compact UV light engines without using large traditional lamp structures. The 500mA current level makes it a practical choice for designs that require strong 385nm output without moving to 1000mA high-current versions.
The 385nm wavelength is commonly used for UV curing, printing, coating, adhesive curing, counterfeit detection, security inspection, UV torch products, fluorescence photography, dental curing, crime inspection, and oil leak detection. Compared with 365nm UV LEDs, 385nm usually creates more visible violet output, which can help visual alignment, inspection visibility, and UV-reactive display effects.
For production applications, these UVA LEDs can be integrated into UV curing modules, printing equipment, coating systems, adhesive curing tools, and dental curing devices when the target material responds to 385nm UV-A energy. Final performance depends on material chemistry, exposure distance, driver current, optical layout, heat dissipation, and required UV dose.
The 120° viewing angle provides broad area coverage. This makes the CUN86A1B different from narrow-beam 45° or 65° emitters that concentrate UV output into a smaller spot. The wide-beam structure is useful for curing panels, printing paths, fluorescence fields, UV-reactive inspection, and wide-angle UV flashlight designs.

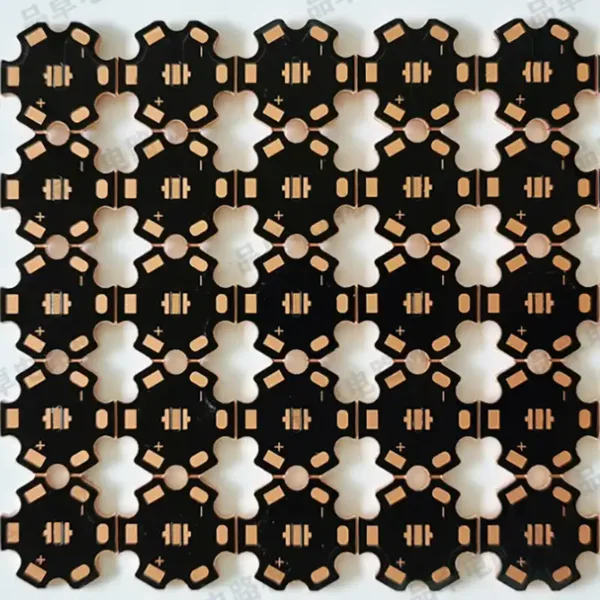

For OEM and ODM projects, the CUN86A1B can be welded on 12mm, 14mm, 16mm, 20mm, or other aluminum or copper PCB boards. Aluminum PCB is suitable for many standard UV module designs, while copper PCB can be selected when stronger thermal transfer is required. The LED can be supplied as a component or assembled into UV flashlight modules, curing modules, inspection lamps, and other customized UV LED products.
Thermal design is important for all high power UVA LEDs. To support stable radiant output and long-term performance, use a suitable constant-current driver, proper soldering process, appropriate PCB material, and sufficient heat dissipation. Engineers should verify board temperature, radiant output, beam distribution, and application performance inside the final product before mass production.
This product is a UV LED component, not a complete lamp. A finished device should include a driver circuit, PCB board, heat sink, housing, optical lens or reflector, wiring, switch, and safety structure. The CUN86A1B is a 385nm UVA light source, not a UVC sterilization LED, and should not be promoted for disinfection or germicidal applications.
Do not look directly at the operating UV LED, and avoid unnecessary skin or eye exposure. Use protective eyewear, shielding, warning labels, and safe working procedures during testing, assembly, and operation.

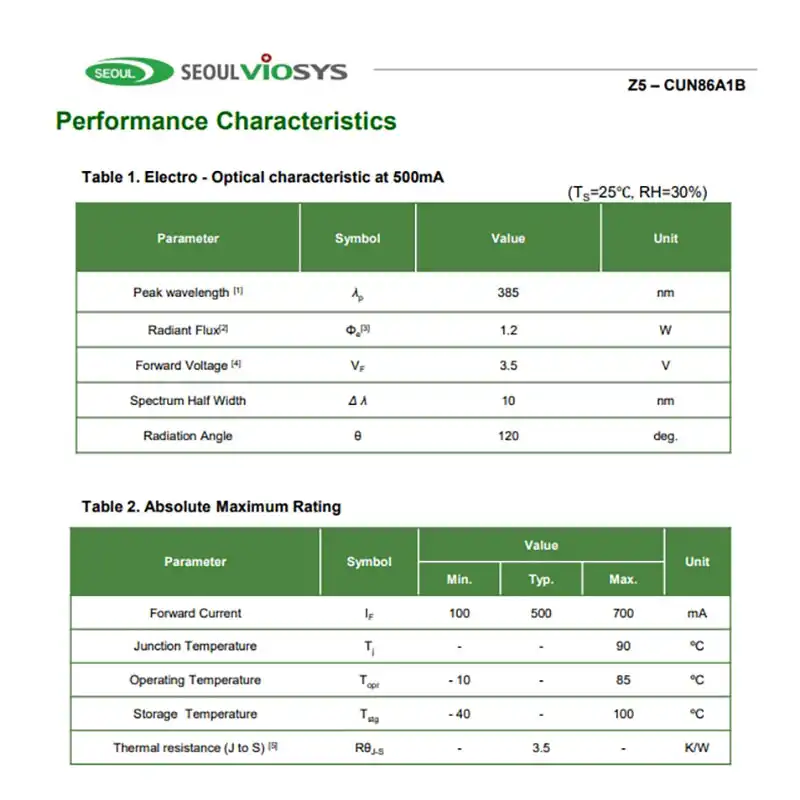

Specifications
Brand: Seoul Viosys
Model NO.: CUN86A1B

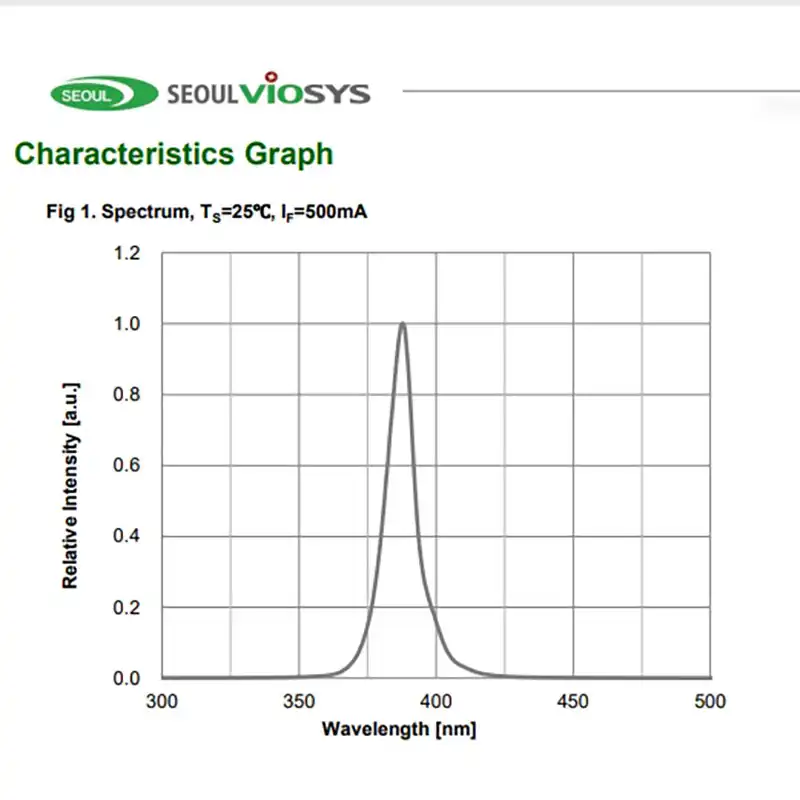

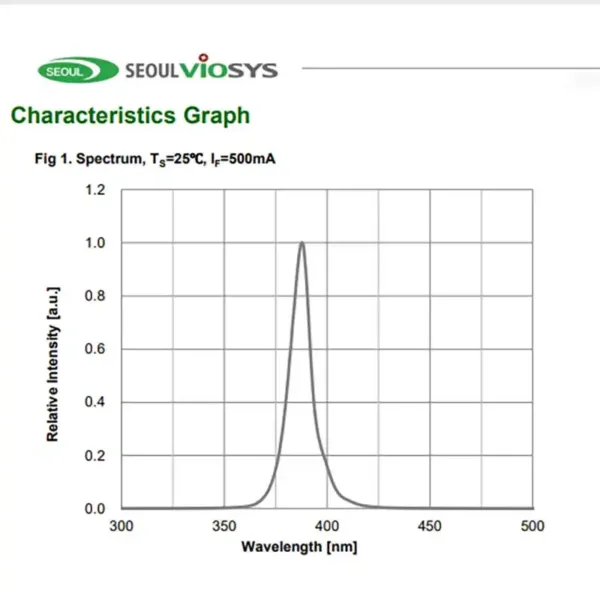

Wavelength: 385nm

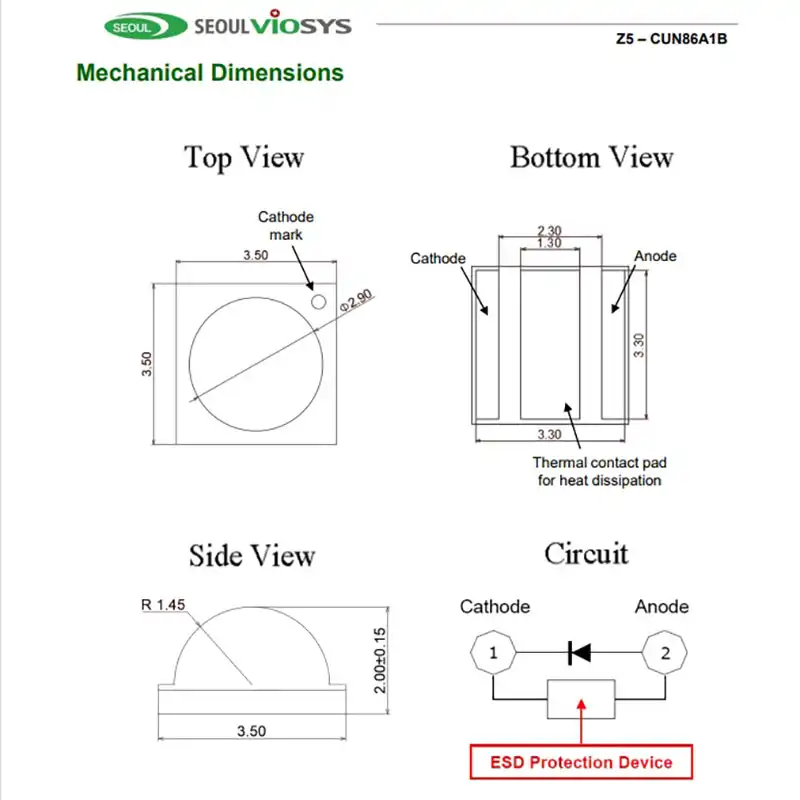

Size: 3.5 x 3.5 x 2.0mm
Voltage: 3.5V
Current: 500mA
Radiant Power: 1200mW
View Angle: 120°

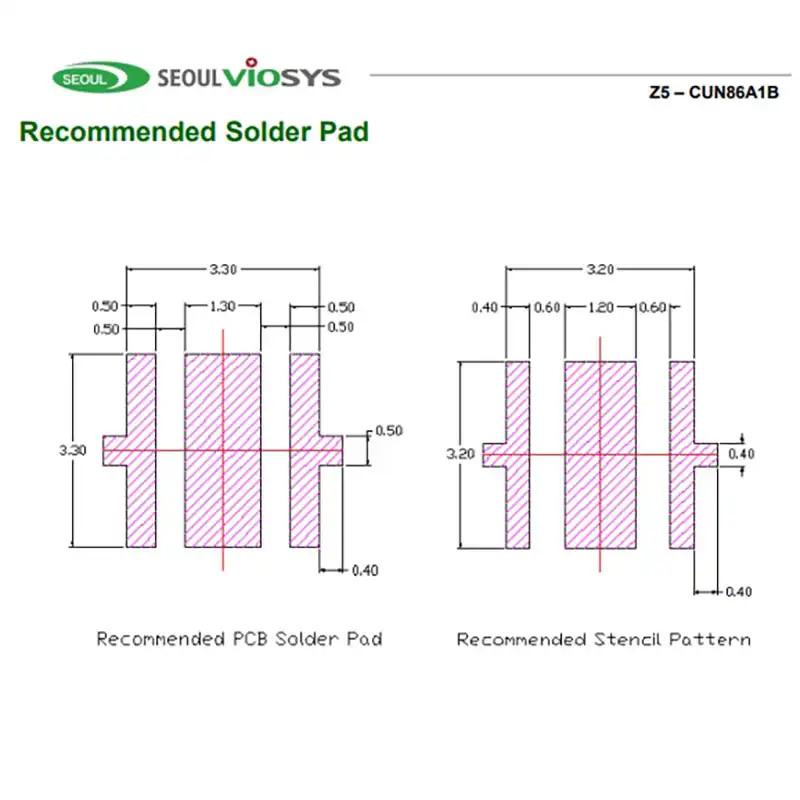

PCB Options: Can be welded on 12mm, 14mm, 16mm, 20mm, or other aluminum or copper PCB board
Service: OEM ODM service for UV flashlight or other UV LED module
Features and Benefits
High power output
Designed for high current operation
Low thermal resistance
SMT type
Lead free product
RoHS compliant
Compact Z5 SMD package
Wide 120° UV-A emission
Suitable for OEM UV module design
Key Applications
UV Curing
Printing
Coating
Adhesive
Counterfeit Detection / Security
UV Torch
Fluorescence Photography
Dental Curing
Crime Inspection
Oil Leak Detection
FAQ
What are these UVA LEDs used for?
These UVA LEDs are used for UV curing, printing, coating, adhesive curing, counterfeit detection, security inspection, UV torch design, fluorescence photography, dental curing, crime inspection, and oil leak detection.
Is CUN86A1B a Seoul Viosys UV LED?
Yes. CUN86A1B is a Seoul Viosys 385nm UV-A LED in a compact Z5 SMD package.
What wavelength does this LED use?
The CUN86A1B uses a 385nm wavelength, which belongs to the UVA / near-UV range.
What is the radiant power?
The radiant power is 1200mW according to the provided product specification.
What is the forward voltage?
The forward voltage is 3.5V.
What is the operating current?
The operating current is 500mA.
What is the package size?
The package size is 3.5 x 3.5 x 2.0mm.
What is the view angle?
The view angle is 120°, giving this Seoul Viosys UV LED a wide output pattern for curing, printing, fluorescence inspection, and UV module applications.
Can this LED be mounted on PCB boards?
Yes. It can be welded on 12mm, 14mm, 16mm, 20mm, or other aluminum or copper PCB boards according to the final product structure.
Do you provide OEM or ODM UV LED modules?
Yes. OEM and ODM service is available for UV flashlight modules, UV curing modules, inspection lights, dental curing modules, and customized UV LED assemblies.
Are these UVA LEDs suitable for UV curing?
Yes. They can be used for UV curing, adhesive curing, printing, coating, dental curing, and related UV-A applications when the material responds to 385nm.
Can this LED be used for UV flashlights?
Yes. Its 385nm wavelength, 1200mW radiant power, and 120° wide beam make it suitable for wide-angle UV flashlight and UV torch module designs.
Are these UVA LEDs suitable for sterilization?
No. These are 385nm UVA LEDs, not UVC sterilization LEDs. They should not be used or promoted for disinfection or germicidal applications.
Why is thermal design important?
The CUN86A1B operates at 500mA and provides high UV-A output, so proper PCB material, heat sinking, current control, and thermal testing are important for stable performance.
Is it safe to look directly at the LED?
No. Do not look directly at the operating UV LED. Use protective eyewear, shielding, and safe working procedures during testing, assembly, and operation.
