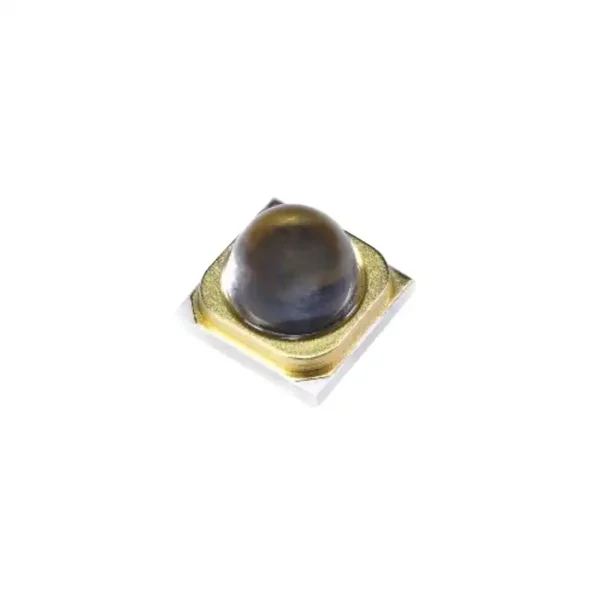

led uv diode Seoul Viosys UVA 365nm CUN6UC1A
Product Details Description
The Seoul Viosys CUN6UC1A is a 365nm led uv diode used in applications requiring high-current capability, compact SMD mounting, and focused UVA emission. Having 900mW radiant power, 3.7V voltage, 700mA current, and 35° view angle, it is suitable for the manufacturing of UV curing tools, UV printing equipment, inspection lamps, UV torches, and custom UV LED modules.
This led uv diode is from the CU3737 near-UV LED series. It is intended for applications with high current operation, narrow radiation angle, and high power output requirements. The SMD package is compatible with the modern assembly process, whereas the low thermal resistant material increases the heat dissipation when the LED is used with a proper PCB and cooling structure.
The 365nm wavelength is widely used for UV-A curing, fluorescence excitation, security checking, and material reaction applications. In comparison with longer 395nm UV sources, 365nm usually generates a better fluorescence response and has less visible purple light; therefore, the CUN6UC1A can be applied for counterfeit detection, crime inspection, oil leak detection, fluorescence photography, and UV torch products.
For curing and production applications, this led uv diode can be used in UV curing modules, printing systems, coating equipment, adhesive curing tools, and dental curing devices when the material reacts to 365nm. The 35° narrow beam will help focus UV output on the small working area.
For detection applications, the CUN6UC1A can be used for counterfeit detection, security inspection, fluorescence photography, crime inspection, and oil leak detection. The final performance will depend on the optical design, working distance, driver current, reflector or lens choice, target material, and thermal structure.
For OEM and ODM projects, this led uv diode can be welded on 12mm, 14mm, 16mm, 20mm, or other aluminum or copper PCB boards. The aluminum PCB board can be used for all standard UV module designs, whereas the copper PCB can be chosen when higher thermal dissipation is needed. The diode can be offered as a separate component or assembled in UV flashlight heads, curing modules, inspection lamps, and other customized UV LED products.
Thermal design is important for the stable radiant output. You should use a proper constant current driver, correct soldering process, correct PCB material, and sufficient heat dissipation. Engineers should test the board temperature, UV output, beam pattern, and application performance in the final device before the mass production.
This product is a UV LED component and not a lamp. A finished product should include the driver circuit, PCB board, heat sink, housing, optical lens or reflector, wiring, switch, and safety structure. The CUN6UC1A is a 365nm UVA source and not a UVC sterilization diode and should not be advertised for disinfection or germicidal applications.
Do not look directly at the operating UV LED and avoid unnecessary skin or eye exposure. Use protective eyewear, shielding, warning labels, and safe working procedures during testing, assembly, and operation.

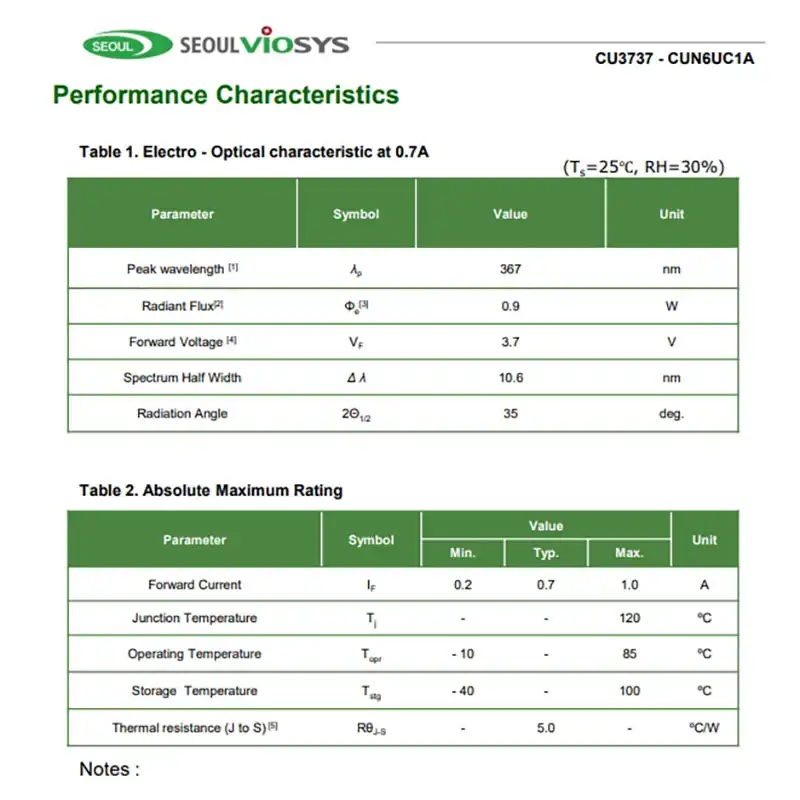

Specifications
Brand: Seoul Viosys
Model NO.: CUN6UC1A

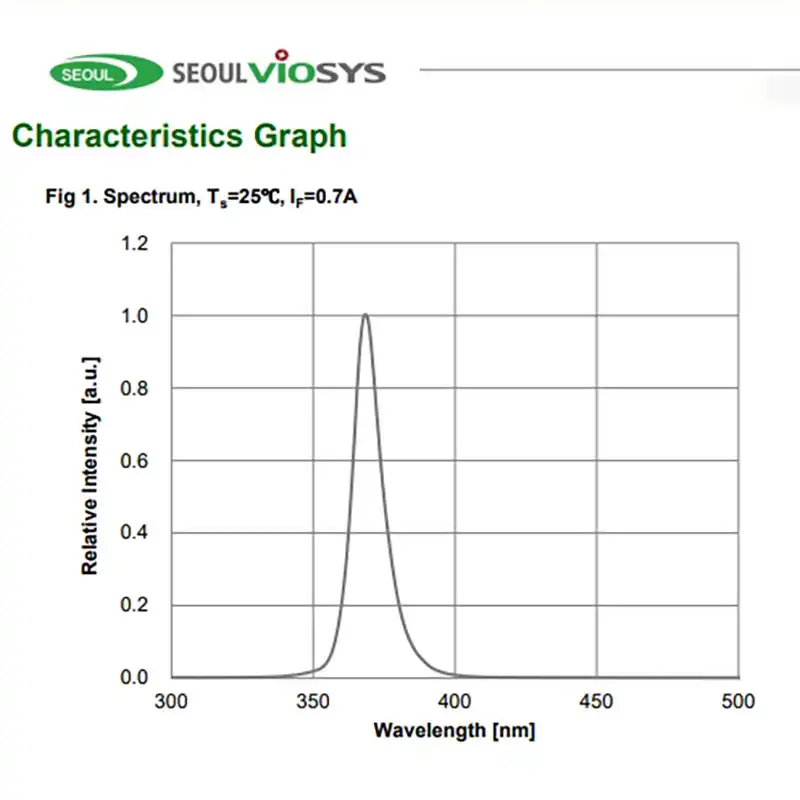

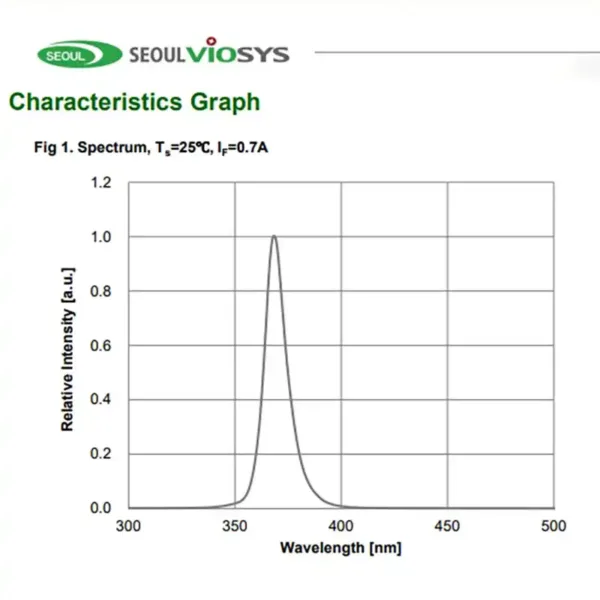

Wavelength: 365nm

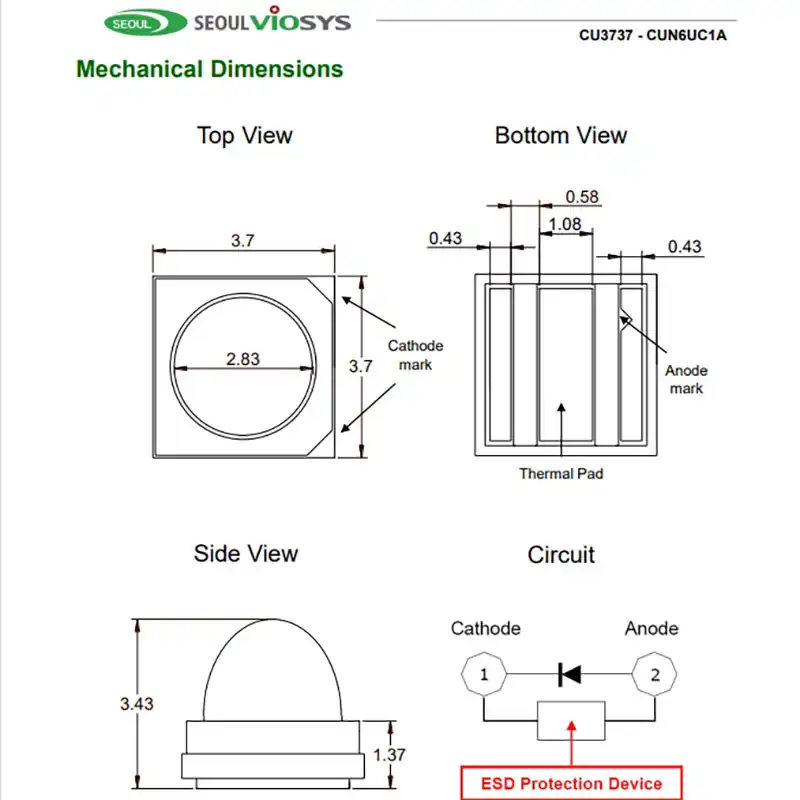

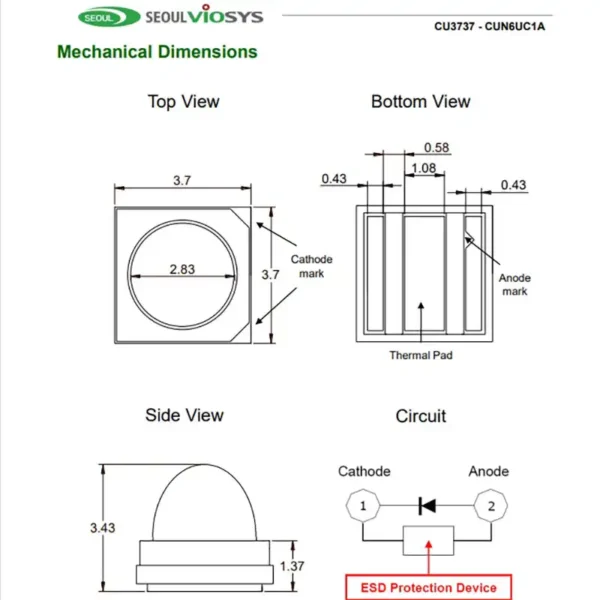

Size: 3.7 x 3.7 x 2.8mm
Voltage: 3.7V
Current: 700mA
Radiant Power: 900mW
View Angle: 35°

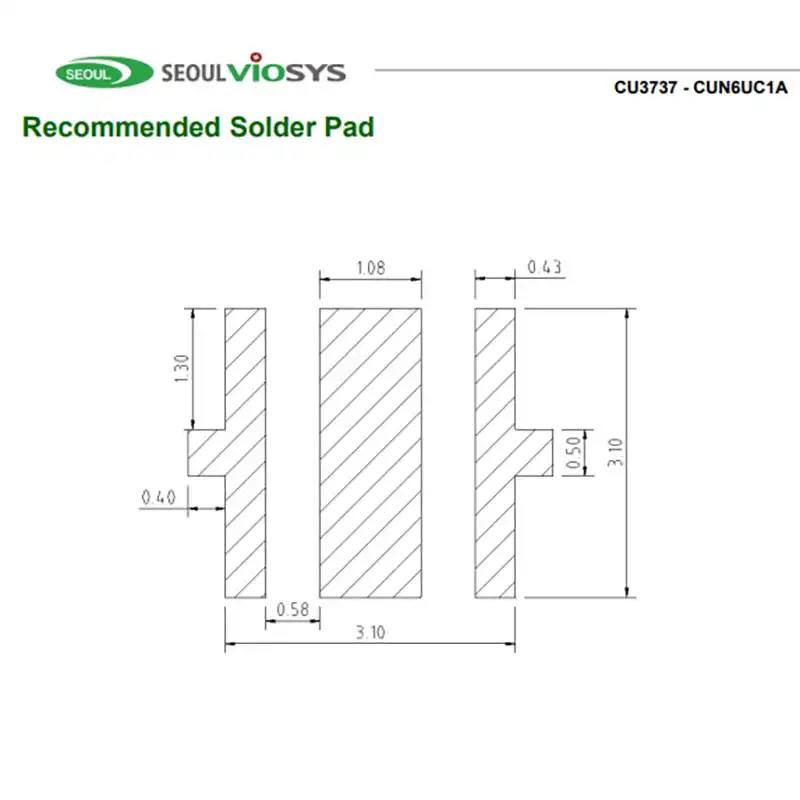

PCB Options: Can be welded on 12mm, 14mm, 16mm, 20mm, or other aluminum or copper PCB board
Service: OEM ODM service for UV flashlight or other UV LED module
Features and Benefits
Low thermal resistance
SMT type
Designed for high current operation
High power output
Narrow radiation angle
Suitable for compact UV-A module design
Key Applications
UV Curing
Printing
Coating
Adhesive
Counterfeit Detection / Security
UV Torch
Fluorescence Photography
Dental Curing
Crime Inspection
Oil Leak Detection
FAQ
What is this led uv diode used for?
This led uv diode is used for UV curing, printing, coating, adhesive curing, counterfeit detection, security inspection, UV torch design, fluorescence photography, dental curing, crime inspection, and oil leak detection.
Is CUN6UC1A a Seoul Viosys UV LED?
Yes. CUN6UC1A is a Seoul Viosys 365nm UV-A LED in a CU3737 SMD package.
What wavelength does this diode use?
The CUN6UC1A uses the 365nm wavelength, which is the UVA / near-UV range.
What is the radiant power?
The radiant power is 900mW at 700mA.
What is the forward voltage?
The forward voltage is 3.7V.
What is the view angle?
The view angle is 35°, which generates a narrow and concentrated UV beam for focused curing, inspection, and UV torch applications.
Can this led uv diode be mounted on PCB boards?
Yes. It can be welded on 12mm, 14mm, 16mm, 20mm, or other aluminum or copper PCB boards depending on the final product structure.
Do you provide OEM or ODM UV LED modules?
Yes. OEM and ODM service is available for UV flashlight modules, UV curing modules, inspection lights, and customized UV LED assemblies.
Is this diode suitable for UV curing?
Yes. It can be used for UV curing, adhesive curing, printing, coating, dental curing, and other UV-A applications when the material reacts to 365nm.
Can it be used for UV flashlights?
Yes. Its 365nm wavelength, 900mW radiant power, and 35° narrow beam make it suitable for focused UV flashlight and UV torch module designs.
Is this diode suitable for sterilization?
No. This is a 365nm UVA diode and not a UVC sterilization diode. It should not be used or advertised for disinfection or germicidal applications.
Is it safe to look directly at the LED?
No. Do not look directly at the operating UV LED. Use protective eyewear, shielding, and safe working procedures during testing, assembly, and operation.
