365nm uv diode Seoul Viosys UVA CUN66A1G
Product Details Description
Seoul Viosys CUN66A1G is a high power 365nm uv diode that is used in professional UV-A equipment requiring powerful output, compact size, and wide irradiation coverage. Being a 365nm wavelength, 2000mW radiant power, 3.7V voltage, 1000mA current, and 120° view angle, this diode is suitable for manufacturers who want to create UV curing, UV flashlights, printing, inspection lights, and other UV LED modules.

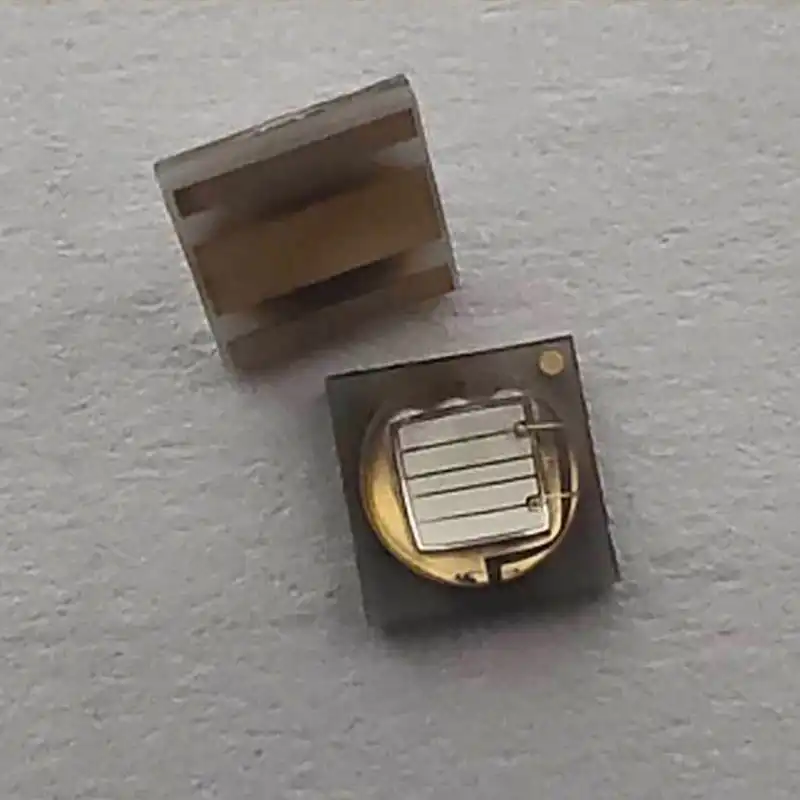

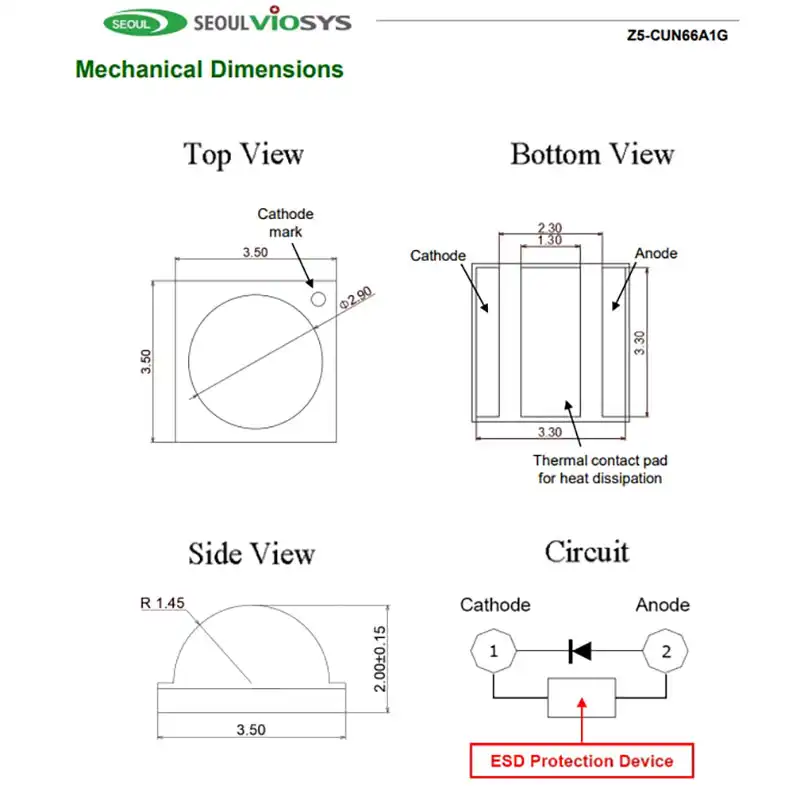

Seoul Viosys CUN66A1G is a part of the Z5 near-UV LED family. It was created for high current and high power usage. The 3.5 x 3.5 x 2.0mm SMD package allows engineers to create small UV light engine by avoiding traditional bulky lamp design.

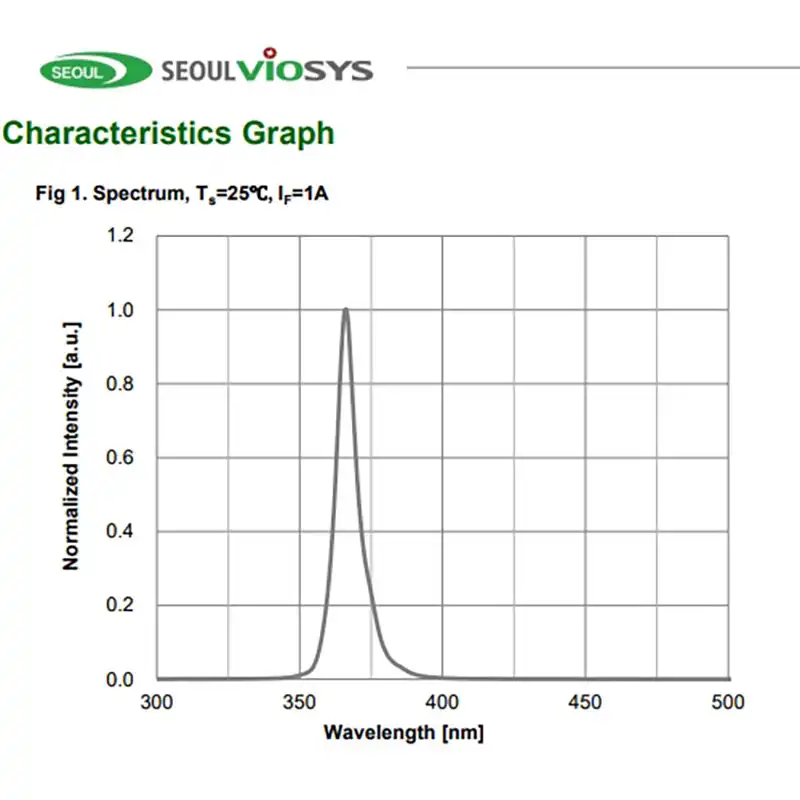

365nm wavelength is chosen because it provides a strong fluorescence reaction and weak visible purple interference comparing with longer UVA wavelengths. This is why the CUN66A1G is suitable for counterfeit detection, security check, fluorescence photography, crime inspection, leak detection, UV torch designing, and other material inspections.
For curing and manufacturing purposes, this 365nm uv diode can be used in UV curing, printing, coating, adhesive curing, dental curing, and other UV-A operations if the material is responding to the 365nm. Final result will depend on the adhesive or coating chemistry, exposure distance, driver current, optics, heat dissipation, and required curing dose.
120° view angle provides a wide UV distribution in the working area. It differs from a narrow-beam 365nm LEDs, which concentrate the energy on a smaller area. This wide-angle design is suitable when engineers need to cover more area on the panel, on the inspection surface, curing area, or fluorescence field.

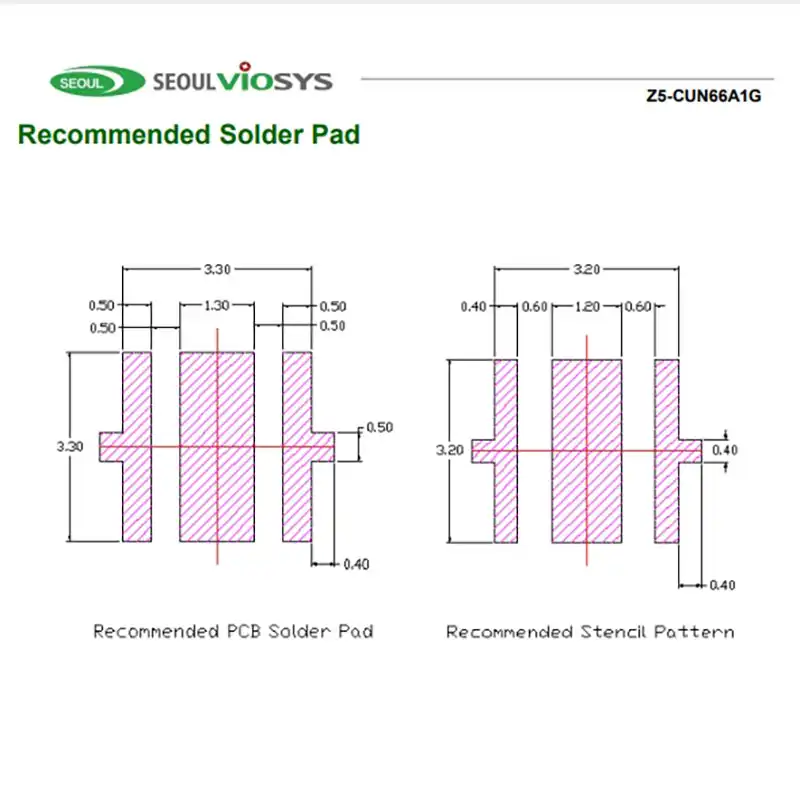

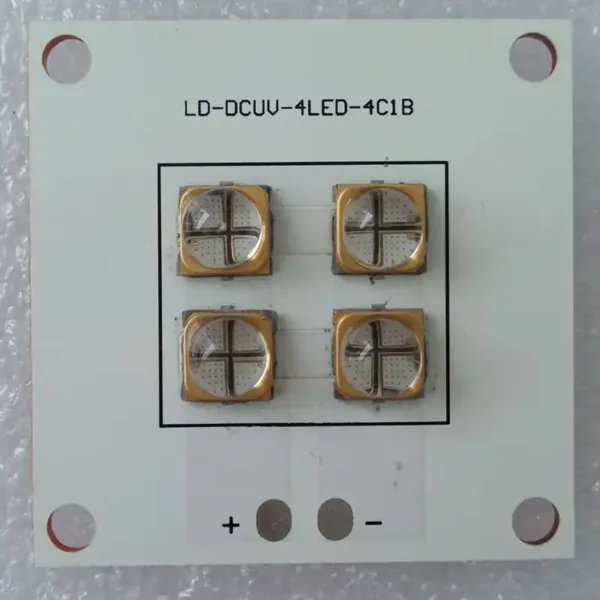

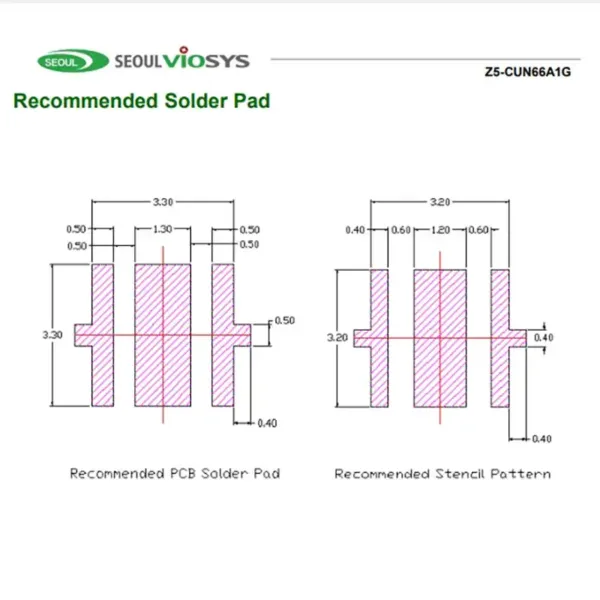

For OEM and ODM projects, the LED can be assembled on 12mm, 14mm, 16mm, 20mm, or other aluminum or copper PCB boards. Aluminum PCB is suitable for most of the UV modules’ designs, but copper PCB can be chosen when more thermal transfer is needed. The diode can be provided as the component or as the part of the UV flashlight modules, curing modules, inspection lamps, and other customized UV LED modules.
Thermal designing is one of the most significant parts of this high current 365nm uv diode. To provide stable radiant output and long term operation, it is necessary to use a suitable constant current driver, right soldering process, right PCB material, and enough heat dissipation. Engineers should check board temperature, radiant output, beam coverage, and application performance inside the final product before mass production.
It is a UV LED component, not a finished lamp. A complete product should include driver circuit, PCB board, heat sink, housing, optical lens or reflector, wiring, switch, and safety structure.
Seoul Viosys CUN66A1G is a 365nm UVA light source, not UVC sterilization diode. It shouldn’t be promoted for disinfection or germicidal applications. Never look directly at the operating LED, and avoid unnecessary skin or eye exposure. Use protective eyewear, shielding, and safe work procedures during testing, assembling, and operation.

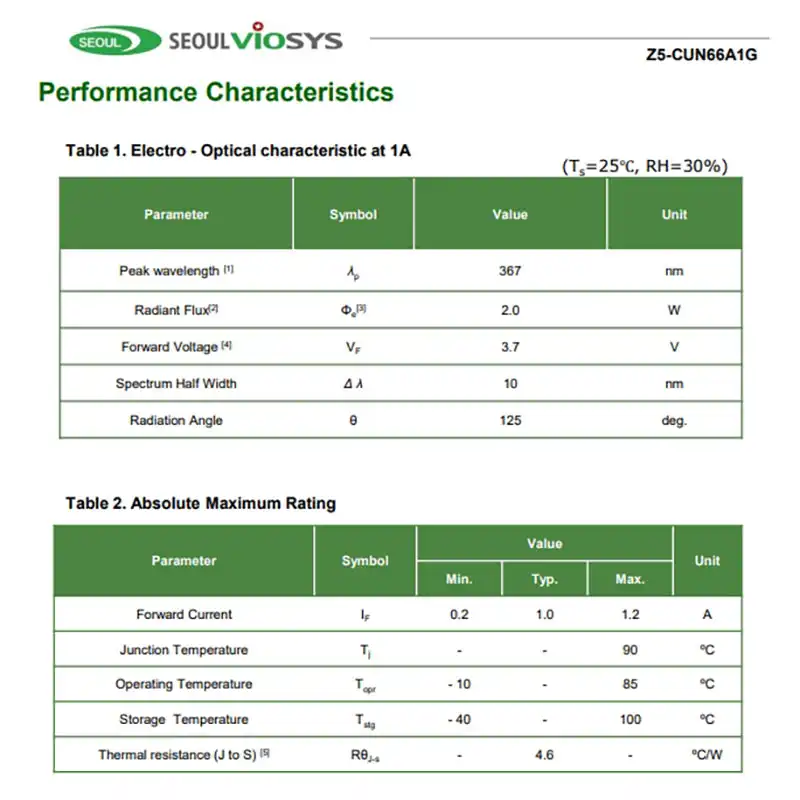

Specifications
Brand: Seoul Viosys
Model NO.: CUN66A1G
Wavelength: 365nm
Size: 3.5 x 3.5 x 2.0mm
Voltage: 3.7V
Current: 1000mA
Radiant Power: 2000mW
View Angle: 120°
PCB Options: Can be welded on 12mm, 14mm, 16mm, 20mm, or other aluminum or copper PCB board
Service: OEM ODM service for UV flashlight or other UV LED module
Features and Benefits
High power output
Designed for high current operation
SMT type
Lead free product
RoHS compliant
Key Applications
UV Curing
Printing
Coating
Adhesive
Counterfeit Detection / Security
UV Torch
Fluorescence Photography
Dental Curing
Crime Inspection
Oil Leak Detection
FAQ
What is this 365nm uv diode used for?
This 365nm uv diode is used for UV curing, printing, coating, adhesive curing, counterfeit detection, security inspection, UV torch design, fluorescence photography, dental curing, crime inspection, and oil leak detection.
Is CUN66A1G a Seoul Viosys UV LED?
Yes. CUN66A1G is a Seoul Viosys high power 365nm UV-A LED in a compact 3535 SMD package.
What wavelength does this diode use?
The CUN66A1G uses 365nm wavelength that belongs to the UVA / near-UV range.
What is the radiant power?
The radiant power is 2000mW at 1000mA.
What is the forward voltage?
The forward voltage is 3.7V.
What is the view angle?
The view angle is 120° that provides wide UV coverage for curing, printing, fluorescence inspection, and other UV module applications.
Can this diode be mounted on a PCB board?
Yes. It can be welded on 12mm, 14mm, 16mm, 20mm, or other aluminum or copper PCB boards according to the product structure.
Do you provide OEM or ODM UV LED modules?
Yes. OEM and ODM service is available for UV flashlight modules, UV curing modules, inspection lights, and customized UV LED assemblies.
Is this 365nm uv diode suitable for UV curing?
Yes. It is suitable for UV curing, adhesive curing, printing, coating, dental curing, and other UV-A applications if the material responds to the 365nm.
Can it be used for UV flashlights?
Yes. Its 365nm wavelength, 2000mW radiant power, and 120° wide beam make it suitable for UV flashlight and UV torch module designs.
Is this diode suitable for sterilization?
No. This is a 365nm UVA diode, not a UVC sterilization diode. It shouldn’t be used or promoted for disinfection or germicidal applications.
Is it safe to look directly at the LED?
No. Do not look directly at the operating UV LED. Use protective eyewear, shielding, and safe work procedures during testing, assembling, and operation.
