Seoul Viosys uv led 385nm CUN86A1G
Product Details Description
The Seoul Viosys CUN86A1G is a high power Seoul Viosys UV LED developed for professional 385nm UV-A applications that require strong radiant output, wide beam coverage, and compact SMD integration. With 385nm wavelength, 2150mW radiant power, 3.6V voltage, 1000mA current, and a 120° view angle, it is suitable for manufacturers developing UV curing tools, printing systems, coating equipment, inspection lamps, UV torch products, and custom UV LED modules.

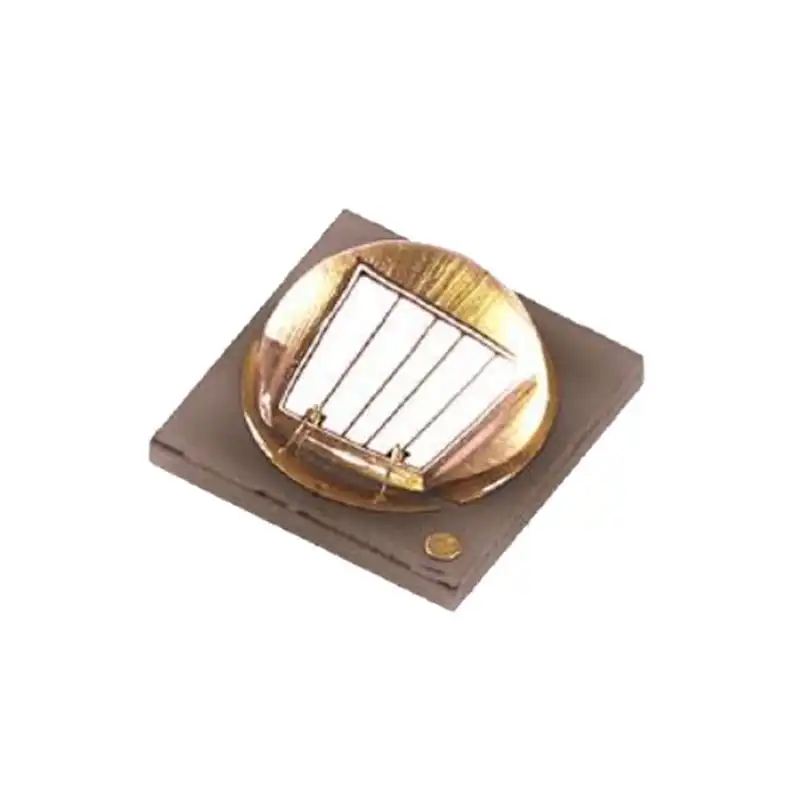

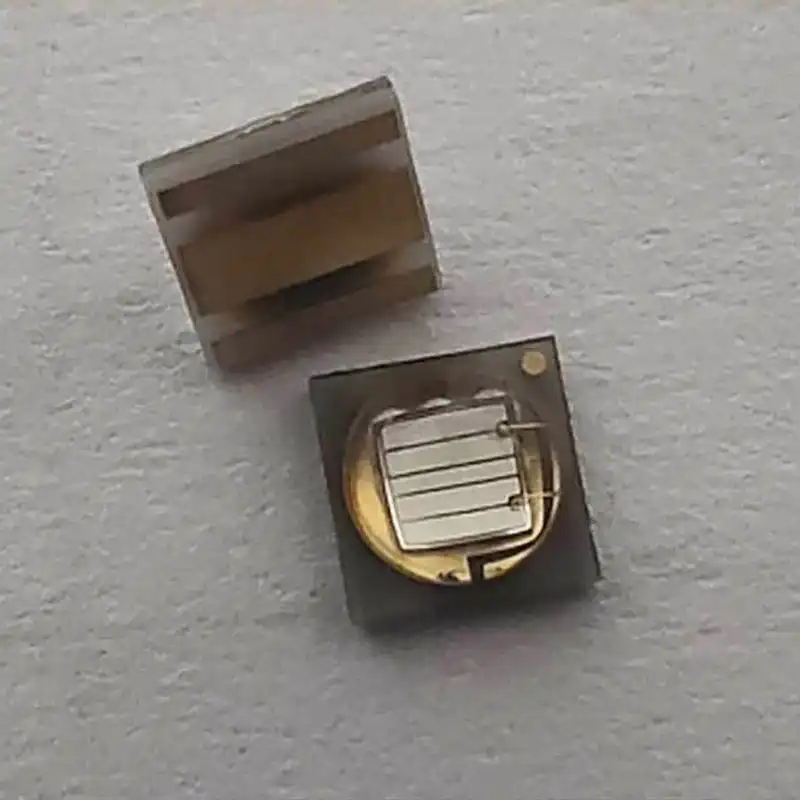

This Seoul Viosys UV LED belongs to the Z5 near-UV LED family. It is designed for high current operation and high power output applications, using a compact 3.5 x 3.5 x 2.0mm SMD package. The structure helps product engineers create high-output UV systems without using bulky traditional lamp sources.
The 385nm wavelength is commonly selected for UV curing, printing, coating, adhesive curing, counterfeit detection, security inspection, UV torch products, fluorescence photography, dental curing, crime inspection, and oil leak detection. Compared with 365nm UV LEDs, 385nm usually produces more visible violet output, which can help visual alignment and UV-reactive inspection while still delivering useful UV-A energy.
For production applications, this Seoul Viosys UV LED can be integrated into UV curing modules, printing equipment, coating systems, adhesive curing tools, and dental curing devices when the target material responds to 385nm UV-A output. Final performance depends on material chemistry, exposure distance, driver current, optical design, PCB material, thermal structure, and required UV dose.
The 120° viewing angle makes the CUN86A1G suitable for wider working areas. It is different from narrow-beam UV LEDs that focus energy into a smaller spot. This wide-beam profile is useful for curing panels, printing paths, fluorescence fields, UV-reactive inspection, broad illumination modules, and wide-angle UV flashlight designs.

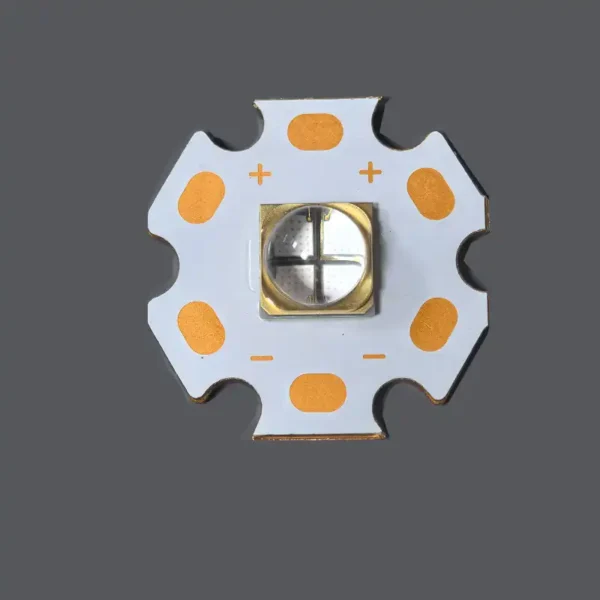

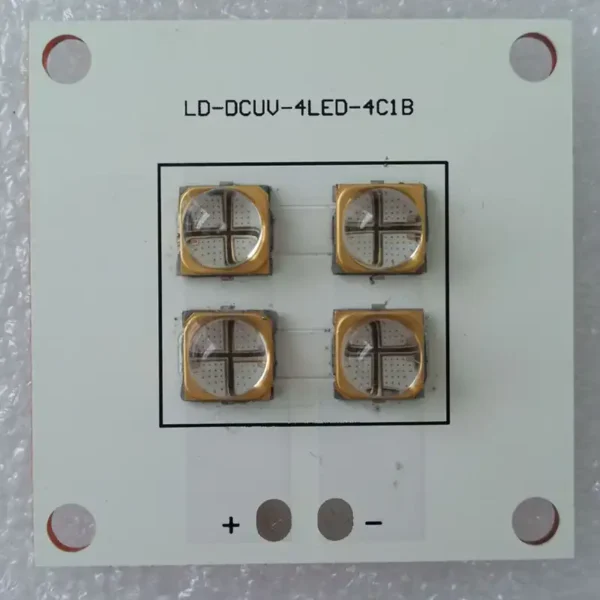

For OEM and ODM projects, the CUN86A1G can be welded on 12mm, 14mm, 16mm, 20mm, or other aluminum or copper PCB boards. Aluminum PCB is suitable for many standard UV module designs, while copper PCB can be selected when stronger thermal transfer is required. The LED can be supplied as a component or assembled into UV flashlight modules, curing modules, inspection lamps, and other customized UV LED products.
Thermal design is important for a 1000mA UV LED. To support stable radiant output and long-term performance, use a suitable constant-current driver, proper soldering process, appropriate PCB material, and sufficient heat dissipation. Engineers should verify board temperature, radiant output, beam distribution, and application performance inside the final product before mass production.
This product is a UV LED component, not a complete finished lamp. A finished device should include a driver circuit, PCB board, heat sink, housing, optical lens or reflector, wiring, switch, and safety structure. The CUN86A1G is a 385nm UVA light source, not a UVC sterilization LED, and should not be promoted for disinfection or germicidal applications.
Do not look directly at the operating UV LED, and avoid unnecessary skin or eye exposure. Use protective eyewear, shielding, warning labels, and safe working procedures during testing, assembly, and operation.

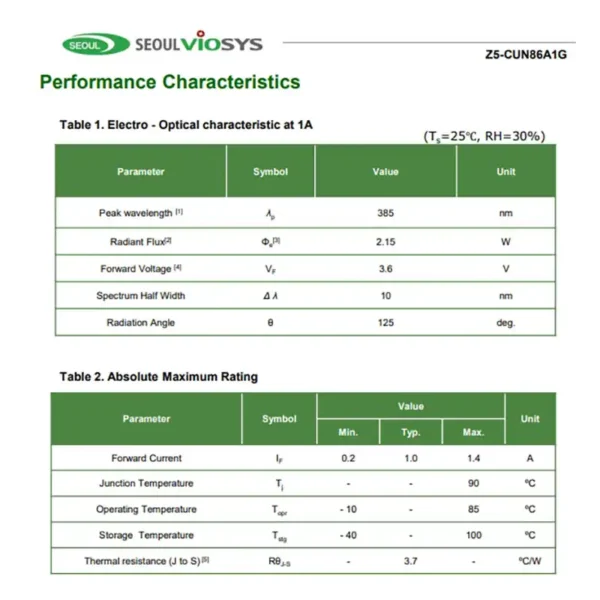

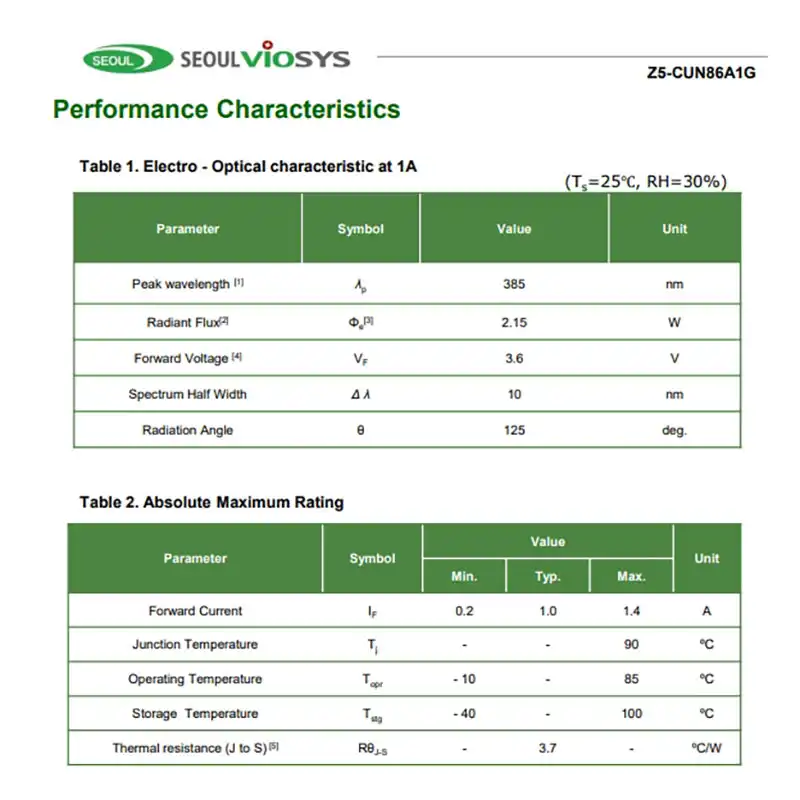

Specifications
Brand: Seoul Viosys
Model NO.: CUN86A1G

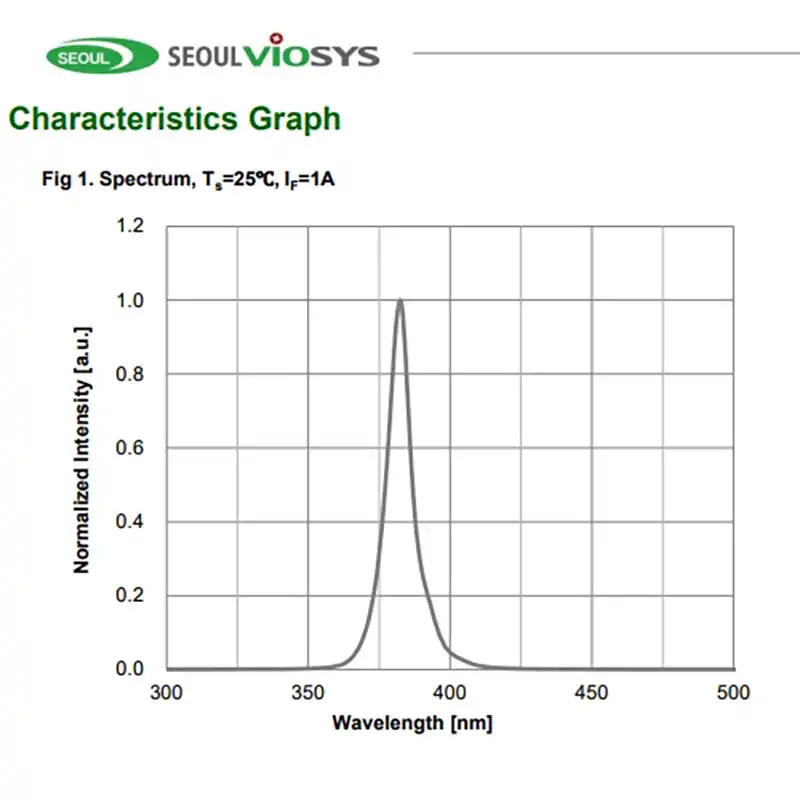

Wavelength: 385nm

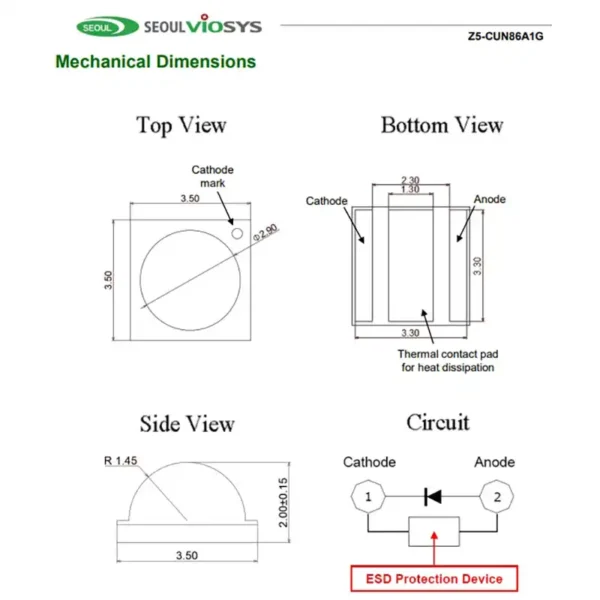

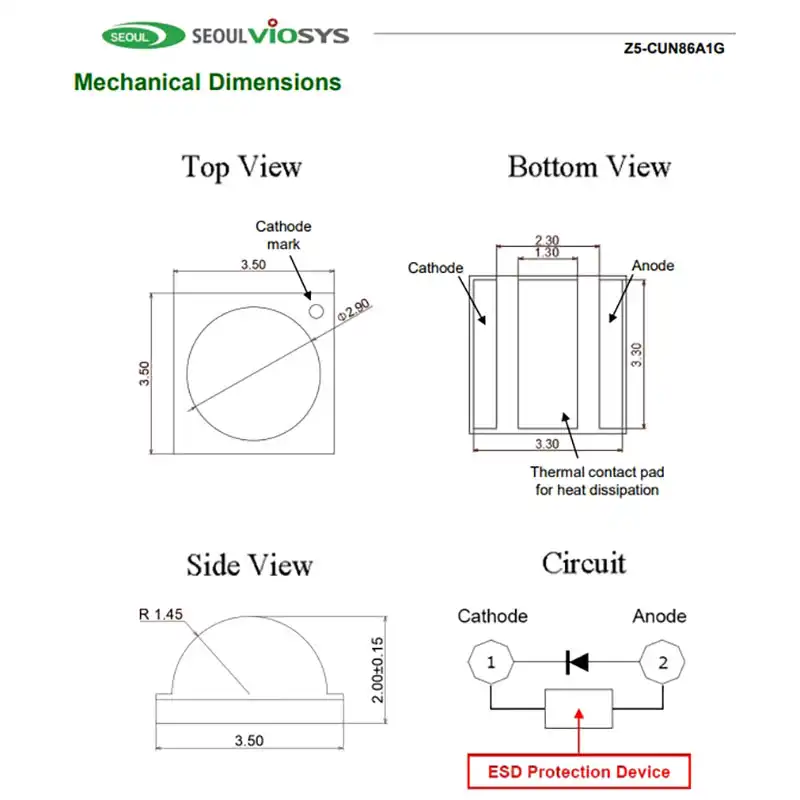

Size: 3.5 x 3.5 x 2.0mm
Voltage: 3.6V
Current: 1000mA
Radiant Power: 2150mW
View Angle: 120°

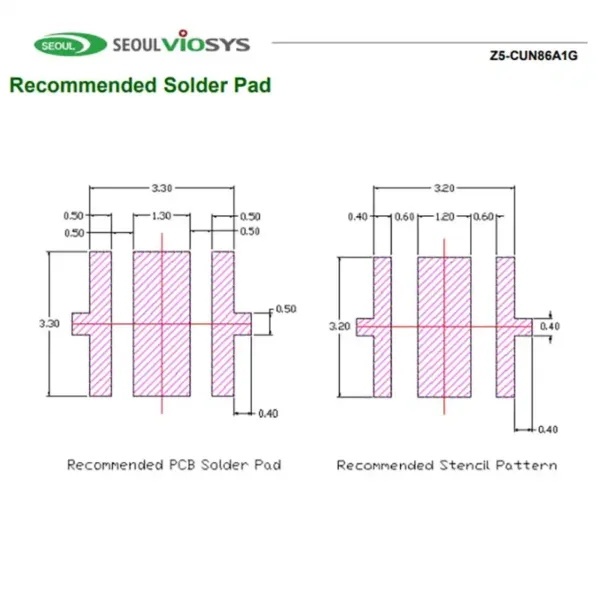

PCB Options: Can be welded on 12mm, 14mm, 16mm, 20mm, or other aluminum or copper PCB board
Service: OEM ODM service for UV flashlight or other UV LED module
Features and Benefits
High power output
Designed for high current operation
SMT type
Lead free product
RoHS compliant
Compact 3535 Z5 SMD package
Wide 120° UV-A emission
Suitable for OEM UV module design
Key Applications
UV Curing
Printing
Coating
Adhesive
Counterfeit Detection / Security
UV Torch
Fluorescence Photography
Dental Curing
Crime Inspection
Oil Leak Detection
FAQ
What is this Seoul Viosys UV LED used for?
This Seoul Viosys UV LED is used for UV curing, printing, coating, adhesive curing, counterfeit detection, security inspection, UV torch design, fluorescence photography, dental curing, crime inspection, and oil leak detection.
Is CUN86A1G a Seoul Viosys UV LED?
Yes. CUN86A1G is a Seoul Viosys 385nm UV-A LED in a compact Z5 SMD package.
What wavelength does this LED use?
The CUN86A1G uses a 385nm wavelength, which belongs to the UVA / near-UV range.
What is the radiant power?
The radiant power is 2150mW.
What is the forward voltage?
The forward voltage is 3.6V.
What is the operating current?
The operating current is 1000mA.
What is the package size?
The package size is 3.5 x 3.5 x 2.0mm.
What is the view angle?
The view angle is 120°, giving this Seoul Viosys UV LED a wide output pattern for curing, printing, fluorescence inspection, and UV module applications.
Can this LED be mounted on PCB boards?
Yes. It can be welded on 12mm, 14mm, 16mm, 20mm, or other aluminum or copper PCB boards according to the final product structure.
Do you provide OEM or ODM UV LED modules?
Yes. OEM and ODM service is available for UV flashlight modules, UV curing modules, inspection lights, dental curing modules, and customized UV LED assemblies.
Is this LED suitable for UV curing?
Yes. It can be used for UV curing, adhesive curing, printing, coating, dental curing, and related UV-A applications when the material responds to 385nm.
Can it be used for UV flashlights?
Yes. Its 385nm wavelength, 2150mW radiant power, and 120° wide beam make it suitable for wide-angle UV flashlight and UV torch module designs.
Is this Seoul Viosys UV LED suitable for sterilization?
No. This is a 385nm UVA LED, not a UVC sterilization LED. It should not be used or promoted for disinfection or germicidal applications.
Why is thermal design important?
The CUN86A1G operates at 1000mA, so proper PCB material, heat sinking, current control, and thermal testing are important for stable UV output and long-term module performance.
Is it safe to look directly at the LED?
No. Do not look directly at the operating UV LED. Use protective eyewear, shielding, and safe working procedures during testing, assembly, and operation.
