Product Details Description
Seoul Viosys CUN06A1G is a high-power 405nm LED which can be used by manufacturers in their products as compact UV LED emitters with wide beam, high radiant output and flexible PCB mounting option. With 2050mW radiant power, 3.5V voltage, 1000mA current and 120° view angle, this LED can be applied in UV curing tools, printing systems, coating equipment, inspection lamps, UV torch products and customized UV LED modules.
This model is part of the Seoul Viosys Z5 NUV LED series. The advanced SMD construction and 3.5 x 3.5 x 2.0mm package help product engineers to create high-output light engines without using heavy traditional lamp sources. Small LED package is suitable for portable devices, board-level modules and limited-space device designs.
405nm wavelength is commonly used in UV curing, printing, coating, adhesive curing, counterfeit detection, security inspection, UV torch products, fluorescence photography, dental curing, crime inspection and oil leak detection applications. Comparing to shorter near-UV wavelengths like 365nm or 385nm, 405nm LEDs usually provide higher visible violet output that can help operators better to see alignment, coverage and reaction to UV light.
For curing applications, these UV LED emitters can be used in adhesive curing tools, resin curing devices, printing equipment, coating systems and dental curing modules if target material reacts to 405nm output. The final curing results depend on material chemistry, exposure distance, driving current, optical design, PCB temperature and required energy dose.
The 120° view angle makes the Seoul Viosys CUN06A1G LED different from 45° or 65° narrow-beam LEDs with focused output spot. Wide-beam design is suitable for wider curing areas, printing paths, fluorescence areas, inspection lamps and wide-angle UV torch modules.

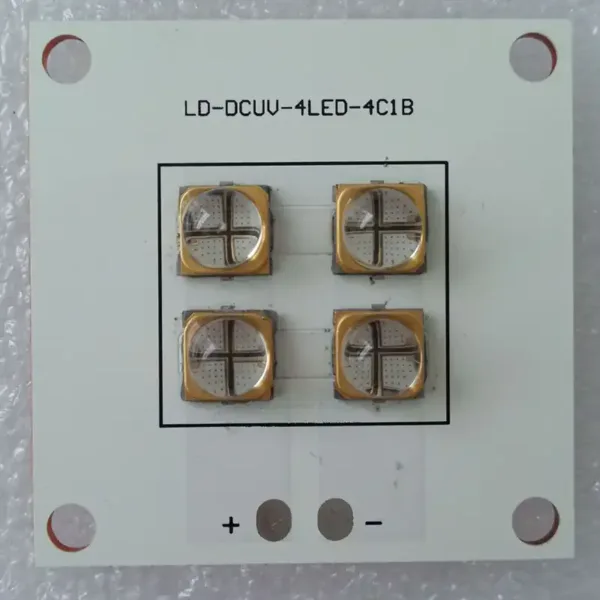

The Seoul Viosys CUN06A1G LED can be welded on 12mm, 14mm, 16mm, 20mm or any other aluminum or copper PCB board in OEM and ODM projects. Aluminum PCB can be used for most of standard module designs and copper PCB can be selected if stronger thermal transfer is required. The LED can be supplied as a single component or assembled into UV flashlight modules, curing modules, inspection lamps and other customized UV LED products.
Proper thermal design is important for UV LED emitters working at 1000mA current. To provide stable radiant output and long-time performance, you should use appropriate constant-current driver, proper soldering procedure, proper PCB material and proper heat dissipation. Product engineers should test board temperature, radiant output, beam distribution and application performance inside the final product before mass production start.
This product is a component-level LED and it is not a finished lamp. The finished device should include the driver circuit, PCB board, heat sink, housing, optical lens or reflector, wires, switch and safety design. The Seoul Viosys CUN06A1G is a 405nm near-UV / violet-edge light source and it is not UVC sterilization LED and should not be promoted for disinfection or germicidal applications.
Do not look directly to the operating LED and avoid unnecessary eye or skin exposure during testing, assembly and work with this product. Use protective eyewear, shielding, warning label and safe working procedure in the final product design.

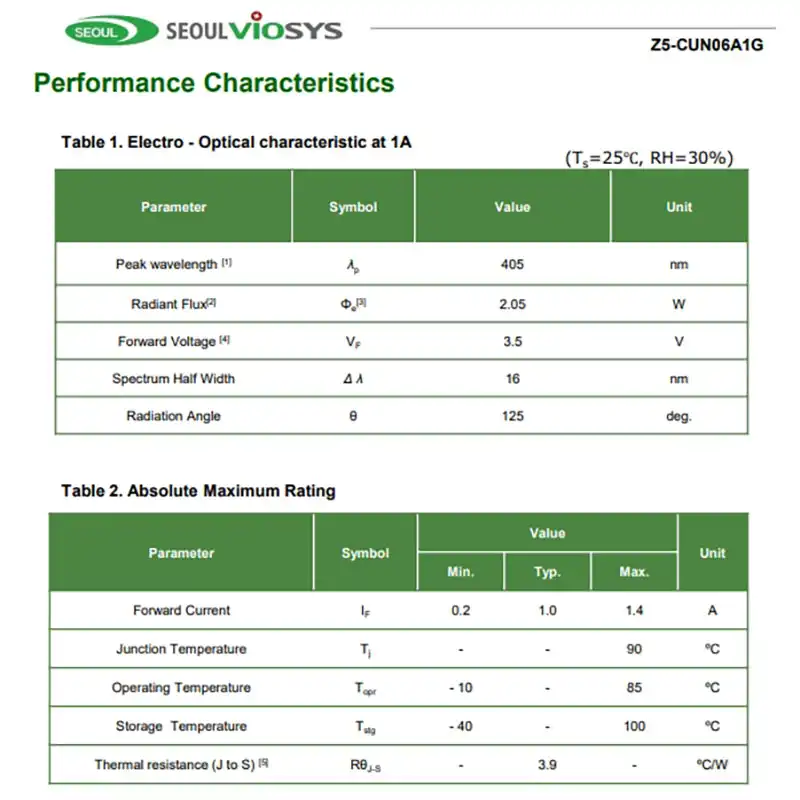

Specifications
Brand: Seoul Viosys
Model NO.: CUN06A1G

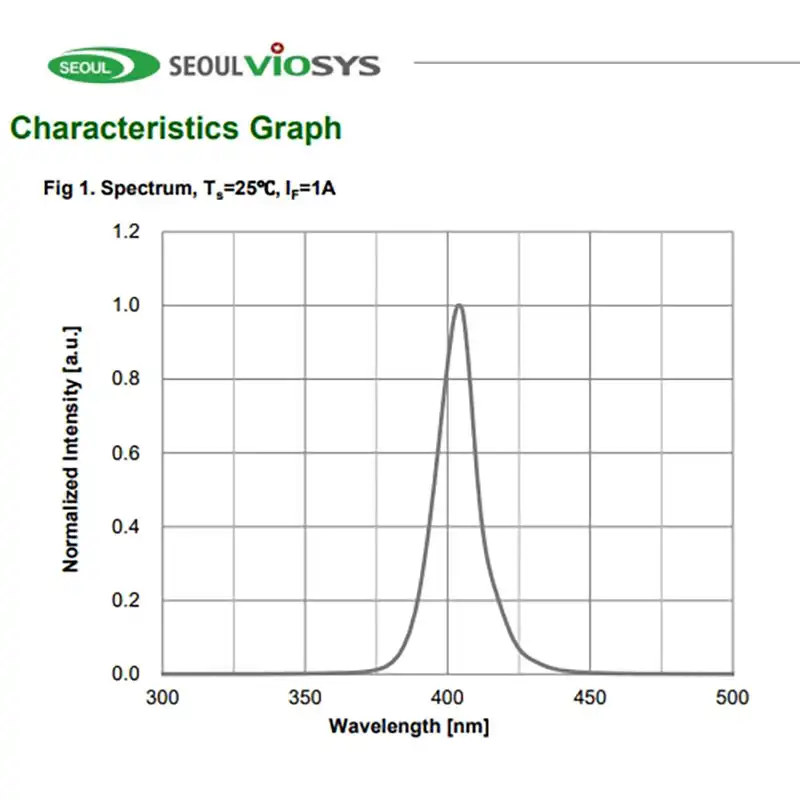

Wavelength: 405nm uv led emitters

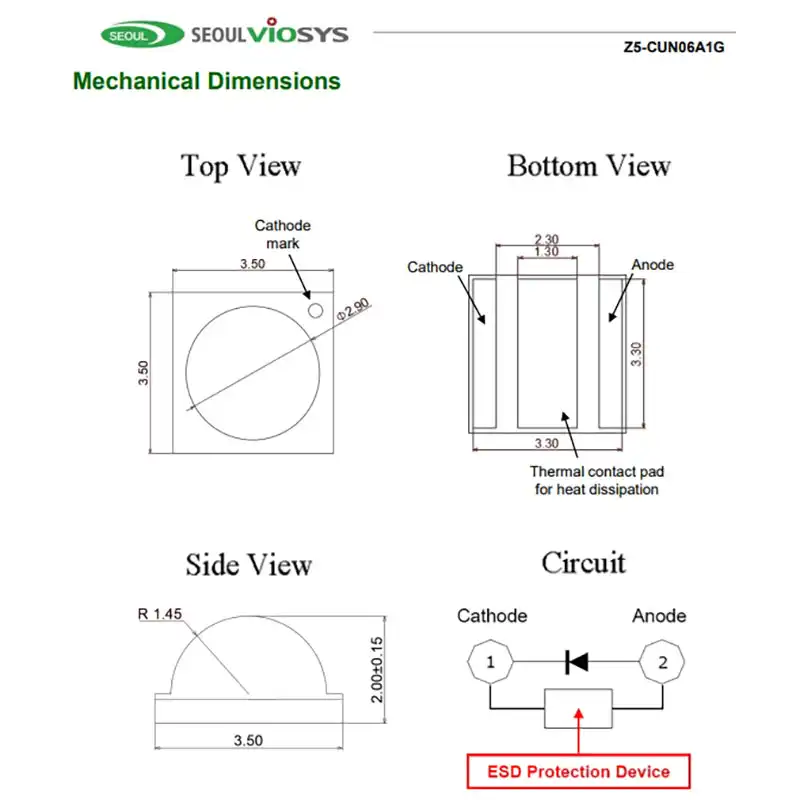

Size: 3.5 x 3.5 x 2.0mm
Voltage: 3.5V
Current: 1000mA
Radiant Power: 2050mW
View Angle: 120°

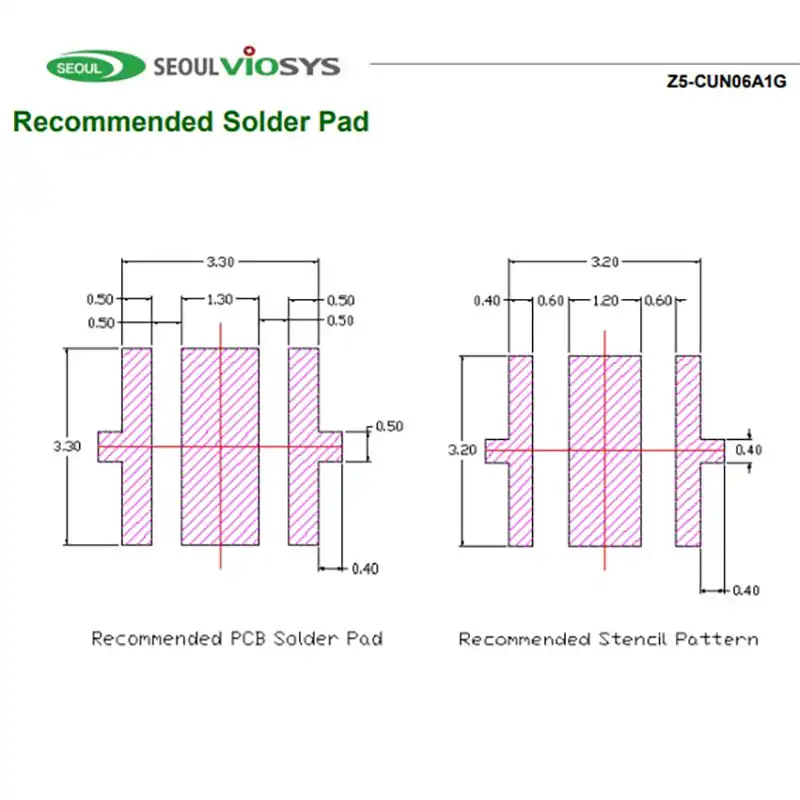

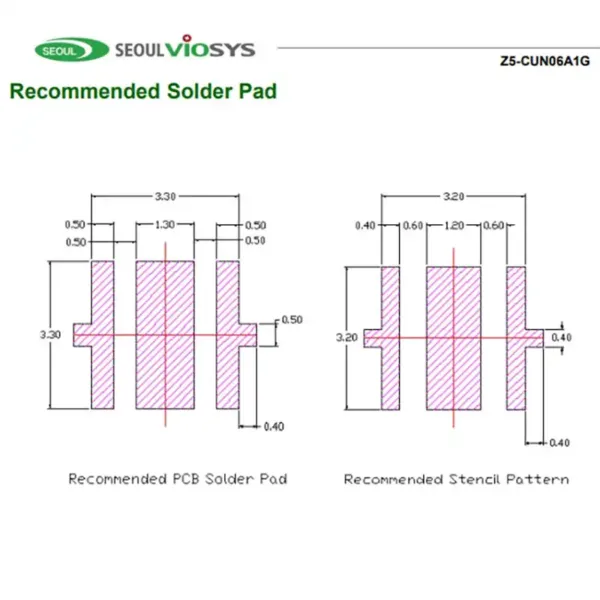

PCB Options: Can be welded on 12mm, 14mm, 16mm, 20mm, or other aluminum or copper PCB board
Service: OEM ODM service for UV flashlight or other UV LED module
Features and Benefits
High power output
Designed for high current operation
SMT type
Lead free product
RoHS compliant
Compact Z5 SMD package
Wide 120° output profile
Suitable for custom UV LED emitters and module assembly
Key Applications
UV Curing
Printing
Coating
Adhesive
Counterfeit Detection / Security
UV Torch
Fluorescence Photography
Dental Curing
Crime Inspection
Oil Leak Detection
FAQ
What are these UV LED emitters used for?
These UV LED emitters are used for UV curing, printing, coating, adhesive curing, counterfeit detection, security inspection, UV torch design, fluorescence photography, dental curing, crime inspection and oil leak detection when the target material or application reacts to 405nm output.
Is CUN06A1G a Seoul Viosys UV LED?
Yes. CUN06A1G is a Seoul Viosys Z5 NUV LED in 3.5 x 3.5 x 2.0mm SMD package.
What wavelength does this LED use?
The CUN06A1G uses 405nm wavelength. It is commonly searched as 405nm UV LED and can be also described as near-UV / violet-edge light source.
What is the radiant power?
The radiant power is 2050mW.
What is the forward voltage?
The forward voltage is 3.5V.
What is the operating current?
The operating current is 1000mA.
What is the package size?
The package size is 3.5 x 3.5 x 2.0mm.
What is the view angle?
The view angle is 120° providing wide output profile for curing, printing, inspection, UV torch and detecting applications.
Can this LED be mounted on PCB boards?
Yes. It can be welded on 12mm, 14mm, 16mm, 20mm or any other aluminum or copper PCB boards according to the final product structure.
Do you provide OEM or ODM UV LED modules?
Yes. OEM and ODM service is available for UV flashlight modules, UV curing modules, inspection lights, dental curing modules and customized UV LED assemblies.
Is this LED suitable for UV curing?
Yes. It can be used for curing, adhesive curing, printing, coating, dental curing and related applications if material reacts to 405nm output.
Can it be used for UV flashlights?
Yes. Its 405nm wavelength, 2050mW radiant power and 120° wide beam make it suitable for wide-angle UV flashlight and UV torch module design.
Are these UV LED emitters suitable for sterilization?
No. These are 405nm near-UV / violet-edge LEDs and not UVC sterilization LEDs. They should not be used or promoted for disinfection or germicidal applications.
Why is thermal design important?
The CUN06A1G works at 1000mA and provides high radiant output so proper PCB material, heat sinking, current control and thermal testing are important for stable module performance.
Is it safe to look directly at the LED?
No. Do not look directly at the operating LED. Use protective eyewear, shielding and safe working procedures during testing, assembly and operation.
