3W uv led chip Seoul Viosys UV 385nm CUN86B1G
Product Details Description
The Seoul Viosys CUN86B1G is a high power 3W uv led chip developed for professional UV-A applications that require strong radiant output, compact SMD integration, and a controlled beam profile. With a 385nm wavelength, 2050mW radiant power, 3.6V voltage, 1000mA current, and 65° view angle, it is suitable for manufacturers developing UV curing tools, printing systems, coating equipment, inspection lamps, UV torch products, and customized UV LED modules.
This 3W uv led chip belongs to the Seoul Viosys nZ5 near-UV LED family. It is designed for high current operation, narrow viewing angle, and high power output applications. The 3.5 x 3.5 x 2.8mm SMD package allows engineers to build compact UV light engines without using bulky traditional lamp structures.

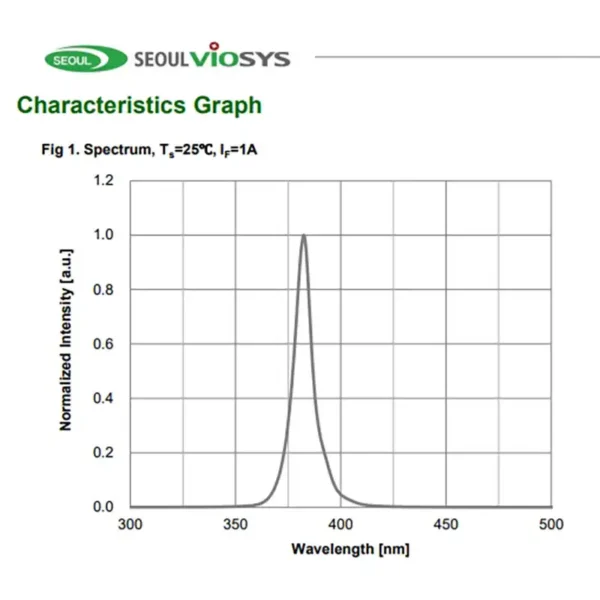

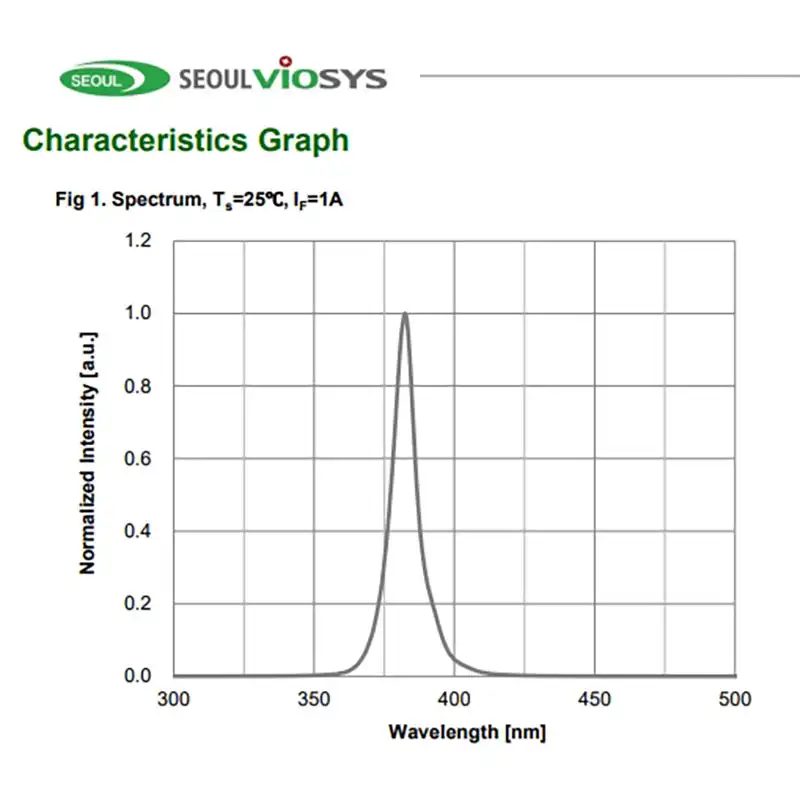

The 385nm wavelength is commonly selected for UV curing, printing, coating, adhesive curing, counterfeit detection, security inspection, UV torch products, fluorescence photography, dental curing, crime inspection, and oil leak detection. Compared with 365nm UV LEDs, 385nm usually provides more visible violet output, which can help visual alignment and UV-reactive inspection while still offering useful UV-A energy.
For production applications, this 3W uv led chip can be integrated into UV curing modules, printing equipment, coating systems, adhesive curing tools, and dental curing devices when the target material responds to 385nm UV-A energy. Final performance depends on material chemistry, exposure distance, driver current, optical design, thermal structure, and required UV dose.
The 65° view angle gives this model a controlled beam profile. It is more focused than wide 120° UV LEDs but less concentrated than tight spot emitters. This makes the CUN86B1G suitable for UV flashlight heads, handheld inspection lamps, medium-area curing modules, coating inspection tools, and compact exposure devices.
For OEM and ODM projects, the CUN86B1G can be welded on 12mm, 14mm, 16mm, 20mm, or other aluminum or copper PCB boards. Aluminum PCB is suitable for many standard UV module designs, while copper PCB can be selected when stronger thermal transfer is required. The LED can be supplied as a component or assembled into UV flashlight modules, curing modules, inspection lamps, and other customized UV LED products.
Thermal design is important for a 1000mA high-output UV LED. To support stable radiant output and long-term performance, use a suitable constant-current driver, proper soldering process, appropriate PCB material, and enough heat dissipation. Engineers should verify board temperature, radiant output, beam pattern, and application performance inside the final product before mass production.
This product is a UV LED component, not a complete lamp. A finished device should include a driver circuit, PCB board, heat sink, housing, optical lens or reflector, wiring, switch, and safety structure. The CUN86B1G is a 385nm UVA light source, not a UVC sterilization LED, and should not be promoted for disinfection or germicidal applications.
Do not look directly at the operating UV LED, and avoid unnecessary skin or eye exposure. Use protective eyewear, shielding, warning labels, and safe working procedures during testing, assembly, and operation.

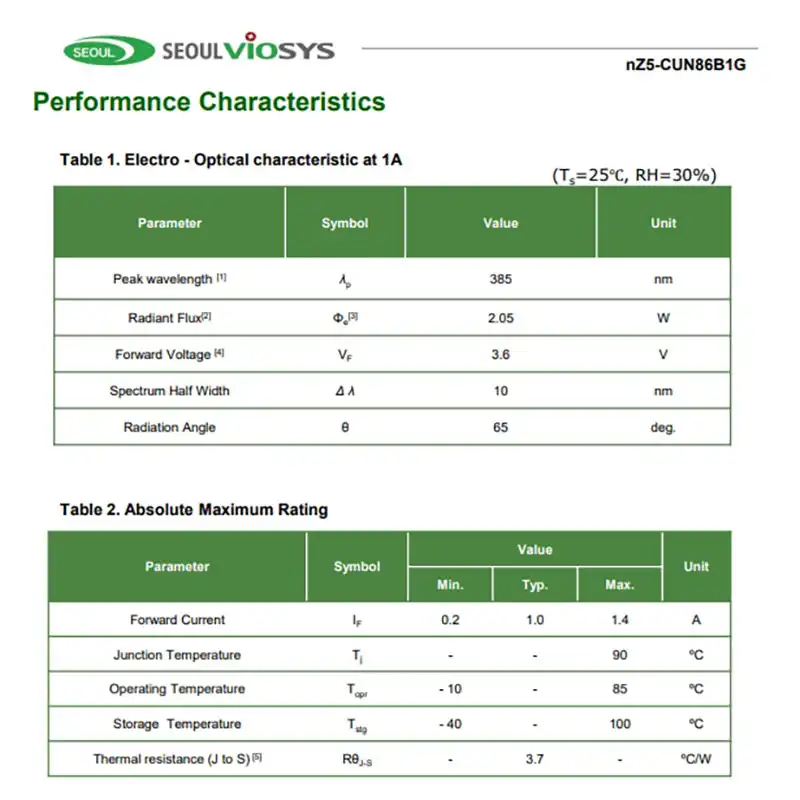

Specifications
Brand: Seoul Viosys
Model NO.: CUN86B1G
Wavelength: 385nm 3W uv led chip

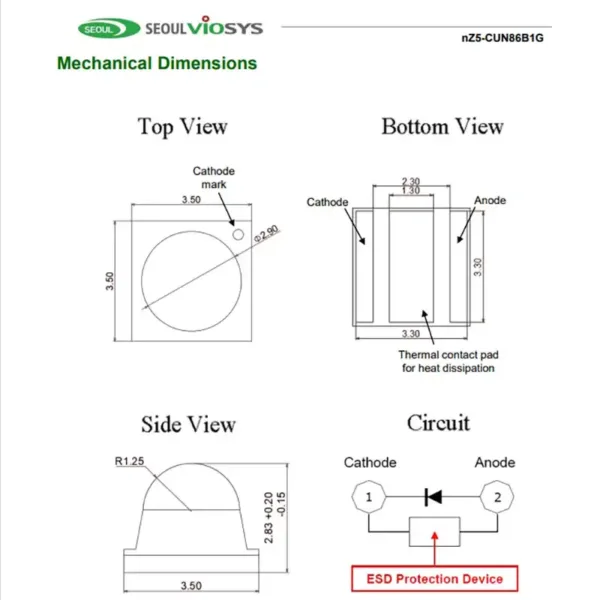

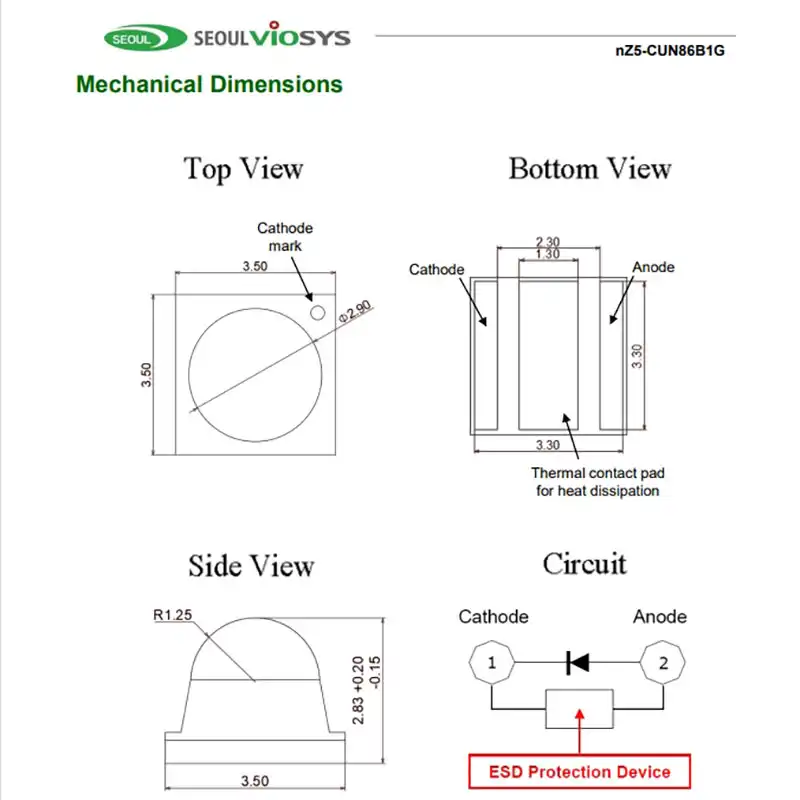

Size: 3.5 x 3.5 x 2.8mm
Voltage: 3.6V
Current: 1000mA
Radiant Power: 2050mW
View Angle: 65°

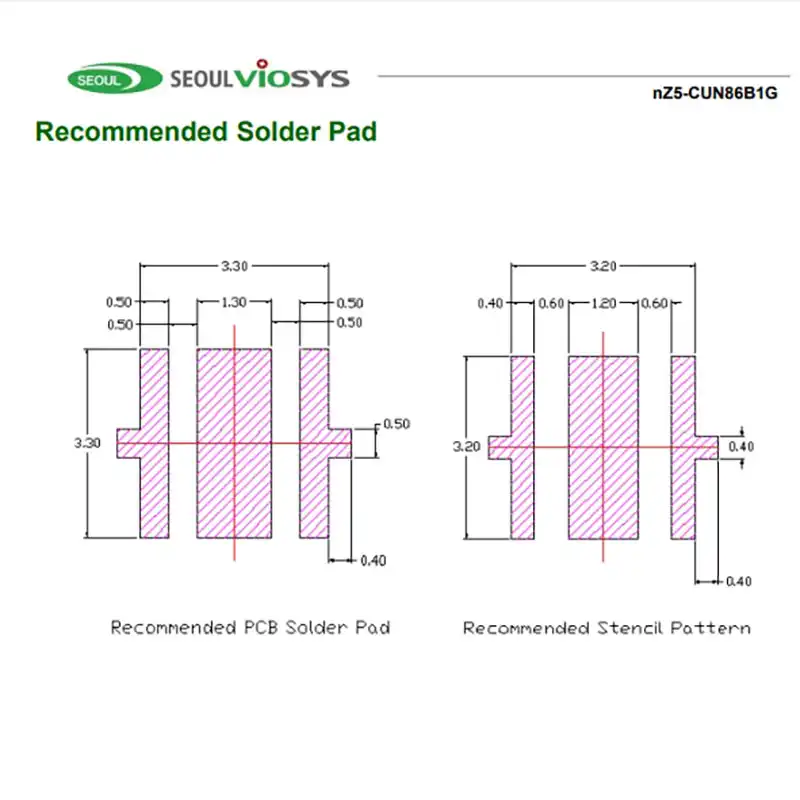

PCB Options: Can be welded on 12mm, 14mm, 16mm, 20mm, or other aluminum or copper PCB board
Service: OEM ODM service for UV flashlight or other UV LED module
Features and Benefits
High power output
Designed for high current operation
Narrow viewing angle
SMT type
Lead free product
RoHS compliant
3535 SMD package
Suitable for compact UV-A module design
Key Applications
UV Curing
Printing
Coating
Adhesive
Counterfeit Detection / Security
UV Torch
Fluorescence Photography
Dental Curing
Crime Inspection
Oil Leak Detection
FAQ
What is this 3W uv led chip used for?
This 3W uv led chip is used for UV curing, printing, coating, adhesive curing, counterfeit detection, security inspection, UV torch design, fluorescence photography, dental curing, crime inspection, and oil leak detection.
Is CUN86B1G a Seoul Viosys UV LED?
Yes. CUN86B1G is a Seoul Viosys 385nm UV-A LED in a 3535 SMD package.
What wavelength does this UV LED chip use?
The CUN86B1G uses a 385nm wavelength, which belongs to the UVA / near-UV range.
What is the radiant power?
The radiant power is 2050mW.
What is the forward voltage?
The forward voltage is 3.6V.
What is the operating current?
The operating current is 1000mA.
What is the package size?
The package size is 3.5 x 3.5 x 2.8mm.
What is the view angle?
The view angle is 65°, giving this 3W uv led chip a controlled beam for UV curing, inspection, UV torch, and detection applications.
Can this LED be mounted on PCB boards?
Yes. It can be welded on 12mm, 14mm, 16mm, 20mm, or other aluminum or copper PCB boards according to the final product structure.
Do you provide OEM or ODM UV LED modules?
Yes. OEM and ODM service is available for UV flashlight modules, UV curing modules, inspection lights, dental curing modules, and customized UV LED assemblies.
Is this LED suitable for UV curing?
Yes. It can be used for UV curing, adhesive curing, printing, coating, dental curing, and related UV-A applications when the material responds to 385nm.
Can it be used for UV flashlights?
Yes. Its 385nm wavelength, 2050mW radiant power, and 65° beam angle make it suitable for UV flashlight and UV torch module designs.
Is this 3W uv led chip suitable for sterilization?
No. This is a 385nm UVA LED, not a UVC sterilization LED. It should not be used or promoted for disinfection or germicidal applications.
Why is thermal design important?
The CUN86B1G operates at 1000mA, so proper PCB material, heat sinking, current control, and thermal testing are important for stable UV output and long-term module performance.
Is it safe to look directly at the LED?
No. Do not look directly at the operating UV LED. Use protective eyewear, shielding, and safe working procedures during testing, assembly, and operation.
