uv diode 395nm Seoul Viosys CUN96A1G
Product Details Description
Seoul Viosys CUN96A1G high power uv diode 395nm is recommended for professionals who need high power, compactness, and wide UV irradiation. With 395nm wavelength, 2100mW radiant power, 3.5V operating voltage, 1000mA current, and 120° view angle, this high power uv diode is suitable for designing curing devices, UV flashlights, UV lamps for inspections, printers, and custom UV LED modules.

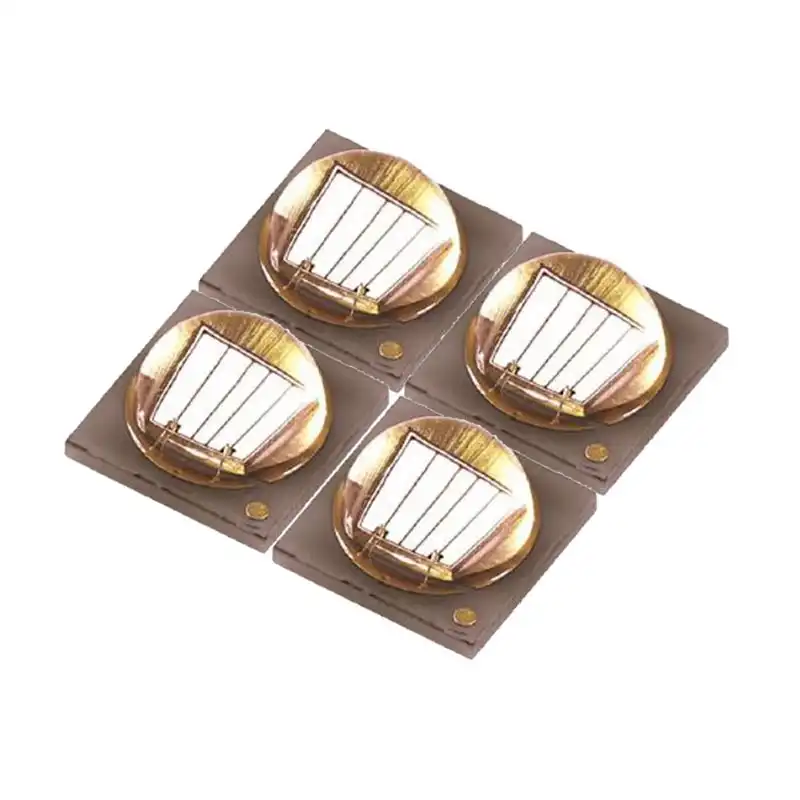

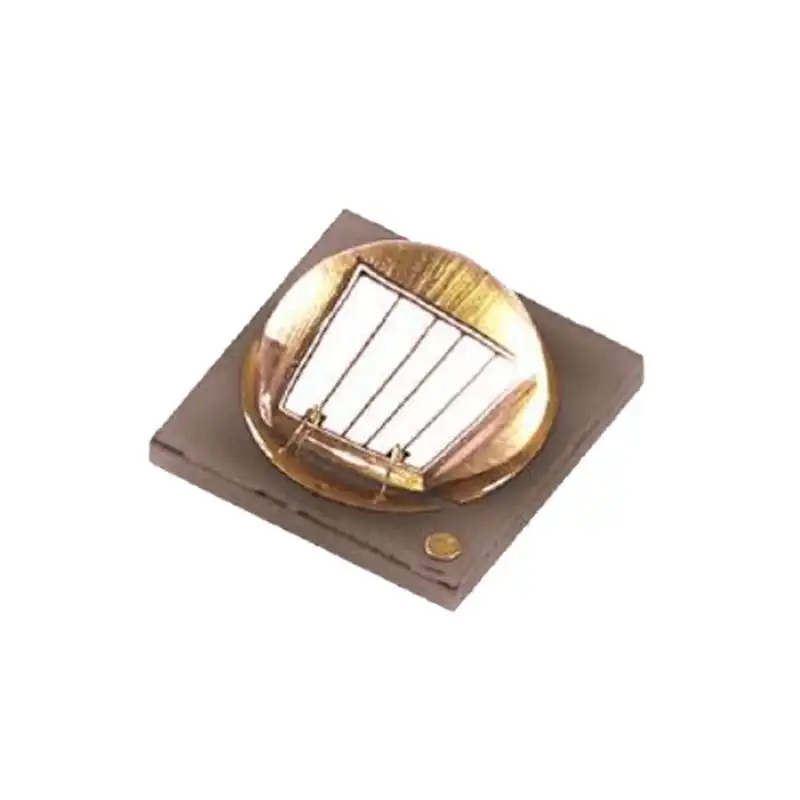

Seoul Viosys CUN96A1G high power uv diode 395nm is part of the Z5 near-UV LED range. It is designed for high currents and high power output usage. 3.5 x 3.5 x 2.0mm SMD package allows product engineers to design compact and powerful UV light engines. The SMT package ensures easy automation during manufacturing and OEM assembly.
395nm is the wavelength commonly applied for UV curing, printing, coating, adhesive curing, counterfeit and security inspection, UV torch products, fluorescence photography, dental curing, criminal investigation, and oil leak detection. As the uv diode 395nm is a UVA / near-UV LED, it must not be marketed as UVC disinfection or germicidal uv light.
The wide view angle of 120° makes it useful for applications where wider UV distribution is required. This way, the CUN96A1G is suitable for applications requiring curing surfaces, inspection zones, fluorescence areas, printing, coating areas, and wider emission pattern of custom-made modules instead of narrow spot light beam. Final performance of the diode depends on driver current, optical lens, reflector shape, working distance, heat sink, and response of target material.

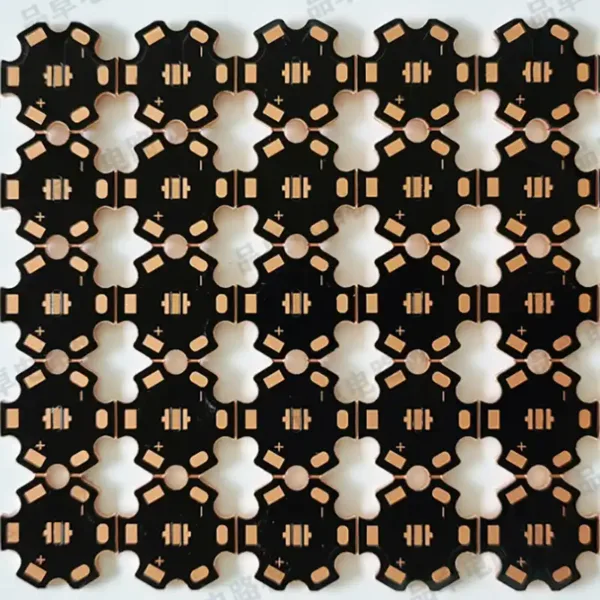

For OEM/ODM applications, the LED can be installed on 12mm, 14mm, 16mm, 20mm, and any other aluminum and/or copper PCB boards. An aluminum board can be used for the majority of low-cost UV module solutions, while a copper one is to be chosen if better heat conductivity is needed. The LED can be provided as a bare element or incorporated into UV flashlights modules, curing modules, inspection lights, and other custom UV assemblies.
Thermal management is necessary for high-performance 395 nm LED. In order to keep stable performance of the element, use the adequate constant current driver, right soldering procedure, correct PCB board and enough heat dissipation. Engineers must ensure temperature, radiant output, and optical performance measurement inside the final product construction before series manufacturing.
This is an UV LED component that is not the whole lamp. Full product should consist of a driver circuit, PCB board, heat sink, housing, lens, wires, switch and safety structure. In order to perform curing, dental, inspection, security, industrial applications, use shielding and protective glasses.
Avoid watching an operating LED and exposing your body and eyes to unneeded UV light.

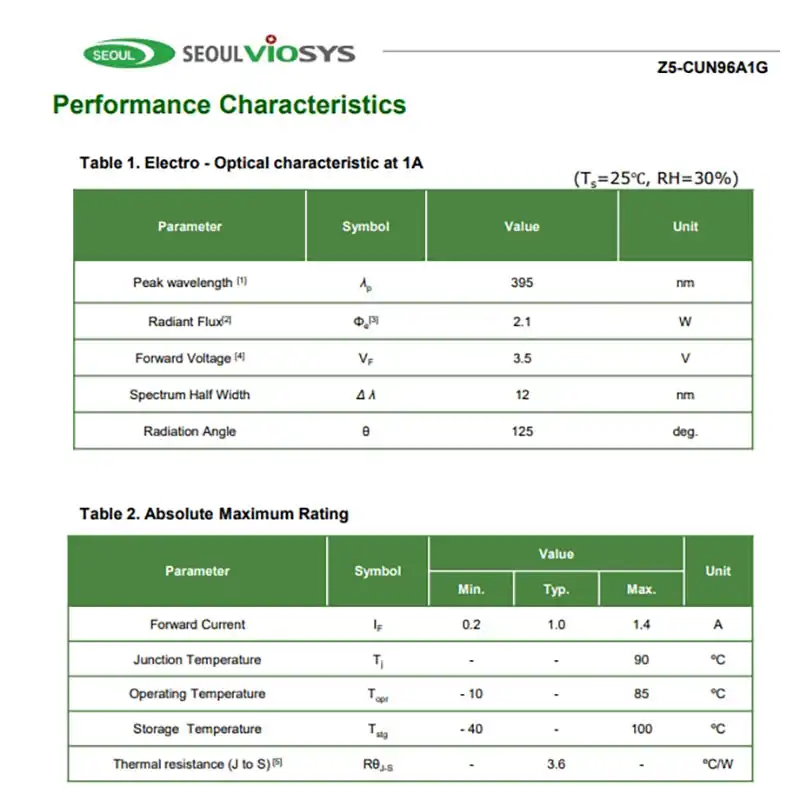

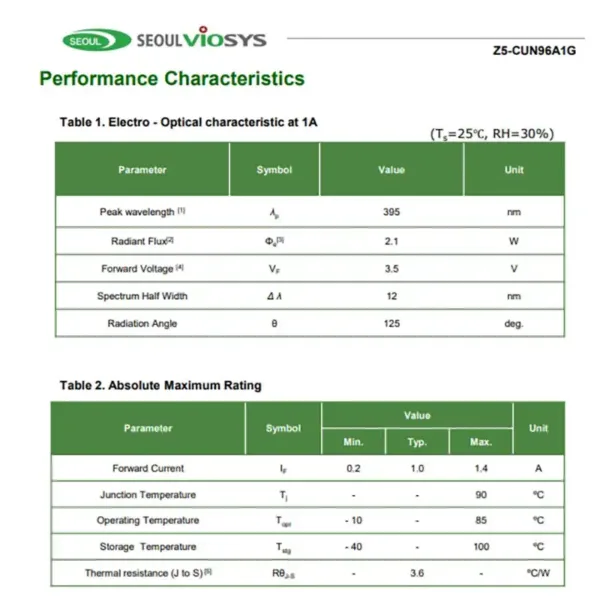

Specifications
Brand: Seoul Viosys
Model NO.: CUN96A1G uv diode 395nm
Wavelength: 395nm

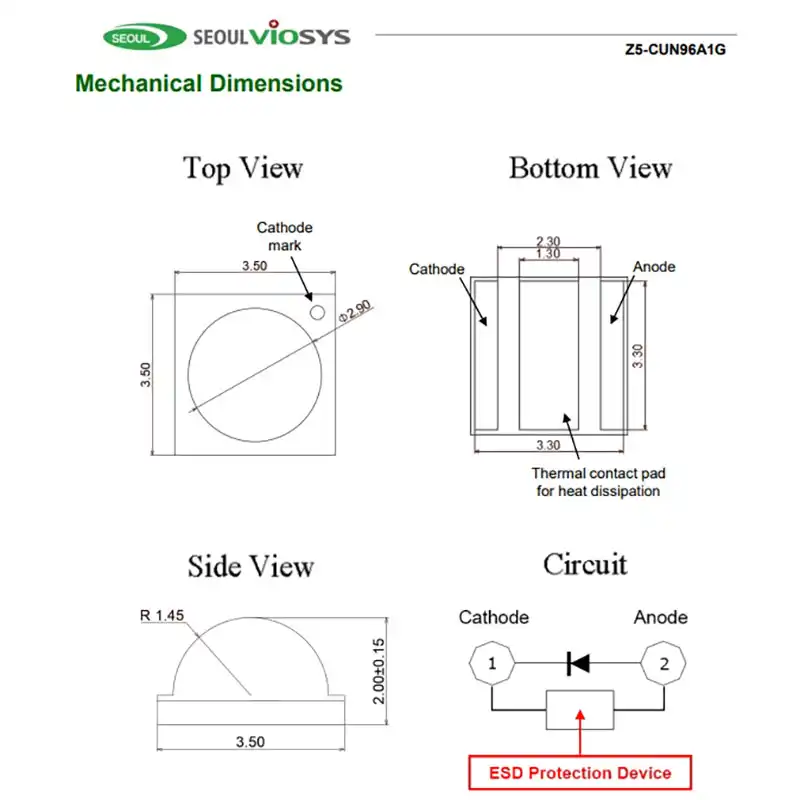

Dimensions: 3.5 x 3.5 x 2.0mm
Voltage: 3.5V
Current: 1000mA
Radiant Power: 2100mW
Viewing Angle: 120°
PCB Options: It can be soldered to 12mm, 14mm, 16mm, 20mm or other aluminum or copper PCB boards
Service: OEM ODM service of UV flashlight or other UV LED module
Features and Advantages
High power emitting uv diode 395nm
Can withstand high current
SMT type
Does not contain lead material
Compliant with RoHS standard
Key Applications
UV Curing
Printing
Coating
Adhesive
Security / Anti-Counterfeiting
UV Torch
Photography by Fluorescence
Dental Curing
Crime Scene Inspection
Oil Leak Detection
FAQ
What is this uv diode 395nm for?
This uv diode 395nm is for UV curing, printing, coating, adhesive curing, anti-counterfeit inspection, security inspection, UV torch, fluorescence photography, dental curing, criminal investigation, and oil leakage inspection.
Is the CUN96A1G Seoul Viosys UV LED?
Yes. The CUN96A1G uv diode 395nm is a Seoul Viosys 395nm UV-A LED in a small SMD package.
What is the wavelength of this LED?

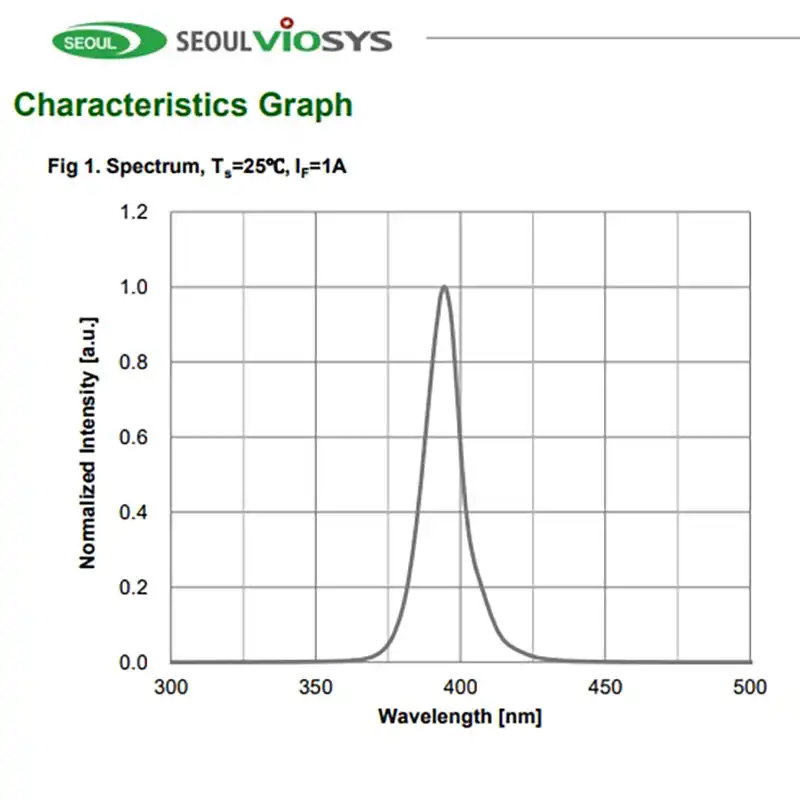

The wavelength of the CUN96A1G is 395nm, and it falls into the UVA / near-UV spectrum.
What is the radiant power?
The radiant power is 2100mW under 1000mA current.
What is the forward voltage?
The forward voltage is 3.5V.
What is the view angle?
The view angle is 120°, which means that the LED can have wide UV coverage in curing, printing, inspection, and module.

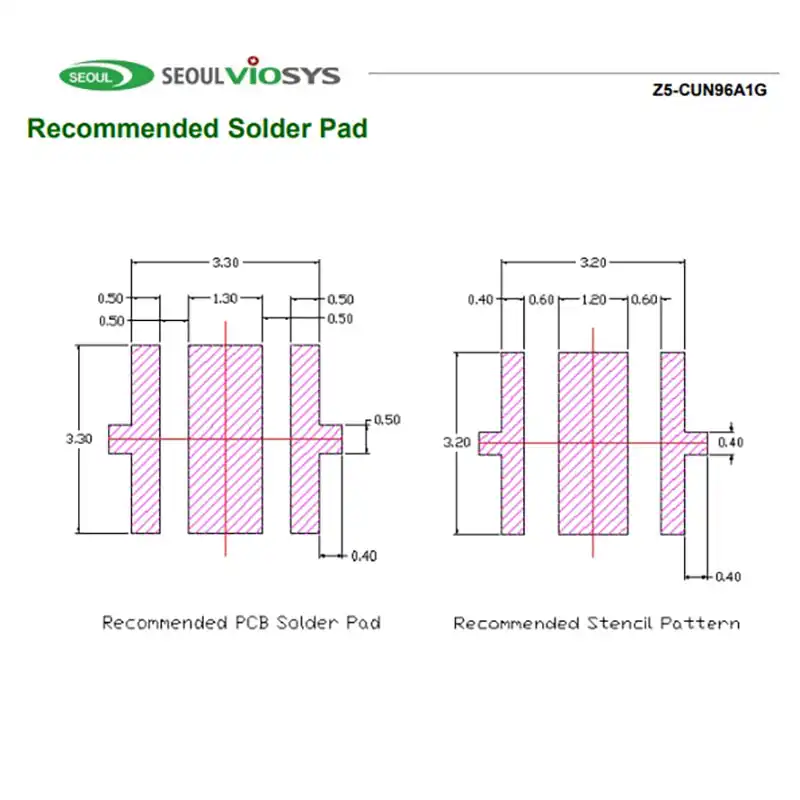

Can this LED be assembled on a PCB board?
Yes. It can be welded on 12mm, 14mm, 16mm, 20mm, and other aluminum or copper PCB boards.
Do you provide OEM or ODM UV LED modules?
Yes. OEM and ODM services can be provided for UV flashlight modules, UV curing modules, inspection lights, and UV LED assemblies in general.
Is this LED suitable for UV curing?
Yes. This LED can be used in applications for UV curing, adhesives curing, printing, coating, dental curing, and other UV-A applications where material is sensitive to 395nm.
Can it be used for UV flashlights?
Yes. With its 395nm, 2100mW radiant power, and 120° beam angle, it will suit wide-beam UV flashlight or UV torch projects.
Is this LED suitable for sterilization?
No. This is a 395nm UVA LED, which is not suitable for UV sterilization applications and cannot be used for disinfection and other germinicidal purposes.
Is it safe to look at this LED?
No. Do not look directly into the operating UV LED. Follow safety precautions while testing and assembling.
