Best UVB 311nm LED module 380mW Seoul Viosys
Product Description

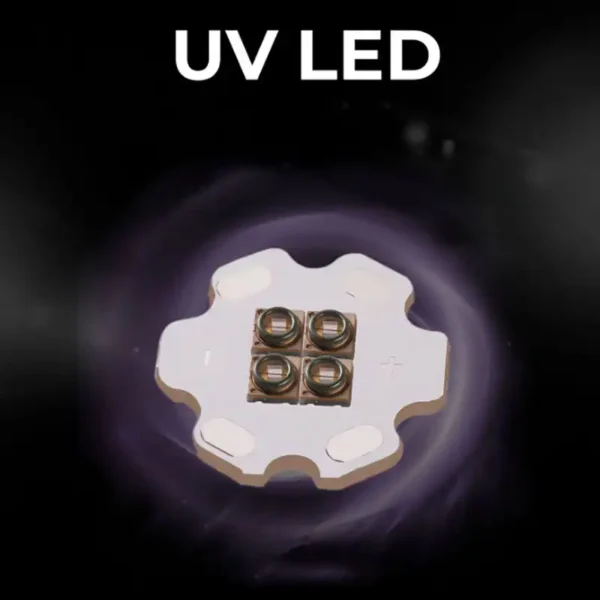

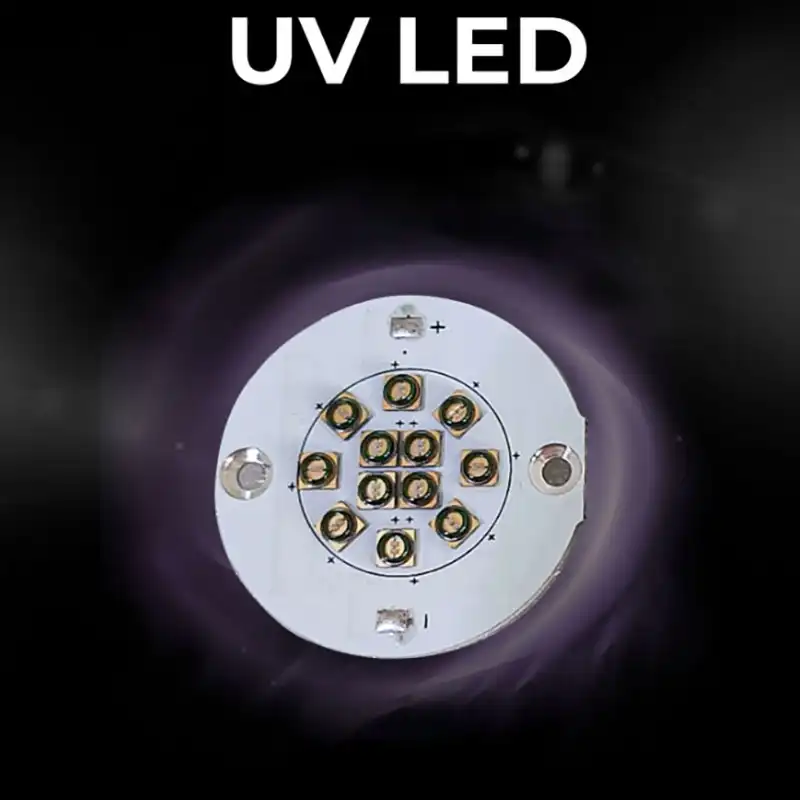

The UV310DB15W2H6P-35F is a UVB 311nm LED module designed for small UV light source integration. This UV module is suitable for OEM device manufacturer, research equipment developer and system integrator to integrate a defined 311nm UVB LED light source with stable electrical and optical specifications.
This UVB 311nm LED module features 311nm wavelength. The 311nm output is normally used in narrowband UVB light source design, especially where controlled UVB light is needed. When this module is used for medical related product development, it should be used as a light source component but not as a final medical treatment device.

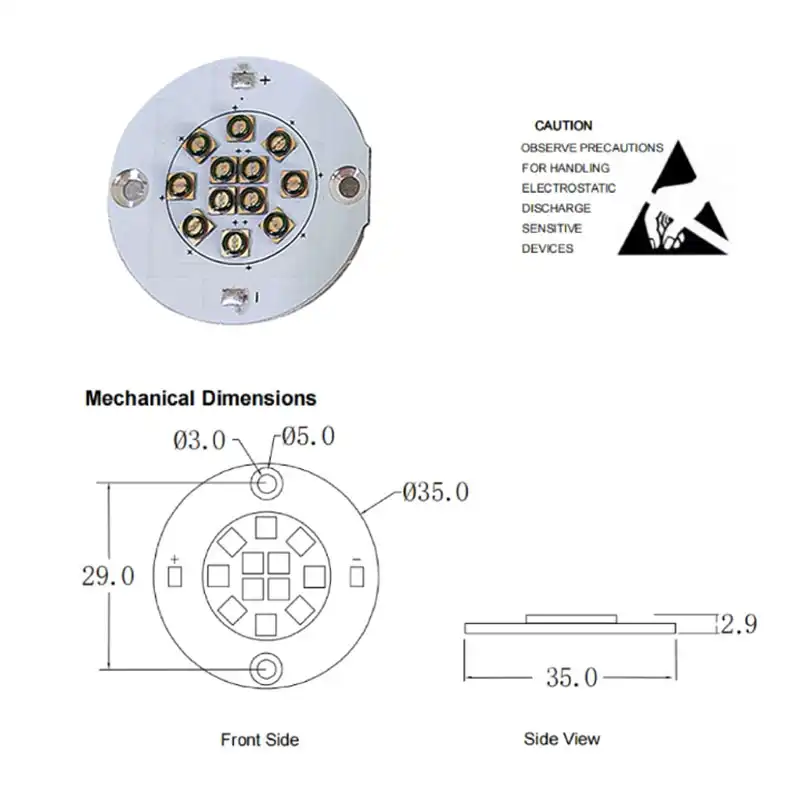

The module size is 35mm and the net weight is 50g. Such small size will help to integrate the module into UVB device, laboratory instrument, controlled irradiation system, optical platform and customized ultraviolet equipment.
The electrical specification is 14V with max 1200mA current. The maximum power is 15.5W and the radiant power is 380mW. Such electrical specifications enable the UVB 311nm LED module to provide a controlled UVB light source when the final system is equipped with appropriate driver, heat dissipation design and optical layout.
The view angle is 120 degree. Such wide emitting angle will help to provide broader UVB coverage in scientific research and equipment development application. If the final system needs a narrower beam, more uniform irradiation field or fixed irradiation area, optical lens, reflector, shield and distance control will be added by the equipment designer.
This UVB 311nm LED module can be used in OEM device development, scientific UVB research, biological test, controlled irradiation platform and prototype irradiation equipment. It is suitable for customers developing small UVB light source platform needing 311nm wavelength, small size and defined radiant power.
When developing phototherapy device, the UV310DB15W2H6P-35F should only be used as an LED module component. Any final phototherapy product needs professional dose control, safety protection, clinical verification, regulation compliance and clear user instruction.
The module life span is 30000 hours. Comparing with traditional UVB lamp design, UVB module based on LED technology will allow compact electronics, instant switching, customized optical layout and OEM equipment integration. The actual performance will depend on driver design, operating current, heat dissipation, exposure distance and working environment.
Factory OEM ODM service is available for customers who have need of customized UVB LED module solution. Before mass production, customers should confirm wavelength requirement, current control, heat dissipation, irradiance distribution, safety shield and application standard.
For customers who are looking for UVB 311nm LED module featuring 35mm size, 14V input, max 1200mA current, max 15.5W power, 380mW radiant power, 120 degree view angle, 30000 hours life span and factory OEM ODM service, the UV310DB15W2H6P-35F is a perfect UVB LED light source for OEM devices, research equipment and controlled UVB system.

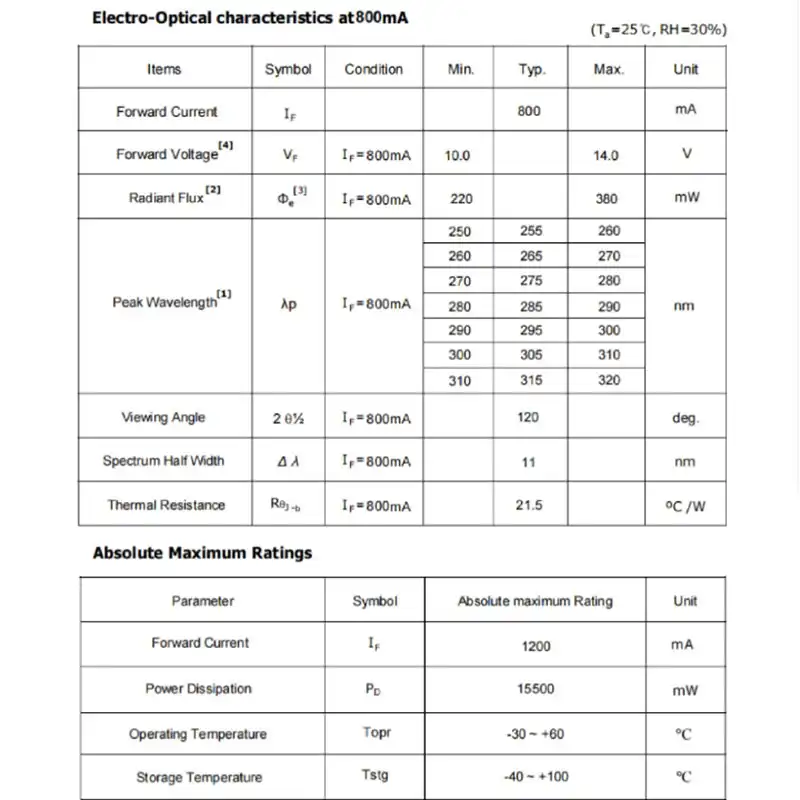

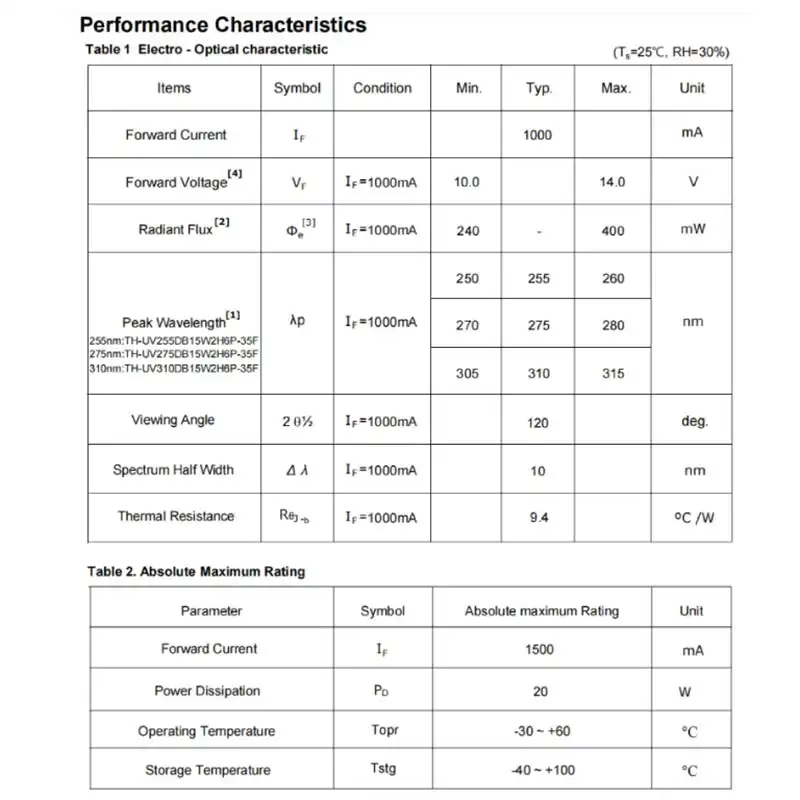

Specifications
Model No.: UV310DB15W2H6P-35F
Wavelength: 311nm
Size: 35mm
Voltage: 14V
Current: Max 1200mA
Power: Max 15.5W
Radiant Power: 380mW
View Angle: 120 degree
Lifespan: 30000 hours
Net Weight: 50g
Factory OEM ODM Service: Available
FAQ
What is the UV310DB15W2H6P-35F?
It is a UVB 311nm LED module designed for small ultraviolet light source for OEM device design, scientific research and controlled UVB equipment.
What is the wavelength?
The wavelength is 311nm.
Is 311nm UVB or UVC?
311nm is UVB range.
What is the module size?
The module size is 35mm.
What voltage does it use?
The voltage is 14V.
What is the maximum current?
The current is max 1200mA.
What is the maximum power?
The maximum power is 15.5W.
What is the radiant power?
The radiant power is 380mW.
What is the view angle?
The view angle is 120 degree.
What is the lifespan?
The lifespan is 30000 hours.
What is the net weight?
The net weight is 50g.
Can this UVB 311nm LED module be used for OEM device design?
Yes. It can be used as a UVB LED light source component for OEM device design when appropriate driver, heat dissipation, optical layout and safety protection are applied.
Can it be used for scientific research?
Yes. It can be used for scientific UVB research and controlled irradiation equipment when appropriate shielding, calibration and safety procedures are applied.
Is this a finished phototherapy device?
No. It is an LED module component. Any final phototherapy device needs professional dose control, safety design, clinical validation and regulation compliance.
Is factory OEM ODM service available?
Yes. Factory OEM ODM service is available for customized UVB 311nm LED module project.
