311nm phototherapy LED module 70mW
Product Description

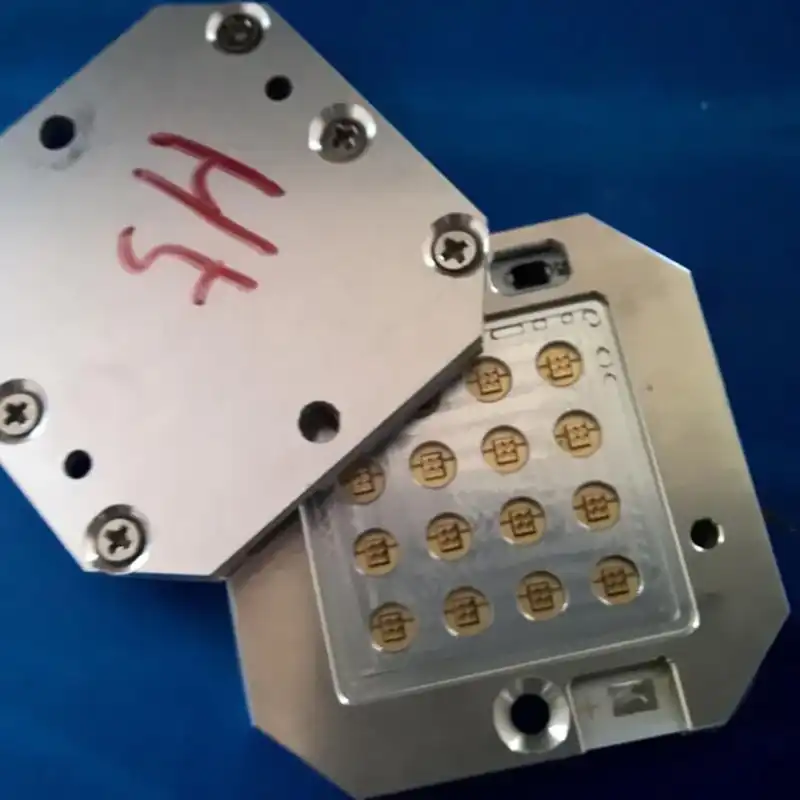

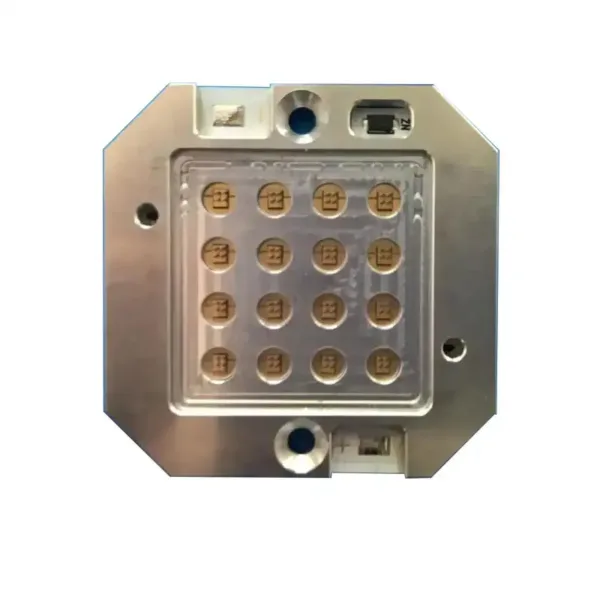

The CUD1KFMA is a 311nm phototherapy LED module designed as a UVB light source component for OEM device design, prototype development and controlled UVB equipment integration. It is suitable for manufacturers that need a compact 311nm LED module with defined electrical and optical specifications.

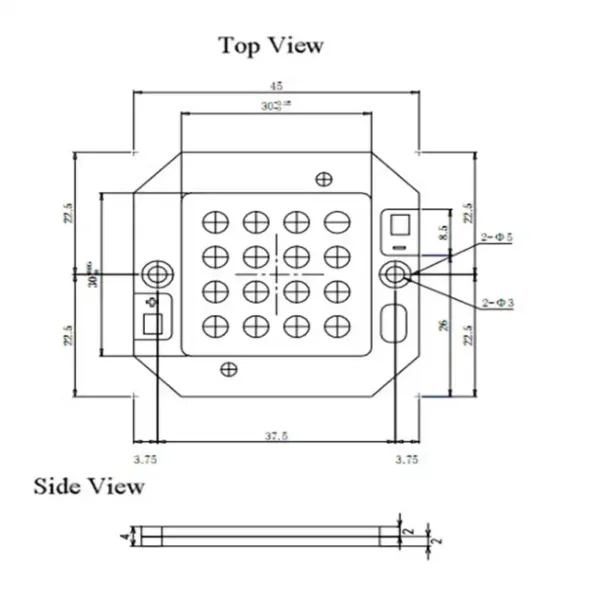

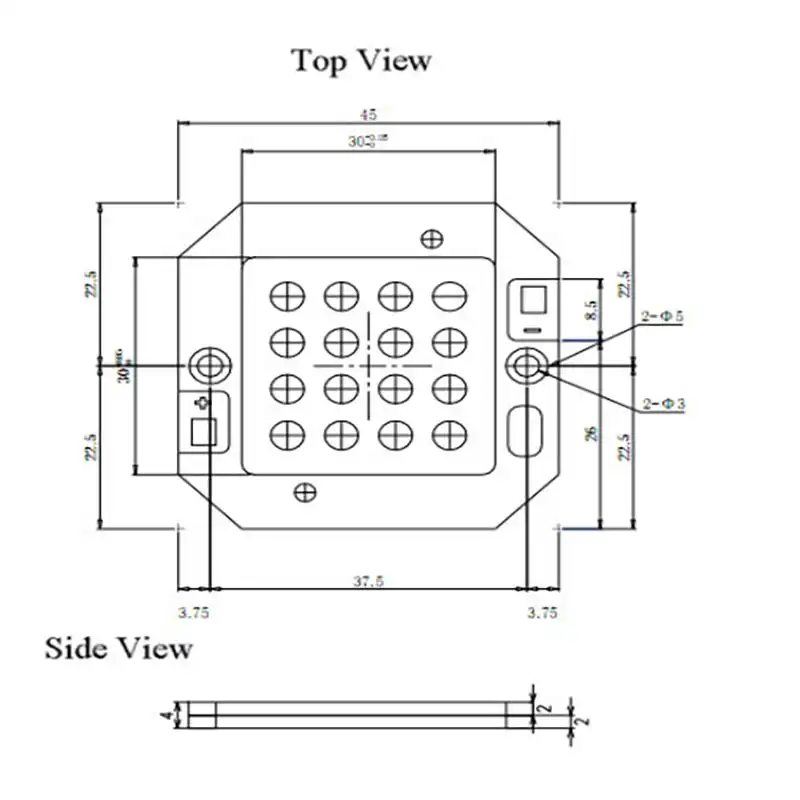

This 311nm phototherapy LED module uses a 45x45mm structure. The module size supports integration into phototherapy LED platforms, laboratory irradiation systems, prototype optical assemblies and customized ultraviolet equipment. It is designed for equipment-level use rather than direct consumer use as a standalone device.
The wavelength is 311nm. This wavelength is widely associated with narrowband UVB light source design. The module can be used in OEM phototherapy device development for applications related to vitiligo, psoriasis and atopic dermatitis, but the module itself is only a light source component, not a finished medical treatment device.
The electrical specification is 48V and 160mA. The radiant power is 70mW, and the view angle is 120 degree. These specifications make the 311nm phototherapy LED module suitable for controlled UVB output when the final system includes a proper constant current driver, heat dissipation structure and optical layout.
The 120 degree view angle helps provide broader UVB coverage for device-development and research applications. If the final product requires a fixed treatment window, more uniform dose area or focused irradiation pattern, the system designer can add lenses, reflectors, shielding, distance control and dose-control functions.
This high power UV LED series is designed for high current operation and high power output applications. It incorporates state-of-the-art SMD design and low thermal resistant material. Proper thermal management is important for stable radiant output, long-term operation and consistent UVB performance.
The 311nm phototherapy LED module is suitable for OEM phototherapy LED design, controlled UVB research, biological testing, laboratory irradiation equipment and customized UVB light source platforms. It can help equipment manufacturers build compact LED-based designs for dermatology-related phototherapy systems.
For vitiligo, psoriasis and atopic dermatitis applications, the CUD1KFMA should be used only as a phototherapy LED component. Any final medical device requires professional dose control, timer design, eye and skin safety protection, clinical validation, regulatory approval and clear user instructions.
Factory OEM ODM service is available, and samples are available for evaluation. Customers can test wavelength output, radiant power, irradiation area, heat dissipation, working distance and system performance before mass production. Safety labels, shielding and suitable electrical protection should be included in the final device.
For buyers searching for a 311nm phototherapy LED module with 45x45mm size, 48V input, 160mA current, 70mW radiant power, 120 degree view angle, SMT type design, RoHS compliance, samples availability and factory OEM ODM service, the CUD1KFMA provides a practical UVB LED light source for OEM phototherapy device design and controlled UVB equipment.

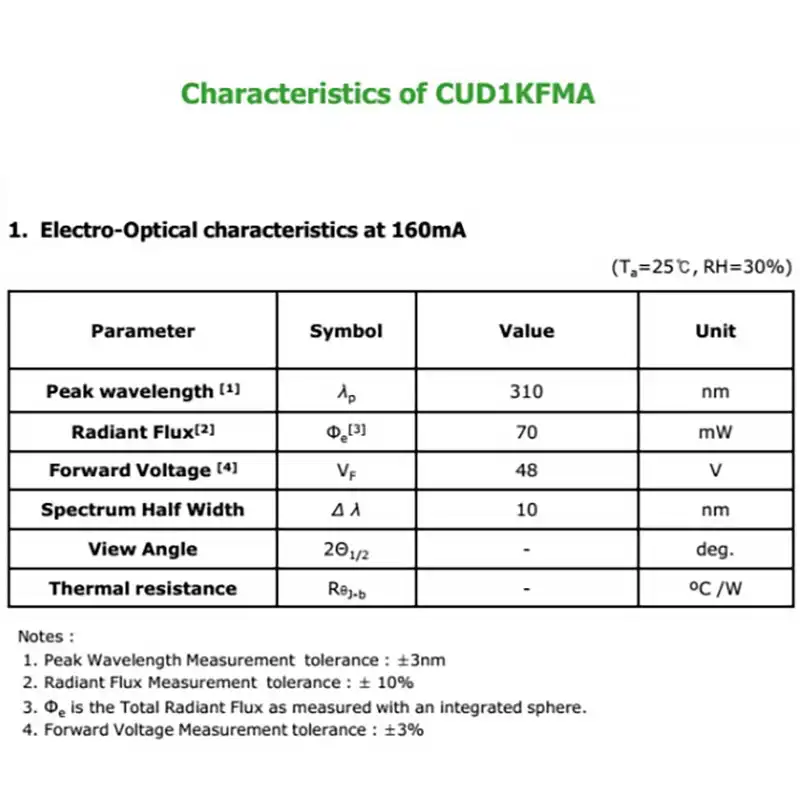

Specifications
Model No.: CUD1KFMA
Wavelength: 311nm
Size: 45x45mm
Voltage: 48V
Current: 160mA
Radiant Power: 70mW
View Angle: 120 degree
Factory OEM ODM Service: Available
Samples: Available
Features and Benefits
High power output
Designed for high current operation
Low thermal resistance
SMT type
RoHS compliant
Key Applications
Phototherapy LED for Vitiligo
Phototherapy LED for Psoriasis
Phototherapy LED for Atopic Dermatitis
OEM UVB phototherapy device design
Controlled UVB research equipment
FAQ
1. What is the CUD1KFMA?
The CUD1KFMA is a 311nm phototherapy LED module designed as a UVB light source component for OEM device design and controlled UVB equipment.
2. What is the wavelength?
The wavelength is 311nm.
3. Is 311nm UVB or UVC?
311nm is in the UVB range.
4. What is the module size?
The module size is 45x45mm.
5. What voltage does it use?
The voltage is 48V.
6. What current does it require?
The current is 160mA.
7. What is the radiant power?
The radiant power is 70mW.
8. What is the view angle?
The view angle is 120 degree.
9. Can this 311nm phototherapy LED module be used for OEM device design?
Yes. It can be used as a UVB LED light source component for OEM device design when proper driver design, thermal management, optics, dose control and safety protection are applied.
10. Is this a finished medical treatment device?
No. This is an LED module component. Any final medical device requires clinical validation, regulatory approval and professional safety design.
11. Can it be used for vitiligo phototherapy equipment?
It can be used as a 311nm UVB LED component in OEM equipment design for vitiligo-related phototherapy applications, subject to final device validation and certification.
12. Can it be used for psoriasis phototherapy equipment?
It can be used as a 311nm UVB LED component in OEM equipment design for psoriasis-related phototherapy applications, subject to final device validation and certification.
13. Can it be used for atopic dermatitis phototherapy equipment?
It can be used as a 311nm UVB LED component in OEM equipment design for atopic dermatitis-related phototherapy applications, subject to final device validation and certification.
14. Are samples available?
Yes. Samples are available for evaluation and prototype testing.
15. Is factory OEM ODM service available?
Yes. Factory OEM ODM service is available for customized 311nm phototherapy LED module projects.
