311nm LED module 45W
Product Description

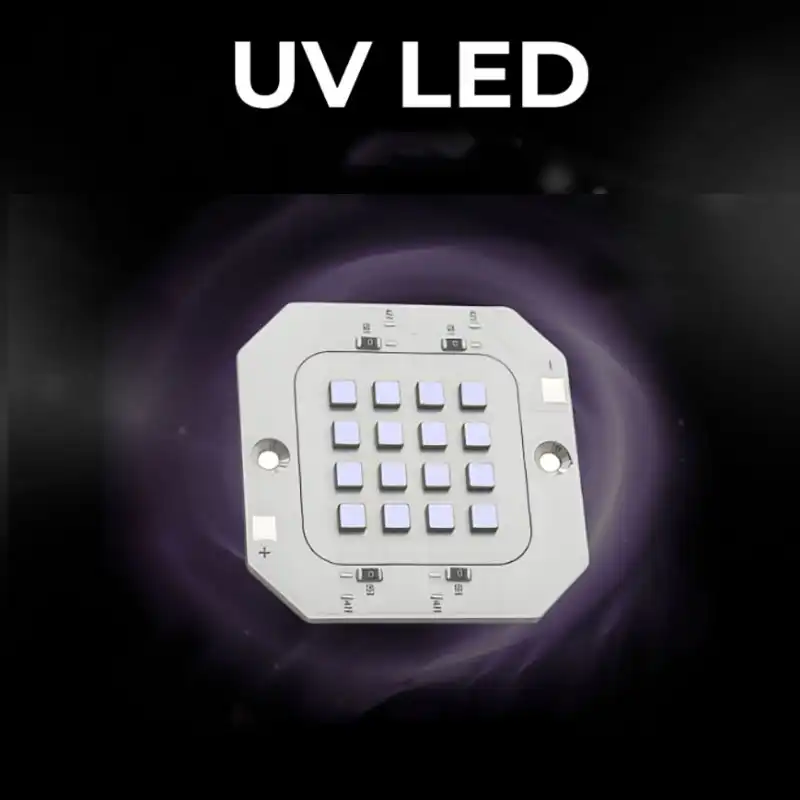

The DB310T1WPS-8H2P-4545F is a high power 311nm LED module designed for UVB light source integration. It is suitable for OEM device manufacturers, research equipment developers and phototherapy LED system builders that need a defined 311nm UVB output with stable electrical and optical specifications.
This 311nm LED module uses a 45x45mm structure. The larger module area supports integration into UVB phototherapy device platforms, laboratory irradiation systems, prototype optical assemblies and customized ultraviolet equipment. It is designed for projects that require a compact but higher-output UVB LED light source.
The wavelength is 311nm. This wavelength is commonly associated with narrowband UVB light source design. The module can be used in equipment development for phototherapy LED applications related to vitiligo, psoriasis and atopic dermatitis, but the module itself is only a light source component, not a finished medical device.

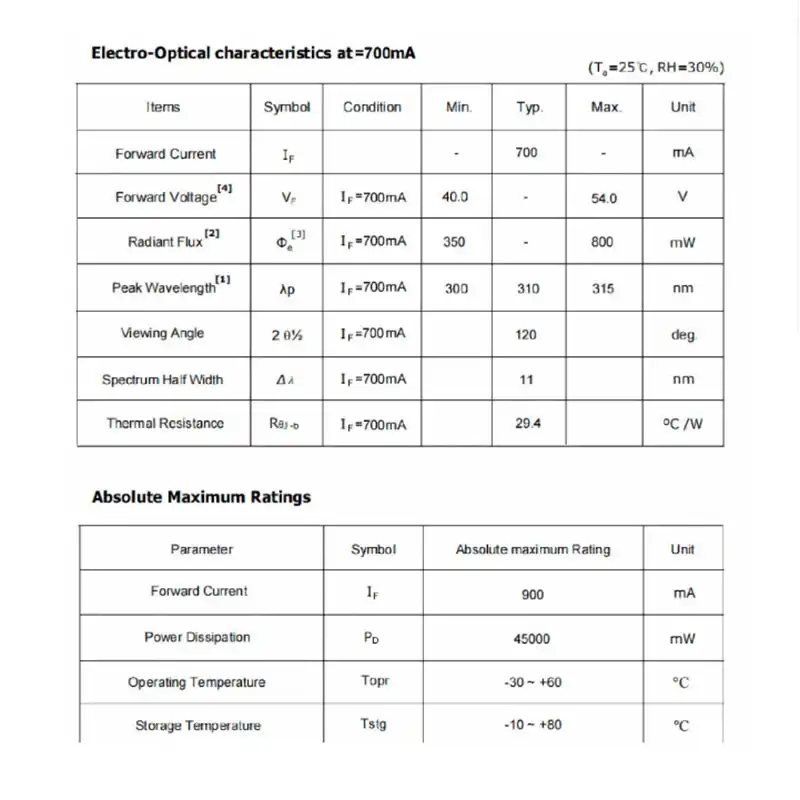

The electrical specification is 54V and 900mA. The radiant power is 800mW, and the view angle is 120 degree. These specifications make the 311nm LED module suitable for systems that need controlled UVB output, reliable driver design and proper thermal management.
The 120 degree view angle helps provide broader UVB coverage in device-development and research applications. If the final product requires a more focused beam, a uniform dose area or a fixed treatment window, the equipment designer can add lenses, reflectors, shielding, distance control and dose-control functions.
This high power UV LED series is designed for high current operation and high power output applications. It incorporates state-of-the-art SMD design and low thermal resistant material. Proper heat dissipation is important for stable radiant output, long-term operation and consistent UVB performance.
The 311nm LED module is suitable for OEM phototherapy device development, controlled UVB research, biological testing, laboratory irradiation equipment and customized UVB light source platforms. It can help manufacturers replace traditional lamp structures with compact LED-based optical designs when the final device is properly engineered and validated.
For applications related to vitiligo, psoriasis and atopic dermatitis, the DB310T1WPS-8H2P-4545F should be used only as a phototherapy LED component. Any final medical product requires professional dose control, timer design, skin and eye safety protection, clinical validation, regulatory approval and clear user instructions.
Factory OEM ODM service is available, and samples are available for evaluation. Customers can test wavelength output, radiant power, irradiation area, heat dissipation, working distance and system performance before mass production. The final product design should also include safety labels, shielding and suitable electrical protection.
For buyers searching for a 311nm LED module with 45x45mm size, 54V input, 900mA current, 800mW radiant power, 120 degree view angle, SMT type design, RoHS compliance, samples availability and factory OEM ODM service, the DB310T1WPS-8H2P-4545F provides a practical UVB LED light source for OEM phototherapy device design and controlled UVB equipment.
Specifications
Model No.: DB310T1WPS-8H2P-4545F
Wavelength: 311nm

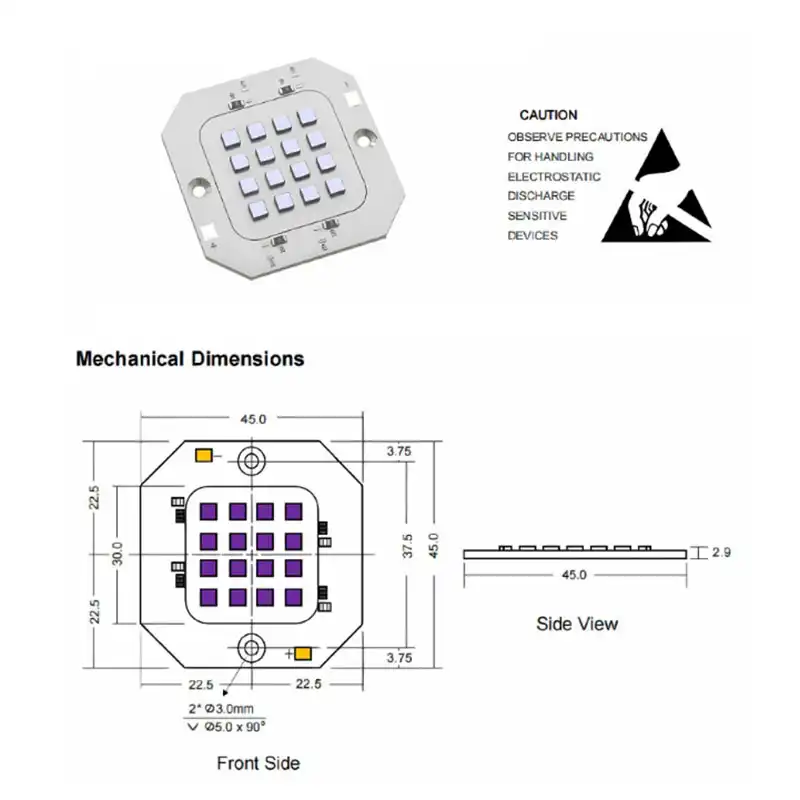

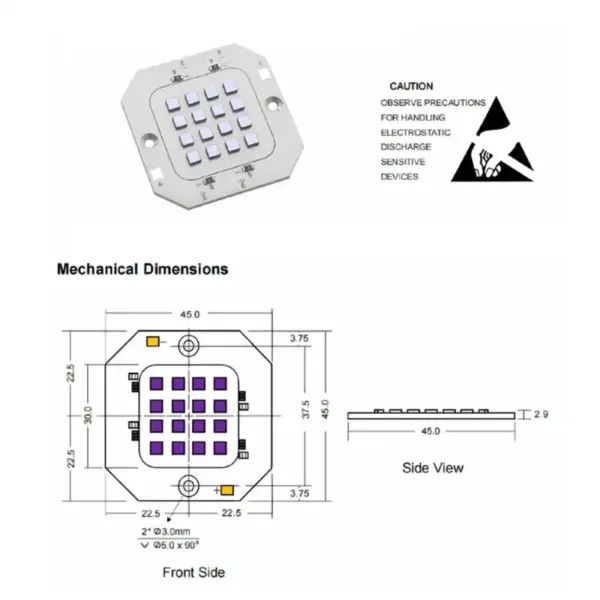

Size: 45x45mm
Voltage: 54V
Current: 900mA
Radiant Power: 800mW
View Angle: 120 degree
Factory OEM ODM Service: Available
Samples: Available
Features and Benefits
High power output
Designed for high current operation
Low thermal resistance
SMT type
RoHS compliant
Key Applications
Phototherapy LED for Vitiligo
Phototherapy LED for Psoriasis
Phototherapy LED for Atopic Dermatitis
OEM UVB light source development
Controlled UVB research equipment
FAQ
1. What is the DB310T1WPS-8H2P-4545F?
The DB310T1WPS-8H2P-4545F is a 311nm LED module designed as a UVB light source component for OEM device design and controlled UVB equipment.
2. What is the wavelength?
The wavelength is 311nm.
3. Is 311nm UVB or UVC?
311nm is in the UVB range.
4. What is the module size?
The module size is 45x45mm.
5. What voltage does it use?
The voltage is 54V.
6. What current does it require?
The current is 900mA.
7. What is the radiant power?
The radiant power is 800mW.
8. What is the view angle?
The view angle is 120 degree.
9. Can this 311nm LED module be used for phototherapy device design?
Yes. It can be used as a UVB LED light source component for phototherapy device design when proper driver design, thermal management, optics, dose control and safety protection are applied.
10. Is this a finished medical treatment device?
No. This is an LED module component. Any final medical device requires clinical validation, regulatory approval and professional safety design.
11. Can it be used for vitiligo phototherapy equipment?
It can be used as a 311nm UVB LED component in OEM equipment design for vitiligo-related phototherapy applications, subject to final device validation and certification.
12. Can it be used for psoriasis phototherapy equipment?
It can be used as a 311nm UVB LED component in OEM equipment design for psoriasis-related phototherapy applications, subject to final device validation and certification.
13. Can it be used for atopic dermatitis phototherapy equipment?
It can be used as a 311nm UVB LED component in OEM equipment design for atopic dermatitis-related phototherapy applications, subject to final device validation and certification.
14. Are samples available?
Yes. Samples are available for evaluation and prototype testing.
15. Is factory OEM ODM service available?
Yes. Factory OEM ODM service is available for customized 311nm LED module projects.
