Seoul Viosys UVC led chip 275nm CUD7QF1A
Product Details Description
The Seoul Viosys CUD7QF1A is a compact uvc led chip developed for deep ultraviolet light-source applications. It has a 275nm wavelength, 6.1V voltage, 20mA current, 2mW radiant power, and 120° view angle. The LED is designed for chemical and biological analysis applications where a small, SMT-solderable UVC component is required.
This uvc led chip has peak emission wavelengths from 270nm to 280nm. The 275nm output belongs to the UV-C / deep UV range and is different from UVA LEDs such as 365nm, 385nm, or 395nm. It is intended for specialized equipment designs rather than general visible inspection, blacklight display, or consumer flashlight use.
The CUD7QF1A is sealed in an EMC package with a silicone mold. Its 3.0 x 3.0mm size helps engineers build compact UVC light engines, analytical modules, prototype boards, and space-limited optical assemblies. The SMT solderable design supports modern board-level manufacturing and compact module integration.
For chemical and biological analysis, this uvc led chip can be used as a low-power deep UV source inside test equipment, sensing devices, laboratory modules, or optical analysis systems. Final system performance depends on optical path design, exposure distance, sample type, driver current, thermal structure, window material, and required UV dose.
The 120° view angle gives the CUD7QF1A a wide emission profile. This is useful when the module needs broad local coverage rather than a narrow focused spot. Engineers can also use a chamber structure, reflector, quartz window, or optical design to manage the final UVC distribution.
For OEM and ODM projects, the CUD7QF1A can be welded on 12mm, 14mm, 16mm, 20mm, or other aluminum or copper PCB boards. Aluminum PCB can be used for many compact module designs, while copper PCB can be selected when stronger thermal transfer is required. The product can be supplied as a component or assembled into customized UVC LED module boards.
Although the operating current is only 20mA, thermal and electrical design still matter. A suitable constant-current driver, correct soldering process, stable PCB structure, and safe insulation design should be used. Engineers should verify radiant output, board temperature, optical transmission, and application performance inside the final equipment.
This product is a component-level uvc led chip, not a complete finished lamp. A finished device should include a driver circuit, PCB board, housing, optical window, shielding, wiring, connector, warning label, and safety interlock when required. The CUD7QF1A should not be used in open-exposure products without proper UVC safety design.
UVC radiation can injure eyes and skin. Do not look directly at the operating LED, even briefly. Avoid direct skin exposure. Use protective eyewear, shielding, interlocks, warning labels, and safe working procedures during testing, assembly, and operation.

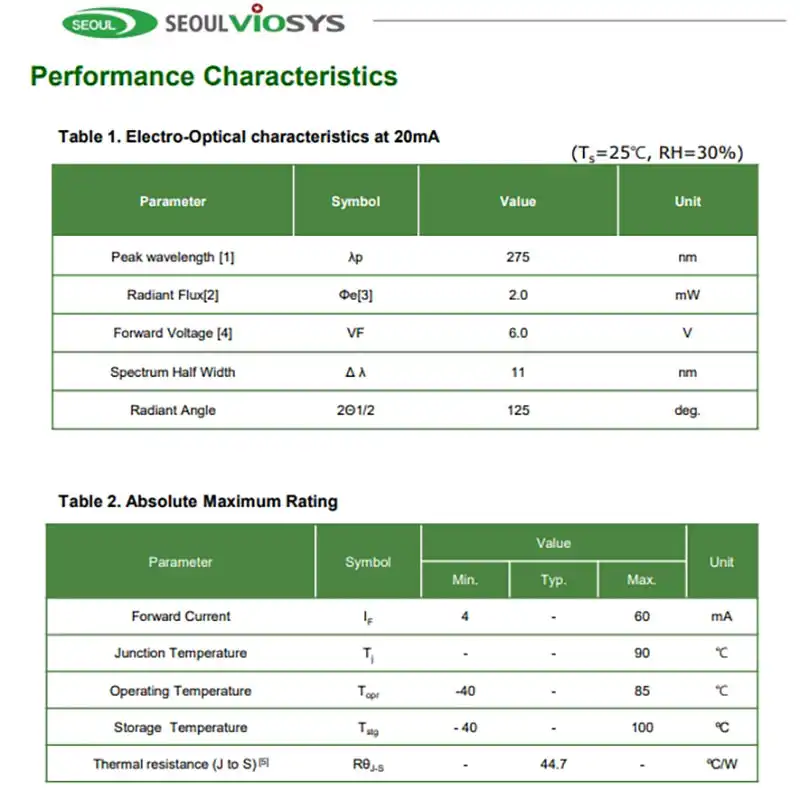

Specifications
Brand: Seoul Viosys
Model NO.: CUD7QF1A
Wavelength: 275nm

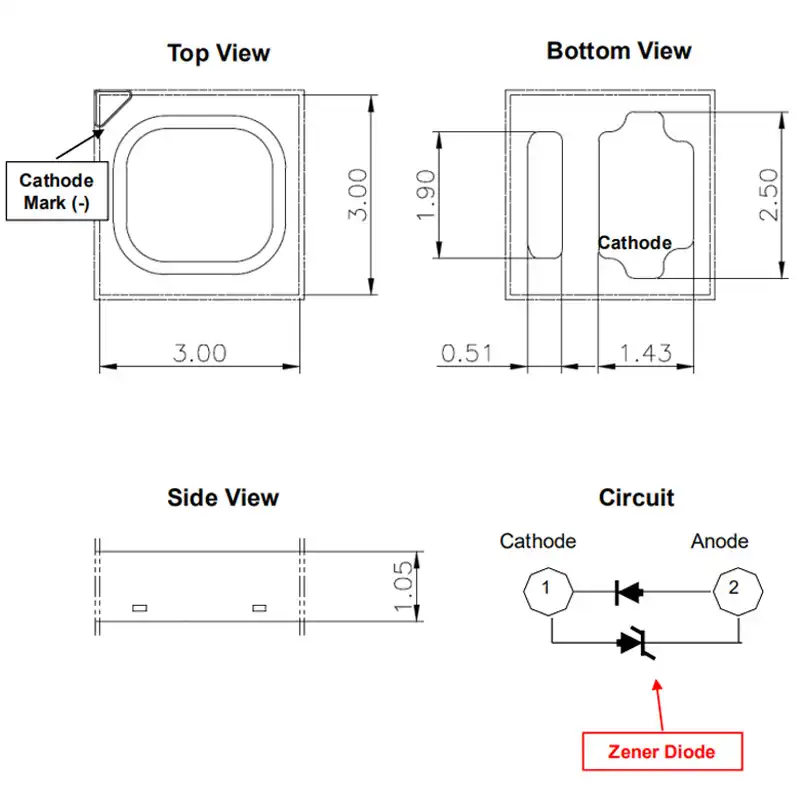

Size: 3.0 x 3.0mm
Power: 0.122W
Voltage: 6.1V
Current: 20mA
Radiant Power: 2mW
View Angle: 120°
PCB Options: Can be welded on 12mm, 14mm, 16mm, 20mm, or other aluminum or copper PCB board
Service: OEM ODM service for UV flashlight or other UV LED module
Features and Benefits
Deep ultraviolet LED
SMT solderable
Lead free product
RoHS compliant
Compact 3.0 x 3.0mm package
EMC package with silicone mold
Suitable for low-power UVC module design
Supports custom aluminum or copper PCB assembly
Key Applications
Chemical and Biological Analysis
FAQ
What is this uvc led chip used for?
This uvc led chip is used for chemical and biological analysis applications where a compact 275nm deep UV light source is required.
Is CUD7QF1A a Seoul Viosys UVC LED?
Yes. CUD7QF1A is a Seoul Viosys deep ultraviolet LED with 275nm wavelength and peak emission wavelengths from 270nm to 280nm.
What wavelength does this LED use?
The CUD7QF1A uses a 275nm wavelength, which belongs to the UVC / deep ultraviolet range.
What is the radiant power?
The radiant power is 2mW.
What is the electrical power?
The electrical power is 0.122W according to the provided specification.
What is the forward voltage?
The voltage is 6.1V.
What is the operating current?
The operating current is 20mA.
What is the package size?
The package size is 3.0 x 3.0mm.
What is the view angle?
The view angle is 120°, giving this uvc led chip a wide deep UV emission pattern for compact module designs.
What package does this LED use?
The LED is sealed in an EMC package with a silicone mold.
Can this UVC LED be mounted on PCB boards?
Yes. It can be welded on 12mm, 14mm, 16mm, 20mm, or other aluminum or copper PCB boards according to the final module design.
Do you provide OEM or ODM UVC LED modules?
Yes. OEM and ODM service is available for custom UVC LED module boards, analytical light-source modules, test fixtures, and other deep UV LED assemblies.
Is this LED suitable for open handheld use?
No. This is a UVC / deep UV LED component. Open exposure can be hazardous to eyes and skin. A finished product must include shielding, safety structure, and proper operating instructions.
Can this product be promoted as a consumer sterilization lamp?
No. The provided key application is chemical and biological analysis. Any disinfection, sterilization, or pathogen-control claim requires complete system-level validation, dosage testing, and safety design.
Is it safe to look directly at this UVC LED?
No. Never look directly at the operating UVC LED. Avoid direct skin exposure and use protective eyewear, shielding, warning labels, and safe working procedures.
