uv led diode 365nm Seoul Viosys CUN66B1G
Product Details Description
The Seoul Viosys CUN66B1G is a high power uv led diode designed for professional 365nm UV-A applications that require small size, powerful radiant power, and narrow output beam angle. It has 365nm wavelength, 2000mW radiant power, 3.7V voltage, 1000mA current, and 65° view angle. It is an excellent component for companies that manufacture UV curing devices, UV flashlights, inspection systems, printing equipment, and custom UV LED modules.

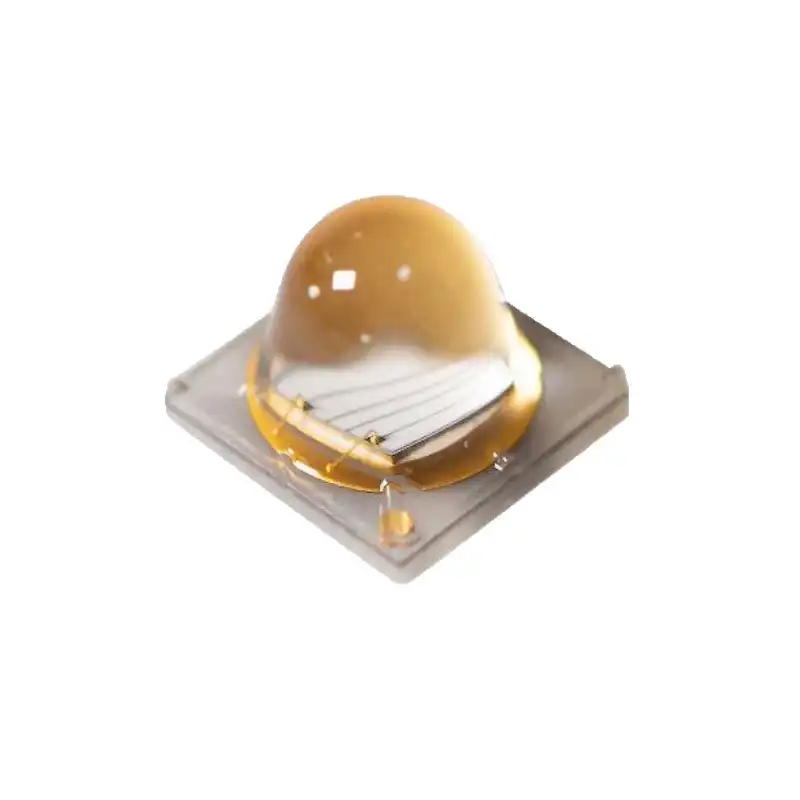

This uv led diode is part of the Seoul Viosys nZ5 near-UV LED family. This uv led diode is designed for high current operation, narrow-angle output, and high power performance. The 3.5 x 3.5 x 2.8mm SMD structure makes it easier for engineers to create small UV light engines without bulky lamp structure.
The 365nm wavelength is frequently used in cases that need high fluorescence response and little visible interference. This uv led diode can be used for UV curing, printing, coating, adhesive curing, counterfeit detection, security inspection, UV torch design, fluorescence photography, dental curing, crime inspection, and oil leak detection. As it is a UVA / near-UV source, it must not be promoted as a UVC disinfection or germicidal LED.
The 65° view angle provides a more focused UV beam than the dome type LEDs with wide view angle. It is beneficial when UV energy needs to be focused on a certain target area, such as a curing spot, inspection area, adhesive line, coating surface, fluorescent material, or leak detection spot. Final performance depends on driver current, lens design, reflector design, working distance, heat dissipation, and target material response.

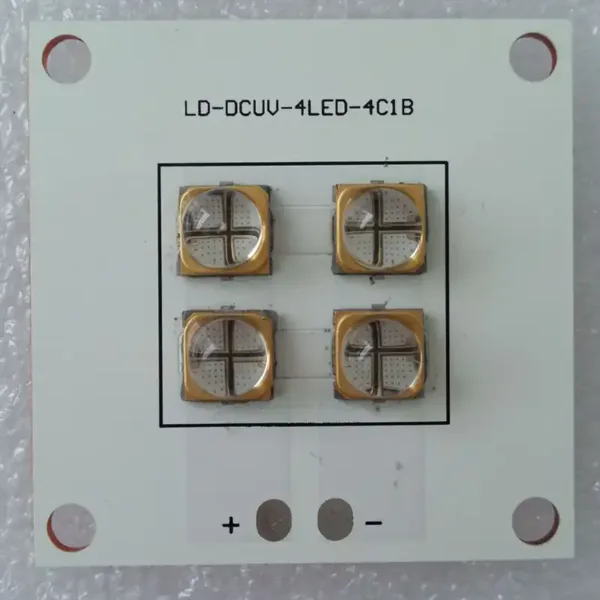

For OEM and ODM projects, the CUN66B1G can be mounted on 12mm, 14mm, 16mm, 20mm, or other aluminum or copper PCB boards. Aluminum PCB is an ideal choice for many cost-efficient UV module designs, while copper PCB can be selected in cases that require better heat transfer ability. The LED can be provided as a component or assembled into UV flashlight modules, curing modules, inspection lamps, and custom UV LED products.
Heat dissipation design is crucial for this high-current UV LED diode. For ensuring the stable operation of this LED, it is necessary to use a proper constant-current driver, proper soldering process, proper PCB material, and adequate heat dissipation. Engineers are suggested to check board temperature, radiant power, optical performance, and service stability in the final product before going to mass production.
This product is a UV LED component rather than a completed finished lamp. A completed device must consist of a driver circuit, PCB board, heat sink, housing, lens or reflector, wires, switch, and safety design. For curing, dental, inspection, security, and industrial applications, shielding and protection eyewear are recommended.
Do not stare at the operating LED or expose your skin and eyes to unnecessary UV radiation. Follow safe handling procedure during testing, mounting, and operation.

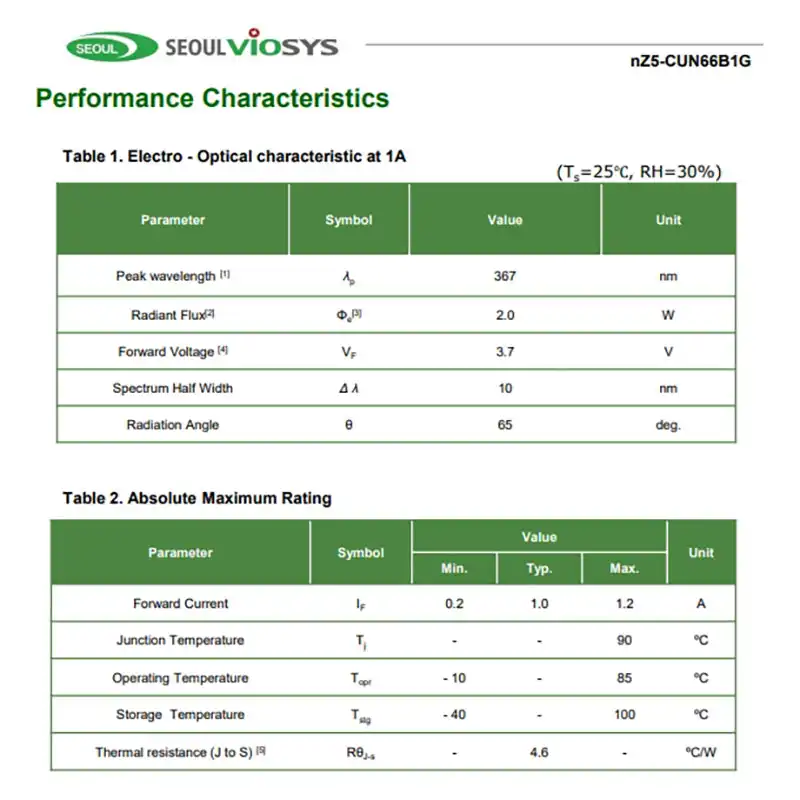

Specifications
Brand: Seoul Viosys
Model No.: CUN66B1G

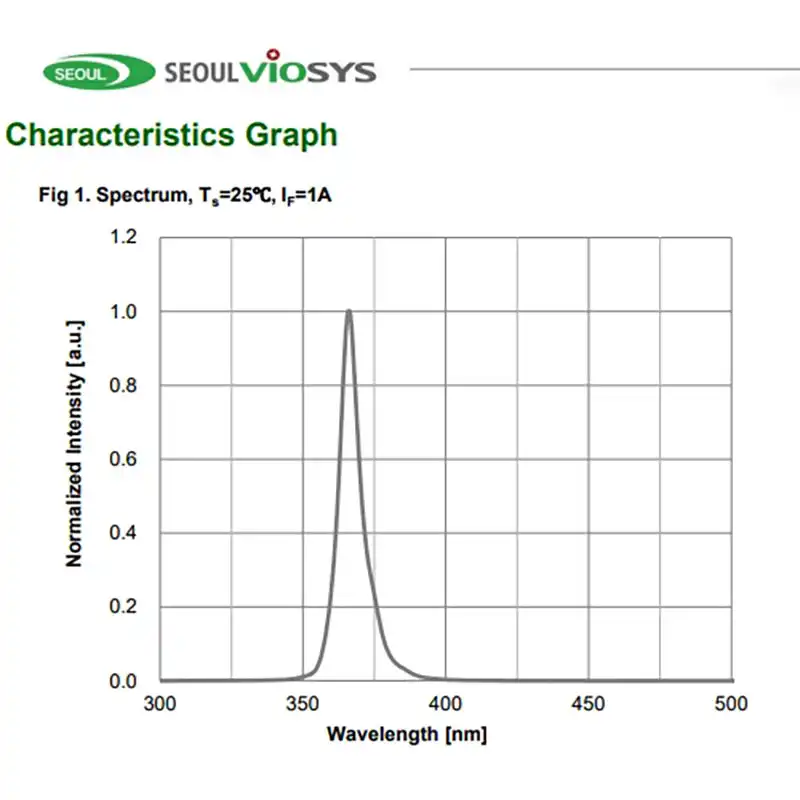

Wavelength: 365nm

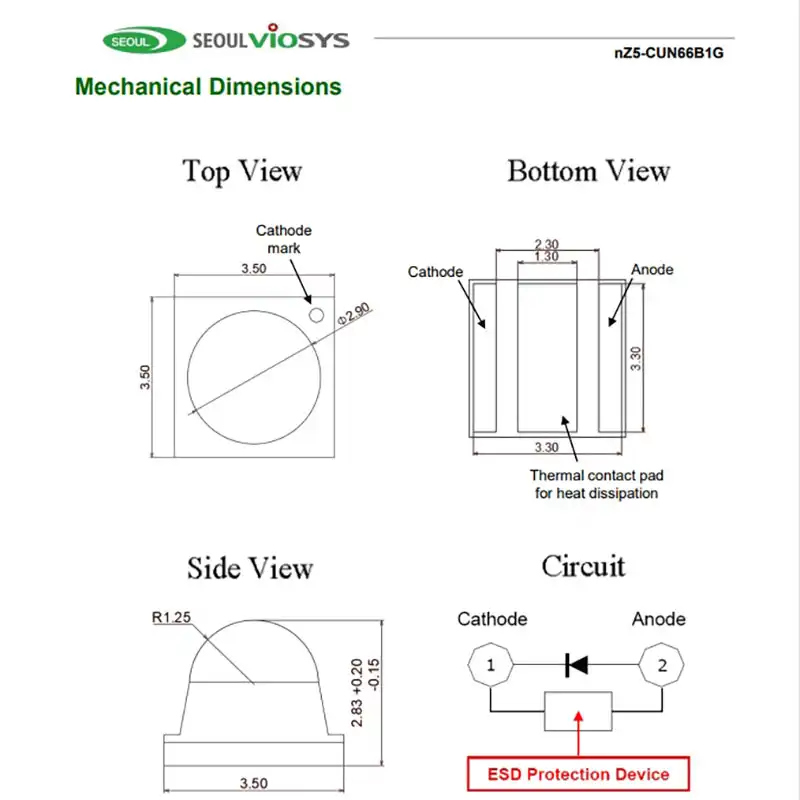

Size: 3.5 x 3.5 x 2.8mm
Voltage: 3.7V
Current: 1000mA
Radiant Power: 2000mW
View Angle: 65°

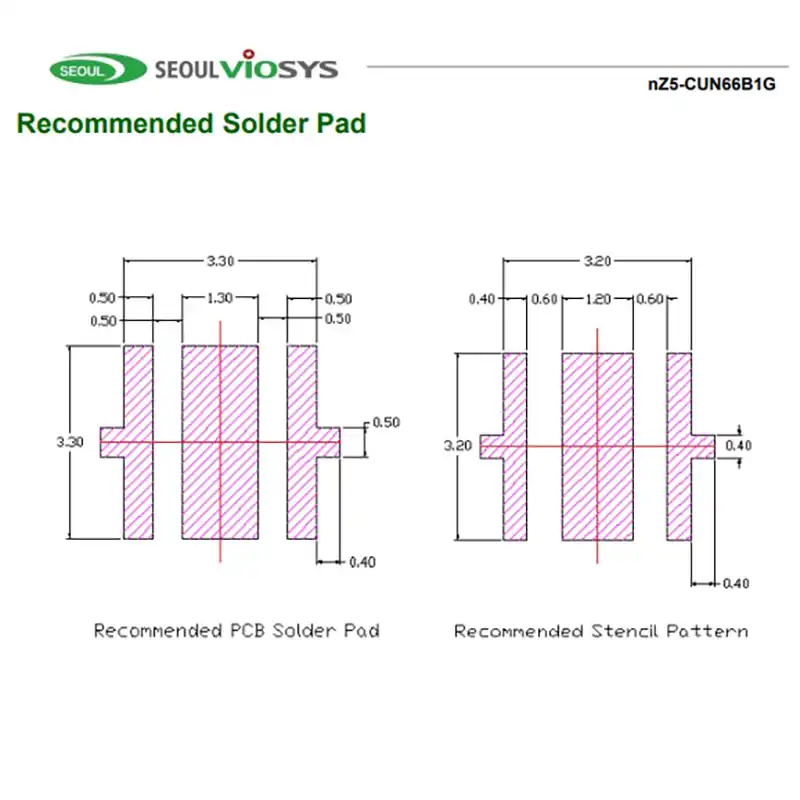

PCB Options: Can be welded on 12mm, 14mm, 16mm, 20mm, or other aluminum or copper PCB board
Service: OEM ODM service for UV flashlight or other UV LED module
Features and Benefits
High power output
High current design
Narrow viewing angle
Surface Mount Type
Lead-free product
RoHS compliant
Key Applications
UV Curing
Printing
Coating
Adhesive
Counterfeit Detection / Security
UV Torch
Fluorescence Photography
Dental Curing
Crime Inspection
Oil Leak Detection
FAQ
What is this uv led diode used for?
This uv led diode is used for UV curing, printing, coating, adhesive curing, counterfeit detection, security inspection, UV torch design, fluorescence photography, dental curing, crime inspection, and oil leak detection.
Is CUN66B1G a Seoul Viosys UV LED?
Yes. CUN66B1G is a Seoul Viosys high power 365nm UV-A LED in a compact SMD package.
What wavelength does this LED use?
The CUN66B1G uses a 365nm wavelength, which belongs to the UVA / near-UV range.
What is the radiant power?
The radiant power is 2000mW at 1000mA.
What is the forward voltage?
The forward voltage is 3.7V.
What is the view angle?
The view angle is 65°, which provides a directed UV beam for curing, inspection, UV torch, and detection applications.
Can this LED be mounted on a PCB board?
Yes. It can be welded on 12mm, 14mm, 16mm, 20mm, or other aluminum or copper PCB boards according to the project design.
Do you provide OEM or ODM UV LED modules?
Yes. OEM and ODM service is provided for UV flashlight modules, UV curing modules, inspection lights, and custom UV LED assemblies.
Is this LED suitable for UV curing?
Yes. This 365nm uv led diode is suitable for UV curing, adhesive curing, printing, coating, dental curing, and other UV-A applications that the material reacts to 365nm.
Can it be used for UV flashlights?
Yes. Its 365nm wavelength, 2000mW radiant power, and 65° beam angle make it suitable for high power UV flashlight and UV torch designs.
Is this LED suitable for sterilization?
No. This is a 365nm UVA LED, not a UVC sterilization LED. It must not be used or promoted for disinfection or germicidal applications.
Is it safe to look directly at the LED?
No. Do not stare at the operating UV LED. Use protection eyewear, shielding, and safe operation procedures during testing, assembly, and operation.
