365nm 40W UV Curing Lamp

This is a UV hand lamp, which combines high power UV LED and rechargeable Li-ion batteries. It is suitable for professional curing and inspection purposes.

This is a high quality professional UV curing lamp, which is designed to perform UV glue curing, adhesive bonding, resin curing, ink curing, coating repair, inspection and maintenance tasks. Its features include high power UV LED light source and Li-ion rechargeable battery.

This is a 365nm UV curing lamp, which operates using the most commonly used UVA wavelength for activating many UV sensitive materials. It is 40W power, 2.85A current and 4000mW/cm² irradiance lamp that is specially designed for people who require high power portable UV curing lamp.

It has 40 x 40mm irradiance area and is capable of providing curing data according to working distance. When working distance is 10cm, the curing diameter will be approximately ø16cm. Meanwhile, minimum irradiance will be 80mW/cm² and center irradiance will be 400mW/cm². However, when working distance is 56cm, curing diameter will be approximately ø60cm, minimum irradiance will be 10mW/cm² and center irradiance will be 16mW/cm².

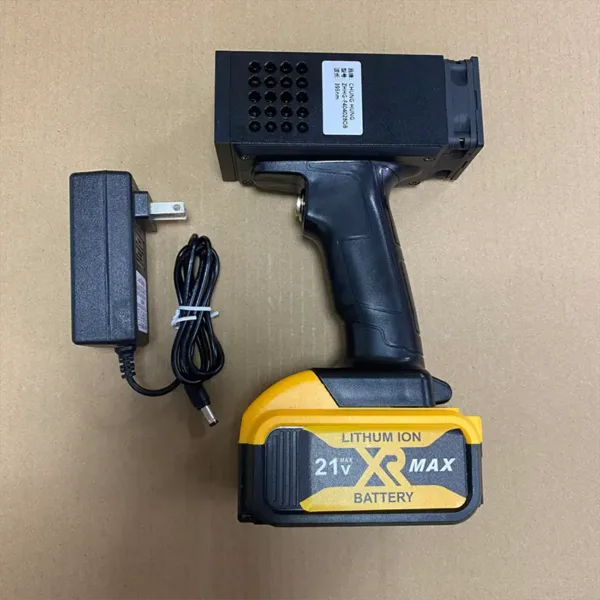

Rechargeable battery improves portability of the lamp. This lamp works at 16.8V voltage and its capacity is 3400mA. Charging time will be 2.5 hours with AC100-240V 50-60Hz charging voltage. Package consists of one UV gun, one charger and one battery.

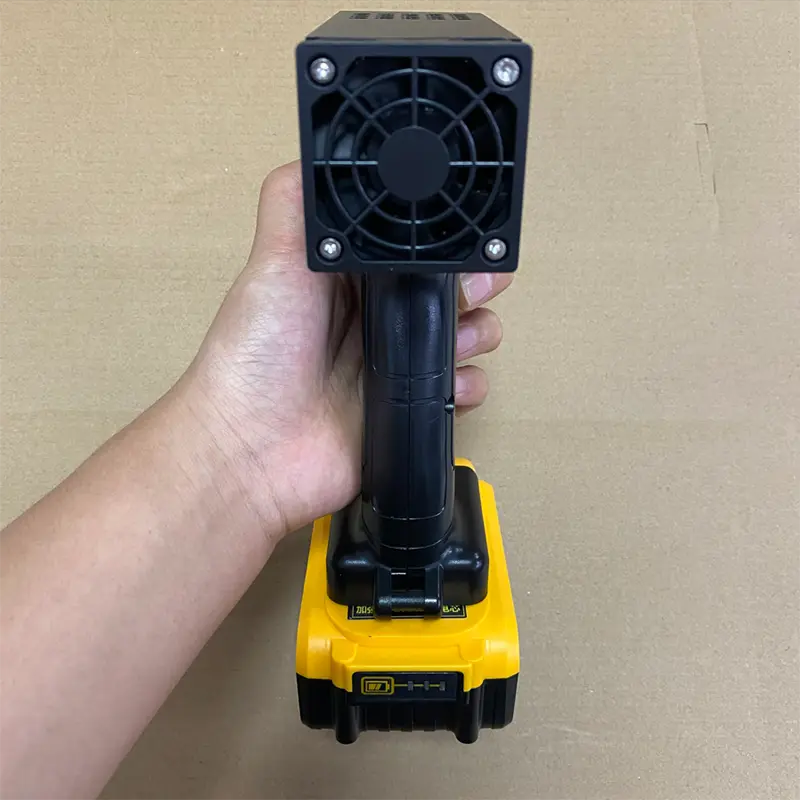

Cooling with fan allows making this UV Curing Lamp stable while performing curing tasks. Operating temperature range is from -10 °C to +40 °C. With a lifespan of more than 20,000 hours and 2 year warranty, this lamp is appropriate for industrial use, repairs, laboratories and productions.

Besides the curing of UV adhesives, inks, resins and coatings, 365nm UV gun is able to work for fluorescence inspection, NDT inspection with fluorescent materials, oil leak detection, coolant leak detection, counterfeit document verification, gemstone identification, mineral inspection and laboratory UVA exposure. For buyers of portable UV Curing Lamp with 365nm wavelength, strong irradiance, fan cooling and battery-powered operation, yoyo-uvgun365-40W-1 will be the appropriate solution.

Specifications

Model No.: yoyo-uvgun365-40W-1

Brand: yoyo-uv

Product Type: Hand Lamp

Light Source: High power UV LED

Power: 40W

Charging Voltage: AC100-240V 50-60Hz

Battery Type: Li-ion

Battery Voltage: 16.8V

Current: 2.85A

Irradiance Area: 40 x 40mm

Irradiance: 4000mW/cm²

Charging Time: 2.5H

Wavelength: 365nm

Battery Capacity: 3400mA

Cooling Method: Fan

Lifespan: >20,000 hours

Size: 190 x 140 x 50mm

Gross Weight: 1.6KG

Warranty: 2 years

Operating Temperature: -10 °C to +40 °C

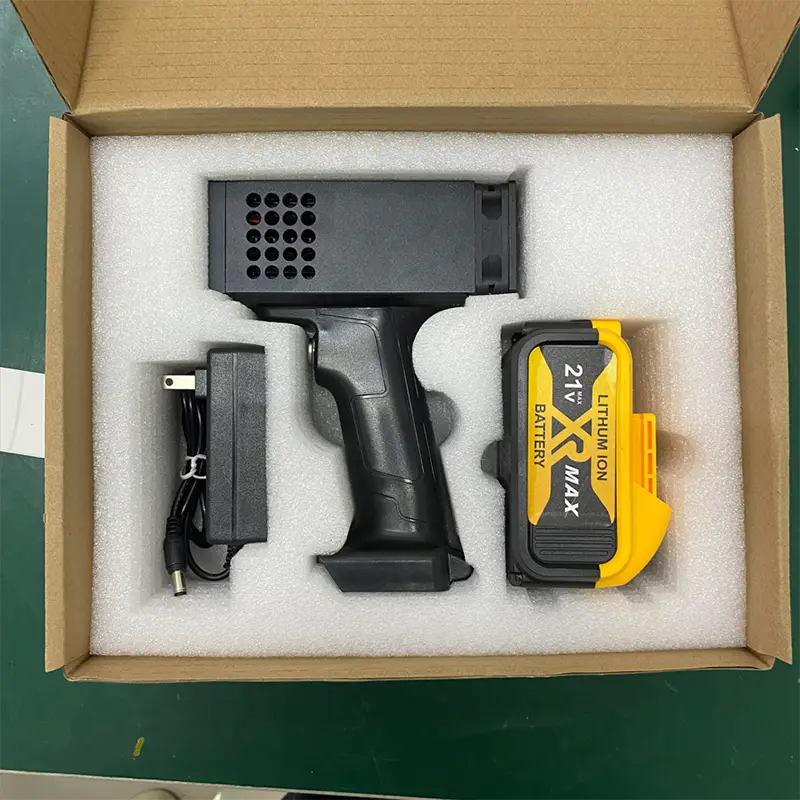

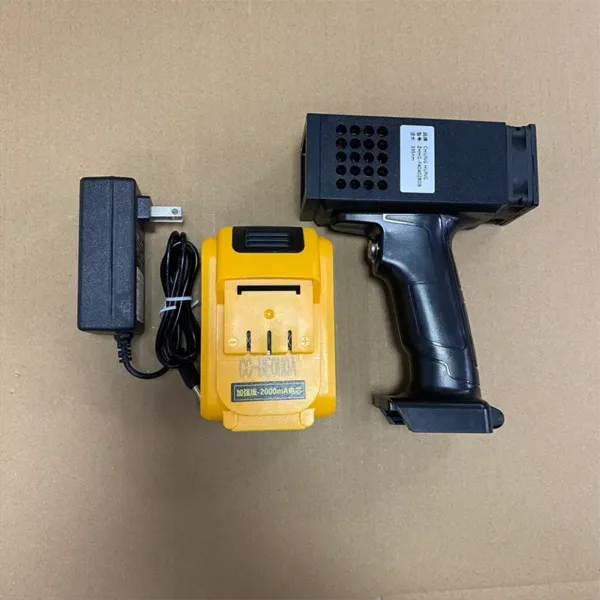

Package Includes: 1 x UV gun, 1 x charger, 1 x battery

Curing Diameter at 56cm: ø60cm

Minimum Irradiance at 56cm: 10mW/cm²

Center Irradiance at 56cm: 16mW/cm²

Curing Diameter at 10cm: ø16cm

Minimum Irradiance at 10cm: 80mW/cm²

Center Irradiance at 10cm: 400mW/cm²

FAQ

1. What is this UV Curing Lamp used for?

This UV Curing Lamp is used for UV glue curing, adhesive curing, resin curing, ink curing, coating repair, fluorescence inspection, NDT inspection, leak detection and document verification.

2. What wavelength does this model use?

This model uses 365nm UVA wavelength, which is commonly used for UV curing and fluorescence inspection applications.

3. Is this lamp portable?

Yes. It is a handheld UV Curing Lamp, which is powered by Li-ion battery. The package includes one UV gun, one charger and one battery.

4. What is the irradiance of this UV curing gun?

The lamp has a rated irradiance of 4000mW/cm². At 10cm, the center irradiance is 400mW/cm² and the minimum irradiance is 80mW/cm².

5. What is the curing area?

The rated irradiance area is 40 x 40mm. At 10cm, the curing diameter is approximately ø16cm. At 56cm, the curing diameter is approximately ø60cm.

6. How long does charging take?

Charging time is about 2.5 hours with AC100-240V 50-60Hz charging voltage.

7. Does this UV Curing Lamp have cooling?

Yes. It uses fan cooling to support stable operation during curing and inspection tasks.

8. What is the expected lifespan?

The high power UV LED light source has a lifespan of more than 20,000 hours.

9. What is included in the package?

The package includes 1 UV gun, 1 charger and 1 battery.

10. Is this model suitable for industrial use?

Yes. With 40W power, 365nm wavelength, strong irradiance, fan cooling and portable battery operation, it is suitable for industrial curing, inspection and field repair applications.
