365nm uv light led torch lamp

Product Description

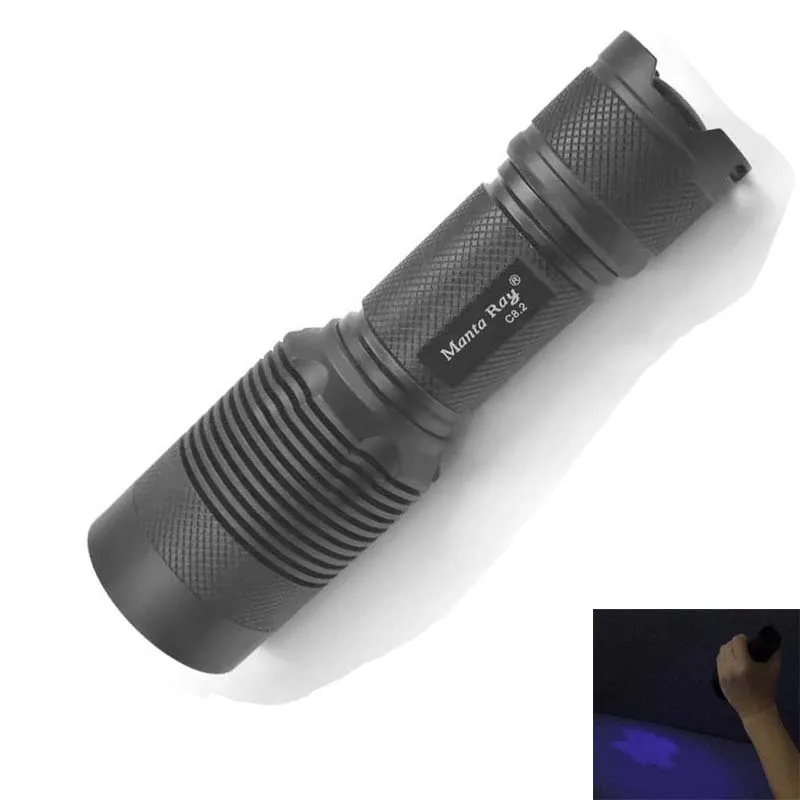

The Manta Ray C8.2 365nm UV Light is a high-power ultraviolet flashlight designed for professional inspection, fluorescence detection, UV curing, leak detection, and forensic applications. It is built with a Seoul Viosys 365nm 5W UV Z5 High Power Series CUN66A1G LED chip, providing a reliable UVA light source for users who need true 365nm output.

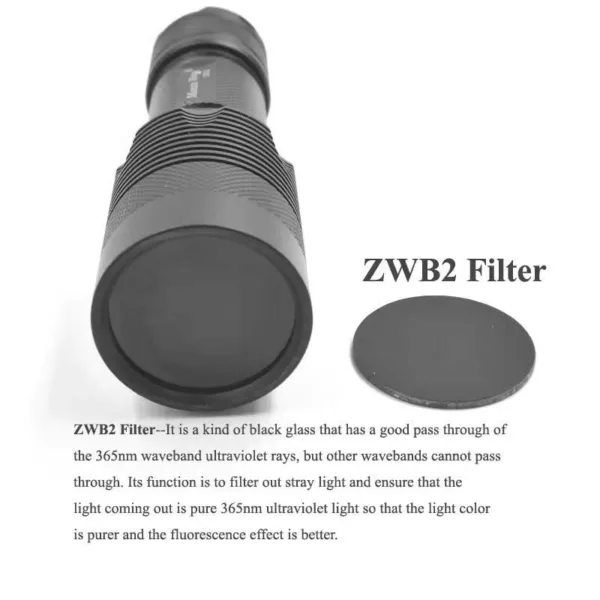

A key advantage of this flashlight is the ZWB2 black light filter. The filter glass allows the 365nm waveband ultraviolet rays to pass through while reducing unwanted stray light from other wavebands. This helps make the light color purer and improves the fluorescence effect when checking UV-reactive materials.

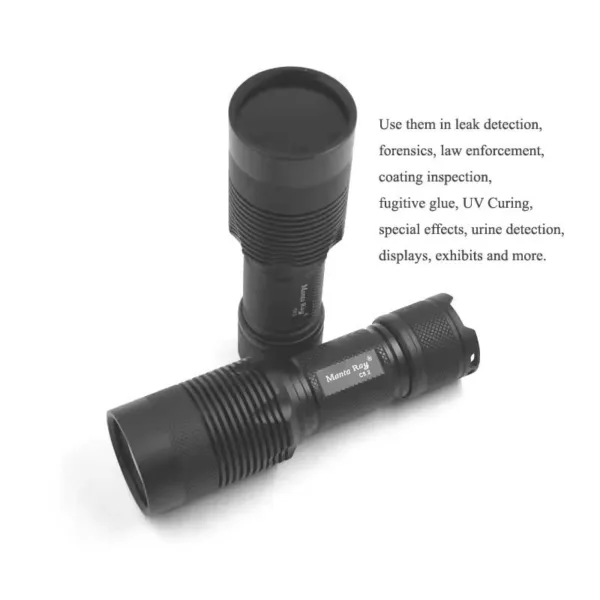

This 365nm UV light is suitable for many inspection scenarios. It can be used for leak detection, forensics, law enforcement, coating inspection, fugitive glue checking, UV curing of adhesives and resin, special effects, urine detection, display inspection, exhibit lighting, and other fluorescence-based applications.

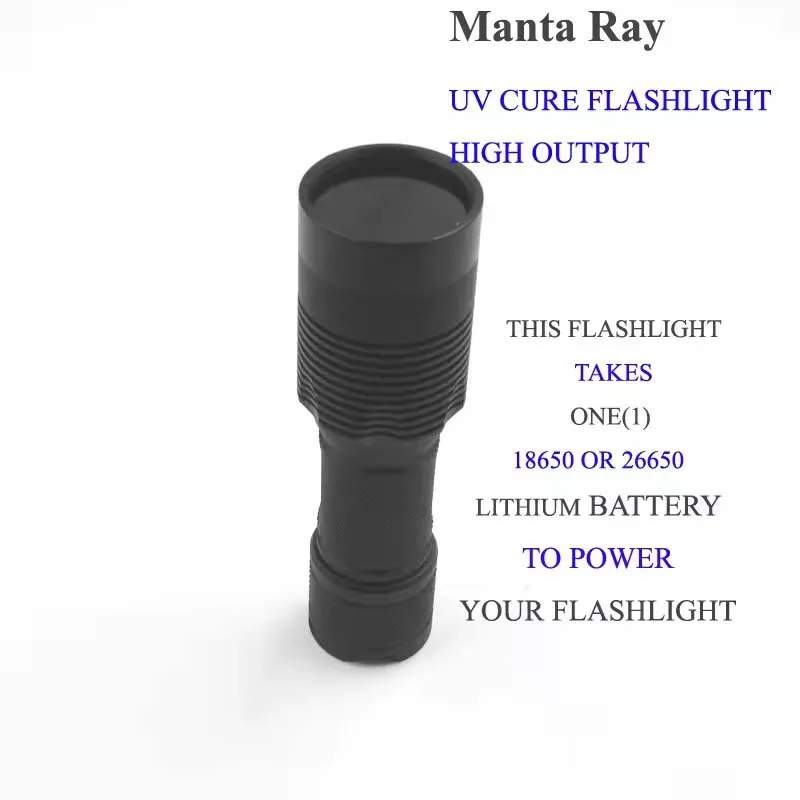

The flashlight supports multiple battery configurations. Users can operate it with 1×18650 or 1×26650 rechargeable Li-ion battery. For higher voltage use, it can also work with 2×18650 or 2×26650 batteries when an extra flashlight extension tube is ordered. The voltage input is 7V-8.4V, while 3.7V-4.2V is used with one battery and 7.4V-8.4V with two batteries.

The driver mode is simple and efficient. It uses a 22mm 2000mAh current single-mode driver circuit with just on/off operation. This makes the flashlight easy to use in field work, inspection rooms, workshops, laboratories, and maintenance environments without unnecessary mode switching.

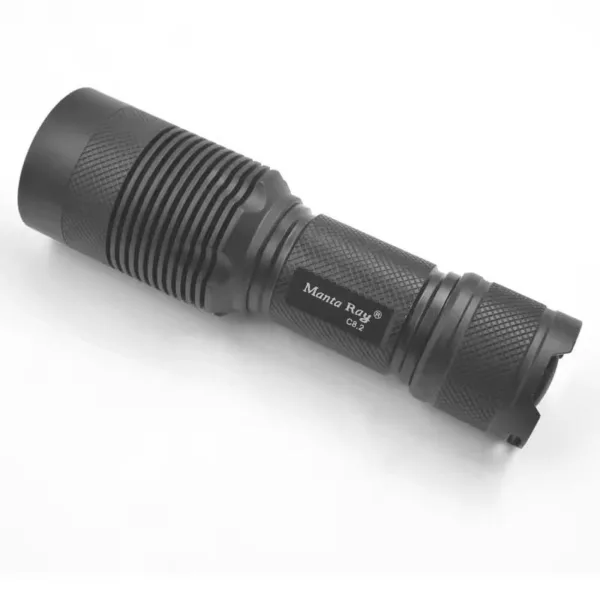

The body is made from black aluminum alloy for strength and durability. The SMO smooth aluminum reflector helps deliver a focused beam for targeted inspection. The flashlight also supports tail standing, which is useful when hands-free positioning is needed during checking or curing work.

With an LED lifespan of 40,000 hours, a dimension of 4cm length x 4.5cm head diameter x 3.7cm tail diameter, and a weight of 239g without battery, the Manta Ray C8.2 is a practical choice for buyers looking for a professional 365nm UV light with ZWB2 filter glass, Seoul Viosys LED, strong aluminum construction, and flexible battery support.

Specifications

Brand: Manta Ray 365nm uv light
LED Emitter Chip: Seoul Viosys 365nm 5W UV Z5 High Power Series CUN66A1G LED Chip
Power: 5W
Battery Configurations: 1×18650 or 1×26650 battery, not included; 2×18650 or 2×26650 batteries, not included, with extra flashlight extension tube required
Voltage Input: 7V-8.4V
Voltage Note: 3.7V-4.2V with 1pc battery; 7.4V-8.4V with 2pcs batteries
Driver Mode: Just on/off mode
Driver Output Current: 2000mAh
Switch Type: Clickie tail switch
LED Lifespan: 40,000 hours
Case Material: Aluminum alloy
Reflector: SMO smooth aluminum reflector
Casing Color: Black
Tail Stand: Yes
Dimension: 4cm length x 4.5cm head diameter x 3.7cm tail diameter
Weight: 239g, battery not included

FAQ

1. What is this 365nm UV light used for?

This 365nm UV light is used for fluorescence detection, leak detection, forensics, law enforcement, coating inspection, UV curing, urine detection, display inspection, exhibit lighting, and related UVA applications.
