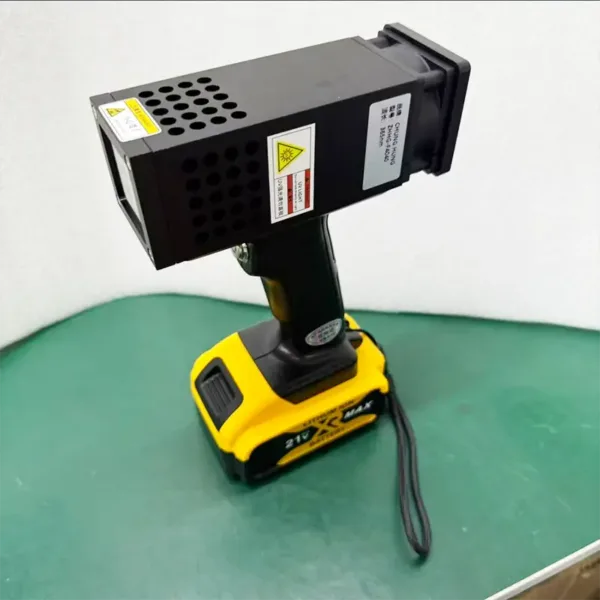

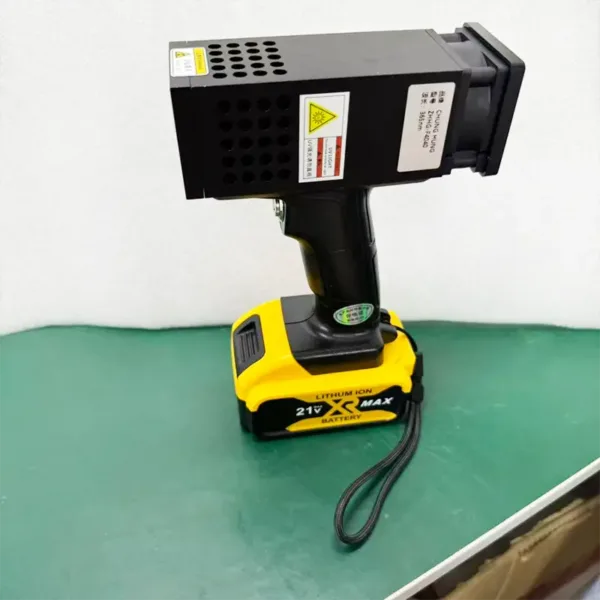

365nm 40W UV Light Curing Lamp

Yoyo-uvgun365-40W UV curing lamp is equipped with 365nm wavelength and 40W power. Due to the portability of this lamp, its users can apply it for portable UV curing and repair.

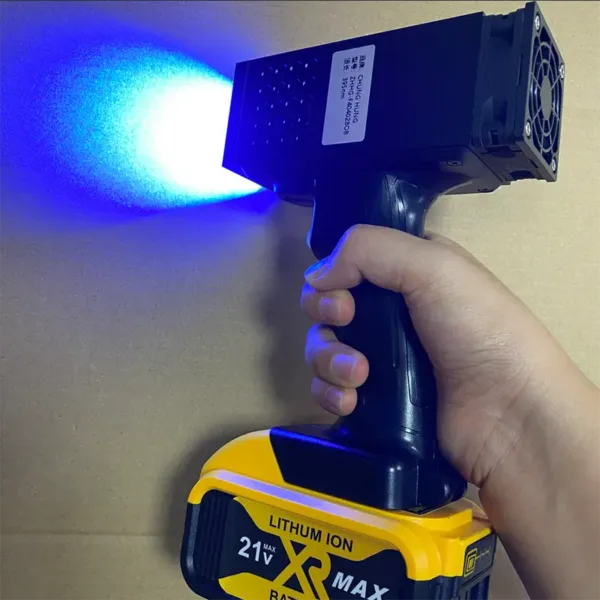

This particular model of UV lamp is manufactured in the shape of a hand lamp. For that reason, it may be used by customers preferring portable UV curing lamps rather than stationary ones.

In this particular model of UV light curing lamp, the source of light is a high power UV LED which provides the following parameters: 40W power, 365nm wavelength, 2.85A current, 4000mW/cm² rated irradiance. Wavelength of 365nm is compatible with most types of UV adhesives, UV glue, resins, inks, coatings, and fluorescence inspection products.

It is important to consider working distance information to estimate the curing performance of the lamp. If the distance is 10cm, the curing diameter will be approximately ø16cm, the minimum irradiance will be 80mW/cm² and center irradiance will be 400mW/cm². At the distance of 56cm, the curing diameter will be ø60cm, the minimum irradiance will be 10mW/cm² and center irradiance will be 16mW/cm². Thus, the operator will be able to adjust the distance and irradiance intensity.

This particular model of UV light curing lamp operates on 16.8V Li-ion battery with 3400mA capacity. Voltage of charging station is AC100-240V 50-60Hz and charging time is 2.5 hours. Lack of cords makes this lamp easy-to-use while performing curing tasks in the field, maintenance, batch production, laboratory tests and portable inspections.

Heat protection in this particular lamp is provided with the help of fan cooling system. Operating temperature range is -10°C to +40°C and LED lifespan is more than 20,000 hours. Having 2-year warranty and complete package including one UV gun, one charger and one battery, this UV light curing lamp is ready to be used professionally after charging.

This 365nm handheld UV curing gun can be applied for UV adhesive curing, UV glue curing, resin curing, ink curing, coating repair, NDT fluorescence inspection, oil leak detection, coolant leak detection, counterfeit document checking, gemstone inspection, mineral identification, and laboratory UVA exposure.

Thus, buyers searching for portable UV light curing lamp with 365nm wavelength, 40W power, 4000mW/cm² irradiance, fan cooling and rechargeable battery operation will find yoyo-uvgun365-40W useful for their needs.

Specifications

Model No: yoyo-uvgun365-40W

Brand: yoyo-uv

Product Type: Hand Lamp

Light Source: High power UV LED

Power: 40W

Charging Voltage: AC100-240V 50-60Hz

Battery Type: Li-ion

Battery Voltage: 16.8V

Current: 2.85A

Irradiance Area: 40 x 40mm

Irradiance: 4000mW/cm²

Charging Time: 2.5H

Wavelength: 365nm

Battery Capacity: 3400mA

Cooling Method: Fan

Lifespan: >20,000 hours

Size: 190 x 140 x 50mm

Gross Weight: 1.6KG

Warranty: 2 years

Operating Temperature: -10°C to +40°C

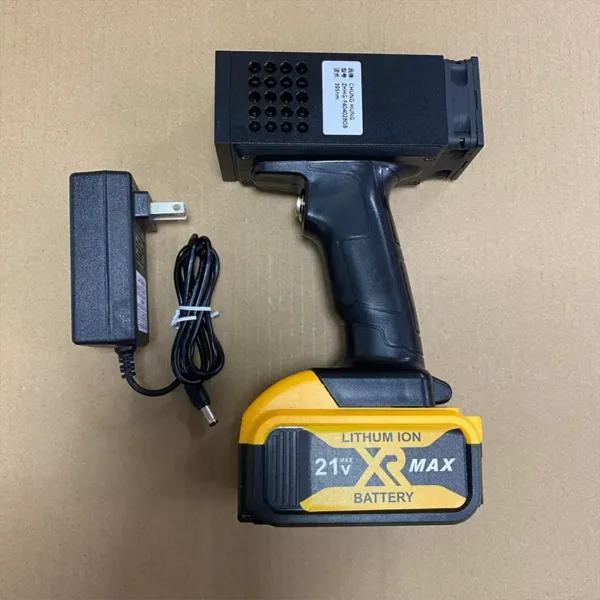

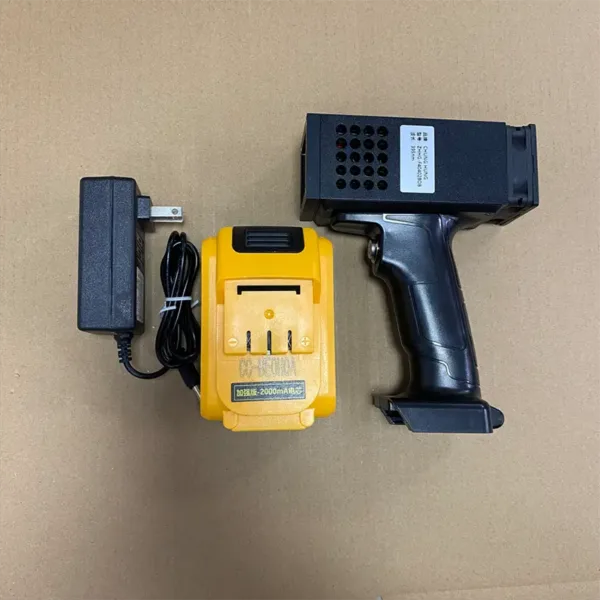

Package Includes: 1 x UV gun, 1 x charger, 1 x battery

Curing Diameter at 56cm: ø60cm

Minimum Irradiance at 56cm: 10mW/cm²

Center Irradiance at 56cm: 16mW/cm²

Curing Diameter at 10cm: ø16cm

Minimum Irradiance at 10cm: 80mW/cm²

Center Irradiance at 10cm: 400mW/cm²

FAQ

1. What is this UV light curing lamp used for?

This UV light curing lamp is used for UV glue curing, adhesive curing, resin curing, ink curing, coating repair, fluorescence inspection, NDT inspection, leak detection, and document verification.

2. What wavelength does this model use?

This model uses 365nm UVA wavelength. It is suitable for many UV curing and fluorescence inspection applications.

3. What is the rated irradiance?

The rated irradiance is 4000mW/cm² with 40 x 40mm irradiance area.

4. What is the curing performance at 10cm?

At 10cm, the curing diameter is approximately ø16cm. The minimum irradiance is 80mW/cm² and center irradiance is 400mW/cm².

5. What is the curing performance at 56cm?

At 56cm, the curing diameter is approximately ø60cm. The minimum irradiance is 10mW/cm² and center irradiance is 16mW/cm².

6. Is this UV light curing lamp rechargeable?

Yes. It uses 16.8V Li-ion battery with 3400mA capacity. The package includes one battery and one charger.

7. How long is the charging time?

The charging time is about 2.5 hours with AC100-240V 50-60Hz charging voltage.

8. Does the lamp include cooling?

Yes. It uses fan cooling for the sake of stable operation during curing and inspection tasks.

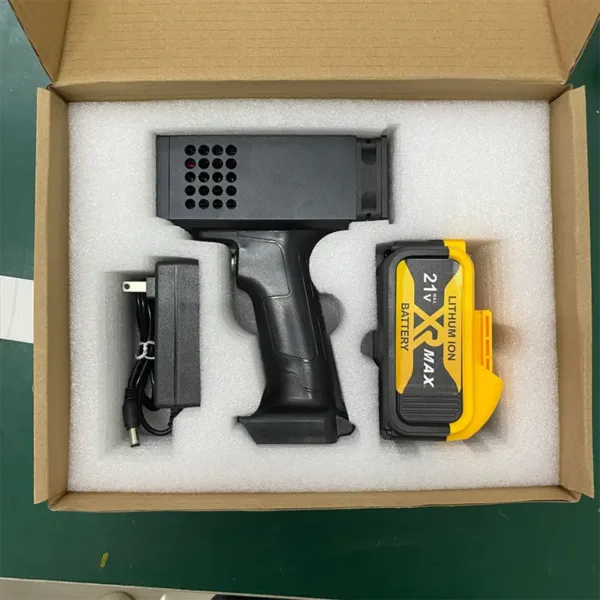

9. What is included in the package?

The package includes 1 UV gun, 1 charger, and 1 battery.

10. Is this product suitable for industrial use?

Yes. With 40W power, 365nm wavelength, 4000mW/cm² irradiance, portable battery operation and fan cooling, this UV light curing lamp is suitable for industrial curing, repair and inspection applications.
