365nm LED Seoul Viosys UVA 365nm Ultraviolet UV LED modules
Specification:
| Model NO. | Wavelength(nm) | Voltage(V) | Current(mA) | Radiant Power(mW) | View angle | Size(mm) |
| CUN66A1B | 360-370NM | 3.4-3.8V | 500MA | 760-1210MW | 120 | 3.5*3.5 |
| CUN66A1G | 360-370NM | 3.5-3.8V | 1000MA | 1940-2360MW | 120 | 3.5*3.5 |
| CUN66A1F | 360-370NM | 3.4-4.2V | 250MA | 330-630MW | 120 | 3.5*3.5 |
| CUN66B1B | 360-370NM | 3.5-3.8V | 500MA | 910-1210MW | 45 | 3.5*3.5 |
| CUN66B1G | 360-370NM | 3.5-3.8V | 1000MA | 1940-2360MW | 65 | 3.5*3.5 |
| CUN6GB1A | 360-370NM | 3.5-3.8V | 1000MA | 1330-1600 | 65 | 3.5*3.5 |
| CUN6GF1A | 360-370NM | 3.5-3.8V | 1000MA | 1330-1600 | 115 | 3.5*3.5 |
| CUN6LF1C | 360-370NM | 3.3-3.7V | 50MA | 20-60 | 120 | 3.5*2.8 |
| CUN6HF4A | 360-370NM | 3.0-4.2V | 3000MA | 3150-4600 | 115 | 6.8*6.8 |
| CUN6HB4A | 360-370NM | 4.0-8.0V | 2000MA | 5060-6120 | 70 | 6.8*6.8 |
| CUN6UB1A | 360-370NM | 3.5-3.8V | 700MA | 830-1100 | 60 | 3.5*3.5 |
| CUN6UC1A | 360-370NM | 3.5-3.8V | 700MA | 830-1100 | 35 | 3.5*3.5 |
Product Details Description
The Seoul Viosys OEM-365nm is a custom 365nm LED module solution for manufacturers that need a flexible UV-A light source rather than a fixed standard component. It is designed for UV curing, printing, coating, adhesive, counterfeit detection, security inspection, UV torch, fluorescence photography, dental curing, crime inspection, and oil leak detection applications.
This 365nm LED module can be customized by size, voltage, radiant power, LED quantity, PCB layout, connector, wire, lens, heat sink, and housing. The current range is 250–1000mA for each LED, allowing engineers to select different power levels according to the application. The module can be developed for compact handheld devices, industrial equipment, inspection lamps, UV flashlight engines, or machine-mounted UV exposure systems.
The 365nm wavelength is widely used for UV-A curing and fluorescence-based detection. Compared with longer wavelengths such as 395nm, a 365nm LED usually produces less visible purple light and can create stronger fluorescence contrast in many inspection applications. This makes it useful for counterfeit detection, security checking, fluorescence photography, crime inspection, oil leak detection, and UV torch products.
For curing applications, this 365nm LED module can be used in adhesive curing tools, coating curing systems, printing equipment, resin exposure devices, and dental curing modules when the target material responds to 365nm UV-A energy. Final curing performance depends on material chemistry, LED quantity, radiant power, exposure distance, driver current, optical design, heat dissipation, and required UV dose.
The 120° view angle supports broad UV-A distribution. This is useful for wide inspection fields, printing paths, curing panels, and UV-reactive surfaces. For applications that require a more concentrated beam, the final module can be designed with lenses, reflectors, or housing structures to adjust the beam pattern.

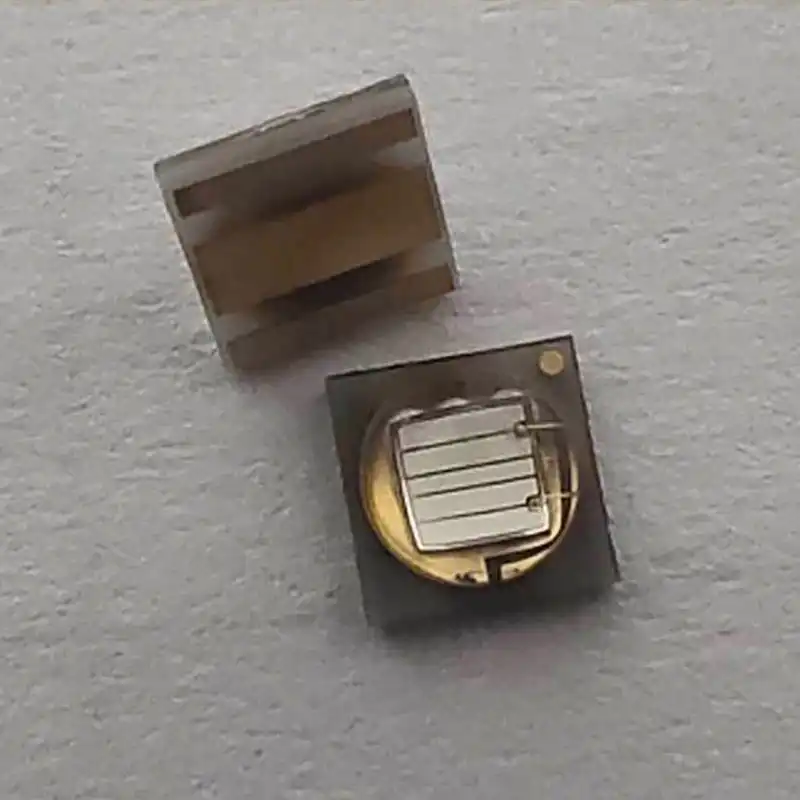

This custom 365nm LED product uses SMT-type LED technology and is suitable for high current operation. The design supports high power output, low thermal resistance, lead free structure, and RoHS compliant module development. Proper thermal design is important because higher current and higher radiant power require suitable PCB material, heat sinking, driver control, and long-term temperature testing.

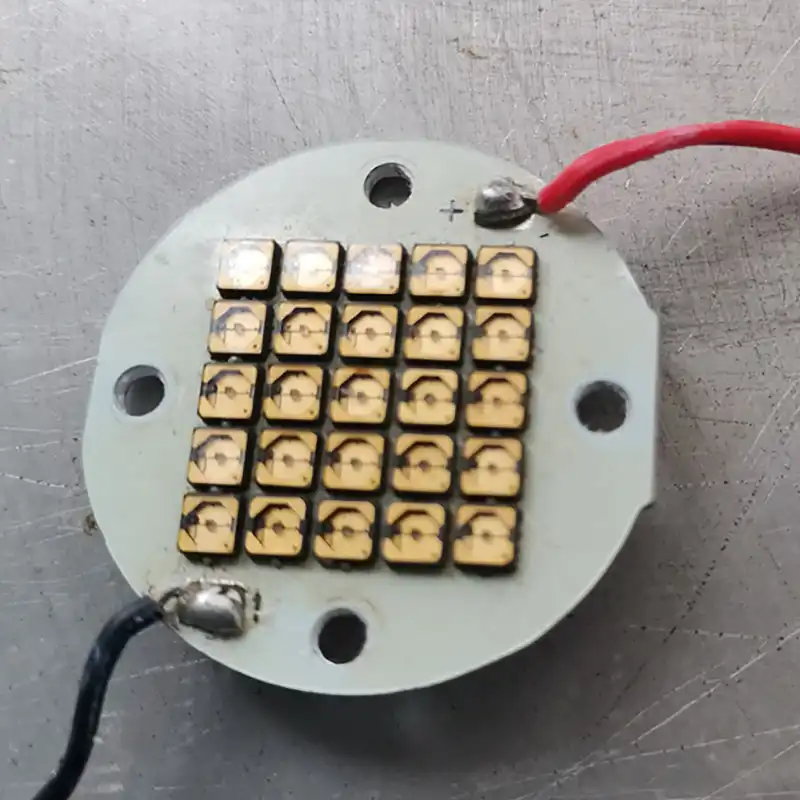

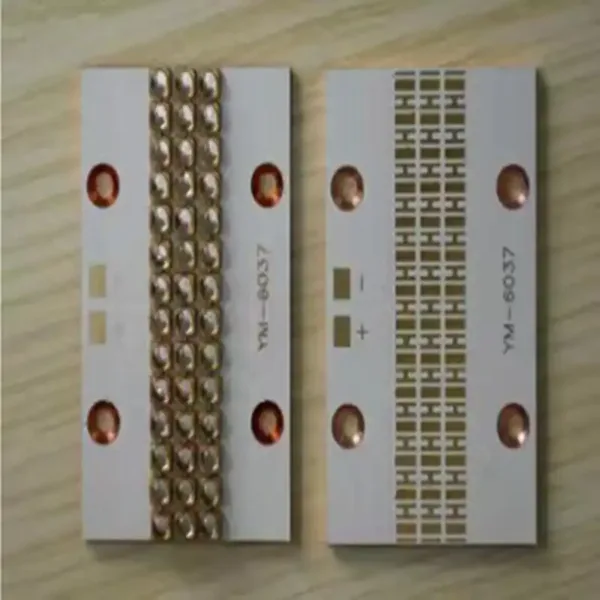

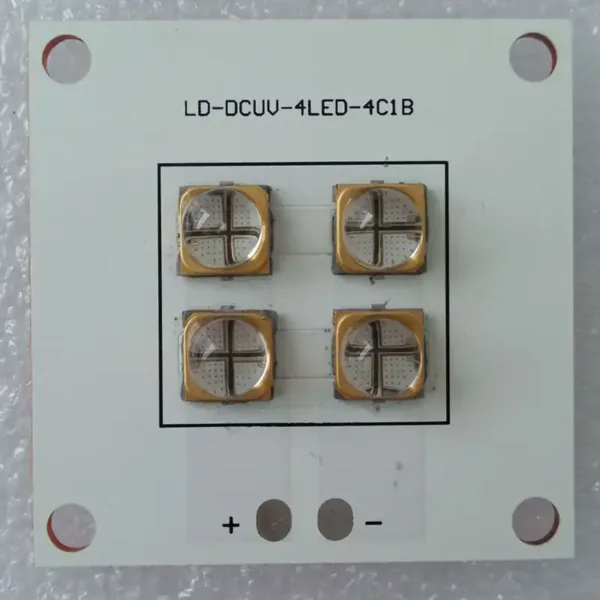

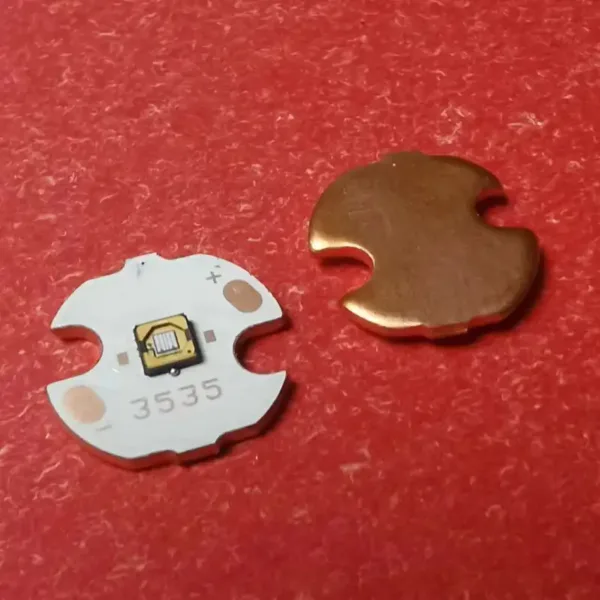

As an OEM and ODM UV LED module, the product can be configured for different assembly formats. Options may include aluminum PCB, copper PCB, round board, strip board, multi-LED array, UV flashlight module, curing head, inspection lamp module, or other custom UV light source designs. Voltage and radiant power should be confirmed according to the final LED arrangement and driver system.
This product is a UV LED module or module component, not a complete finished lamp unless specified in the final OEM design. A finished device should include a driver circuit, PCB board, heat sink, housing, optical lens or reflector, wiring, switch, and safety structure. The OEM-365nm module is a 365nm UV-A light source, not a UVC sterilization module, and should not be promoted for disinfection or germicidal applications.
Do not look directly at the operating 365nm LED module. Avoid unnecessary eye or skin exposure during testing, assembly, and operation. Use protective eyewear, shielding, warning labels, and safe working procedures in the final product design.
Specifications
Brand: Seoul Viosys
Model NO.: OEM-365nm
Wavelength: 365nm
Size: Custom
Voltage: Custom
Current: 250–1000mA each LED
Radiant Power: Custom
View Angle: 120°
Service: OEM ODM service for different 365nm UV LED module designs
Features and Benefits
High power output
Designed for high current operation
Low thermal resistance
SMT type
Lead free product
RoHS compliant
Custom module size
Custom voltage design
Custom radiant power
Suitable for OEM and ODM 365nm UV LED module development
Key Applications
UV Curing
Printing
Coating
Adhesive
Counterfeit Detection / Security
UV Torch
Fluorescence Photography
Dental Curing
Crime Inspection
Oil Leak Detection
FAQ
What is this 365nm LED module used for?
This 365nm LED module is used for UV curing, printing, coating, adhesive curing, counterfeit detection, security inspection, UV torch design, fluorescence photography, dental curing, crime inspection, and oil leak detection.
Is OEM-365nm a fixed standard LED?
No. OEM-365nm is a custom Seoul Viosys 365nm LED module solution. The size, voltage, radiant power, LED quantity, PCB layout, wire, connector, optical design, and housing can be customized according to the project.
What wavelength does this module use?
The module uses a 365nm wavelength, which belongs to the UV-A range.
Is the voltage fixed?
No. The voltage is custom. It can be designed according to the LED quantity, circuit structure, driver requirements, and final module layout.
What is the current range?
The current is 250–1000mA for each LED, depending on the selected LED configuration and module design.
What is the radiant power?
The radiant power is custom. It can be designed according to LED quantity, current setting, PCB structure, thermal design, and application requirements.
What is the view angle?
The view angle is 120°, which provides broad UV-A coverage for curing, printing, inspection, UV torch, and detection applications.
Can the module size be customized?
Yes. The module size is custom. PCB size, board shape, LED quantity, mounting holes, wire, connector, lens, heat sink, and housing can be designed according to OEM or ODM requirements.
Is this 365nm LED suitable for UV curing?
Yes. It can be used for UV curing, adhesive curing, printing, coating, dental curing, and related UV-A applications when the material responds to 365nm.
Can this module be used for UV flashlights?
Yes. The 365nm wavelength, custom radiant power, and flexible module format make it suitable for UV flashlight and UV torch light engines.
Is this module suitable for counterfeit detection?
Yes. A 365nm LED module is commonly used for counterfeit detection, security inspection, fluorescence checking, and related UV-reactive inspection applications.
Is this 365nm LED module suitable for sterilization?
No. This is a 365nm UV-A module, not a UVC sterilization module. It should not be used or promoted for disinfection or germicidal applications.
Why is thermal design important?
The module can use 250–1000mA current for each LED, so proper PCB material, heat sinking, current control, and thermal testing are important for stable UV output and long-term performance.
Is it safe to look directly at the module?
No. Do not look directly at the operating 365nm LED module. Use protective eyewear, shielding, and safe working procedures during testing, assembly, and operation.
