Water Filter with UV module 275nm uvc module
Product Description
The CMW-ETC-RE6B is a water filter with UV module designed for point-of-use purifier equipment, faucet-end water disinfection, and OEM ODM UVC LED water filter projects. It is made for manufacturers that need a compact UVC LED disinfection module connected at the end of a waterway.
This module uses a 270-280nm UVC wavelength and provides 50-230mW radiation flux. The sterilizing rate is specified as ≥99.9% for bacterium coli at 2L/min flow. The applicable flow is 1.5-2.5L. When the flow rate is higher than 2L/min, the sterilization effect is weak, so the water path should be designed according to the stated flow condition.
The CMW-ETC-RE6B is a non-pressure module. It is designed to be connected to the end of the waterway, with applicable water pressure ≤0.4MPa. This makes the water filter with UV module suitable for terminal drinking water outlets, under-sink purifier outputs, faucet-side water sterilization, countertop water devices, and customized point-of-use systems.
The water inlet interface is non-standard, and a 3D dimension drawing of the interface can be provided. The water outlet interface is Φ10 gooseneck faucet, and a 3D dimension drawing of this interface can also be provided. These interface details help OEM customers match the module with custom housings, water paths, faucet structures, and final product layouts.
The voltage is DC24V or customizable. Under the 2LPM condition, the input current is about 240mA and the input power is 7W. The waterproof grade of the shell is IP67, with a silicone rubber sealing outlet hole to support protected installation inside water purifier equipment.
For wiring and assembly, the wire rod is customizable, and the wire length can also be customized. The specified wire is 24AGW, and the terminal is customizable. This gives equipment manufacturers more flexibility when building different control systems and assembly structures.
The LED lifespan is 10000-25000 hours, depending on working conditions and system design. The module also meets dielectric strength requirements of DC500V, 1min@10mA, leakage current. The size is Φ49 x 90mm, and the net weight is 90g. The working temperature range is -25℃ to 40℃, and the storage temperature range is -40℃ to 85℃.
This water filter with UV module is not a complete water filter, reverse osmosis system, carbon filter, sediment filter, or whole-house UV reactor. It is a UVC LED disinfection module for integration into water purifier equipment. It does not remove sediment, chlorine, heavy metals, scale, or dissolved chemicals. If the water contains particles, suspended solids, or turbidity, suitable filtration should be used before UV disinfection.
For B2B buyers developing a water filter with UV, faucet-end purifier outlet, under-sink water system, point-of-use drinking water device, or customized UVC LED water filter, the CMW-ETC-RE6B offers a compact module with 270-280nm UVC output, 50-230mW radiation flux, DC24V input, 7W power, IP67 shell protection, Φ10 gooseneck faucet outlet, customizable terminal, OEM ODM( led water filter with UV module) service, and sample availability.
Specifications
Model NO.: CMW-ETC-RE6B water filter with UV module

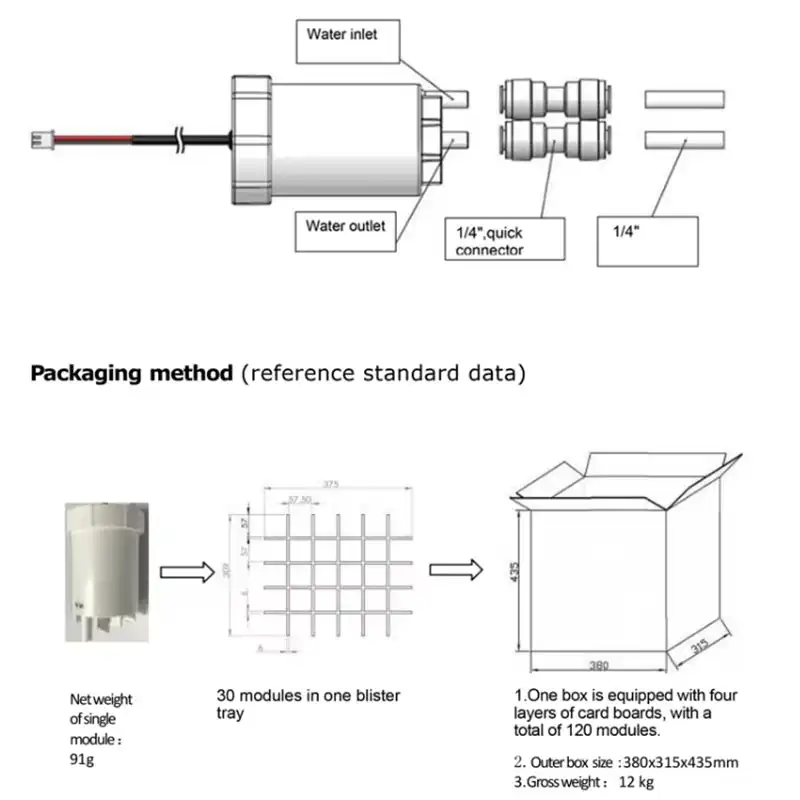

Water Inlet Interface: No standard; 3D dimension drawing of interface can be provided
Water Outlet Interface: Φ10 gooseneck faucet; 3D dimension drawing of interface can be provided
Voltage: DC24V or customizable
Radiation Flux: 50-230mW
Wavelength: 270-280nm
Sterilizing Rate: ≥99.9% bacterium coli at 2L/min flow
Input Current: About 240mA under 2LPM condition
Input Power: 7W under 2LPM condition
Waterproof Grade of Shell: IP67 water filter with UV
Sealing: Silicone rubber sealing outlet hole
Applicable Water Pressure: ≤0.4MPa
Module Type: Non-pressure module, connected to the end of waterway
Wire Rod: Customizable
Wire Length: Customizable, 24AGW
Terminal: Customizable
LED Lifespan: 10000-25000 hours
Dielectric Strength: DC500V, 1min@10mA, leakage current
Size: Φ49 x 90mm
Net Weight: 90g
Applicable Flow: 1.5-2.5L
Note: When the flow rate is higher than 2L/min, the sterilization effect is weak
Working Temperature: -25℃-40℃
Storage Temperature: -40℃-85℃
OEM ODM for Different UVC LED Water Filter Designs
Samples: Available(water filter with UV led module)
FAQ
1. What is the CMW-ETC-RE6B used for?
The CMW-ETC-RE6B is a water filter with UV module for point-of-use purifier equipment, faucet-end water disinfection, and OEM ODM UVC LED water filter designs.
2. Is this a complete water filter?
No. It is a UVC LED disinfection module, not a complete water filter, RO system, carbon filter, sediment filter, or whole-house UV reactor.
3. What wavelength does it use?
The module uses a 270-280nm UVC wavelength.
4. What is the radiation flux?
The radiation flux is 50-230mW.
5. What is the sterilizing rate?
The sterilizing rate is ≥99.9% for bacterium coli at 2L/min flow.
6. What is the applicable flow?
The applicable flow is 1.5-2.5L.
7. What happens if the flow rate is higher than 2L/min?
When the flow rate is higher than 2L/min, the sterilization effect is weak.
8. What voltage does the module support?
The voltage is DC24V or customizable.
9. What is the input power?
The input power is 7W under the 2LPM condition.
10. What is the water outlet interface?
The water outlet interface is Φ10 gooseneck faucet, and a 3D dimension drawing of the interface can be provided.
11. Is the water inlet interface standard?
No. The water inlet interface is non-standard, and a 3D dimension drawing can be provided for interface matching.
12. What is the waterproof grade?
The waterproof grade of the shell is IP67, with a silicone rubber sealing outlet hole.
13. What is the applicable water pressure?
The applicable water pressure is ≤0.4MPa.
14. Is this a pressure module?
No. It is a non-pressure module connected to the end of the waterway.
15. Are OEM ODM service and samples available?
Yes. OEM ODM service and samples are available.
