Product Description

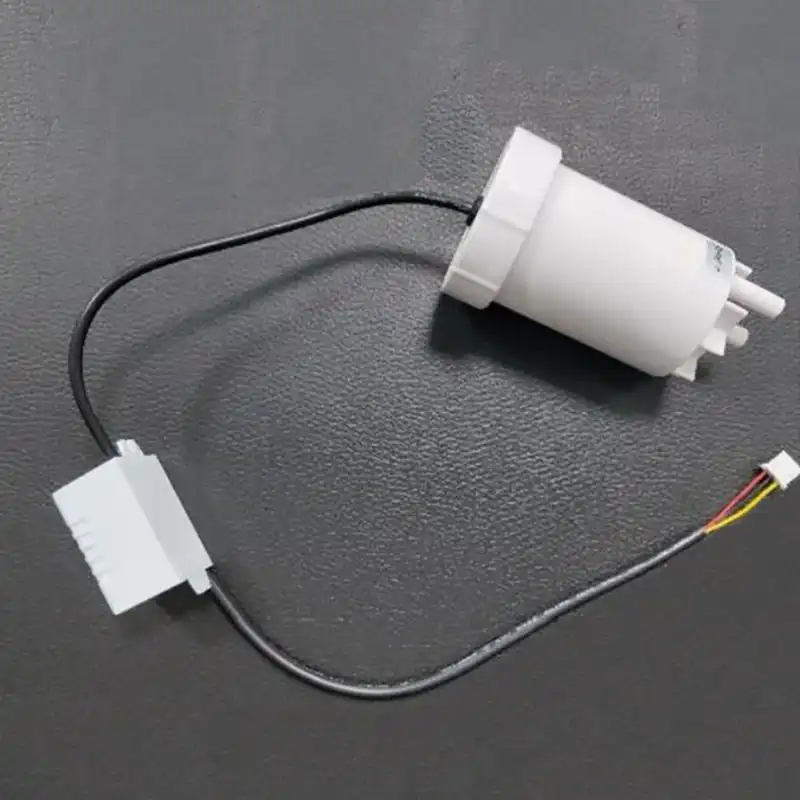

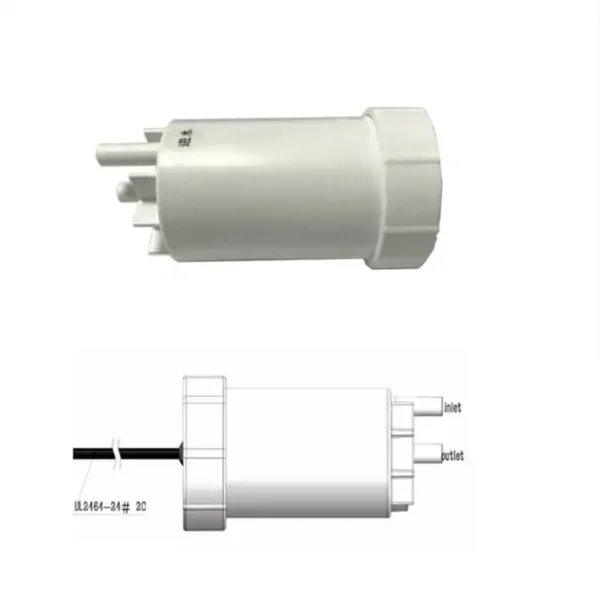

The CMW-ETC-RE9B is an ultraviolet light water purifier module designed for point-of-use water disinfection equipment. It is built for manufacturers that need a compact UVC LED module connected at the end of a waterway, especially where a faucet-side or gooseneck outlet design is required.
This module uses a 270-280nm UVC wavelength and provides 60-250mW radiation flux. The sterilizing rate is specified as ≥99.9% for bacterium coli at 3L/min flow. The applicable flow is 2L-3L. When the flow rate is higher than 3L/min, the sterilization effect is weak, so the module should be designed within the specified flow range.
The CMW-ETC-RE9B is not a pressure module. It is designed to be connected to the end of the waterway. The applicable water pressure is ≤0.4MPa. This structure makes the ultraviolet light water purifier module suitable for terminal water output designs, countertop water devices, under-sink purifier outlets, drinking water equipment, and custom faucet-side sterilization systems.

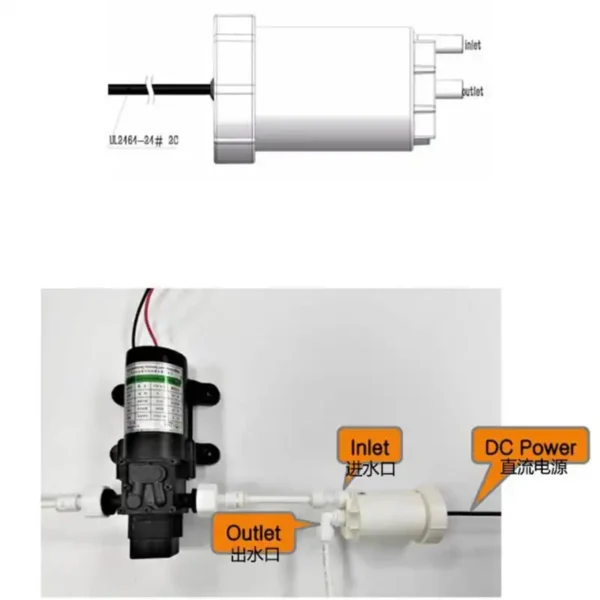

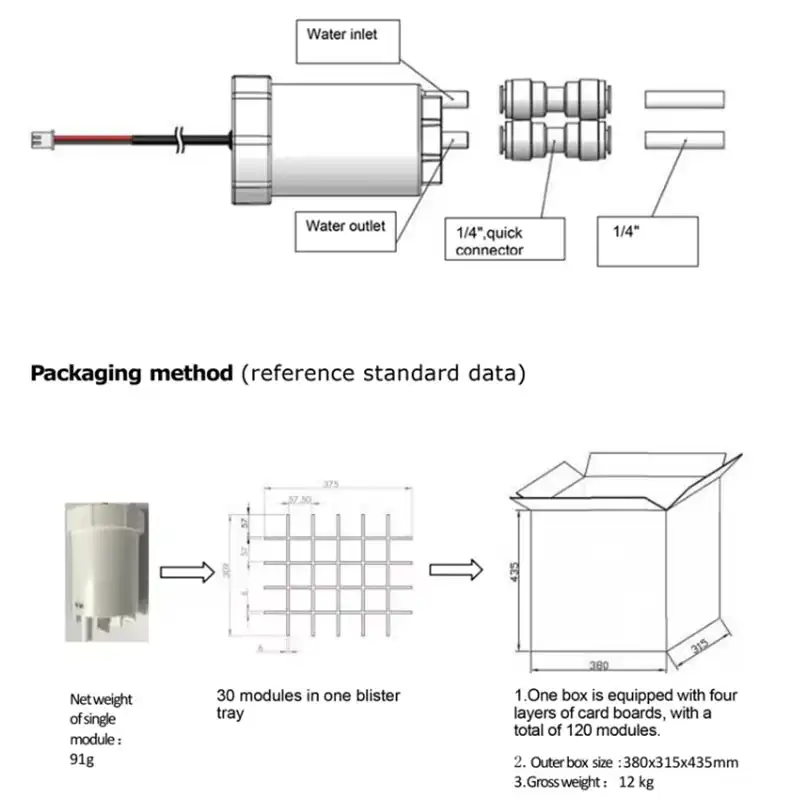

The water inlet interface is non-standard, and a 3D dimension drawing of the interface can be provided. The water outlet interface is Φ10 gooseneck faucet, and a 3D dimension drawing of this interface can also be provided. This is useful for OEM customers that need to match the module with specific housings, water paths, faucet structures, or end-product layouts.
The module supports DC24V or customizable voltage. Under the 3LPM condition, the input current is about 380mA and the input power is 9.5W. The waterproof grade of the shell is IP67, with a silicone rubber sealing outlet hole for protected installation in water purifier equipment.
For wiring, the wire rod is customizable, and the wire length can also be customized. The specified wire is 24AGW. The terminal is customizable, helping equipment manufacturers match different control boards, connectors, and assembly structures.
The LED lifespan is 10000-25000 hours, depending on operating conditions and system design. The module also meets dielectric strength requirements of DC500V, 1min@10mA, leakage current. The product size is Φ49 x 90mm, with a net weight of 90g. The working temperature range is -25℃ to 40℃, and the storage temperature range is -40℃ to 85℃.
This ultraviolet light water purifier module is not a complete reverse osmosis system, filter cartridge, carbon filter, or whole-house UV reactor. It is a UVC LED disinfection module for integration into water purifier equipment. It does not remove sediment, chlorine, heavy metals, scale, or dissolved chemicals. If the source water contains particles or turbidity, suitable filtration should be used before UV disinfection.
For B2B buyers developing faucet-side water purifiers, under-sink purifier outlets, point-of-use drinking water systems, terminal water disinfection devices, or OEM ODM UVC water purifier products, the CMW-ETC-RE9B provides a compact ultraviolet light water purifier solution with 270-280nm UVC output, 60-250mW radiation flux, DC24V input, 2L-3L applicable flow, IP67 shell protection, Φ10 gooseneck faucet outlet, and customizable interface support.
Specifications

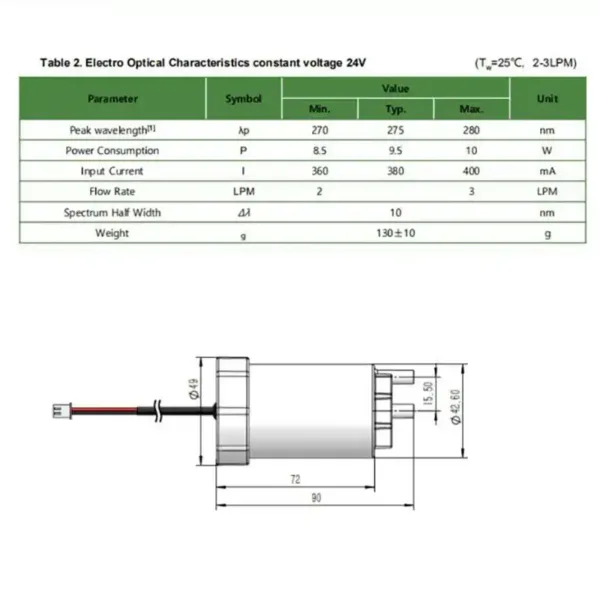

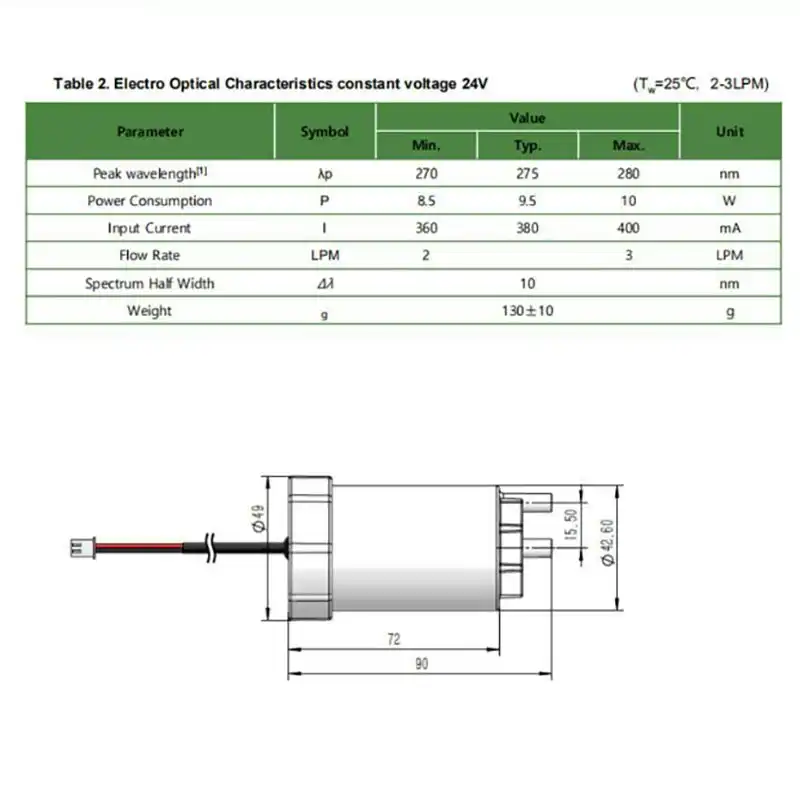

Model NO.: CMW-ETC-RE9B ultraviolet light water purifier
Water Inlet Interface: No standard; 3D dimension drawing of interface can be provided
Water Outlet Interface: Φ10 gooseneck faucet; 3D dimension drawing of interface can be provided
Voltage: DC24V or customizable
Radiation Flux: 60-250mW
Wavelength: 270-280nm
Sterilizing Rate: ≥99.9% bacterium coli at 3L/min flow
Input Current: About 380mA under 3LPM condition
Input Power: 9.5W under 3LPM condition
Waterproof Grade of Shell: IP67
Sealing: Silicone rubber sealing outlet hole
Applicable Water Pressure: ≤0.4MPa
Module Type: Non-pressure module, connected to the end of waterway
Wire Rod: Customizable
Wire Length: Customizable, 24AGW
Terminal: Customizable
LED Lifespan: 10000-25000 hours
Dielectric Strength: DC500V, 1min@10mA, leakage current

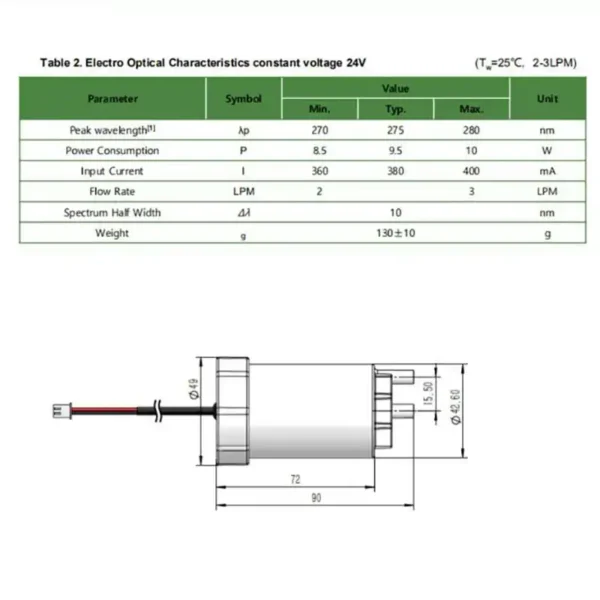

Size: Φ49 x 90mm
Net Weight: 90g
Applicable Flow: 2L-3L
Note: When the flow rate is higher than 3L/min, the sterilization effect is weak
Working Temperature: -25℃-40℃
Storage Temperature: -40℃-85℃
OEM ODM Service: Available(ultraviolet light water purifier )
Samples: Available (ultraviolet light water purifier )
FAQ
1. What is the CMW-ETC-RE9B used for?
The CMW-ETC-RE9B is an ultraviolet light water purifier module for point-of-use water purifier equipment, faucet-side water disinfection, and OEM ODM water treatment products.
2. Is this a complete water purifier?
No. It is a UVC LED disinfection module, not a complete RO system, filter cartridge, carbon filter, or whole-house UV reactor.
3. What wavelength does it use?
The module uses a 270-280nm UVC wavelength.
4. What is the radiation flux?
The radiation flux is 60-250mW.
5. What is the sterilizing rate?
The sterilizing rate is ≥99.9% for bacterium coli at 3L/min flow.
6. What is the applicable flow?
The applicable flow is 2L-3L.
7. What happens if the flow rate is higher than 3L/min?
When the flow rate is higher than 3L/min, the sterilization effect is weak.
8. What voltage does the module support?
The module supports DC24V or customizable voltage.
9. What is the input power?
The input power is 9.5W under the 3LPM condition.
10. What is the water outlet interface?
The water outlet interface is Φ10 gooseneck faucet, and a 3D dimension drawing of the interface can be provided.
11. Is the water inlet interface standard?
No. The water inlet interface is non-standard, and a 3D dimension drawing of the interface can be provided.
12. What is the waterproof grade?
The waterproof grade of the shell is IP67, with a silicone rubber sealing outlet hole.
13. What is the applicable water pressure?
The applicable water pressure is ≤0.4MPa.
14. Is this a pressure module?
No. It is a non-pressure module connected to the end of the waterway.
15. Are OEM ODM service and samples available?
Yes. OEM ODM service and samples are available. ultraviolet light water purifier
