Best uv light for water treatment 12V 24V UVC LED module

Product Description

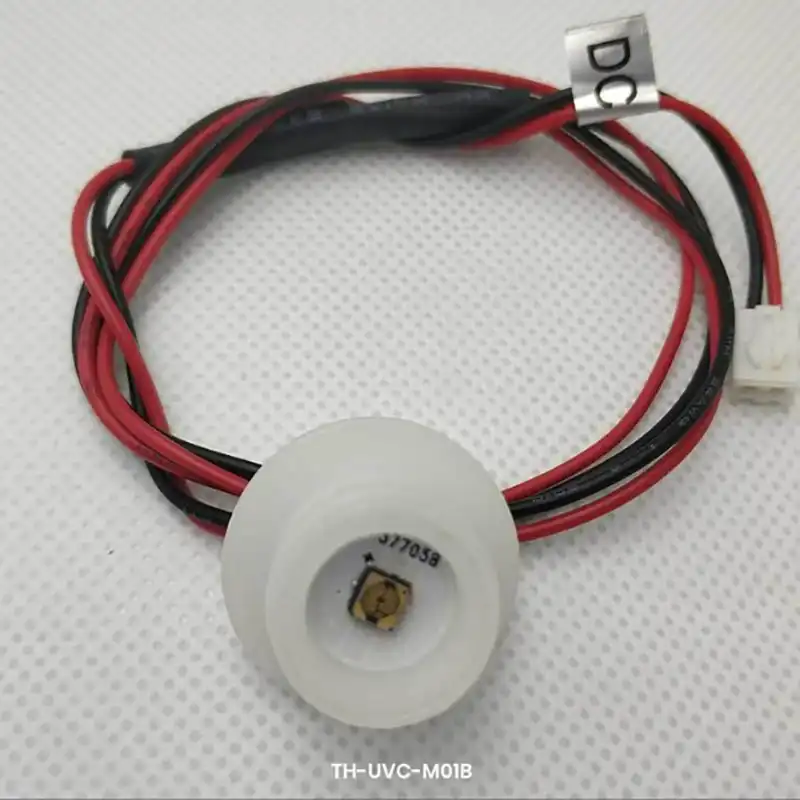

UVC-M01B is a small UVC light for water treatment module that can be used by equipment manufacturers, OEM projects, and compact water purifier projects.

This product utilizes the UVC wavelength with 260-280nm and 4-6mW radiant power. The current of the module is 20-40mA, and the power is 0.2-0.4W. As it can be seen from the above-mentioned features, the low power design is what makes UVC-M01B ideal for compact solutions, small water ways, point-of-use equipment and so forth.

The module supports DC12V/DC24V or customized voltage. As far as its design is concerned, this product has 500±10mm wire length or customized wire length if necessary. The standard connector of this product is XH2.54 in white color and the connector is also custom-made if necessary for different OEM water treatment devices.

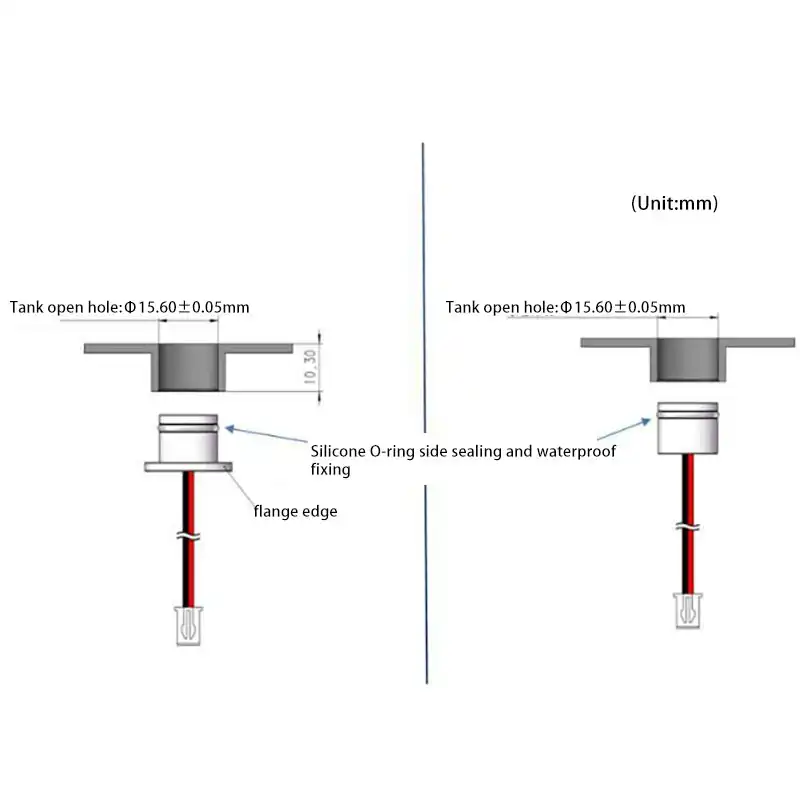

The size of the module is φ23.1 x 12.3mm, and it has 15.6±0.05mm open hole and 8g net weight. Such a compact design allows equipment manufacturers to use the UV light for water treatment in small equipment, dispenser modules, water purifier modules, bathroom water devices and other low-space devices.

Its waterproof grade is IP65, and the light-emitting surface grade is IP68. The above-mentioned design specifications help integrate the product in protected water treatment devices where the UVC light source should work in a designed enclosure or water contact structure. Its LED lifespan is 10000-25000 hours depending on working conditions and product design.

UVC-M01B also complies with dielectric strength requirements of DC500V, 1min@10mA, leakage current. The working temperature of the product is -25℃ to 40℃, and its storage temperature is -40℃ to 85℃.

The UV light for water treatment is not a complete water purifier, filter cartridge or full UV reactor. This is a small 260-280nm UVC LED module for integration in water treatment equipment. UVC-M01B cannot remove sediment, chlorine, heavy metals, scale and other dissolved chemicals. In case if the water has particles, turbidity and suspended solids, filtration is required before UV disinfection.

For the buyers who develop point-of-use water purifiers, compact water sterilization devices, dispenser water ways, bathroom water systems or OEM UV water treatment products, the UV light for water treatment offers small 260-280nm UVC LED module with DC12V/DC24V, 4-6mW radiant power, waterproof design, customizable connector and OEM service options.

Specifications

Model NO.: UVC-M01B UV Light for Water Treatment
Open Hole: 15.6±0.05mm UV Light for Water Treatment
Voltage: DC12V/DC24V or customized
Radiant Power: 4-6mW
Wavelength: 260-280nm
Current: 20-40mA
Power: 0.2-0.4W
Waterproof: IP65
Light-Emitting Surface: IP68
Wire Length: 500±10mm or customized
Connector: XH2.54, white or customized
LED Lifespan: 10000-25000 hours
Dielectric Strength: DC500V, 1min@10mA, leakage current
Size: φ23.1 x 12.3mm
Net Weight: 8g
Working Temperature: -25℃-40℃
Storage Temperature: -40℃-85℃
OEM&OEM Service
Samples: Available

FAQ

1. What is the UVC-M01B used for?

The UVC-M01B is a small UV light for water treatment module designed for water purifier integration, point-of-use devices and OEM water treatment equipment.

2. Is this a complete water treatment system?

No. It is a UVC LED module, not a complete water purifier, filter cartridge or full UV reactor.

3. What wavelength does it use?

The module uses a 260-280nm UVC wavelength.

4. What is the radiant power?

The radiant power is 4-6mW.

5. What voltage does the module support?

It supports DC12V/DC24V or customized voltage.

6. What is the current range?

The current is 20-40mA.

7. What is the power rating?

The power is 0.2-0.4W.

8. What is the waterproof rating?

The module is IP65, and the light-emitting surface is IP68.

9. What is the standard wire length?

The standard wire length is 500±10mm, and customized wire length is available.

10. What connector is used?

The standard connector is XH2.54 in white, and the connector is also customizable.

11. What is the LED lifespan?

The LED lifespan is 10000-25000 hours.

12. What is the size of the module?

The size is φ23.1 x 12.3mm.

13. What is the net weight?

The net weight is 8g.

14. Does UV light for water treatment replace filtration?

No. UV disinfection is mainly used for microbial control. It does not remove sediment, chlorine, heavy metals, scale or dissolved chemicals. If the water has particles or turbidity, filtration is required before UV treatment.
