LED uv water filter system for home
Product Description

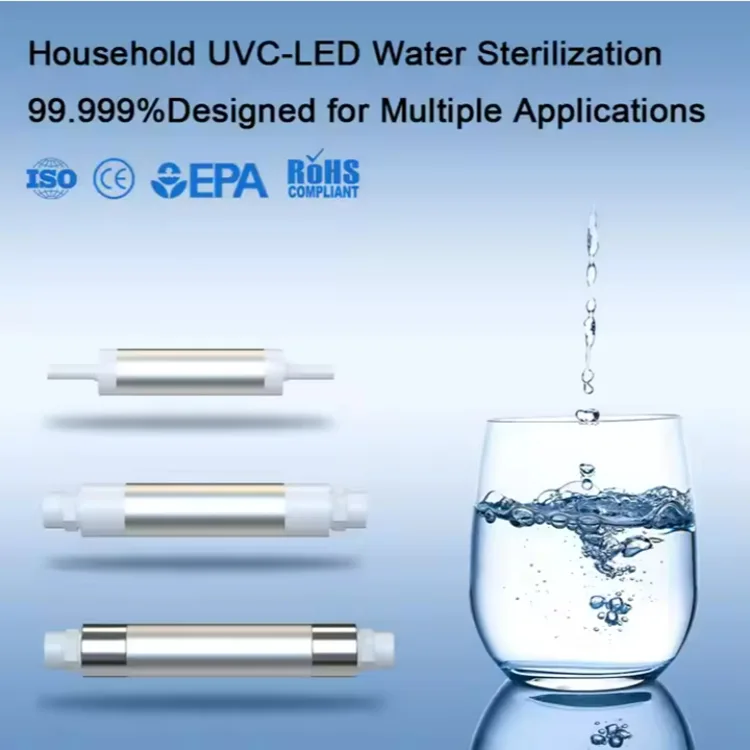

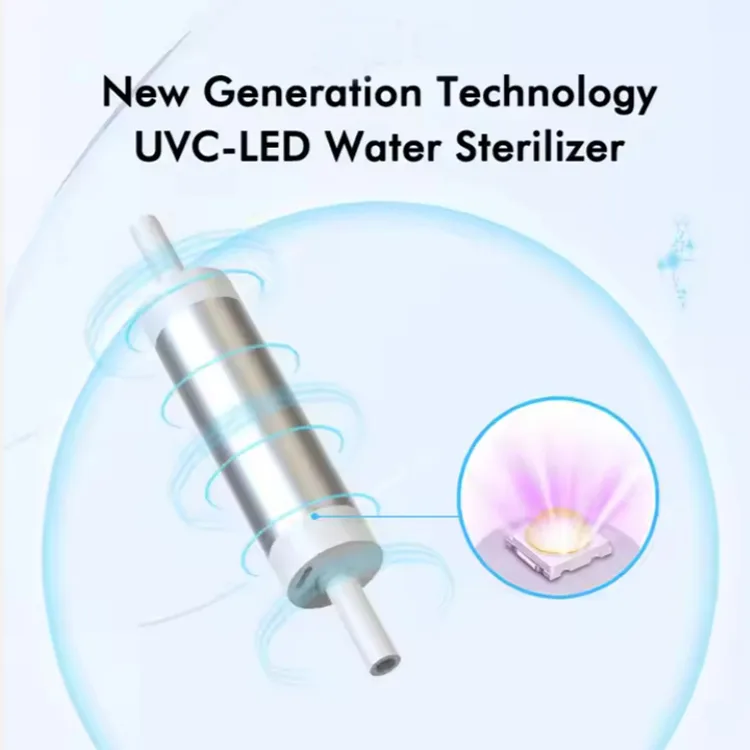

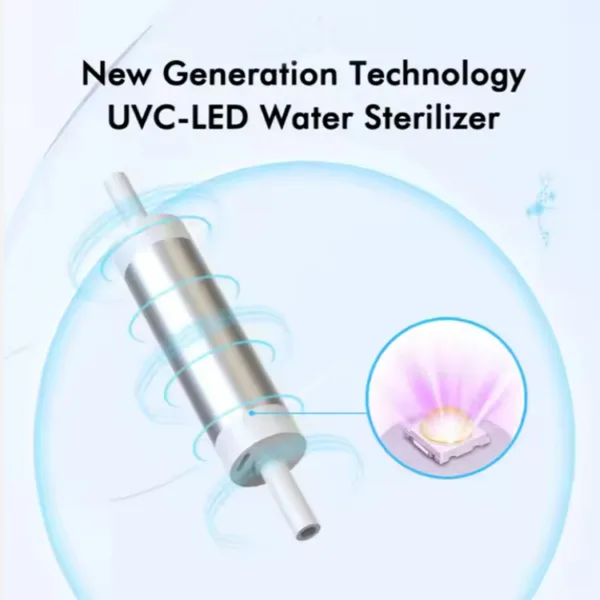

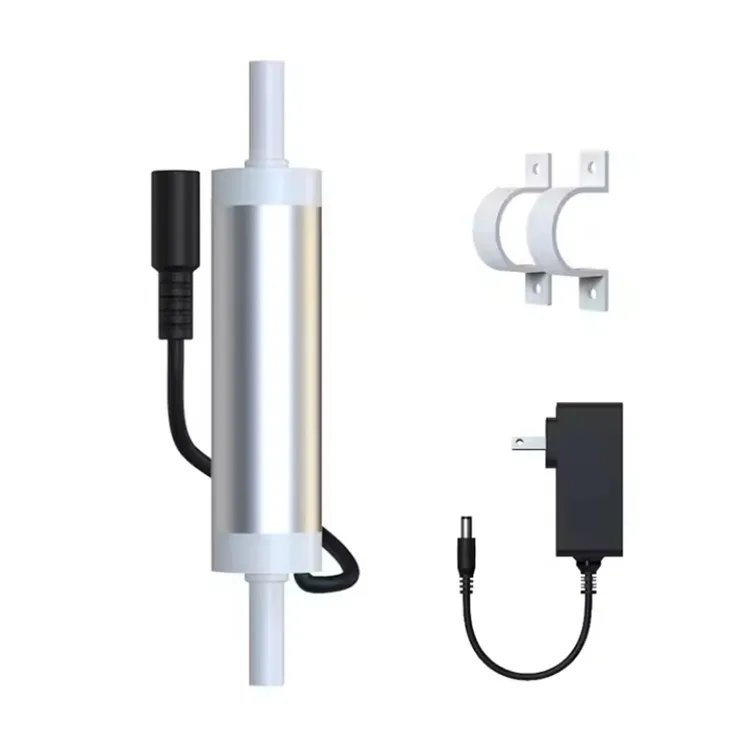

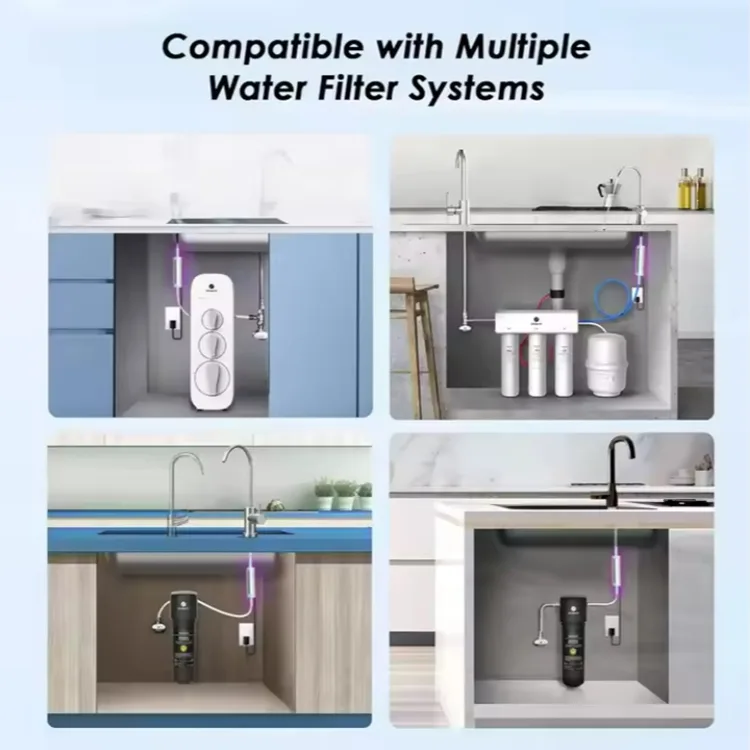

The yoyouv HC-MKDCY-20A-113a is a compact UVC Water Sterilizer designed for small UV water filter system applications. It is suitable for point-of-use water equipment, home water lines, bathroom devices, toilet water systems, RV water paths, yacht circuits and customized OEM ODM water treatment products.

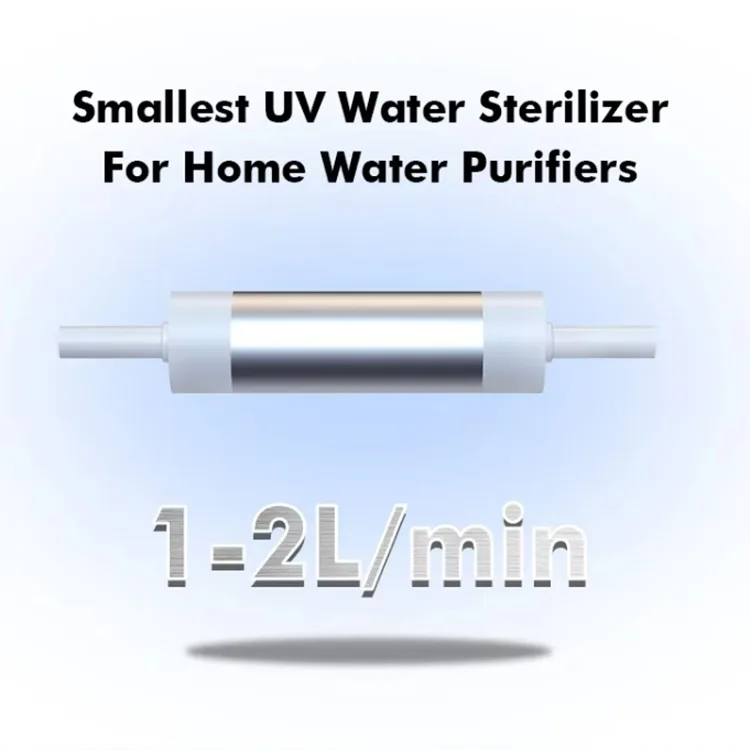

This model is built with Aluminum + ABS material. The size is 22*130mm, allowing the sterilizer to fit into limited installation spaces where a larger UV reactor is not practical. Its compact form is useful for small water purifier outlets, low-flow sterilization modules and integrated UV disinfection assemblies.
The water flow rate is 1.5 LPM. This makes the product suitable for controlled low-flow water sterilization rather than high-flow whole-house systems. For buyers developing a UV water filter system, this model can work as a microbial disinfection part inside a compact water path.

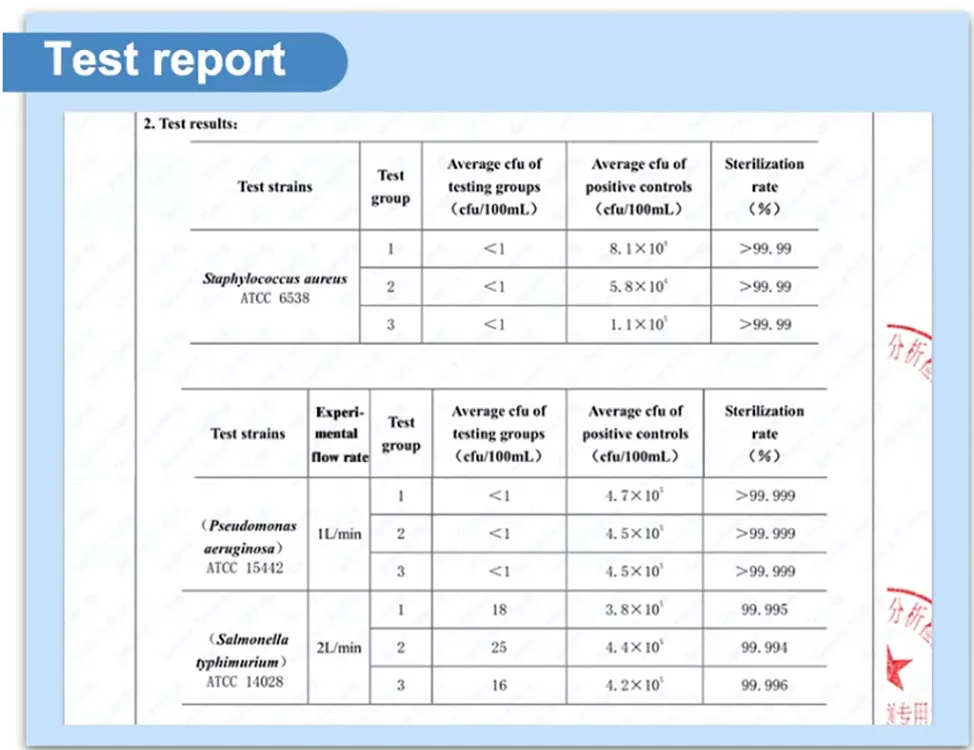

The unit is specified with a 99.999% disinfection rate. Its function is water sterilization, with removal of 99.9% bacteria and virus from the water. This makes the HC-MKDCY-20A-113a suitable for applications where UV disinfection is required after water has passed through the main filtration stage.
The voltage/power specification is 12V/24, 3W. This low-power structure is practical for electronic water purifiers, mobile water equipment, RV water systems, yacht water lines and factory OEM ODM integration. It helps manufacturers build a UV water filter system that is compact, low-consumption and easier to install.
Although customers may search for a UV water filter system, this product should be described accurately as a UVC water sterilizer. It is not a sediment filter, carbon filter, water softener or reverse osmosis system. It does not remove sand, rust, chlorine, heavy metals, hardness, scale or dissolved chemicals.

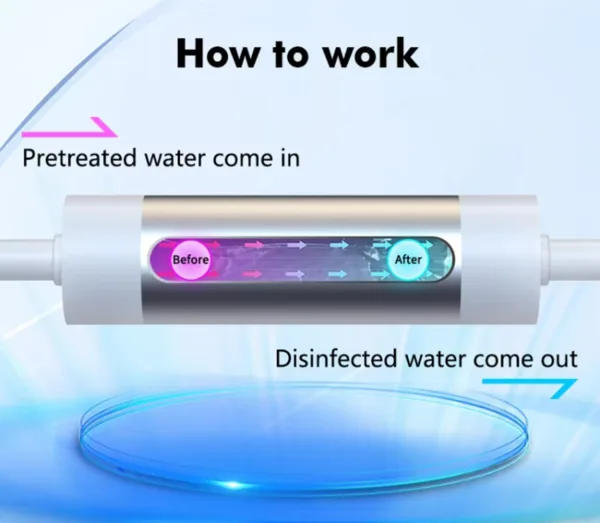

If the source water contains particles, suspended solids or turbidity, suitable pre-filtration should be used before UV sterilization. Clearer water helps UV light reach microorganisms more effectively and supports better disinfection performance.

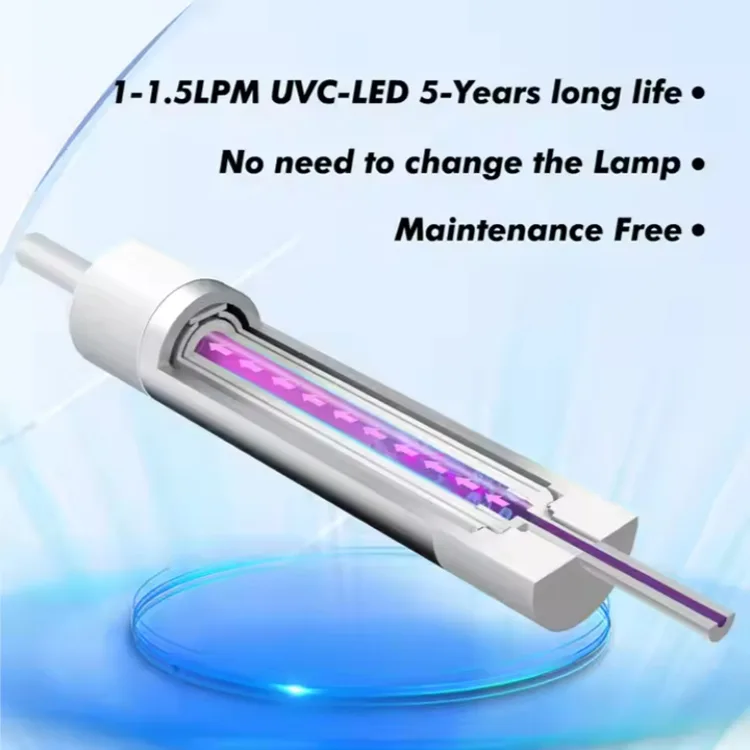

The HC-MKDCY-20A-113a is specified with no maintenance and a use life of 5-8 years. The product is patented, samples are available, and factory OEM ODM service is supported for customers who need a customized UV water filter system component.
For customers searching for a UV water filter system with 1.5 LPM flow, 12V/24, 3W power, Aluminum + ABS material, 22*130mm size, 99.999% disinfection rate, no maintenance and 5-8 years use life, the yoyouv HC-MKDCY-20A-113a provides a compact UVC sterilization solution for home, bathroom, toilet, RV and yacht water applications.
Specifications
Product Name: UVC Water Sterilizer
Model No.: HC-MKDCY-20A-113a
Material: Aluminum + ABS
Voltage/Power: 12V/24, 3W
Water Flow Rates: 1.5 LPM
Disinfection Rate: 99.999%
Maintenance: No
Use Life: 5-8 years
Function: Water Sterilization, Remove 99.9% bacteria & virus from the water
Size: 22*130mm
Usage: Home, Bathroom, Toilet, RV, Yachts
Brand: yoyouv
Patent: Yes
Sample: Available
Factory OEM ODM Service: Available
FAQ
1. What is the yoyouv HC-MKDCY-20A-113a used for?
The yoyouv HC-MKDCY-20A-113a is a compact UVC water sterilizer for small UV water filter system applications and point-of-use water equipment.
2. Is this a complete UV water filter system?
No. It is a UVC water sterilizer that can be integrated into a UV water filter system, but it is not a complete multi-stage filtration system.
3. What is the water flow rate?
The water flow rate is 1.5 LPM.
4. What is the voltage and power?
The voltage/power specification is 12V/24, 3W.
5. What is the disinfection rate?
The disinfection rate is 99.999%.
6. What bacteria and virus removal rate is specified?
The product is specified to remove 99.9% bacteria and virus from the water.
7. What material is used?
The material is Aluminum + ABS.
8. What is the product size?
The size is 22*130mm.
9. Does this UVC water sterilizer require maintenance?
No. The product is specified with no maintenance.
10. What is the use life?
The use life is 5-8 years.
11. Where can this product be used?
It can be used in home, bathroom, toilet, RV and yacht water systems.
12. Does it remove sediment, chlorine or heavy metals?
No. UV sterilization is mainly for microbial control. It does not remove sediment, chlorine, heavy metals, hardness, scale or dissolved chemicals.
13. Is pre-filtration recommended?
Yes. If the water contains particles, suspended solids or turbidity, pre-filtration is recommended before UV sterilization.
14. Is the product patented?
Yes. The product is patented.
15. Are samples and factory OEM ODM service available?
Yes. Samples are available, and factory OEM ODM service is supported.
