water filter UV light module
Product Description
The UVC-D01 is a compact water filter UV light module designed for water purifier manufacturers, OEM/ODM projects, and small water treatment equipment. It provides a 260-280nm UVC LED light source in a waterproof structure for integration into controlled water disinfection designs.
This module is suitable for manufacturers that need a small UV component rather than a complete water filter system. The water filter UV light can be used in water purifier devices, dispenser water paths, compact sterilization units, under-sink equipment, and customized water treatment modules.
The UVC-D01 supports DC12V or DC24V input, or customized voltage according to project requirements. The standard current is 20-40mA, with maximum current up to 150mA. Standard power is 0.2-0.4W, with maximum power up to 1W. This makes the module suitable for compact systems where low power consumption and flexible electrical design are important.
The radiant power is 4-6mW, with a maximum option of 50mW. The wavelength is 260-280nm, a UVC range widely used for microbial control in water disinfection applications. As a water filter UV light component, it should be designed into a suitable water path, chamber, or equipment structure to achieve the required UV exposure.

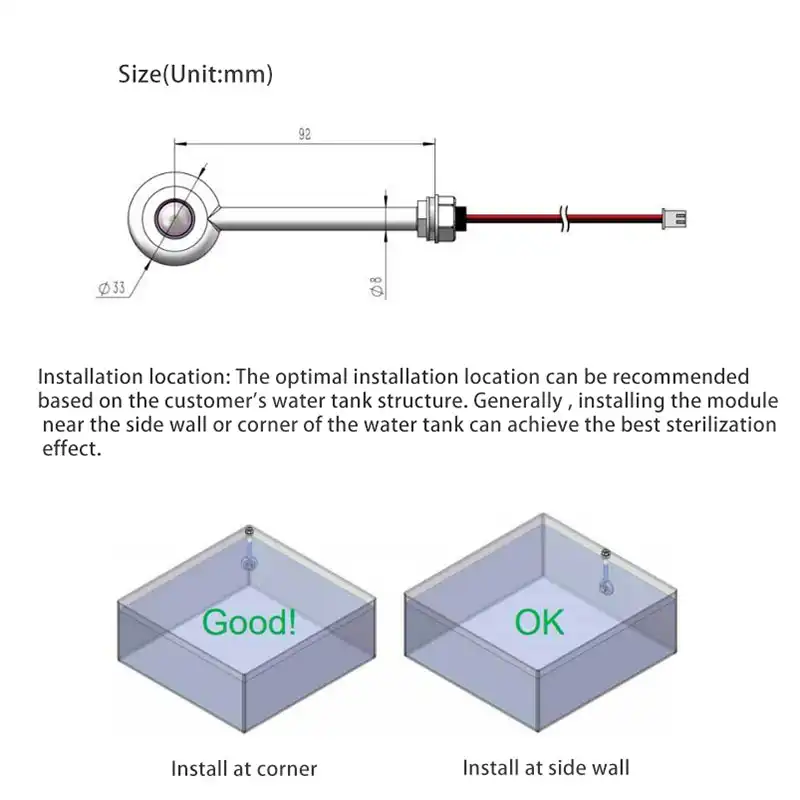

The module has an IP68 waterproof rating. Its size is Φ33 x 92mm, and the net weight is 20g. The open hole is 9.5±0.1mm with a smooth circular hole design, helping manufacturers build a stable mounting structure in compact equipment.
For wiring, the standard wire length is 500±10mm, and customized wire length is available. The standard connector is XH2.54 in white, and customized connector options are available for different control boards and assembly layouts. The LED lifespan is 10000-25000 hours, depending on working conditions and system design.
The UVC-D01 also meets insulation voltage requirements of DC500V, 1min@10mA, leakage current. The working temperature range is -25℃ to 40℃, and the storage temperature range is -40℃ to 85℃.
This water filter UV light is not a filter cartridge, reverse osmosis system, carbon filter, or complete UV reactor. It does not remove sediment, chlorine, heavy metals, scale, or dissolved chemicals. It is a UVC LED module for integration into water disinfection equipment. If the water contains particles, turbidity, or suspended solids, suitable filtration should be used before UV disinfection.
For buyers developing compact water purifiers, under-sink water devices, UV sterilization chambers, dispenser modules, or custom water treatment equipment, the UVC-D01 water filter UV light offers a compact 260-280nm UVC LED solution with IP68 waterproof protection, DC12V/DC24V support, customizable wire and connector options, OEM ODM service, and sample availability.
Specifications
Model NO.: UVC-D01
Open Hole: 9.5±0.1mm, smooth circular hole
Voltage: DC12V or DC24V or customized
Radiant Power: 4-6mW, max 50mW
Wavelength: 260-280nm
Current: 20-40mA, max 150mA
Power: 0.2-0.4W, max 1W
Waterproof: IP68
Wire Length: 500±10mm or customized
Connector: XH2.54, white or customized
LED Lifespan: 10000-25000 hours
Insulation Voltage: DC500V, 1min@10mA, leakage current
Size: Φ33 x 92mm
Net Weight: 20g
Working Temperature: -25℃-40℃
Storage Temperature: -40℃-85℃
OEM ODM Service: Available
Samples: Available
FAQ
1. What is the UVC-D01 used for?
The UVC-D01 is a compact water filter UV light module for water purifier integration, UV sterilization equipment, and OEM/ODM water treatment devices.
2. Is this a complete water filter?
No. It is a UVC LED module, not a complete water filter, filter cartridge, RO system, or full UV reactor.
3. What wavelength does the module use?
The module uses a 260-280nm UVC wavelength.
4. What is the radiant power?
The standard radiant power is 4-6mW, with a maximum option of 50mW.
5. What voltage does it support?
It supports DC12V or DC24V, and customized voltage is available.
6. What is the current range?
The standard current is 20-40mA, with maximum current up to 150mA.
7. What is the power rating?
The standard power is 0.2-0.4W, with maximum power up to 1W.
8. What is the waterproof rating?
The module is rated IP68.
9. What is the open hole size?
The open hole is 9.5±0.1mm with a smooth circular hole design.
10. What wire length is provided?
The standard wire length is 500±10mm, and customized wire length is available.
11. What connector is used?
The standard connector is XH2.54 in white, and customized connector options are available.
12. What is the LED lifespan?
The LED lifespan is 10000-25000 hours.
13. What is the module size and weight?
The size is Φ33 x 92mm, and the net weight is 20g.
14. Does this water filter UV light remove chemicals or sediment?
No. UV disinfection is mainly for microbial control. It does not remove sediment, chlorine, heavy metals, scale, or dissolved chemicals.
15. Are OEM ODM service and samples available?
Yes. OEM ODM service and samples are available.
