uv diode led Seoul Viosys 395nm CUN96B1B
Product Details Description
The Seoul Viosys CUN96B1B is a high power uv diode led which is specially designed for professional UV-A applications that demand small size, high output, and directional beam profile. With a 395nm wavelength, 3.5V voltage, 500mA current, 1250mW radiant power, and 45° view angle, it is ideal for manufacturers to make UV curing devices, printers, coating machines, UV flashlights, and UV inspection lamps.

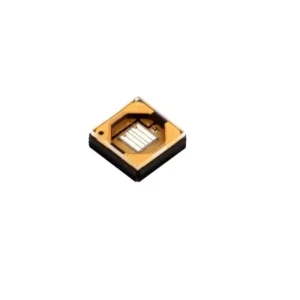

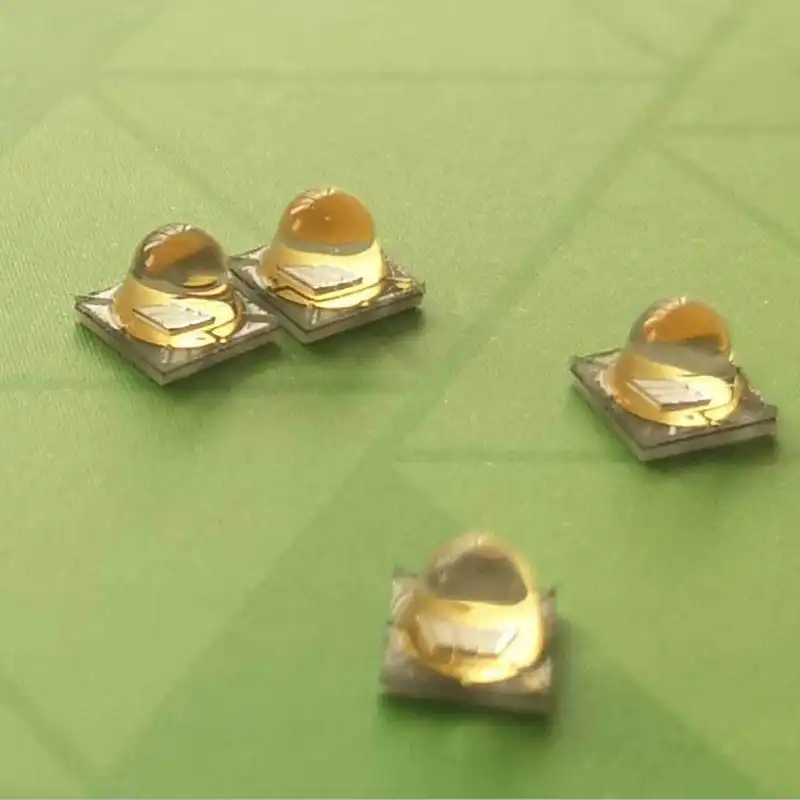

The CUN96B1B uv diode led belongs to Seoul Viosys nZ5 near-UV LED family. It is made for high current operation and high output with advanced SMD structure and low thermal resistance materials. The compact size (3.5 x 3.5 x 2.8mm) allows the engineer to develop high-output UV modules without large lamp structures.
395nm is one of the most common wavelengths for UV curing, printing, coating, adhesive applications, counterfeit detection, security inspection, UV torches, fluorescence photography, dental curing, crime inspection, and oil leak detection. As 395nm is within the UVA / near-UV wavelength, the uv diode led is not designed for UVC sterilization or germicidal application.
The 45° view angle offers a narrower and more directional output compared to the wide-angle UV emitters. It is helpful for applications where UV energy should focus on the limited work surface like spot curing, resin curing, adhesive bonding, coating inspection, document checking, forensic inspection, and leak detection. The final performance would depend on current control, optical design, lens or reflector selection, working distance, target material, and thermal structure.

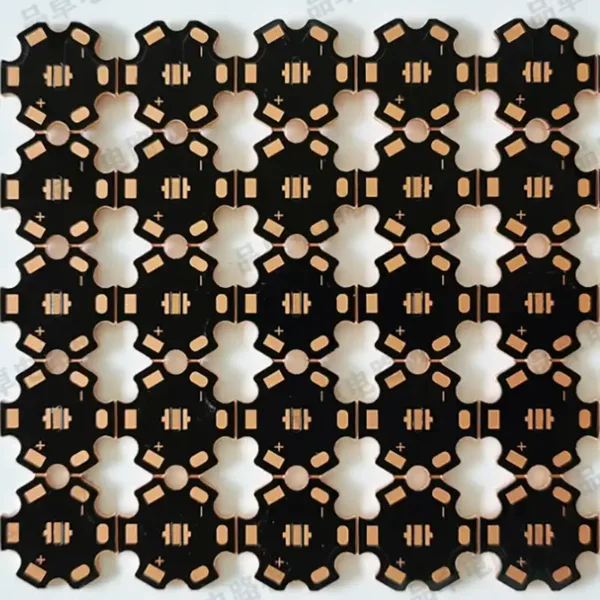

For OEM or ODM projects, the CUN96B1B can be mounted on 12mm, 14mm, 16mm, 20mm, or other aluminum or copper PCB boards. The aluminum PCB can be adopted for most of the cost-effective UV module development. If more thermal conductivity is needed, copper PCB will be an alternative. The LED can be provided as a component or UV flashlight modules, curing modules, inspection lights, and customized UV LED modules.
Thermal management is important for high-power UV LEDs products. In order to ensure a stable output and long service life, this uv diode led should be worked together with a suitable constant-current driver, right soldering method, appropriate PCB material, and sufficient heat dissipation structure. The engineers should do the temperature, radiant output, and optical performance verification in the final product before mass production.
This product is a UV LED component and not a lamp. The completed device should include a suitable driver, PCB, heat sink, housing, lens, wire, switch, and safety structure. Protective eyewear and shielding are recommended for industrial, dental, curing, and inspection application.
Do not look directly at the operating LED and avoid exposing skin and eyes to unnecessary UV exposure. Follow the safe handling procedure during testing, assembly, and application.

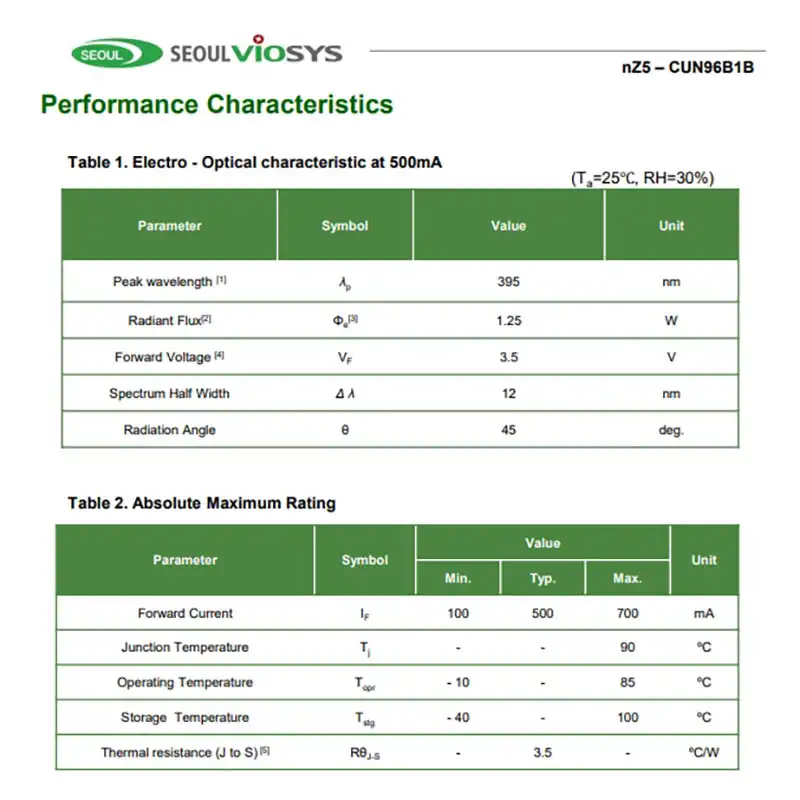

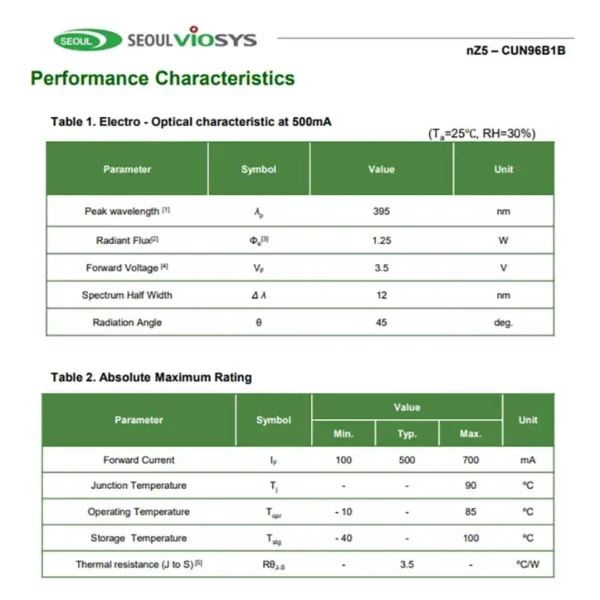

Specifications
Brand: Seoul Viosys
Model NO.: CUN96B1B

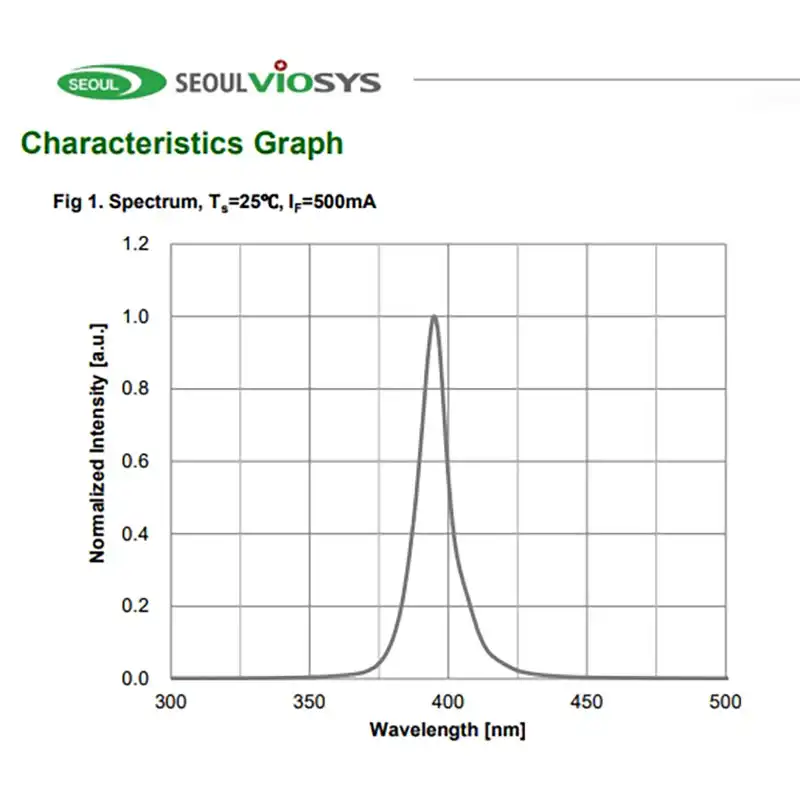

Wavelength: 395nm

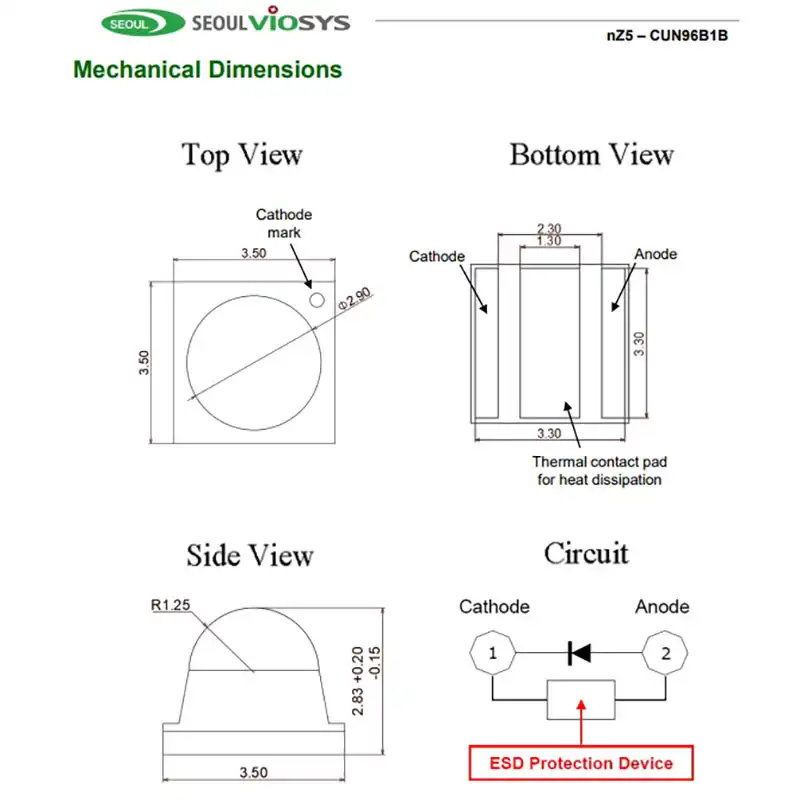

Size: 3.5 x 3.5 x 2.8mm
Voltage: 3.5V
Current: 500mA
Radiant Power: 1250mW
View Angle: 45°
PCB Options: Can be welded on 12mm, 14mm, 16mm, 20mm, or other aluminum or copper PCB board
Service: OEM ODM service for UV flashlight or other UV LED module
Features & Advantages
High power output
Designed for high current operation
Narrow view angle
Low thermal resistance
SMT type
Lead free product
RoHS compliant
Typical Applications
UV Curing
Printing
Coating
Adhesive
Counterfeit Detection / Security
UV Torch
Fluorescence Photography
Dental Curing
Crime Inspection
Oil Leak Detection
FAQ
What is this uv diode led used for?
This uv diode led is used for UV curing, printing, coating, adhesive curing, counterfeit detection, security inspection, UV torch design, fluorescence photography, dental curing, crime inspection, and oil leak detection.
Is CUN96B1B a Seoul Viosys UV LED?
Yes. CUN96B1B is a Seoul Viosys high power 395nm UV-A LED in a compact SMD package.
What wavelength does this LED use?
The CUN96B1B uses 395nm wavelength, which belongs to UVA / near-UV range.
What is the radiant power?
The radiant power is 1250mW at 500mA.
What is the forward voltage?
The forward voltage is 3.5V.
What is the view angle?
The view angle is 45°, which offers a narrow and directed UV output for curing, inspection, and UV torch application.
Can this LED be mounted on a PCB board?
Yes. It can be welded on 12mm, 14mm, 16mm, 20mm, or other aluminum or copper PCB boards according to the project design.
Do you provide OEM or ODM UV LED modules?
Yes. OEM and ODM service is available for UV flashlight modules, UV curing modules, inspection lights, and customized UV LED assemblies.
Is this UV diode LED suitable for curing?
Yes. It is suitable for UV curing, adhesive curing, printing, coating, dental curing, and related UV-A applications if the material works with 395nm.
Can it be used for UV flashlights?
Yes. Its 395nm wavelength, 1250mW radiant power, and 45° beam angle make it suitable for UV flashlight and UV torch design.
Is this LED suitable for sterilization?
No. This is a 395nm UVA LED, not a UVC sterilization LED. It should not be used or promoted for disinfection or germicidal application.
Is it safe to look directly at the LED?
No. Do not look directly at the operating UV LED. Use protective eyewear, shielding, and safe working procedures during testing, assembly, and operation.
