365nm 60W UV Curing Lights Hand Lamp

The Yoyo-uvgun365-60W is 365nm 60W hand lamp which is perfect choice for those who need portable UV curing lights for their UV curing purposes like industrial curing, repairing, inspection and on-site processing. These UV curing lights can be used for curing of various UV adhesives, resins, ink, coatings, repairing, prototypes finishing, and other UV sensitive materials.

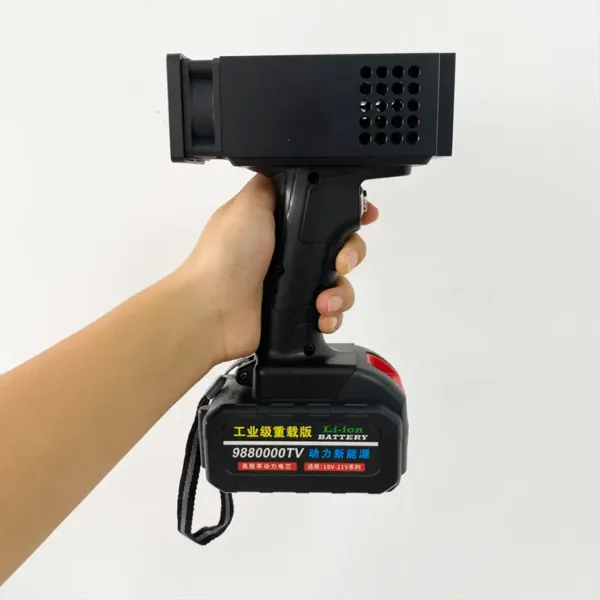

Compared to the stationary curing stations, this model provides more mobility for its users and easy access to irregular parts, repairing zones, bonding zones, molds, and coated parts. The handheld design of this model makes it the best choice for small batch productions, maintenance, lab tests, mobile repairing and assembly operations.

These UV curing lights utilize high-power UV LED light source with 365nm wavelength, 60W power, and 6000mW/cm² irradiance rating. The 365nm UVA wavelength is suitable for various UV curing materials and fluorescence based inspections. The irradiance area of these lamps is 40 x 40mm which allows having focused exposure for UV curing.

The working distance information helps users to set up proper distance for their UV curing process. The curing diameter at 10cm distance is approximately ø16cm. The minimum irradiance and center irradiance of these lamps is 100mW/cm² and 500mW/cm² respectively. This distance is suitable for strong local UV curing. At 56cm distance, the curing diameter is approximately ø60cm and the minimum irradiance and center irradiance are 14mW/cm² and 20mW/cm² respectively. This distance is suitable for wide exposure area.

These lamps are powered by 21V Li-ion battery with 4000mA capacity. They have AC100-240V 50-60Hz charging voltage and the charging time is 2.5 hours. In the package, there are 1 UV gun, 1 charger, and 1 battery making these products suitable for cordless operation after charging.

For cooling these units fan cooling is utilized. The operating temperature range is -10 °C to +40 °C. The LED lifespan is more than 20,000 hours. The size of these products is 230 x 145 x 50mm with the gross weight of 1.8KG and 2-year warranty.

These UV curing lights are also capable to support NDT fluorescence inspection, oil leak detection, coolant leak detection, counterfeit document check, gemstone inspection, mineral detection, and laboratory UVA exposure. Buyers who are looking for 365nm UV curing lights with high irradiance, rechargeable battery operation, fan cooling and convenient handheld control, yoyo-uvgun365-60W is professional choice.

Specifications

Model No.: yoyo-uvgun365-60W

Brand: yoyo-uv

Product Type: Hand Lamp

Light Source: High power UV LED

Power: 60W

Charging Voltage: AC100-240V 50-60Hz

Battery Type: Li-ion

Battery Voltage: 21V

Current: 2.85A

Irradiance Area: 40 x 40mm

Irradiance: 6000mW/cm²

Charging Time: 2.5H

Wavelength: 365nm

Battery Capacity: 4000mA

Cooling Method: Fan

Lifespan: >20,000 hours

Size: 230 x 145 x 50mm

Gross Weight: 1.8KG

Warranty: 2 years

Operating Temperature: -10 °C to +40 °C

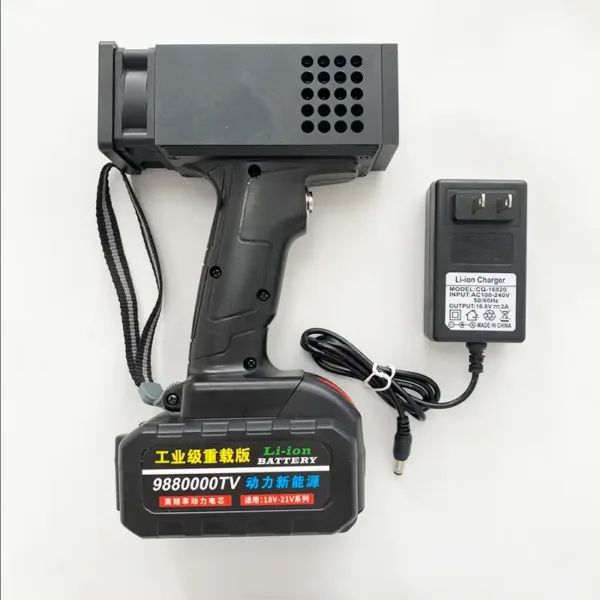

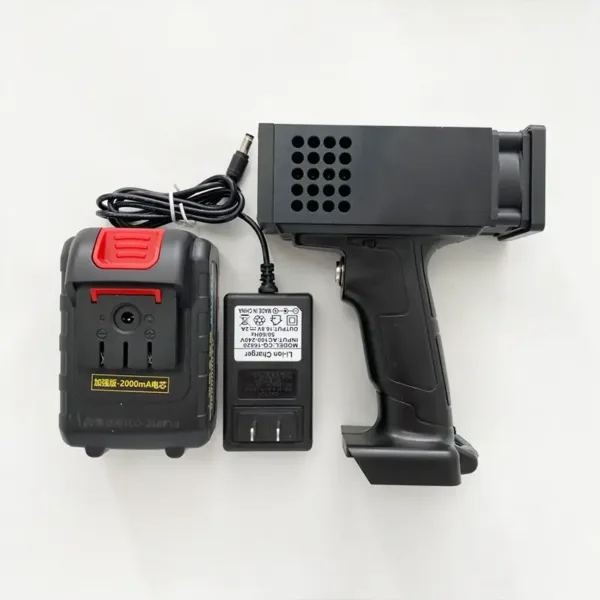

Package Includes: 1 x UV gun, 1 x charger, 1 x battery

Curing Diameter at 56cm: ø60cm

Minimum Irradiance at 56cm: 14mW/cm²

Center Irradiance at 56cm: 20mW/cm²

Curing Diameter at 10cm: ø16cm

Minimum Irradiance at 10cm: 100mW/cm²

Center Irradiance at 10cm: 500mW/cm²

FAQ

1. What are these UV curing lights used for?

These UV curing lights are used for UV adhesive curing, resin curing, ink curing, coating repair, field maintenance, NDT fluorescence inspection, leak detection, and UV activation work.

2. What wavelength does this model use?

This model uses 365nm UVA wavelength that is commonly used for UV curing and fluorescence inspection applications.

3. What is the rated irradiance?

Rated irradiance is 6000mW/cm² and the irradiance area is 40 x 40mm.

4. What is the curing performance at 10cm?

At 10cm, the curing diameter is approximately ø16cm. The minimum irradiance is 100mW/cm² and the center irradiance is 500mW/cm².

5. What is the curing performance at 56cm?

At 56cm, the curing diameter is approximately ø60cm. The minimum irradiance is 14mW/cm² and the center irradiance is 20mW/cm².

6. Are these UV curing lights rechargeable?

Yes. The lamp uses 21V Li-ion battery with 4000mA capacity. The package includes one battery and one charger.

7. How long does charging take?

Charging time is about 2.5 hours with AC100-240V 50-60Hz charging voltage.

8. Does this model use fan cooling?

Yes. The unit uses fan cooling for providing stable operation during curing and inspection work.

9. What is included in the package?

The package includes 1 x UV gun, 1 x charger, and 1 x battery.

10. Are these UV curing lights suitable for industrial use?

Yes. With 60W power, 365nm wavelength, 6000mW/cm² irradiance, fan cooling, and battery powered operation, this model is suitable for industrial curing, repairing, and inspection applications.
