best Seoul Viosys 275nm LED CUD7GF1B uv led for Chemical and Biological analysis

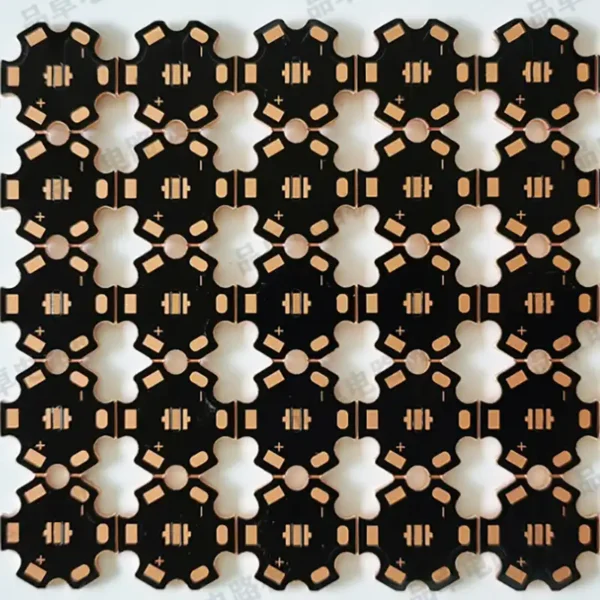

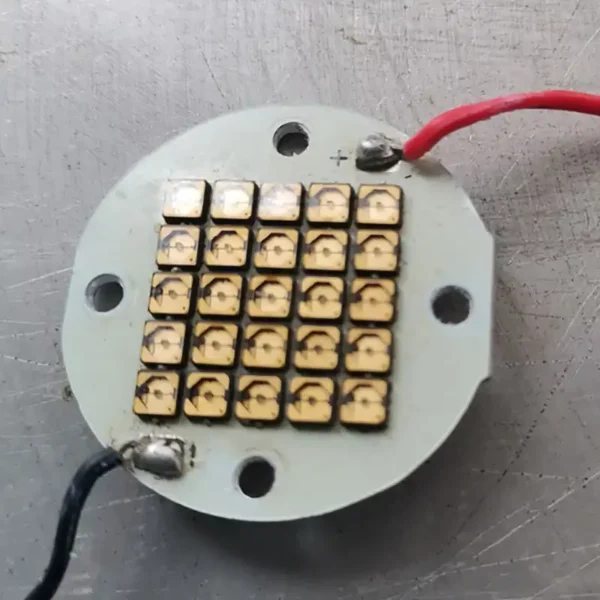

Seoul Viosys 275nm LED  CUD7GF1B Ultraviolet UVC LED emitter customizeable led module with 3W 5W

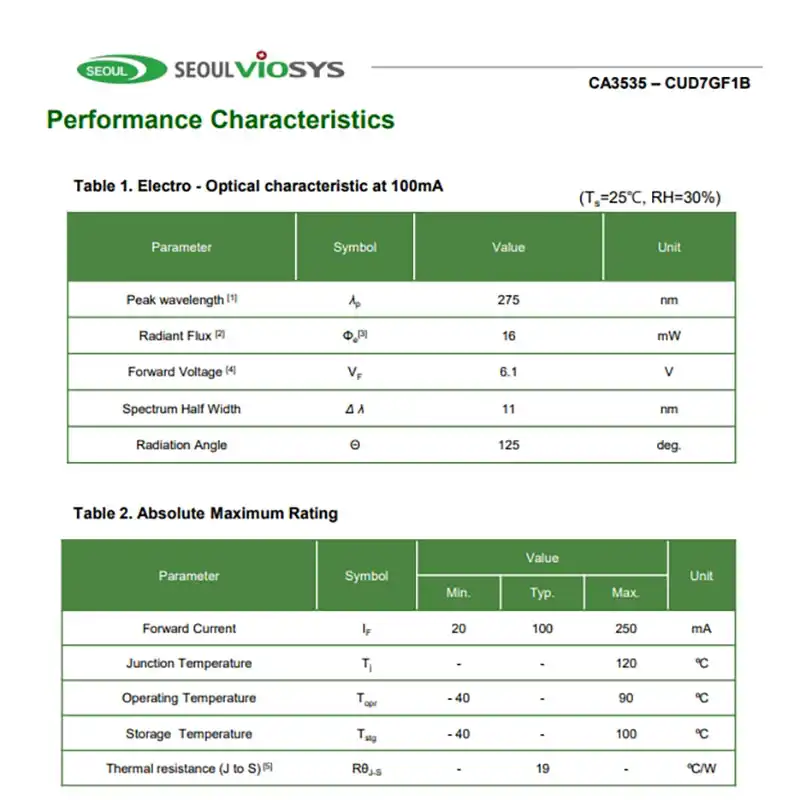

Specification:

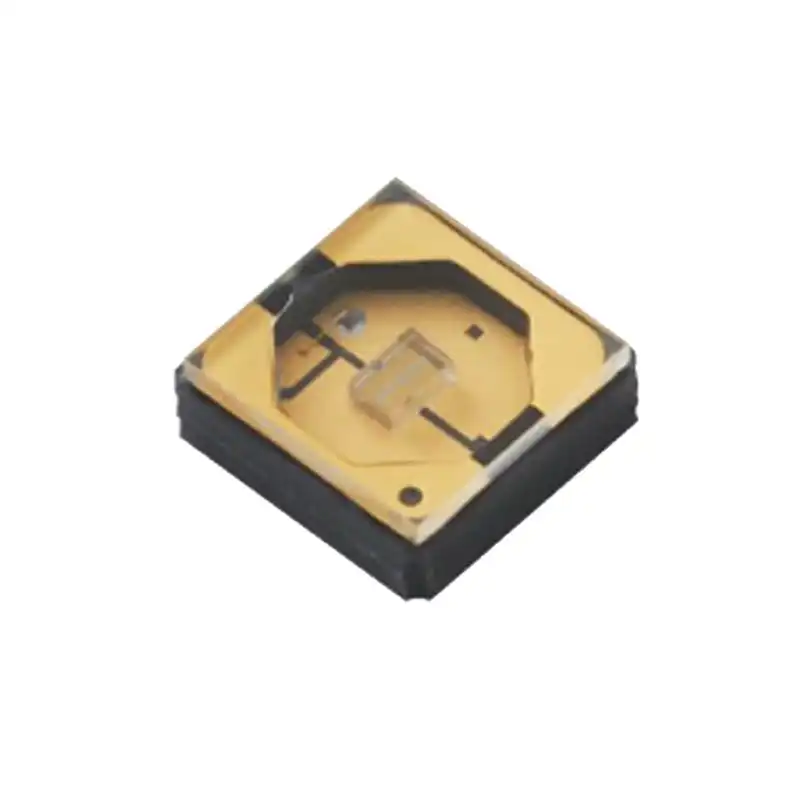

Model NO.: CUD7GF1B

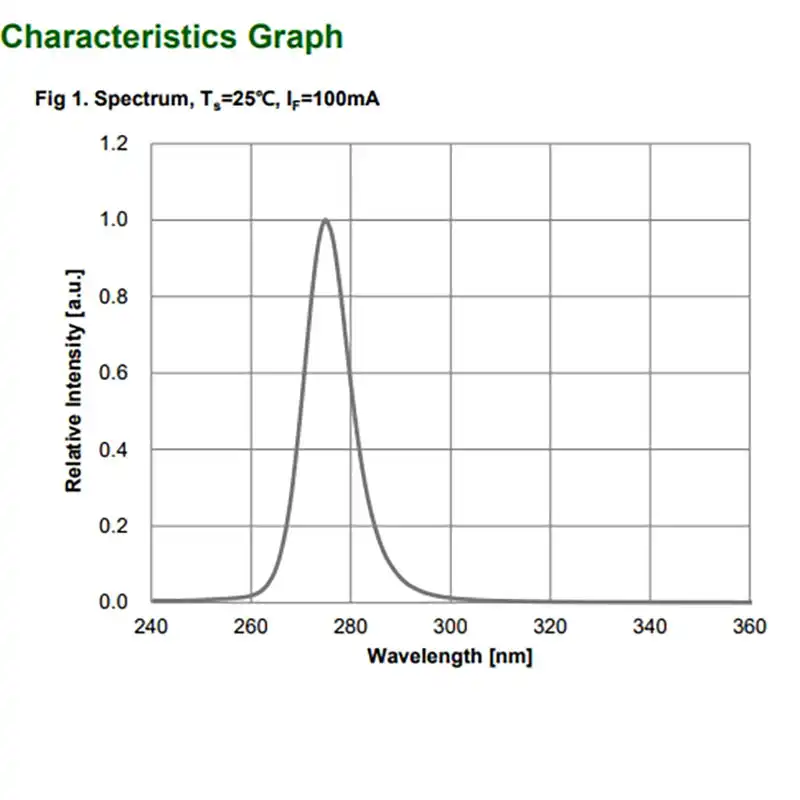

1. Wavelength: 275nm

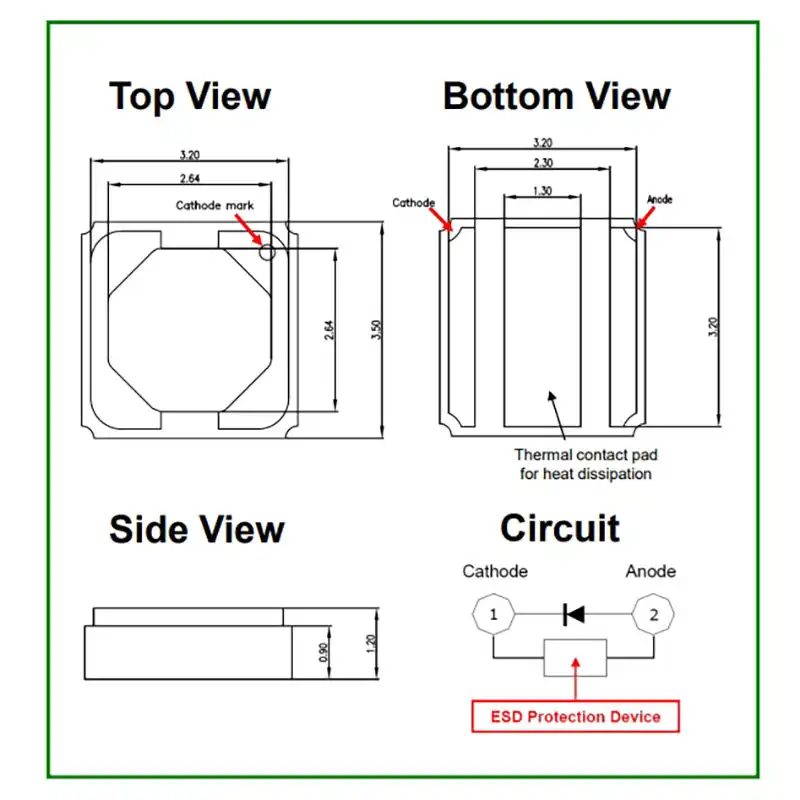

2. Size:3.5×3.5mm
3. Power:1W
4. Voltage:6.1V
5. Current:100-250ma
6. Radiant Power:16mW
7. View angle:125 degree

Description:

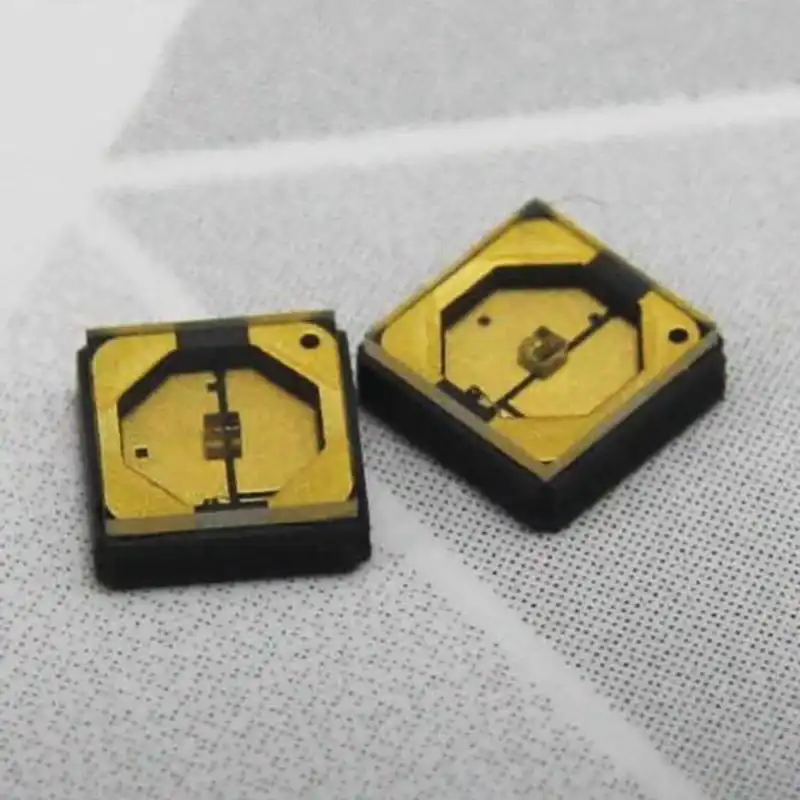

CUD7GF1B is a deep ultraviolet light emitting diode with peak emission wavelengths from 270nm to 278nm. The LED is sealed in Ceramic packages including an optical transparent window. It incorporates state of the art SMD design and low thermal resistance. CUD7GF1B is designed for air and water sterilization and tools including chemical and biological analysis in that spectral range

Features and Benefits

• Deep ultraviolet LED
• Low thermal resistance
• SMT solderable
• Lead Free product
• RoHS compliant

Key applications:

• Disinfection
• Fluorescent spectroscopy
• Chemical and Biological analysis
• Automotive Interior
